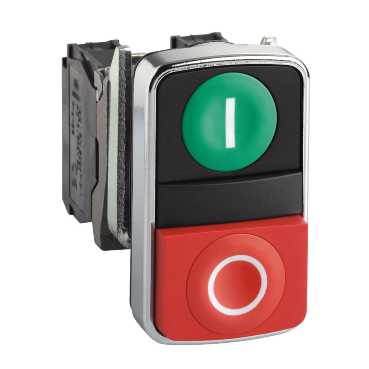

XB4BL73415
- TEKLİF ALINIZ
- ( Karşılaştır )
Dimensions
Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)
Connection by Screw Clamp Terminals or Plug-in Connectors or on Printed Circuit Board | Connection by Faston Connectors |
|
|
(1)Diameter on finished panel or support(2)40 mm min. / 1.57 in. min.(3)30 mm min. / 1.18 in. min.(4)Ø 22.5 mm / 0.89 in. recommended (Ø 22.3 mm 0+0.4 / 0.88 in. 0+0.016)(5)45 mm min. / 1.78 in. min.(6)32 mm min. / 1.26 in. min. | |
Pushbuttons, Switches and Pilot Lights for Printed Circuit Board ConnectionPanel Cut-outs (Viewed from Installers Side)
A:30 mm min. / 1.18 in. min.B:40 mm min. / 1.57 in. min.
Printed Circuit Board Cut-outs (Viewed from Electrical Block Side)Dimensions in mm
A:30 mm min.B:40 mm min.
Dimensions in in.
A:1.18 in. min.B:1.57 in. min.
General Tolerances of the Panel and Printed Circuit BoardThe cumulative tolerance must not exceed 0.3 mm / 0.012 in: T1 + T2 = 0.3 mm max.
Installation PrecautionsMinimum thickness of circuit board: 1.6 mm / 0.06 in.
Cut-out diameter: 22.4 mm ± 0.1 / 0.88 in. ± 0.004
Orientation of body/fixing collar ZB4 BZ009: ± 2°30 (excluding cut-outs marked a and b).
Tightening torque of screws ZBZ 006: 0.6 N.m (5.3 lbf.in) max.
Allow for one ZB4 BZ079 fixing collar/pillar and its fixing screws:
every 90 mm / 3.54 in. horizontally (X), and 120 mm / 4.72 in. vertically (Y).
with each selector switch head (ZB4 BD, ZB4 BJ, ZB4 BG).
The fixing centers marked a and b are diagonally opposed and must align with those marked 4 and 5.
(1)Panel(2)Printed circuit board
Mounting of Adapter (Socket) ZBZ 011 2 elongated holes for ZBZ 006 screw access
2 1 hole Ø 2.4 mm ± 0.05 / 0.09 in. ± 0.002 for centring adapter ZBZ 01
3 8 × Ø 1.2 mm / 0.05 in. holes
4 1 hole Ø 2.9 mm ± 0.05 / 0.11 in. ± 0.002, for aligning the printed circuit board (with cut-out marked a)
5 1 elongated hole for aligning the printed circuit board (with cut-out marked b)
6 4 holes Ø 2.4 mm / 0.09 in. for clipping in adapter ZBZ 01
Dimensions An + 18.1 relate to the Ø 2.4 mm ± 0.05 / 0.09 in. ± 0.002 holes for centring adapter ZBZ 01.
 |  |  |  |
