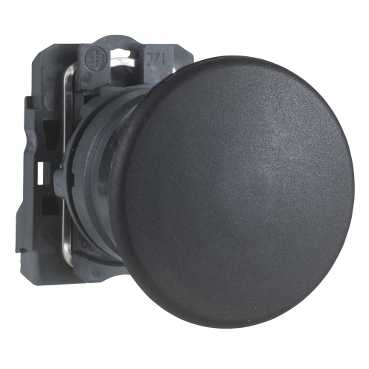

XB5AC21

Dimensions

e:clamping thickness: 1 to 6 mm / 0.04 to 0.24 in.

Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)Connection by Screw Clamp Terminals or Plug-in Connectors or on Printed Circuit Board

(1)Diameter on finished panel or support(2)For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5AZ902 is recommended.(3)Ø22.5 mm recommended (Ø22.3 ₀^+0.4) / Ø0.89 in. recommended (Ø0.88 in. ₀^+0.016)

Connections	a in mm	a in in.	b in mm	b in in.
By screw clamp terminals or plug-in connector	40	1.57	30	1.18
By Faston connectors	45	1.77	32	1.26
On printed circuit board	30	1.18	30	1.18

Detail of Lug Recess

(1)Diameter on finished panel or support(2)For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5AZ902 is recommended.(3)Ø22.5 mm recommended (Ø22.3 ₀^+0.4) / Ø0.89 in. recommended (Ø0.88 in. ₀^+0.016)
