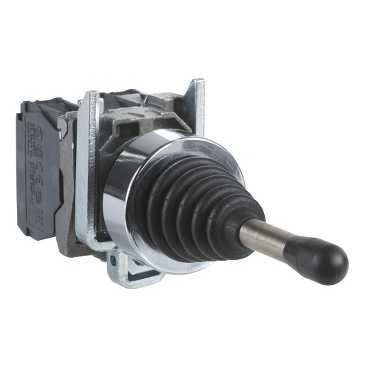

XD4PA14

Satış fiyatı : TEKLİF ALINIZ
· Ürünü karşılaştırma listeme ekle
( Karşılaştır )

· Fiyatı düşünce bildir

· Aklımdakiler listesine ekle

· Stoga girince haber ver

Ürün Özellikleri
Video
Ödeme Bilgileri
Ürün Resimleri
Ürün Yorumları
Sıkça Sorulan Sorular
Geri Bildirim

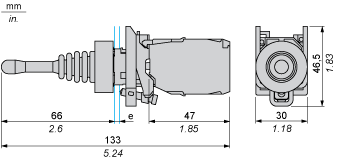

Dimensions

e:panel thickness: 1 to 6 mm / 0.04 to 0.24 in.

Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)

Connection by Screw Clamp Terminals or Plug-in Connectors or on Printed Circuit Board
Connection by Faston Connectors

(1)Diameter on finished panel or support(2)40 mm min. / 1.57 in. min.(3)30 mm min. / 1.18 in. min.(4)Ø 22.5 mm / 0.89 in. recommended (Ø 22.3 mm ₀^+0.4 / 0.88 in. ₀^+0.016)(5)45 mm min. / 1.78 in. min.(6)32 mm min. / 1.26 in. min.

Connection by Screw Clamp Terminals or Plug-in Connectors or on Printed Circuit Board	Connection by Faston Connectors

(1)Diameter on finished panel or support(2)40 mm min. / 1.57 in. min.(3)30 mm min. / 1.18 in. min.(4)Ø 22.5 mm / 0.89 in. recommended (Ø 22.3 mm ₀^+0.4 / 0.88 in. ₀^+0.016)(5)45 mm min. / 1.78 in. min.(6)32 mm min. / 1.26 in. min.
