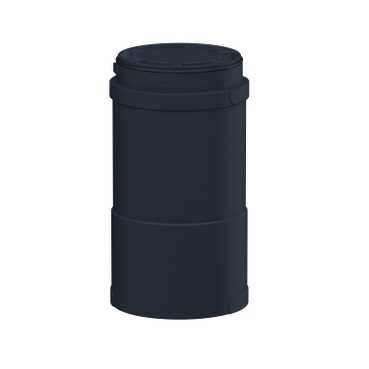

XVUC020

Satış fiyatı : TEKLİF ALINIZ
· Ürünü karşılaştırma listeme ekle
( Karşılaştır )

· Fiyatı düşünce bildir

· Aklımdakiler listesine ekle

· Stoga girince haber ver

Ana

Ürün serisi

Harmony XVU

ürün ya da bileşen tipi

Modüler ışıklı kolon

montaj çapı

60 mm

aksesuar / ayrı parça tipi

Uzun gövdeli tüp

aksesuar / ayrı parça kategorisi

Montaj ve bağlantı aksesuarı

Tamamlayıcı

malzeme

PBT + ABS (UL94-V0)
PC (UL94 V-0)

ürün uyumluluğu

XVU

[Us] nominal besleme gerilimi

110...240 V AC
24 V AC/DC

uzunluk

100 mm

ürün ağırlığı

0.093 kg

Ortam

ürün sertifikaları

CE
CSA
RoHS
UL

depolama için ortam hava sıcaklığı

-40...70 °C

çalışma için ortam hava sıcaklığı

-25...50 °C

IP koruma derecesi

IP65

Sürdürülebilirlik Teklifi

Sürdürülebilir teklif durumu

Green Premium ürünü

RoHS

Compliant - since 1422 - Schneider Electric declaration of conformity

REACh

Referans eşiğin üzerinde SVHC içermez

Ürünün çevresel profili

Mevcut

Ürün kullanım ömrü sonu talimatları

Mevcut

Extender UnitDimensions

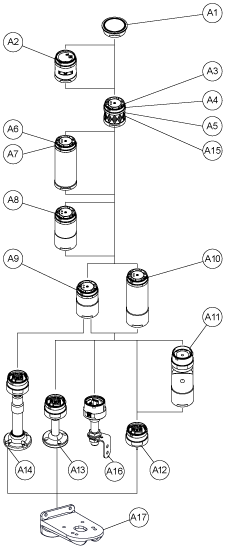

Modular Tower Lights Mounting

Drawing
Part number
Part name
A1
-
Top cover
-
Top cover (Silver)
A2
XVUC9S
Buzzer unit
XVUC9SQ
Buzzer unit (Silver)
A3
XVUC23
Green LED unit
XVUC24
Red LED unit
XVUC25
Orange LED unit
XVUC26
Blue LED unit
XVUC27
White LED unit
XVUC28
Yellow LED unit
A4
XVUC29
Multi-LED unit
A5
XVUC29P
Multi-LED unit, Pulse signal
A6
XVUC9V
Sound unit
A7
XVUC9VP
Sound unit, Pulse signal
A8
XVUC020
Extender
XVUC020Q
Extender (Silver)
A9
XVUC21B
DC body
XVUC21BQ
DC body (Silver)
A10
XVUC21M
AC body NPN
XVUC21MP
AC body PNP
XVUC21MQP
AC body PNP (Silver)
A11
XVUZ06
Flexible option
A12
XVUZ01
Fixing Unit - Direct mounting (3 pins)
XVUZ01Q
Fixing Unit - Direct mounting (Silver,3 pins)
XVUZ03
Fixing Unit - Direct mounting (2 pins)
XVUZ04
Fixing Unit - Direct mounting (4 pins)
A13
XVUZ02
Fixing Unit - Plate with Pole (100 mm)
XVUZ02Q
Fixing Unit - Plate with Pole (100 mm, Silver)
XVUZ400
Fixing Unit - Plate with Pole (400 mm)
XVUZ800
Fixing Unit - Plate with Pole (800 mm)
A14
XVUZ05
Fixing Unit - Plate with adjustment pole (100-385 mm)
A15
XVUC43
Green LED unit, Flash
XVUC44
Red LED unit, Flash
XVUC45
Orange LED unit, Flash
XVUC46
Blue LED unit, Flash
XVUC47
White LED unit, Flash
XVUC48
Yellow LED unit, Flash
A16
XVUZ100T
Fixing Unit - Metal bracket with pole (100 mm)
XVUZ250T
Fixing Unit - Metal bracket with pole(250 mm)
XVUZ400T
Fixing Unit - Metal bracket with pole (400 mm)
A17
XVUZ12
Fixing plate for use on vertical support - black

Drawing	Part number	Part name
A1	-	Top cover
A1	-	Top cover (Silver)
A2	XVUC9S	Buzzer unit
A2	XVUC9SQ	Buzzer unit (Silver)
A3	XVUC23	Green LED unit
	XVUC24	Red LED unit
	XVUC25	Orange LED unit
	XVUC26	Blue LED unit
	XVUC27	White LED unit
	XVUC28	Yellow LED unit
A4	XVUC29	Multi-LED unit
A5	XVUC29P	Multi-LED unit, Pulse signal
A6	XVUC9V	Sound unit
A7	XVUC9VP	Sound unit, Pulse signal
A8	XVUC020	Extender
A8	XVUC020Q	Extender (Silver)
A9	XVUC21B	DC body
A9	XVUC21BQ	DC body (Silver)
A10	XVUC21M	AC body NPN
	XVUC21MP	AC body PNP
	XVUC21MQP	AC body PNP (Silver)
A11	XVUZ06	Flexible option
A12	XVUZ01	Fixing Unit - Direct mounting (3 pins)
	XVUZ01Q	Fixing Unit - Direct mounting (Silver,3 pins)
	XVUZ03	Fixing Unit - Direct mounting (2 pins)
	XVUZ04	Fixing Unit - Direct mounting (4 pins)
A13	XVUZ02	Fixing Unit - Plate with Pole (100 mm)
	XVUZ02Q	Fixing Unit - Plate with Pole (100 mm, Silver)
	XVUZ400	Fixing Unit - Plate with Pole (400 mm)
	XVUZ800	Fixing Unit - Plate with Pole (800 mm)
A14	XVUZ05	Fixing Unit - Plate with adjustment pole (100-385 mm)
A15	XVUC43	Green LED unit, Flash
	XVUC44	Red LED unit, Flash
	XVUC45	Orange LED unit, Flash
	XVUC46	Blue LED unit, Flash
	XVUC47	White LED unit, Flash
	XVUC48	Yellow LED unit, Flash
A16	XVUZ100T	Fixing Unit - Metal bracket with pole (100 mm)
	XVUZ250T	Fixing Unit - Metal bracket with pole(250 mm)
	XVUZ400T	Fixing Unit - Metal bracket with pole (400 mm)
A17	XVUZ12	Fixing plate for use on vertical support - black
