Weidmuller
Splice terminal: rail; W; 30A; 1kV; screw; 18AWG÷4AWG; L: 58mm; TS35

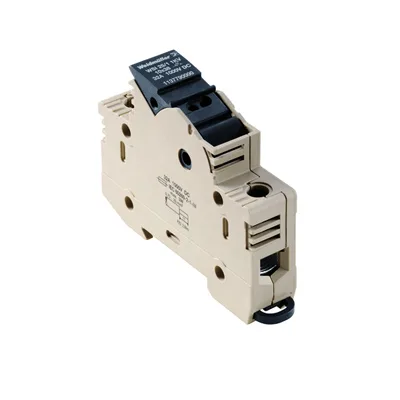

Weidmuller 1137790000, Splice terminal: rail; W; 30A; 1kV; screw; 18AWG÷4AWG; L: 58mm; TS35. Category: WSI 25 1kV. Request a quote for price and lead time.
- Reference:1137790000
- Manufacturer / Brand:Weidmuller
- Availability:On Request / Inquire Stock
- Price:12.10 EUR (Request a quote)
Key Specifications
- Operating Temperature
- -50...120°C
- Manufacturer Series
- W
- Wire Size
- 18AWG...4AWG
- Number Of Terminals
- 2
Product Description
Weidmuller WSI 25/1 10X38 1KV reference modular fuse terminal is manufactured with W-series screwing technology. It features -50...120°C operating temperature, 30A nominal current, and 1kV rated voltage. You can request pricing from UC-EL Electric.
Technical Specifications
| Operating Temperature | -50...120°C |
|---|---|
| Manufacturer Series | W |
| Wire Size | 18AWG...4AWG |
| Number Of Terminals | 2 |
| Rated Voltage | 1kV |
| Flammability Rating | UL94V-0 |
| Current Rating | 30A |
| Body Colour | beige |
| Length | 58mm |
| Electrical Mounting | screw |
| Type Of Splice Terminal | rail |
| Wire Cross-section | 1.5...25mm² |
| Width | 18mm |
| Alias | WSI 25/1 10X38 1KV |
| Height | 81mm |
| Mounting Rail Size | TS35 |
