Weidmuller

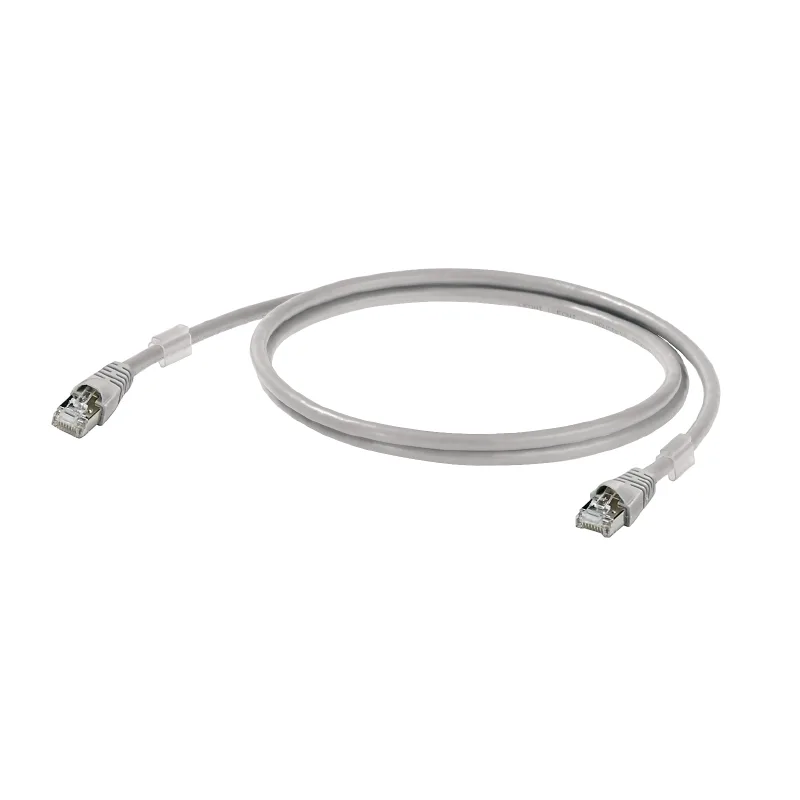

Patch cord; S/FTP; Cat 6a; RJ45 plug,both sides; 2m; grey; Cu; LSZH
Weidmuller 1165940020, Patch cord; S/FTP; Cat 6a; RJ45 plug,both sides; 2m; grey; Cu; LSZH. Category: Straight. Request a quote for price and lead time.
- Reference:1165940020
- Manufacturer / Brand:Weidmuller
- Availability:On Request / Inquire Stock
- Price:23.00 EUR (Request a quote)
Key Specifications
- Operating Temperature
- -20...60°C
- Core Structure
- stranded
- Cable Features
- twisted pair conductors
- Kind Of Cable
- S/FTP
Product Description
The Weidmuller 1165940020 - IE-C6FP8LD0020M40M40-D patch cord is produced in Cat 6a Ethernet category with an S/FTP cable type. This 2m halogen-free grey product features IP20 class and RJ45 plugs on both ends. Request a price quote via UC-EL Electric.
Technical Specifications
| Operating Temperature | -20...60°C |
|---|---|
| Core Structure | stranded |
| Cable Features | twisted pair conductors |
| Kind Of Cable | S/FTP |
| Number Of Cores | 8 |
| Version | Power over Ethernet |
| Cable Length | 2m |
| Type Of Connection Cable | patch cord |
| Cable Structure | 4x2x27AWG |
| Cable/adapter Structure | both sides, RJ45 plug |
| Wire Insulation Material | LSZH |
| Insulation Colour | grey |
| No. Of Pairs | 4 |
| Kind Of Material | halogen free |
| Shield Structure | braid made of copper wires, pairs shielded with Al-PET foil, shielded twofold |
| Conform To The Norm | IEC 60332-1-2, IEC 60332-2-2, IEC 60332-3-24, UL 2556 |
| Kind Of Core | Cu |
| IP Rating | IP20 |
| Core Diameter | 27/7AWG |
| Connector Colour | grey |
| Ethernet Category | Cat 6a |
