Weidmuller
Power supply: switching; for DIN rail; 180W; 24VDC; Uout: 24V; 7.5A
Weidmuller 1478120000, Power supply: switching; for DIN rail; 180W; 24VDC; Uout: 24V; 7.5A. Category: Connect Power Promax single-phase. Request a quote for price and lead time.
- Reference:1478120000
- Manufacturer / Brand:Weidmuller
- Availability:On Request / Inquire Stock
- Price:343.00 EUR (Request a quote)
Key Specifications
- Type Of Power Supply
- switching
- Kind Of Power Supply
- for DIN rail
- Power
- 0.18kW
- Output Voltage
- 24V, 24V DC
Product Description

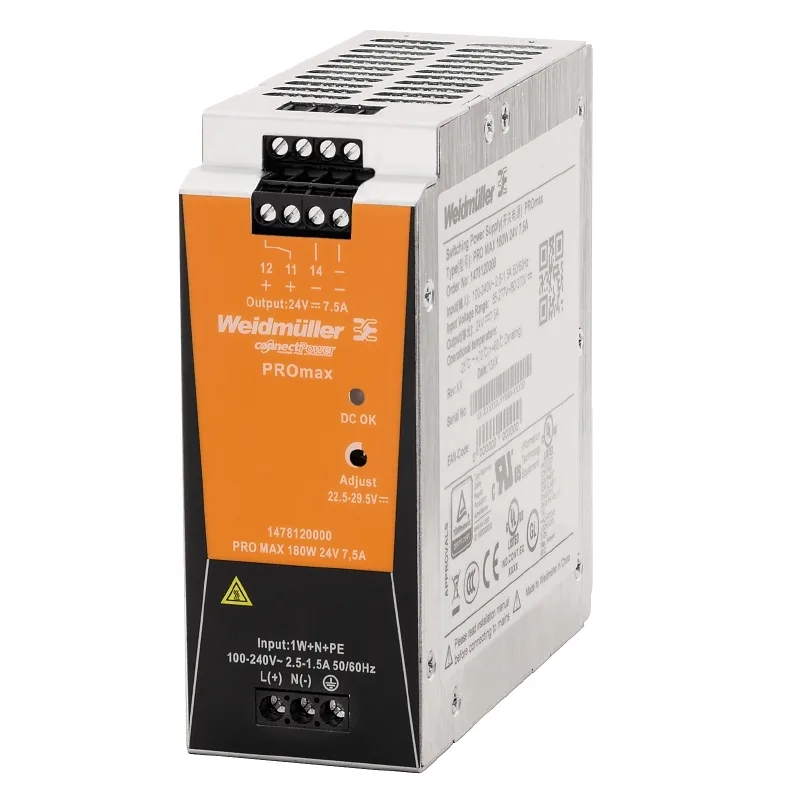

This Weidmüller 1478120000 reference switching mode power supply is designed for DIN rails. It provides 0.18kW power, 24V DC output voltage, 7.5A output current, and IP20 protection class. Contact UC-EL Electric in Karakoy for current details.
Technical Specifications
| Type Of Power Supply | switching |
|---|---|
| Kind Of Power Supply | for DIN rail |
| Power | 0.18kW |
| Output Voltage | 24V, 24V DC |
| Output Current | 7.5A |
| Supply Voltage | 80...370V DC, 85...277V AC |
| Electrical Connection | terminal block |
| IP Rating | IP20 |
| Body Dimensions | 125x50x130mm |
| Number Of Outputs | 1 |
| Operating Temperature | -25...70°C |
| Insulation Voltage | 4kV |
| Efficiency | 91.5% |
| Additional Functions | PFC |
| Manufacturer Series | Promax |
| Input Voltage | 85...277V AC |
| Dimensions | 125x50x130mm |
| Maximum Output Current | 7.5A |
| Maximum Power | 180W |
| Lead Length | 0.13m |
| Storage Temperature | -40...85°C |
