Weidmuller

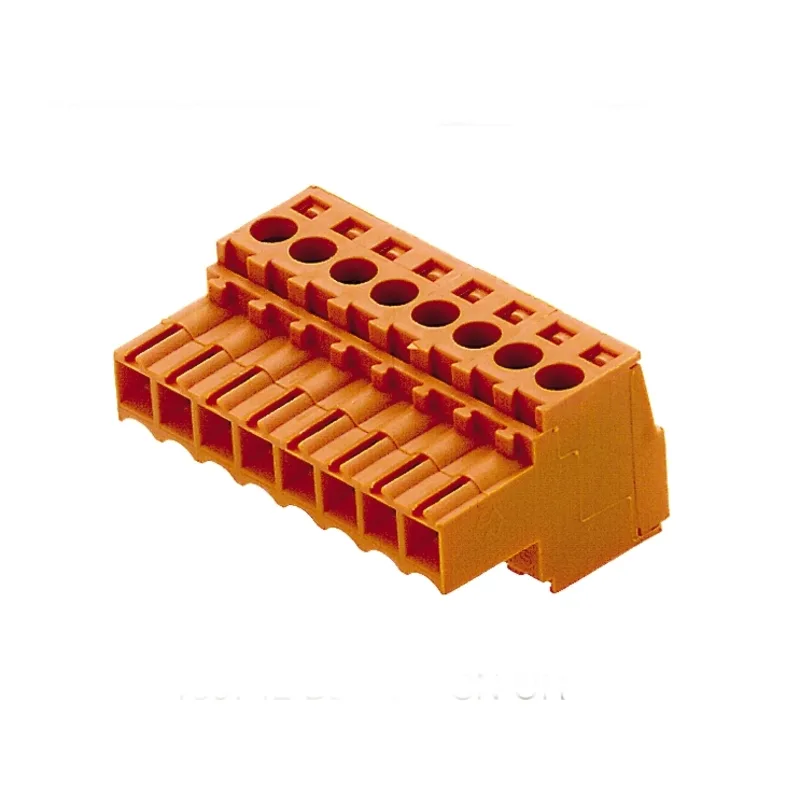

Connector: pluggable terminal block; socket; female; OMNIMATE
Weidmuller 1597390000, Connector: pluggable terminal block; socket; female; OMNIMATE. Category: BL 3.50/180. Request a quote for price and lead time.
- Reference:1597390000
- Manufacturer / Brand:Weidmuller
- Availability:On Request / Inquire Stock
- Price:4.90 EUR (Request a quote)
Key Specifications
- Manufacturer Series
- OMNIMATE
- Width
- 17.5mm
- Height
- 13mm
- Operating Temperature
- -50...100°C
Product Description
This is a pluggable terminal block socket product by Weidmuller with OMNIMATE manufacturer series, featuring 12A nominal current and 0.32kV rated voltage. It features an orange PBT body offering mechanical mounting on PCBs. You can obtain detailed information and quotes through ÜÇ-EL Elektrik.
Technical Specifications
| Manufacturer Series | OMNIMATE |
|---|---|
| Width | 17.5mm |
| Height | 13mm |
| Operating Temperature | -50...100°C |
| Body Colour | orange |
| Mechanical Mounting | on PCBs |
| Body Material | PBT |
| Electrical Mounting | screw terminal |
| Type Of Connector | pluggable terminal block |
| Alias | BL 3.50/05/180 SN OR BX |
| Kind Of Connector | female |
| Connector | socket |
| Contact Plating | tinned |
| Spatial Orientation | angled |
| Rated Voltage | 0.32kV |
| Contact Material | copper, copper alloy |
| Flammability Rating | UL94V-0 |
| Contacts Pitch | 3.5mm |
| Number Of Pins | 5 |
| Current Rating | 12A |
