16329 - Plug-in type LV surge arrester, PRD1 25r 1P
Schneider 16329, Plug-in type LV surge arrester, PRD1 25r 1P. Category: Modular Surge Arrester: iPRF1 12,5r & PRD1. Request a quote for price and lead time.
- Reference:16329
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:452.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- PRD1
- Range Of Product
- Acti9
- Product Name
- Acti9 PRD1
- Product Or Component Type
- Surge arrester with pluggable cartridge
Product Description

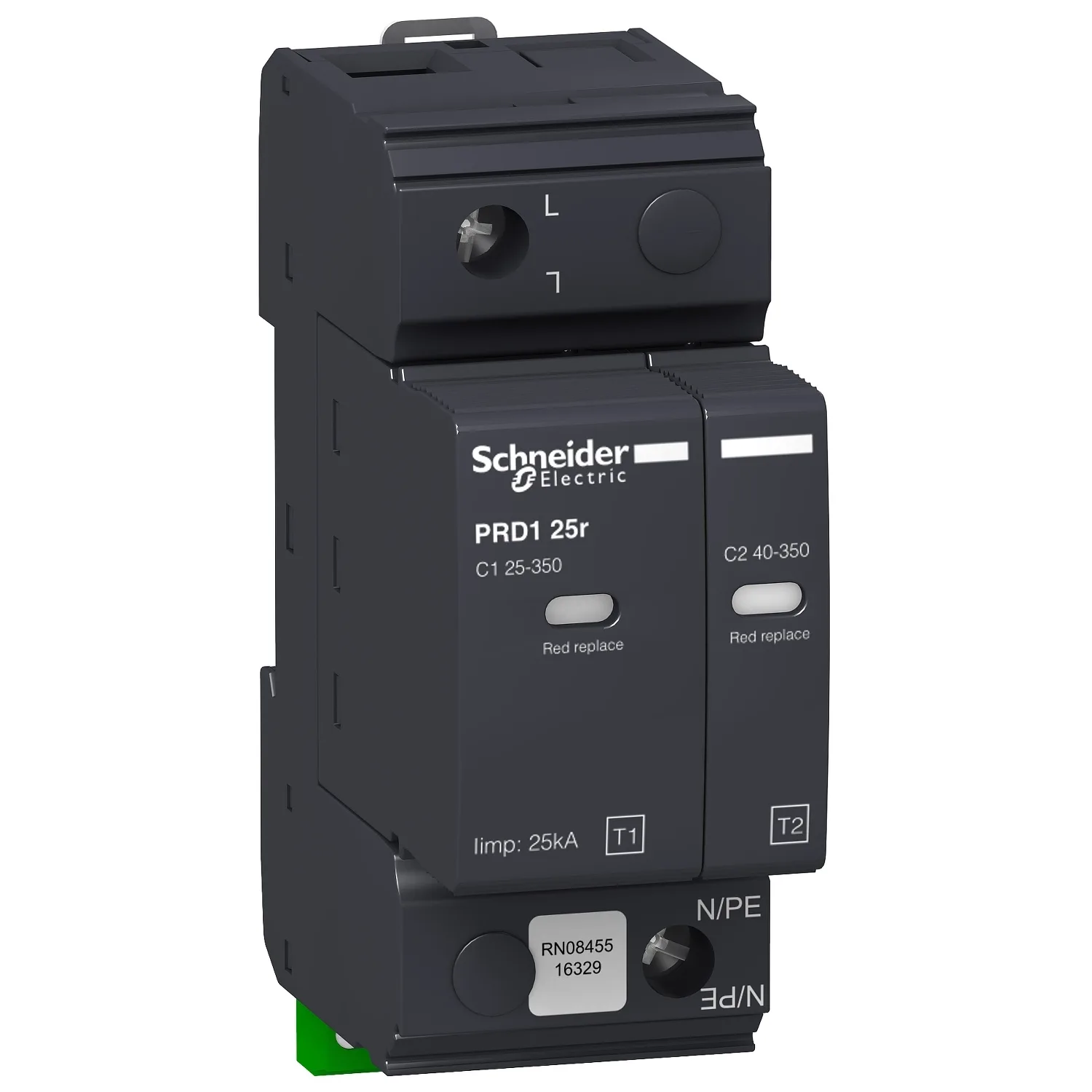

This Acti9 PRD1 25r product is a modular surge arrester protecting 1P electrical installations against direct lightning strikes. The Imax maximum discharge current is 40kA .The In nominal discharge current is 25kA. The Type 1 surge arrester is recommended for electrical installations in the service sector and industrial buildings protected by a lightning conductor. It also provides type 2 protection and protect the electrical installation by finely clipping the lightning wave overvoltage. The surge arresters with "r" indication have remote transfer of the information "Cartridge to be replaced". The Uc maximum continuous operating voltage in common mode (between phase and earth) is 350VAC. The Up Voltage protection level in common mode (between phase and earth) is 1.5kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is anthracite grey (RAL7016).The dimensions are (W) 36mm x (H) 90mm x (D) 71mm. The weight is 334g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 80°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
Key Features
- Protection of electrical installations against direct lightning strikes
- Fitted with a remote transfer contact to send an indication when the cartridge must be replaced
- Easy to replace withdrawable cartridges, and pluggable with an anti-vibration lock
- Insulated terminals with IP20 protection rating
Technical Specifications
Main14
| Range Of Product | PRD1 |
|---|---|
| Range Of Product | Acti9 |
| Product Name | Acti9 PRD1 |
| Product Or Component Type | Surge arrester with pluggable cartridge |
| Device Short Name | PRD1 25r |
| Device Application | Distribution |
| Standards | EN 61643-11:2012; IEC 61643-11:2011 |
| Product Certifications | CE |
| Quality Labels | KEMA-KEUR |
| Poles Description | 1P |
| Remote Signalling | With |
| Signal Contacts Composition | 1 SD (1 C/O) |
| Surge Arrester Type | Electrical distribution network |
| Earthing System | TN-C |
Complementary26
| Surge Arrester Class Type | Type 1 + 2 |
|---|---|
| Surge Arrester Technology | MOV; Spark gap |
| [Ue] Rated Operational Voltage | 230 V AC (+/- 10 %) at 50 Hz |
| Nominal Discharge Current | Common mode: 25 kA (L/PE) |
| Maximum Discharge Current | Common mode: 40 kA L/PE |
| [Iimp] Impulse Current | Common mode: 25 kA L/PE 12.5 A.s |
| [Uc] Maximum Continuous Operating Voltage | Common mode: 350 V L/PE |
| Maximum [Up] Voltage Protection Level | Common mode 1.5 kV type 2 L/PE |
| [Ut] Temporary Overvoltage | 1200 V N/PE 200 ms withstand; 415 V L/N 5 s withstand; 440 V L/N 7200 s safe failure mode |
| [Ifi] Follow Current | 25 kA differential mode L/N; 3 kA differential mode L/N; 100 A common mode N/PE |
| Short-circuit Withstand | 25 kA |
| Disconnector Device Type | Associated fuse gG 315 A up to Isc = 25 kA; Associated circuit breaker NSXm 100E TM-D up to Isc = 16 kA; Associated circuit breaker NSXm 100B TM-D up to Isc = 25 kA; Associated circuit breaker Compact NSX100B TM-D up to Isc = 25 kA |
| Signalling Circuit Voltage | 1 A/250 V AC; 1 A/30 V DC |
| Mounting Mode | Clip-on (DIN rail) |
| 9 Mm Pitches | 4 |
| Height | 90 mm |
| Width | 36 mm |
| Depth | 71 mm |
| Net Weight | 334 g |
| Colour | Anthracite grey (RAL 7016) |
| Material | PBT (polybutylene terephthalate) |
| Connections - Terminals | Tunnel type terminal (top or bottom) 10…35 mm² rigid; Tunnel type terminal (top or bottom) 10…25 mm² flexible |
| Tightening Torque | 4.5 N.m |
| Impulse Current | 25 kA |
| Compatibility Code | PRD1_25r |
| Market Segment | Small commercial |
Environment5
| IK Degree Of Protection | IK05 conforming to IEC 62262 |
|---|---|
| Relative Humidity | 5…95 % |
| Operating Altitude | 2000 m |
| Ambient Air Temperature For Operation | -25…60 °C |
| Ambient Air Temperature For Storage | -40…80 °C |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 8 cm |
| Package 1 Width | 4.5 cm |
| Package 1 Length | 11 cm |
| Package 1 Weight | 357 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 26 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 9.709 kg |
Logistical informations1
| Country Of Origin | DE |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
