Weidmuller
Splice terminal: rail; Z; 24A; 500V; clamp; wemid; 26AWG÷12AWG; TS15
Weidmuller 1720950000, Splice terminal: rail; Z; 24A; 500V; clamp; wemid; 26AWG÷12AWG; TS15. Category: Single element. Request a quote for price and lead time.
- Reference:1720950000
- Manufacturer / Brand:Weidmuller
- Availability:On Request / Inquire Stock
- Price:4.70 EUR (Request a quote)
Key Specifications
- Manufacturer Series
- Z
- Current Rating
- 24A
- Rated Voltage
- 0.5kV
- Electrical Mounting
- clamp
Product Description

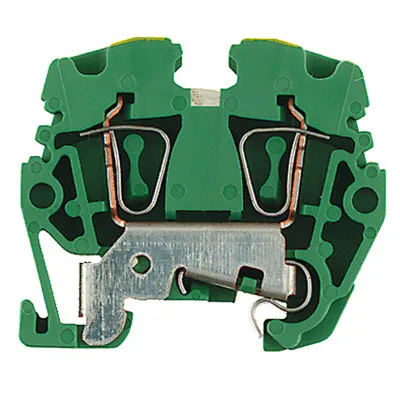

Weidmuller 1720950000 - ZPEA 2.5-2 is a Z-series green/yellow earth terminal. It offers 24A nominal current, 0.5kV rated voltage, wemid housing, and clamp connection, operating between -60...130°C. You can request a price quote from UC-EL Electric.
Technical Specifications
| Manufacturer Series | Z |
|---|---|
| Current Rating | 24A |
| Rated Voltage | 0.5kV |
| Electrical Mounting | clamp |
| Flammability Rating | UL94V-0 |
| Body Material | wemid |
| Wire Size | 26AWG...12AWG |
| Body Colour | green-yellow |
| Height | 35mm |
| Alias | ZPEA 2.5-2 |
| Number Of Ways | 1 |
| Mounting Rail Size | TS15 |
| Colour | green/yellow, yellow-green |
| Operating Temperature | -60...130°C |
| Length | 35mm |
| Type Of Splice Terminal | rail |
| Wire Cross-section | 0.5...4mm² |
| Width | 5.1mm |
