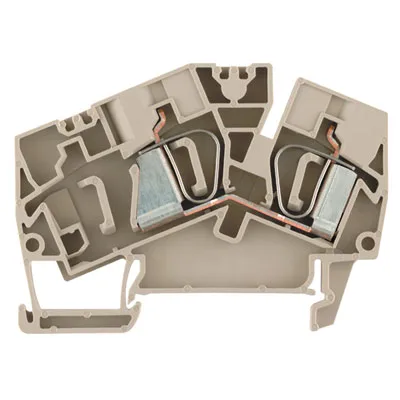

Weidmuller
Splice terminal: rail; Z; 41A; 800V; clamp; wemid; 22AWG÷8AWG; TS35
Not for sale
Weidmuller 1771380000, Splice terminal: rail; Z; 41A; 800V; clamp; wemid; 22AWG÷8AWG; TS35. Category: 6 mm². Not for sale; no price or quote is offered for this product.
- Reference:1771380000
- Manufacturer / Brand:Weidmuller
Key Specifications
- Flammability Rating
- UL94V-0
- Body Material
- wemid
- Length
- 49.5mm
- Height
- 68mm
Product Description
- Splice terminal: rail
- Z
- 41A
- 800V
- clamp
- wemid
- 22AWG÷8AWG
- TS35
Technical Specifications
| Flammability Rating | UL94V-0 |
|---|---|
| Body Material | wemid |
| Length | 49.5mm |
| Height | 68mm |
| Alias | ZDU 6-2/2AN |
| Operating Temperature | -50...120°C |
| Manufacturer Series | Z |
| Current Rating | 41A |
| Body Colour | beige |
| Electrical Mounting | clamp |
| Type Of Splice Terminal | rail |
| Wire Cross-section | 0.5...10mm² |
| Width | 8.1mm |
| Mounting Rail Size | TS35 |
| Wire Size | 22AWG...8AWG |
| Number Of Terminals | 2 |
| Rated Voltage | 0.8kV |
