Weidmuller
Splice terminal: rail; Z; 24A; 500V; clamp; wemid; 26AWG÷12AWG; TS35
Weidmuller 1815110000, Splice terminal: rail; Z; 24A; 500V; clamp; wemid; 26AWG÷12AWG; TS35. Category: Modular feed-through terminals. Request a quote for price and lead time.
- Reference:1815110000
- Manufacturer / Brand:Weidmuller
- Availability:On Request / Inquire Stock
- Price:3.95 EUR (Request a quote)
Key Specifications
- Type Of Splice Terminal
- rail
- Manufacturer Series
- Z
- Current Rating
- 24A
- Rated Voltage
- 0.5kV
Product Description

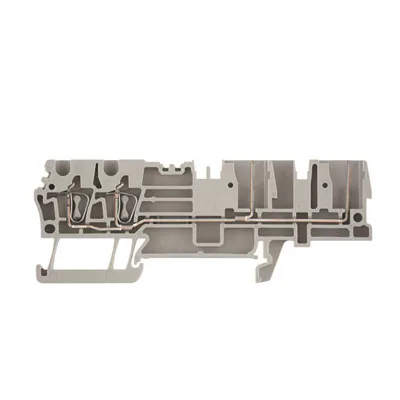

The ZT 2.5/4AN/2 feed-through terminal with reference 1815110000 by Weidmuller is provided by UC-EL Electric. This rail-type Z-series product features 24A nominal current, 0,5kV rated voltage, and clamp mounting. Featuring a beige wemid body with 4 terminals, it offers 0,5...4mm² wire cross-section, 5,1mm width, 93mm height, 34,5mm length, and -50...120°C operating temperature. Request a price quote from UC-EL Electric for this TS35 compatible model.
Technical Specifications
| Type Of Splice Terminal | rail |
|---|---|
| Manufacturer Series | Z |
| Current Rating | 24A |
| Rated Voltage | 0.5kV |
| Electrical Mounting | clamp |
| Flammability Rating | UL94V-0 |
| Body Material | wemid |
| Wire Size | 26AWG...12AWG |
| Length | 34.5mm |
| Wire Cross-section | 0.5...4mm² |
| Width | 5.1mm |
| Height | 93mm |
| Mounting Rail Size | TS35 |
| Body Colour | beige |
| Alias | ZT 2.5/4AN/2 |
| Operating Temperature | -50...120°C |
| Number Of Terminals | 4 |
