Schneider

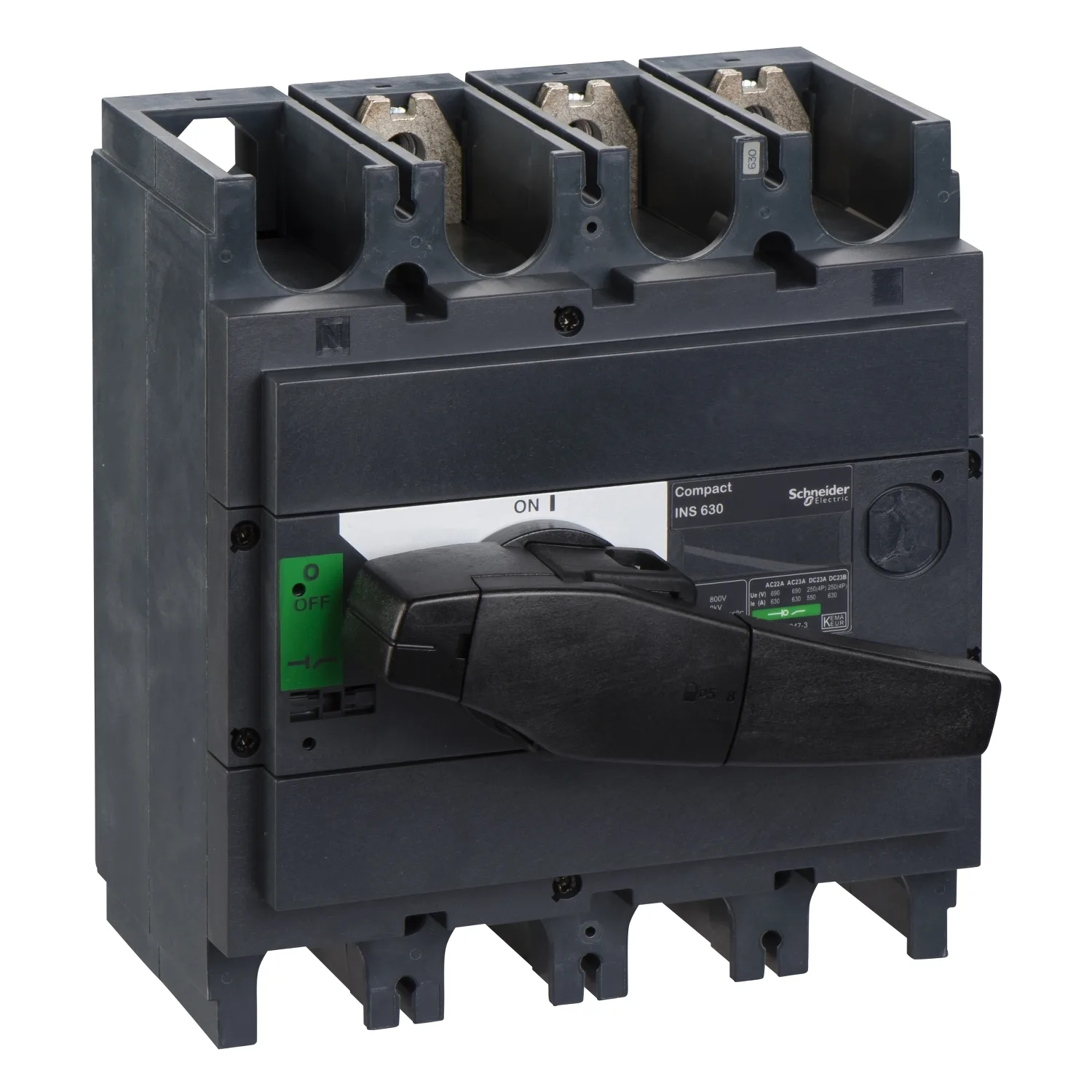

31114 - ComPacT, INS630
Schneider 31114, ComPacT, INS630. Category: Compact INS/INV. Request a quote for price and lead time.
- Reference:31114
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:605.00 EUR (Request a quote)
Key Specifications
- Range
- ComPact
- Product Or Component Type
- Switch disconnector
- Product Name
- ComPacT INS
- Poles Description
- 3P
Product Description
This Compact INS630 is a 3 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 630A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS630 is a class II insulation level front-face device as per IEC 60664 standard.
Key Features
- "Schneider Electric green signature style for the entire ComPacT range"
- "Estimated 40% reduction of wiring time for panel builders"
- "Experience easier installation thanks to a new ergonomic front-plate design"
- "Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating"
- "Ergonomic new toggle for easier breaker manual operation"
Technical Specifications
Main16
| Range | ComPact |
|---|---|
| Product Or Component Type | Switch disconnector |
| Product Name | ComPacT INS |
| Poles Description | 3P |
| Network Type | AC; DC |
| Network Frequency | 50/60 Hz |
| [Ie] Rated Operational Current | AC-22A: 630 A AC 50/60 Hz 220/240 V; AC-22A: 630 A AC 50/60 Hz 380/415 V; AC-22A: 630 A AC 50/60 Hz 440/480 V; AC-22A: 630 A AC 50/60 Hz 480 V NEMA; AC-22A: 630 A AC 50/60 Hz 500/525 V; AC-22A: 630 A AC 50/60 Hz 660/690 V; AC-23A: 630 A AC 50/60 Hz 220/240 V; AC-23A: 630 A AC 50/60 Hz 380/415 V; AC-23A: 630 A AC 50/60 Hz 440/480 V; AC-23A: 630 A AC 50/60 Hz 480 V NEMA; AC-23A: 630 A AC 50/60 Hz 50 |
| [Ui] Rated Insulation Voltage | 800 V AC 50/60 Hz |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV; 8 kV conforming to IEC 60947-3 |
| [Ith] Conventional Free Air Thermal Current | 630 A at 60 °C |
| [Icm] Rated Short-circuit Making Capacity | 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz; 50 kA switch-disconnector alone 690 V AC at 50/60 Hz |
| [Ue] Rated Operational Voltage | 125 V DC; 690 V AC 50/60 Hz |
| Suitability For Isolation | Yes |
| Contact Position Indicator | Yes |
| Visible Break | No |
| Pollution Degree | 3 |
Complementary16
| Control Type | Direct front rotary handle |
|---|---|
| Handle Colour | Black |
| Mounting Mode | Fixed |
| Mounting Support | Rail; Plate |
| Upside Connection | Front |
| Downside Connection | Front |
| Maximum Power | AC-23: 200 kW at 220/240 V AC 50/60 Hz; AC-23: 200 kW at 230 V AC 50/60 Hz (NEMA); AC-23: 315 kW at 380/415 V AC 50/60 Hz; AC-23: 375 kW at 480 V AC 50/60 Hz (NEMA); AC-23: 400 kW at 440 V AC 50/60 Hz; AC-23: 400 kW at 500/525 V AC 50/60 Hz; AC-23: 560 kW at 660/690 V AC 50/60 Hz |
| Rated Duty | Uninterrupted |
| [Icw] Rated Short-time Withstand Current | 11.5 kA during 3 s conforming to IEC 60947-3; 20 kA during 1 s conforming to IEC 60947-3; 4 kA during 30 s conforming to IEC 60947-3; 4.9 kA during 20 s conforming to IEC 60947-3 |
| Mechanical Durability | 10000 cycles |
| Electrical Durability | AC-22A: 1500 cycles 440 V AC 50/60 Hz; AC-22A: 1500 cycles 500 V AC 50/60 Hz; AC-22A: 1500 cycles 690 V AC 50/60 Hz; AC-23A: 1500 cycles 440 V AC 50/60 Hz; AC-23A: 1500 cycles 500 V AC 50/60 Hz; AC-23A: 1500 cycles 690 V AC 50/60 Hz; DC-23A: 1000 cycles 125 V DC 2 poles in series; DC-23B: 200 cycles 125 V DC 2 poles in series |
| Connection Pitch | 45 mm |
| Height | 205 mm |
| Width | 185 mm |
| Depth | 120 mm |
| Net Weight | 4.6 kg |
Environment6
| Standards | IEC 60947-3; IEC 60947-1 |
|---|---|
| Product Certifications | CCC; KEMA-KEUR |
| IP Degree Of Protection | IP40 conforming to IEC 60529 |
| IK Degree Of Protection | IK07 conforming to EN 50102 |
| Ambient Air Temperature For Operation | -25…70 °C |
| Ambient Air Temperature For Storage | -50…85 °C |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 19.200 cm |
| Package 1 Width | 19.200 cm |
| Package 1 Length | 22.400 cm |
| Package 1 Weight | 5.000 kg |
| Unit Type Of Package 2 | S04 |
| Number Of Units In Package 2 | 4 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 20.701 kg |
| Unit Type Of Package 3 | P12 |
| Number Of Units In Package 3 | 16 |
| Package 3 Height | 50.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 94.003 kg |
Logistical informations1
| Country Of Origin | PL |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
