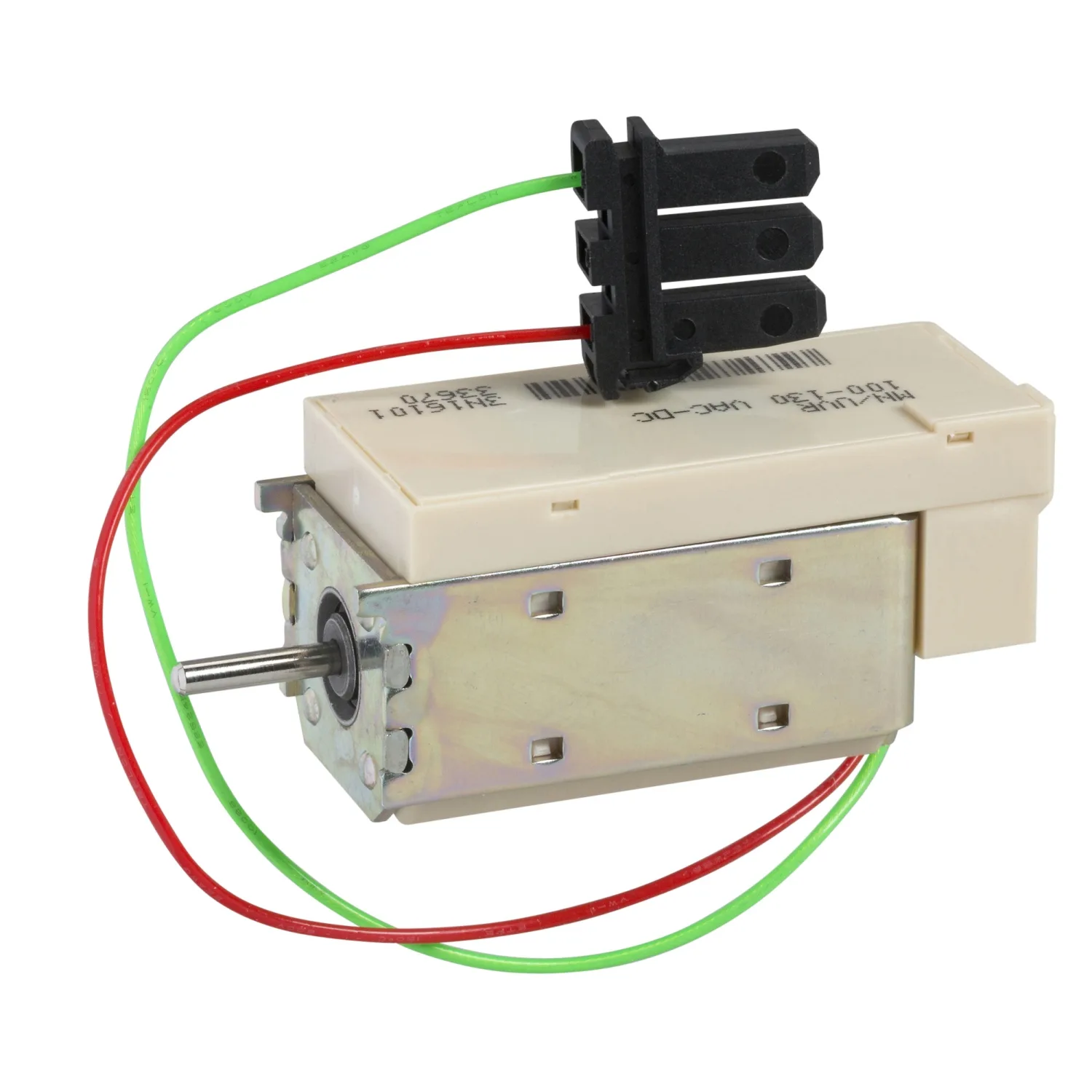

47314 - XF - closing release, communication type, 200-250 VAC/ DC
Schneider 47314, XF - closing release, communication type, 200-250 VAC/ DC. Category: MasterPact for Direct Current. Request a quote for price and lead time.
- Reference:47314
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:181.00 EUR (Request a quote)
Key Specifications
- Range
- MasterPacT
- Range Of Product
- MasterPact NT; MasterPact NW; MasterPact NW DC
- Device Short Name
- XF com
- Product Or Component Type
- Voltage release
Product Description
- This closing coil is used for instantaneous remote tripping of the MasterPact NT/NW circuit breaker
- In combination with an MX shunt trip release and an MCH motor mechanism, the MasterPact can be remotely controlled.
- Tripping is instantaneous via Modbus communication
- Instantaneous closing coil XF diag&com 200/250V AC/DC for fixed MasterPact NT/NW
- Instantaneous closing coil XF diag&com 200/250V AC/DC for fixed MasterPact NT/NW
- This trip coil can only be ordered in combination with Modbus communication.
Technical Specifications
Main10
| Range | MasterPacT |
|---|---|
| Range Of Product | MasterPact NT; MasterPact NW; MasterPact NW DC |
| Device Short Name | XF com |
| Product Or Component Type | Voltage release |
| Device Application | Control |
| Voltage Release Type | Closing coil; Instantaneous voltage release |
| Control Type | Communicating |
| [Uc] Control Circuit Voltage | 200...250 V AC 50/60 Hz; 200...250 V DC |
| Circuit Breaker Mounting Mode | Fixed |
| Range Compatibility | Masterpact MasterPact NT; Masterpact MasterPact NW; Masterpact MasterPact NW DC |
Complementary3
| Operating Threshold | 0.85...1.1 Un closing |
|---|---|
| Response Time | 55 ms +/- 10 % for MasterPact NT; 70 ms +/- 10 % for MasterPact NW 800 A; 70 ms +/- 10 % for MasterPact NW 1000 A; 70 ms +/- 10 % for MasterPact NW 1250 A; 70 ms +/- 10 % for MasterPact NW 1600 A; 70 ms +/- 10 % for MasterPact NW 2000 A; 70 ms +/- 10 % for MasterPact NW 2500 A; 70 ms +/- 10 % for MasterPact NW 3200 A; 70 ms +/- 10 % for MasterPact NW 4000 A; 80 ms +/- 10 % for MasterPact NW 5000 A |
| Supply Holding Power | 4.5 VA |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.5 cm |
| Package 1 Width | 6.0 cm |
| Package 1 Length | 8.2 cm |
| Package 1 Weight | 1.162 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
