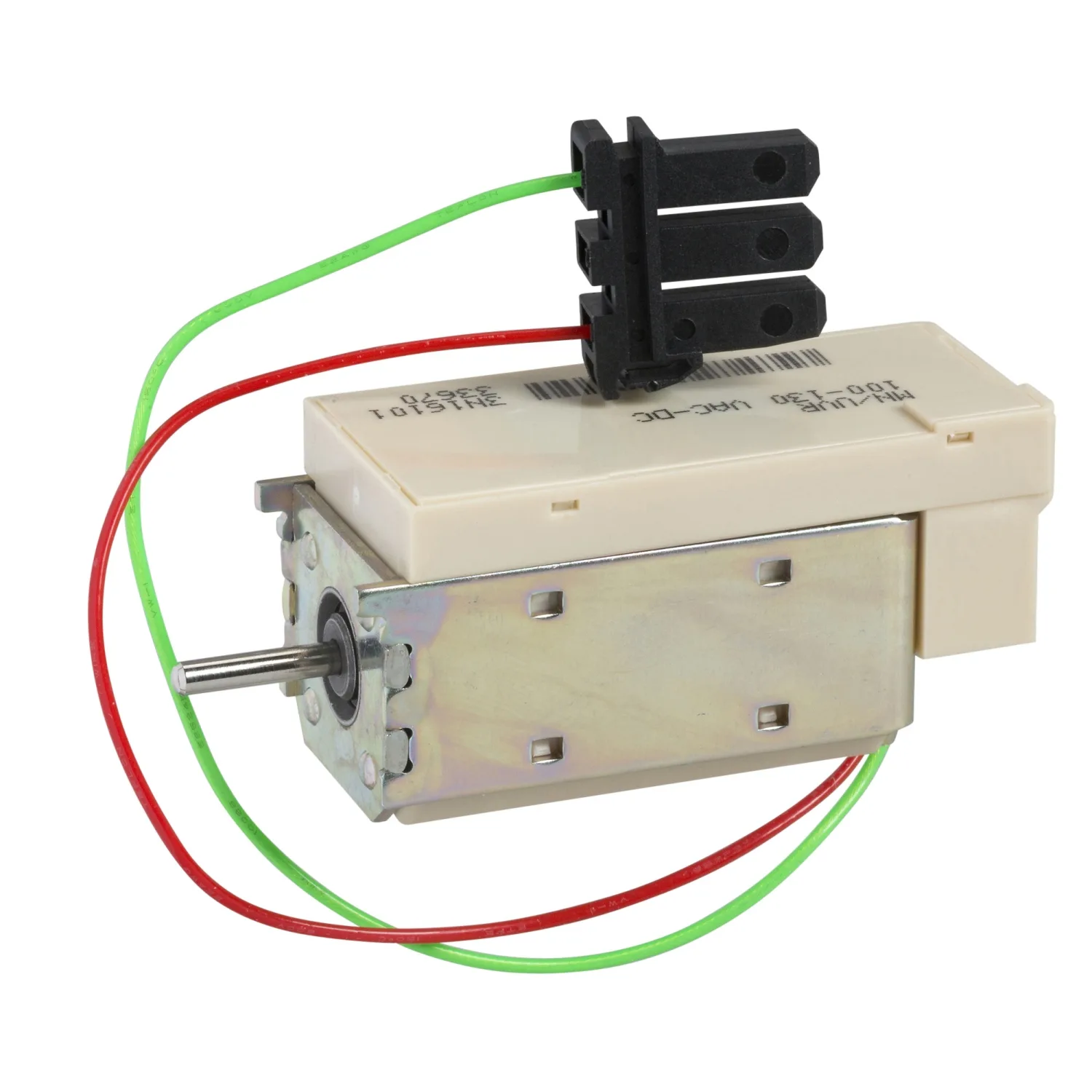

47363 - MX - shunt trip for NT-NW fixed type, 200-250 VAC/ DC
Schneider 47363, MX - shunt trip for NT-NW fixed type, 200-250 VAC/ DC. Category: MasterPact for Direct Current. Request a quote for price and lead time.
- Reference:47363
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:181.00 EUR (Request a quote)
Key Specifications
- Range
- MasterPacT
- Range Of Product
- MasterPact NT; MasterPact NW; MasterPact NW DC
- Device Short Name
- MX
- Product Or Component Type
- Voltage release
Product Description
This is a MX opening voltage release for fixed Masterpact NT and NW devices. Its rated voltage is 200VDC to 250 VDC or 200VAC to 250 VAC 50/60Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. Masterpact device can be equipped with 1 MX, 1 XF and 1 MN auxiliaries.
Technical Specifications
Main10
| Range | MasterPacT |
|---|---|
| Range Of Product | MasterPact NT; MasterPact NW; MasterPact NW DC |
| Device Short Name | MX |
| Product Or Component Type | Voltage release |
| Device Application | Control |
| Voltage Release Type | Opening coil; Instantaneous voltage release |
| Control Type | Standard |
| [Uc] Control Circuit Voltage | 200...250 V AC 50/60 Hz; 200...250 V DC |
| Circuit Breaker Mounting Mode | Fixed |
| Range Compatibility | Masterpact MasterPact NT; Masterpact MasterPact NW; Masterpact MasterPact NW DC |
Complementary3
| Operating Threshold | 0.7...1.1 x Un opening |
|---|---|
| Response Time | 50 ms +/- 10 % for MasterPact NT; 50 ms +/- 10 % for MasterPact NW |
| Supply Holding Power | 4.5 VA |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 173.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 20 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.720 kg |
| Unit Type Of Package 3 | P12 |
| Number Of Units In Package 3 | 320 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 71.520 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
