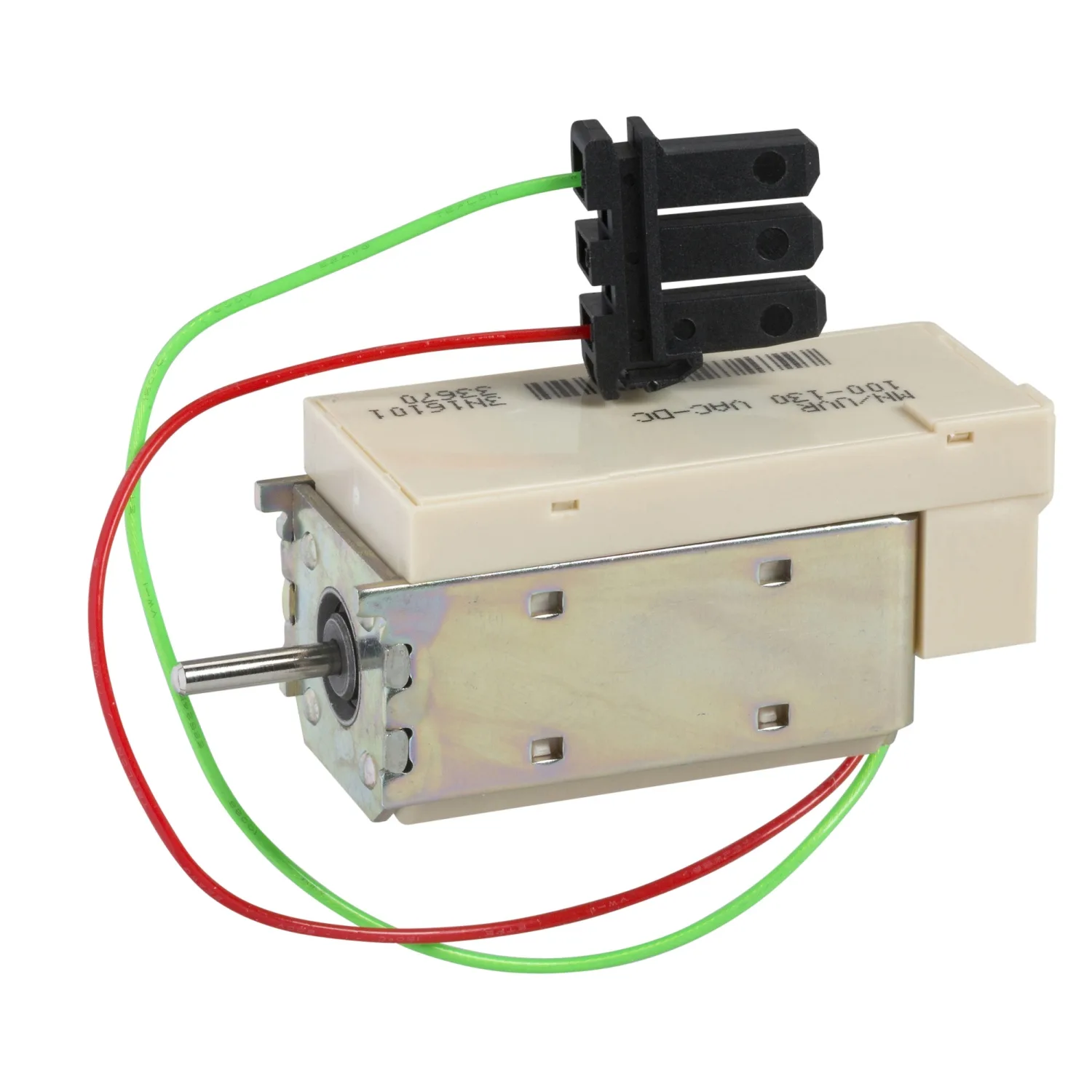

47365 - MX - shunt trip for NT-NW fixed type, 380-480 V AC
Schneider 47365, MX - shunt trip for NT-NW fixed type, 380-480 V AC. Category: MasterPact for Direct Current. Request a quote for price and lead time.
- Reference:47365
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:181.00 EUR (Request a quote)
Key Specifications
- Range
- MasterPacT
- Range Of Product
- MasterPact NT; MasterPact NW; MasterPact NW DC
- Device Short Name
- MX
- Product Or Component Type
- Voltage release
Product Description
- This shunt trip release is used for instantaneous remote tripping of the MasterPact NT/NW circuit breaker
- In combination with an XF closing coil and an MCH motor mechanism, the MasterPact can be remotely controlled.
- Tripping is instantaneous via a shunt current
- Instantaneous shunt trip release MX 380/450V AC for fixed MasterPact NT/NW
- This shunt trip release can only be ordered in combination with a configured circuit breaker.
Technical Specifications
Main10
| Range | MasterPacT |
|---|---|
| Range Of Product | MasterPact NT; MasterPact NW; MasterPact NW DC |
| Device Short Name | MX |
| Product Or Component Type | Voltage release |
| Device Application | Control |
| Voltage Release Type | Opening coil; Instantaneous voltage release |
| Control Type | Standard |
| [Uc] Control Circuit Voltage | 380...480 V AC 50/60 Hz |
| Circuit Breaker Mounting Mode | Fixed |
| Range Compatibility | Masterpact MasterPact NT; Masterpact MasterPact NW; Masterpact MasterPact NW DC |
Complementary3
| Operating Threshold | 0.7...1.1 x Un opening |
|---|---|
| Response Time | 50 ms +/- 10 % for MasterPact NT; 50 ms +/- 10 % for MasterPact NW |
| Supply Holding Power | 4.5 VA |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.900 cm |
| Package 1 Width | 3.700 cm |
| Package 1 Length | 13.200 cm |
| Package 1 Weight | 1.158 kg |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 80 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 92.900 kg |
| Unit Type Of Package 3 | P12 |
| Number Of Units In Package 3 | 2560 |
| Package 3 Height | 90.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 2984.800 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
