Schneider

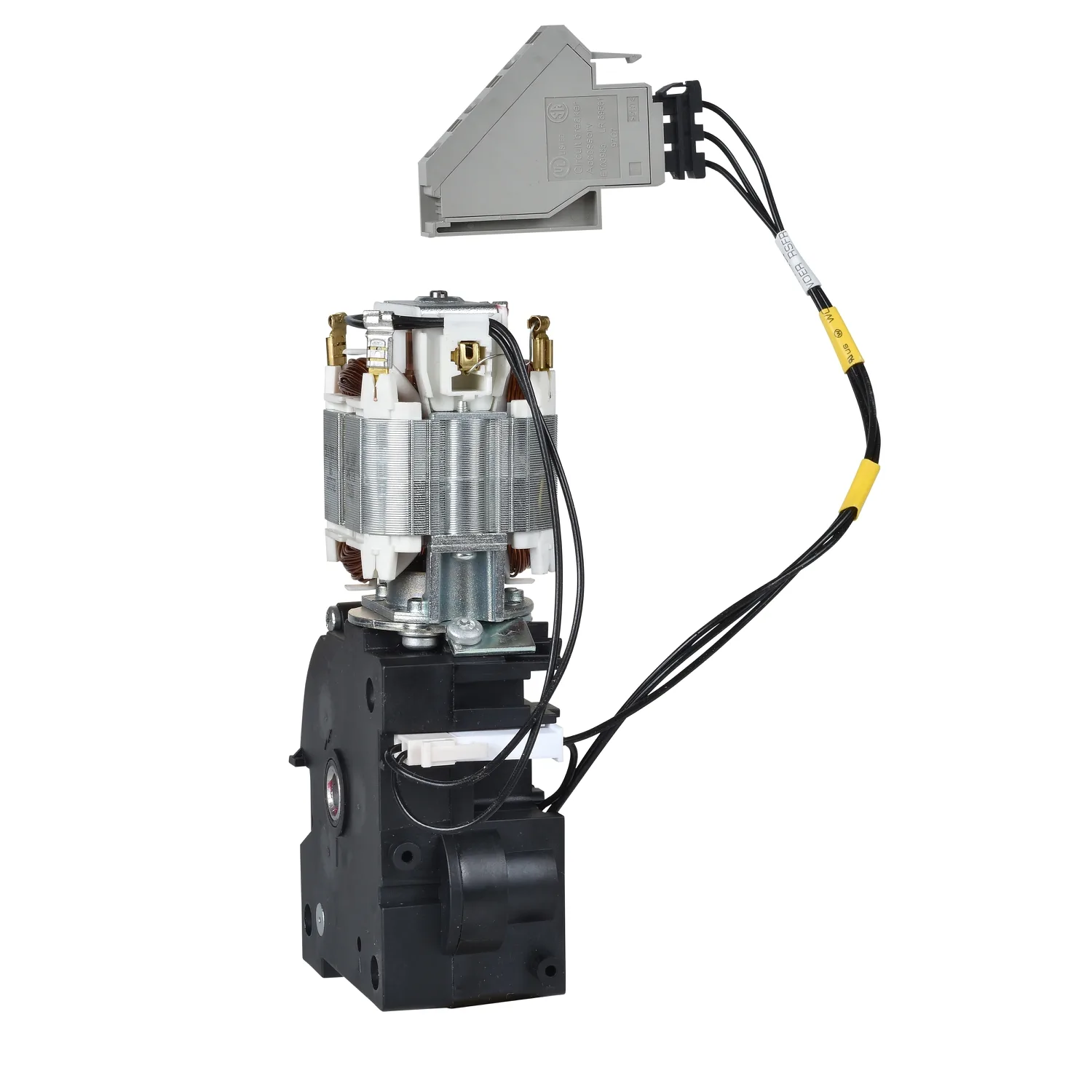

47395 - MCH - motor for NT fixed type, 100-130 VAC
Schneider 47395, MCH - motor for NT fixed type, 100-130 VAC. Category: EasyPact MVS. Request a quote for price and lead time.
- Reference:47395
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:773.00 EUR (Request a quote)
Key Specifications
- Device Short Name
- gear motor MCH
- Product Or Component Type
- Gear motor mechanism MCH
- Device Application
- Automatic spring charging
- Range Compatibility
- MasterPact NT circuit breaker
Product Description
- This MCH motor mechanism is used for remote control of the MasterPact NT/NW circuit breaker
- The motor mechanism ensures a ready-to-close operating mechanism.
- In combination with an XF closing coil and an MX shunt trip release, the MasterPact can be switched on and off
- MCH motor mechanism 100/130 VAC for fixed MasterPact NT
- This motor mechanism can only be ordered in combination with a configured circuit breaker.
Technical Specifications
Main7
| Device Short Name | gear motor MCH |
|---|---|
| Product Or Component Type | Gear motor mechanism MCH |
| Device Application | Automatic spring charging |
| Range Compatibility | MasterPact NT circuit breaker |
| Control Type | Motor mechanism |
| [Uc] Control Circuit Voltage | 100...130 V AC 50/60 Hz |
| Circuit Breaker Mounting Mode | Fixed |
Complementary2
| Maximum Charging Time | 3 s |
|---|---|
| Maximum Power Consumption In VA | 180 VA |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 0.6 cm |
| Package 1 Width | 12.0 cm |
| Package 1 Length | 18.0 cm |
| Package 1 Weight | 824.0 g |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
