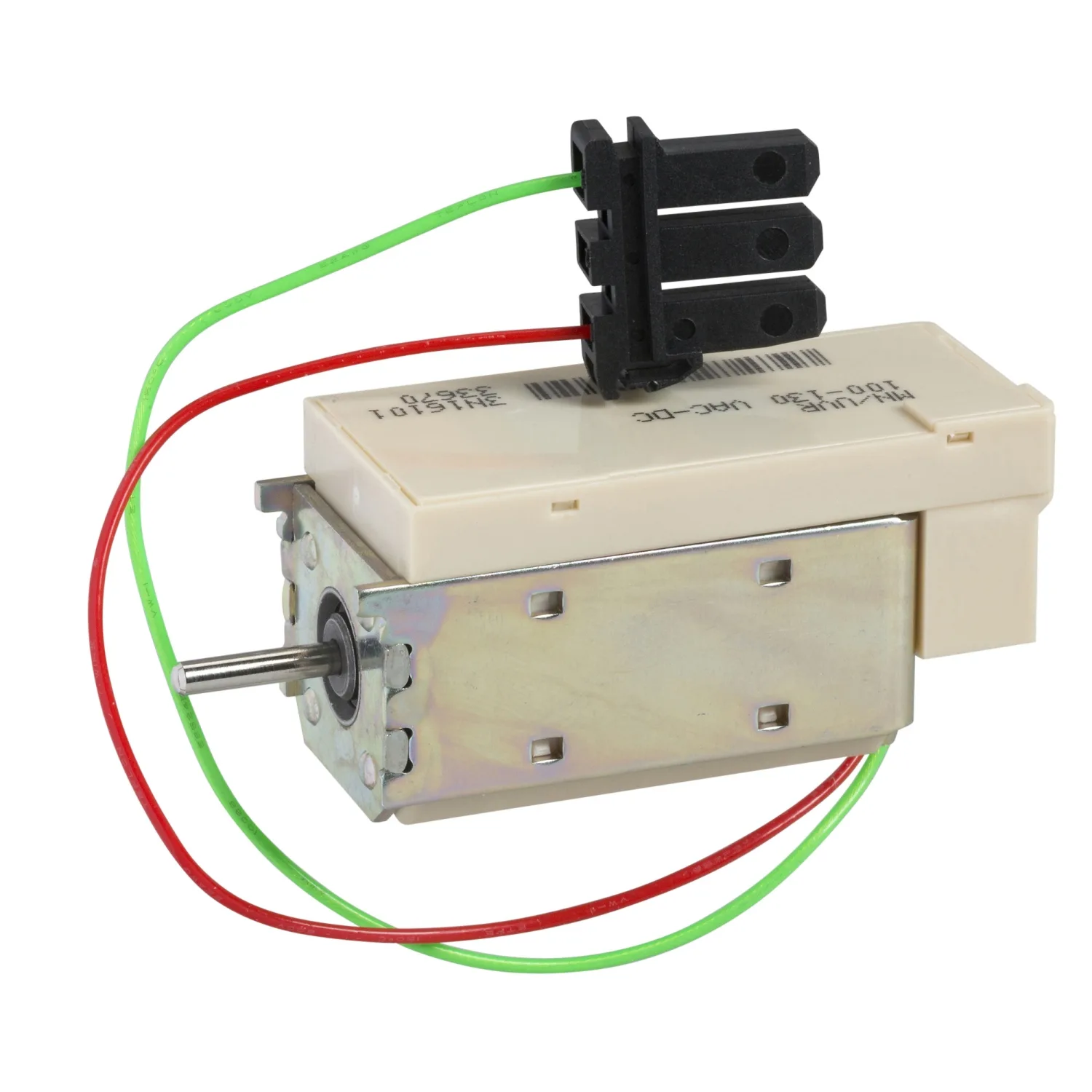

47443 - XF - closing release for NT drawout type, 200-250 VAC/ DC
Schneider 47443, XF - closing release for NT drawout type, 200-250 VAC/ DC. Category: MasterPact NT. Request a quote for price and lead time.
- Reference:47443
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:181.00 EUR (Request a quote)
Key Specifications
- Range
- MasterPacT
- Range Of Product
- MasterPact NT
- Device Short Name
- XF
- Product Or Component Type
- Voltage release
Product Description
- This closing coil is used for the instantaneous remote tripping of the MasterPact NT/NW circuit breaker
- In combination with an MX shunt trip and an MCH motor mechanism, the MasterPact can be remotely controlled.
- Tripping is instantaneous via a shunt release
- Instantaneous closing coil XF 200/250V AC/DC for NT drawout version
- This release coil can only be ordered in combination with a configured circuit breaker.
Technical Specifications
Main10
| Range | MasterPacT |
|---|---|
| Range Of Product | MasterPact NT |
| Device Short Name | XF |
| Product Or Component Type | Voltage release |
| Device Application | Control |
| Voltage Release Type | Closing coil; Instantaneous voltage release |
| Control Type | Standard |
| [Uc] Control Circuit Voltage | 200...250 V AC 50/60 Hz; 200...250 V DC |
| Circuit Breaker Mounting Mode | Drawout |
| Range Compatibility | Masterpact MasterPact NT |
Complementary3
| Operating Threshold | 0.85...1.1 Un closing |
|---|---|
| Response Time | 55 ms +/- 10 % |
| Supply Holding Power | 4.5 VA |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.5 cm |
| Package 1 Width | 6.5 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 1.167 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
