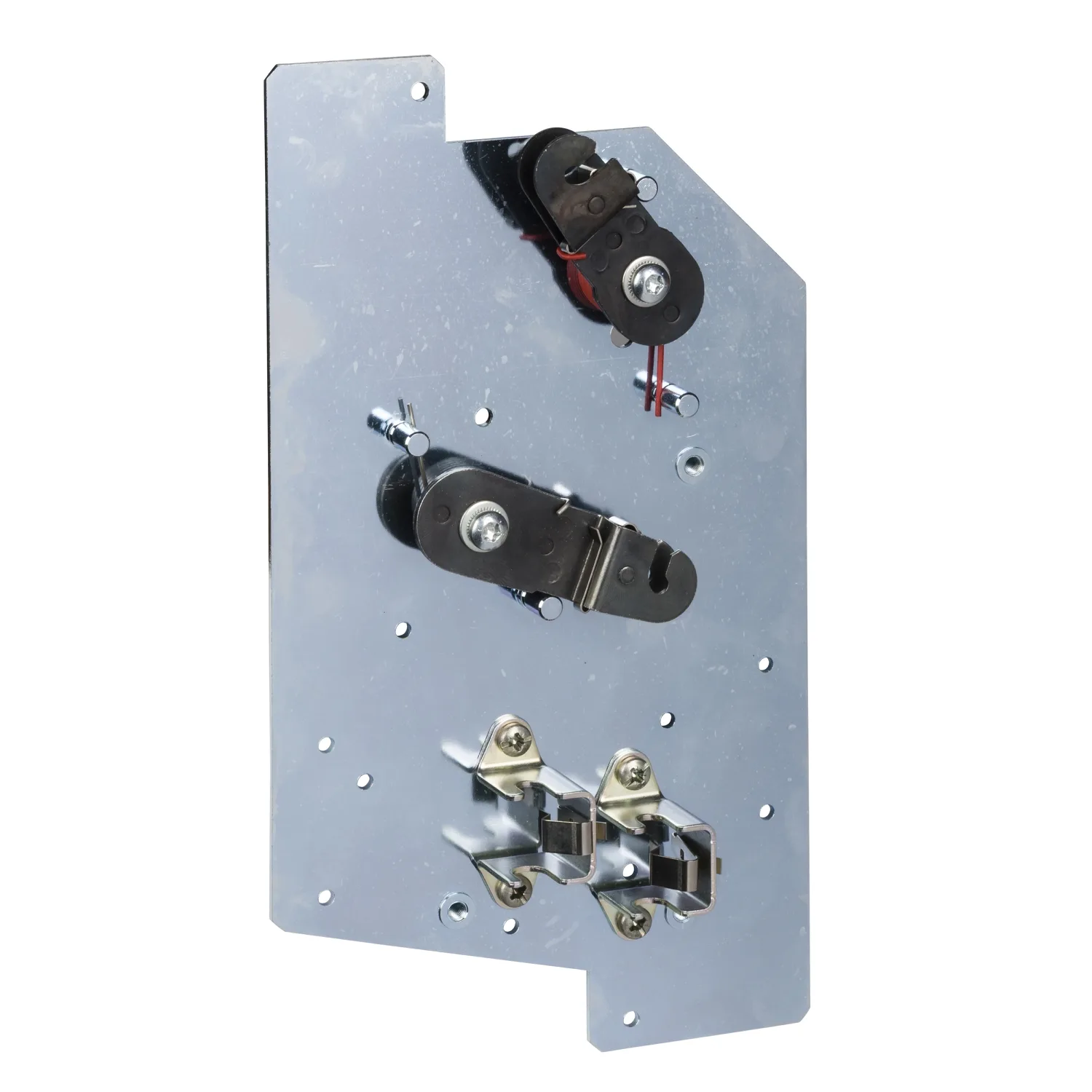

47926 - MECHANICAL INTERLOCK Cable with vertical/horizontal connection NW adaptation plate fixed and drawout
Schneider 47926, MECHANICAL INTERLOCK Cable with vertical/horizontal connection NW adaptation plate fixed and drawout. Category: MasterPact NW. Request a quote for price and lead time.
- Reference:47926
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:442.00 EUR (Request a quote)
Key Specifications
- Product Or Component Type
- Cable adaptation fixture
- Accessory / Separate Part Category
- Interlocking accessory
- Range Compatibility
- Masterpact MasterPact NW
- Mounting Mode
- Drawout; Fixed
Product Description
This is an adaptation feature for cable interlocking of two Masterpact NW08 to NW63 in fixed version. This adaptation fixture is mounted on the right side one device. For a complete interlocking assembly, another adaptation fixture and a set of cables are needed.
Key Features
- "MasterPact NW is a range of circuit breakers for built-in power & energy metering"
- "The solution covers ratings from 800 A to 6300 A"
- "MicroLogic electronic control unit provides electrical measurement and analysis functions"
- "MasterPact NT/NWS offers an optimized range of auxiliaries and accessories, field installable"
- "Flexible installation in a switchboard or wall-mounted"
Technical Specifications
Main4
| Product Or Component Type | Cable adaptation fixture |
|---|---|
| Accessory / Separate Part Category | Interlocking accessory |
| Range Compatibility | Masterpact MasterPact NW |
| Mounting Mode | Drawout; Fixed |
Complementary3
| Source-changeover Interlock | Interlocking 2 sources by cable |
|---|---|
| Interlocked Device | MasterPact NW |
| Control Type | Remote control |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 8.600 cm |
| Package 1 Width | 17.500 cm |
| Package 1 Length | 27.400 cm |
| Package 1 Weight | 925.400 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.952 kg |
| Unit Type Of Package 3 | P12 |
| Number Of Units In Package 3 | 48 |
| Package 3 Height | 50.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 58.419 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
