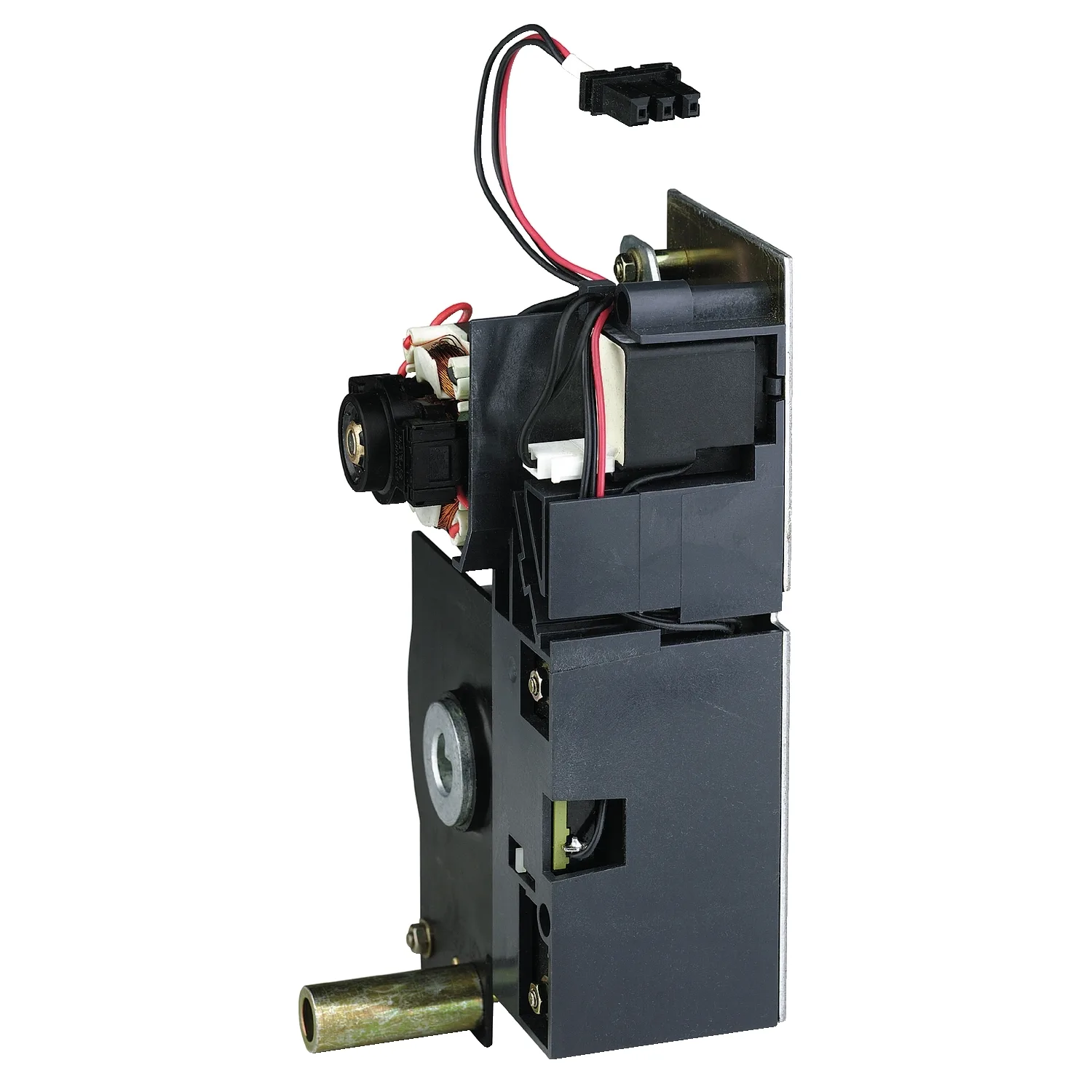

48212 - MCH - motor for NW fixed type, 200-240 VAC
Schneider 48212, MCH - motor for NW fixed type, 200-240 VAC. Category: MasterPact NW. Request a quote for price and lead time.
- Reference:48212
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:773.00 EUR (Request a quote)
Key Specifications
- Device Short Name
- gear motor MCH
- Product Or Component Type
- Gear motor mechanism MCH
- Device Application
- Automatic spring charging
- Range Compatibility
- MasterPact NW circuit breaker
Product Description
This is a motor mechanism (MCH) for drawout Masterpact NW circuit breakers. It allows remote opening or closing operations. It can be used for automatic source changeover. The control voltage is 200-240 VAC 50/60 Hz, and the charging time is less than 4s. It is equipped with a limit switch contact (CH) that signals the charged position of the mechanism.
Technical Specifications
Main7
| Device Short Name | gear motor MCH |
|---|---|
| Product Or Component Type | Gear motor mechanism MCH |
| Device Application | Automatic spring charging |
| Range Compatibility | MasterPact NW circuit breaker |
| Control Type | Motor mechanism |
| [Uc] Control Circuit Voltage | 200...240 V AC 50/60 Hz |
| Circuit Breaker Mounting Mode | Fixed |
Complementary2
| Maximum Charging Time | 4 s |
|---|---|
| Maximum Power Consumption In VA | 180 VA |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 12.500 cm |
| Package 1 Width | 13.000 cm |
| Package 1 Length | 22.900 cm |
| Package 1 Weight | 1.868 kg |
| Unit Type Of Package 2 | S04 |
| Number Of Units In Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 23.066 kg |
| Unit Type Of Package 3 | P12 |
| Number Of Units In Package 3 | 96 |
| Package 3 Height | 90.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 196.528 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
