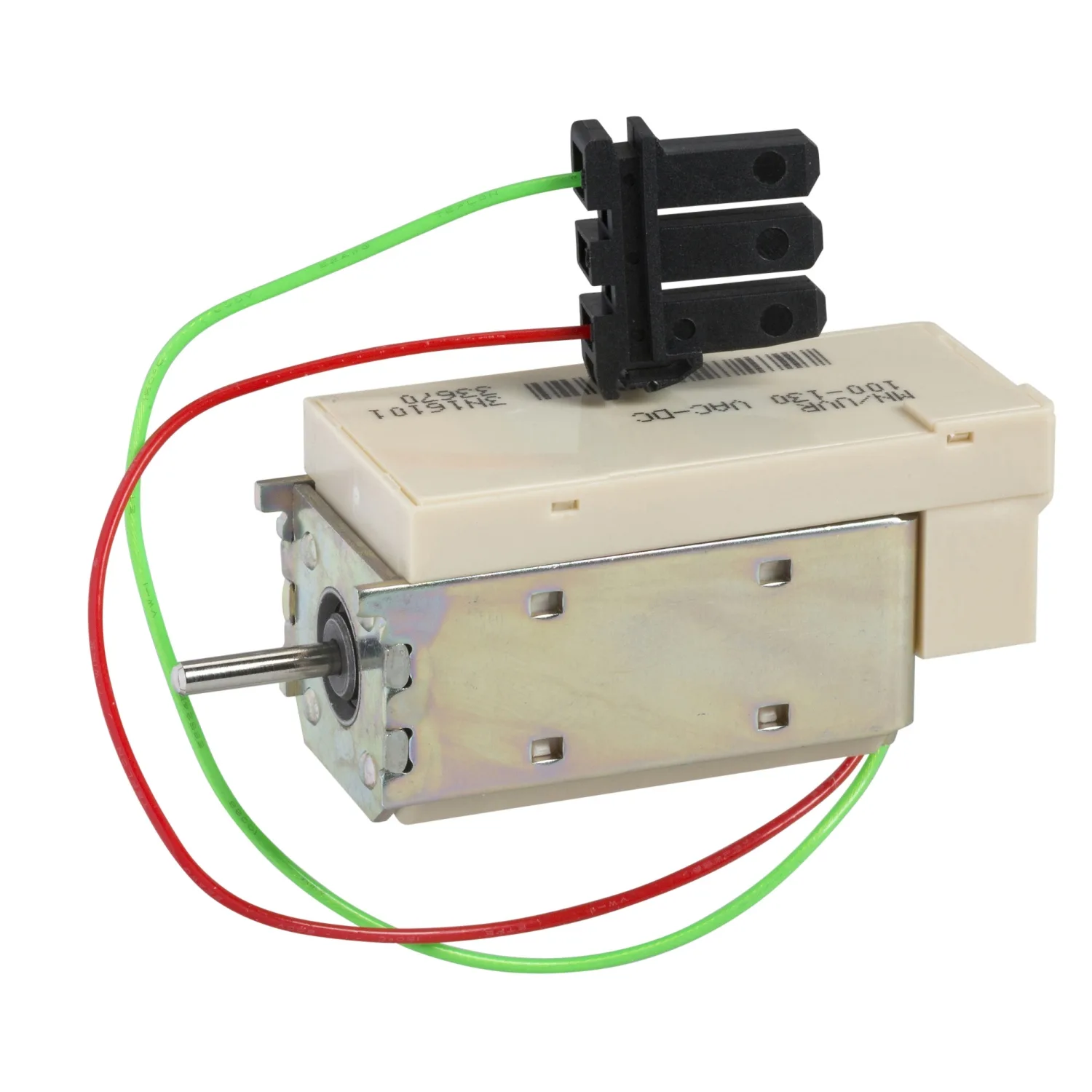

48503 - MN - undervoltage release, 100-130 VAC/ DC, for NW withdrawable type
Schneider 48503, MN - undervoltage release, 100-130 VAC/ DC, for NW withdrawable type. Category: MasterPact for Direct Current. Request a quote for price and lead time.
- Reference:48503
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:383.00 EUR (Request a quote)
Key Specifications
- Range
- MasterPacT
- Device Short Name
- MN
- Product Or Component Type
- Voltage release
- Device Application
- Control
Product Description
- This shunt trip release is used for instantaneous remote tripping of the MasterPact NT/NW circuit breaker
- Tripping occurs instantaneously as soon as the supply voltage drops to a value of 0.7x rated voltage
- Instantaneous undervoltage release MN 100/130V AC/DC NW/NW drawout
- This shunt trip release can only be ordered in conjunction with a configured circuit breaker.
Technical Specifications
Main10
| Range | MasterPacT |
|---|---|
| Range Of Product | MasterPact NW; MasterPact NW DC; MasterPact NW NAVY |
| Device Short Name | MN |
| Product Or Component Type | Voltage release |
| Device Application | Control |
| Voltage Release Type | Opening coil; Undervoltage release |
| Control Type | Standard |
| [Uc] Control Circuit Voltage | 100...130 V AC 50/60 Hz; 100...130 V DC |
| Circuit Breaker Mounting Mode | Drawout |
| Range Compatibility | Masterpact MasterPact NW; Masterpact MasterPact NW DC |
Complementary3
| Operating Threshold | 0.35...0.7 x Un opening; 0.85 Un closing |
|---|---|
| Response Time | 90 ms +/- 5 % |
| Supply Holding Power | 4.5 VA |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 8.0 cm |
| Package 1 Length | 6.0 cm |
| Package 1 Weight | 180.0 g |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
