Schneider

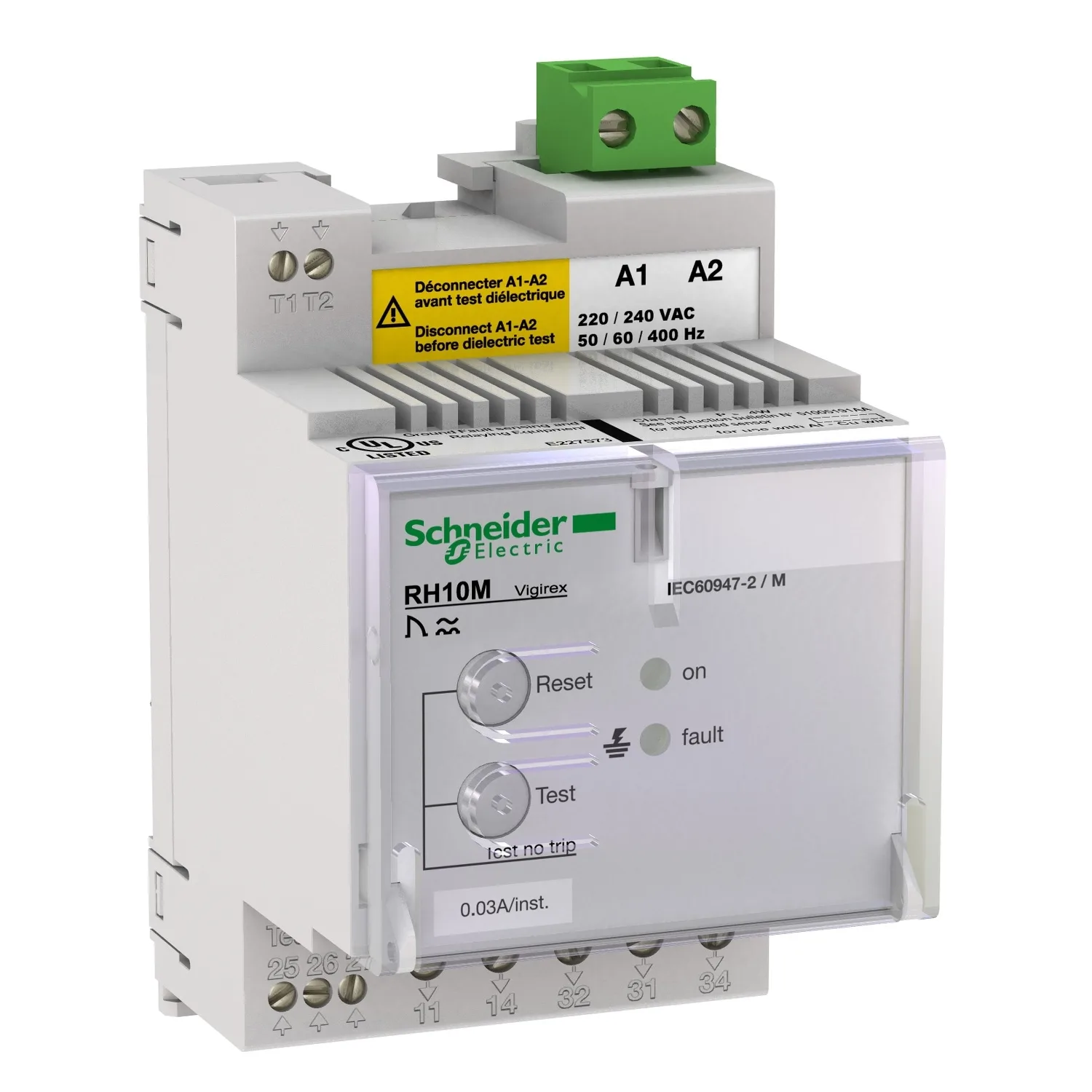

56130 - RH10M 220/240 V AC 50/60/400 Hz SENSITIVITY 0.03 A INSTANTANEOUS
Schneider 56130, RH10M 220/240 V AC 50/60/400 Hz SENSITIVITY 0.03 A INSTANTANEOUS. Category: Vigirex RH10MP-RH21MP-RH99MP-RH197-RHU. Request a quote for price and lead time.
- Reference:56130
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:307.00 EUR (Request a quote)
Key Specifications
- Range
- VigiPacT
- Device Short Name
- RH10M
- Product Or Component Type
- Residual current protection relay
- Relay Application
- Protection relay
Product Description
- "VigiPacT RH10M is a DIN rail mounting residual current protection relay."
- "It protects against people direct or indirect contact, property fire hazards and motors."
- "It measures the earth leakage current in an electrical installation via its associated toroid."
- "It trips the associated circuit breaker when the set residual operation current is overrun."
- "The operational supply voltage is 220/240VAC 50/60Hz."
- "It is a type A earth-leakage protection class."
- "The current sensitivity (IDn) is fixed to 30mA."
- "The time delay (Dt) is instantaneous."
- "It requires a local manual reset after a fault clearance."
- "The monitored distribution system voltage is up to 1000VAC 50/60/400Hz."
- "It is installed on a DIN-rail inside a switchboard and the protection degree is IP40."
- "It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor."
Key Features
- "VigiPacT relays ensure coordination with ComPacT circuit breakers (switch off within 40ms)"
- "Continuous monitoring of the power supply, the relay/toroid link and internal electronics"
- "Reinforced insulation of VigiPacT relays (overvoltage category IV)"
- "Access to settings protected by a lead-sealable cover or password"
- RoHS and REACH compliant
Technical Specifications
Main19
| Range | VigiPacT |
|---|---|
| Device Short Name | RH10M |
| Product Or Component Type | Residual current protection relay |
| Relay Application | Protection relay |
| Mounting Support | DIN rail |
| Earth-leakage Protection Class | Type A |
| Type Of Setting | None |
| Residual Earth-leakage Sensitity Adjustment Type | Fixed |
| Earth-leakage Sensitivity | 0.03 A |
| Earth-leakage Time Delay | Instantaneous |
| Current Sensors Compatibility | VigiPacT TOA earth leakage current sensor; VigiPacT A earth leakage current sensor; VigiPacT L earth leakage current sensor |
| [Ithe] Conventional Enclosed Thermal Current | 8 A |
| Minimum Load | 10 mA at 12 V |
| [Us] Rated Supply Voltage | 220...240 V AC 50/60 Hz 55...110 % |
| Power Consumption In VA | 4 VA |
| Monitored Distribution System | 1000 V - AC at 50/60 Hz (maximum); 1000 V - AC at 400 Hz (maximum) |
| Earthing System | TN-S; IT; TT |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Reset | Manual reset |
Complementary16
| Test Function | Local; Remote test |
|---|---|
| Monitoring | Electronics (continuous); Power supply (continuous); Relay/sensor link (continuous) |
| Type Of Measurement | Earth fault current internal measurement, range: 80...100 % |
| Tamperproof Of Settings | Protected by sealable cover |
| Connections - Terminals | Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² flexible 24 AWG...12 AWG; Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² rigid 24 AWG...12 AWG; Auxiliary power supply: terminal block cable(s) 0.25…2.5 mm² flexible 24 AWG...12 AWG; Fault: screw terminal cable(s) 0.2…2.5 mm² flexible 24 AWG...12 AWG; Fault: screw terminal cable(s) 0.2…4 mm² rigid 24 AWG...12 AWG; Fault: scre |
| Wire Stripping Length | Auxiliary power supply: 7 mm for top connection; Fault: 8 mm for bottom connection; Relay test and fault reset: 5 mm for bottom connection; Sensor: 5 mm for top connection; Voltage presence: 8 mm for bottom connection |
| Tightening Torque | Auxiliary power supply: 0.6 N.m top; Fault: 0.6 N.m bottom; Relay test and fault reset: 0.25 N.m bottom; Sensor: 0.25 N.m top; Voltage presence: 0.6 N.m bottom |
| 9 Mm Pitches | 6 |
| Standards | EN/IEC 60947-2 Annex M; EN/IEC 60755; UL 1053; CAN/CSA C22.2 No. 144 |
| Width | 54 mm |
| Height | 81 mm |
| Depth | 74 mm |
| Net Weight | 0.3 kg |
| IP Degree Of Protection | IP40 on front face: conforming to EN/IEC 60529; IP30 on side parts: conforming to EN/IEC 60529; IP20 on connection terminals: conforming to EN/IEC 60529 |
| IK Degree Of Protection | IK07 conforming to EN 50102 |
| Mechanical Robustness | Fire resistance conforming to IEC 60695-2-1; IK protection 2 joules: IK07 conforming to EN 50102; Vibrations 13.2...100 Hz: 0.7 g; Vibrations 2...13.2 Hz: +/- 1 mm |
Environment7
| Overvoltage Category | IV |
|---|---|
| Electrical Shock Protection Class | Class II |
| Electromagnetic Compatibility | Conducted and radiated emissions: , B, conforming to CISPR 11; Conducted radio-frequency immunity test: , 3, conforming to IEC 61000-4-6; Electrostatic discharge immunity test: , 4, conforming to IEC 61000-4-2; High-energy conducted susceptibility: , 4, conforming to IEC 61000-4-5; Low-energy conducted susceptibility: , 4, conforming to IEC 61000-4-4; Radiated susceptibility: , 3, conforming to IE |
| Relative Humidity | 95 % at 55 °C |
| Pollution Degree | 3 conforming to IEC 60664-1 |
| Ambient Air Temperature For Operation | -35…70 °C |
| Ambient Air Temperature For Storage | -55…85 °C |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 8.0 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 9.0 cm |
| Package 1 Weight | 274.0 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 36 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 10.351 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
