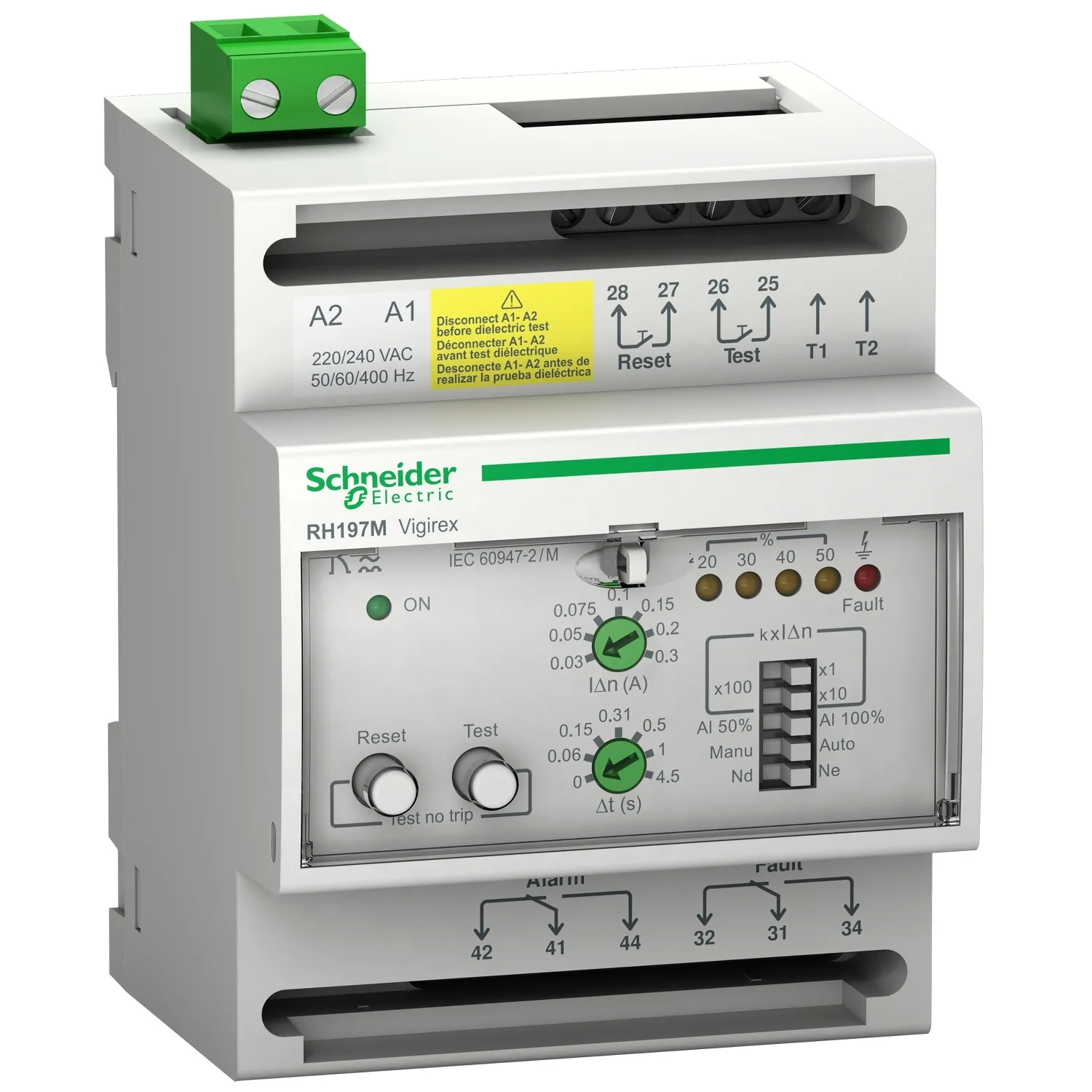

56517 - RH197M 220/240V AC 50/60/400 Hz 30mA-30A instantaneous 0 to 4.5 s time delay
Schneider 56517, RH197M 220/240V AC 50/60/400 Hz 30mA-30A instantaneous 0 to 4.5 s time delay. Category: Vigirex RH10MP-RH21MP-RH99MP-RH197-RHU. Request a quote for price and lead time.
- Reference:56517
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:513.00 EUR (Request a quote)
Key Specifications
- Range
- VigiPacT
- Device Short Name
- RH197M
- Product Or Component Type
- Residual current protection relay
- Relay Application
- Protection relay
Product Description
VigiPacT RH197M is a DIN rail mounting residual current protection relay. It protects against people direct or indirect contact, property fire hazards and motors. It measures the earth leakage current in an electrical installation via its associated toroid. It trips the associated circuit breaker when the set residual operation current is overrun. The operational supply voltage is 220/240VAC 50/60Hz. It is a type A earth-leakage protection class. The current sensitivity is selectable with 19 thresholds from 30 mA to 30 A. The time delay is selectable with 7 settings from instantaneous to 4.5s. The alarm is set by Dip switch at 50% or 100% of IDn. A switch make the selection between local manual reset or automatic reset after a fault clearance. The monitored distribution system voltage is up to 1000 VAC 50/60/400 Hz. It is installed on a DIN-rail inside a switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.
Key Features
- "VigiPacT relays ensure coordination with ComPacT circuit breakers (switch off within 40ms)"
- "Continuous monitoring of the power supply, the relay/toroid link and internal electronics"
- "Reinforced insulation of VigiPacT relays (overvoltage category IV)"
- "Access to settings protected by a lead-sealable cover or password"
- RoHS and REACH compliant
Technical Specifications
Main20
| Range | VigiPacT |
|---|---|
| Device Short Name | RH197M |
| Product Or Component Type | Residual current protection relay |
| Relay Application | Protection relay |
| Mounting Support | DIN rail |
| Earth-leakage Protection Class | Type A |
| Type Of Setting | Selector |
| Residual Earth-leakage Sensitity Adjustment Type | Adjustable 19 settings |
| Earth-leakage Sensitivity | 0.03…30 A |
| Earth-leakage Time Delay | Instantaneous for 0.03 A; Adjustable 7 settings 0…4.5 s for 0.03…30 A |
| Alarm Threshold | 100 %; 50 % |
| Current Sensors Compatibility | VigiPacT TOA earth leakage current sensor; VigiPacT A earth leakage current sensor; VigiPacT L earth leakage current sensor |
| [Ithe] Conventional Enclosed Thermal Current | 8 A |
| Minimum Load | 10 mA at 12 V |
| [Us] Rated Supply Voltage | 220...240 V AC 50/60 Hz 70...110 % |
| Power Consumption In VA | 4 VA |
| Monitored Distribution System | 1000 V - AC at 50/60 Hz (maximum); 1000 V - AC at 400 Hz (maximum) |
| Earthing System | TT; TN-S; IT |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Reset | Manual reset; Automatic reset |
Complementary18
| Test Function | Local; Remote test |
|---|---|
| Monitoring | Electronics (watchdog); Power supply (continuous); Relay/sensor link (continuous) |
| Signal Contacts Composition | 1 NO |
| Type Of Measurement | Earth fault current internal measurement, range: 80...100 % |
| Refresh Time | 0.5 s |
| Tamperproof Of Settings | Protected by sealable cover |
| Connections - Terminals | Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² flexible 24 AWG...12 AWG; Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² rigid 24 AWG...12 AWG; Auxiliary power supply: terminal block cable(s) 0.25…2.5 mm² flexible 24 AWG...12 AWG; Fault: terminal block cable(s) 0.2…2.5 mm² flexible 24 AWG...12 AWG; Fault: terminal block cable(s) 0.2…2.5 mm² rigid 24 AWG...12 AWG; Fault: te |
| Wire Stripping Length | Auxiliary power supply: 7 mm; Fault: 7 mm; Relay test and fault reset: 7 mm; Sensor: 7 mm; Voltage presence: 7 mm |
| Tightening Torque | Auxiliary power supply: 0.6 N.m; Fault: 0.6 N.m; Relay test and fault reset: 0.6 N.m; Sensor: 0.6 N.m; Voltage presence: 0.6 N.m |
| 9 Mm Pitches | 8 |
| Standards | EN/IEC 60947-2 Annex M; EN/IEC 60755 |
| Width | 71.2 mm |
| Height | 98.7 mm |
| Depth | 65.8 mm |
| Net Weight | 0.3 kg |
| IP Degree Of Protection | IP40 on front face: conforming to EN/IEC 60529; IP30 on side parts: conforming to EN/IEC 60529; IP20 on connection terminals: conforming to EN/IEC 60529 |
| IK Degree Of Protection | IK07 conforming to EN 50102 |
| Mechanical Robustness | Fire resistance conforming to IEC 60695-2-1; IK protection 2 joules: IK07 conforming to EN 50102; Vibrations 13.2...100 Hz: 0.7 g; Vibrations 2...13.2 Hz: +/- 1 mm |
Environment7
| Overvoltage Category | IV |
|---|---|
| Electrical Shock Protection Class | Class II |
| Electromagnetic Compatibility | Conducted and radiated emissions: , B, conforming to CISPR 11; Conducted radio-frequency immunity test: , 3, conforming to IEC 61000-4-6; Electrostatic discharge immunity test: , 4, conforming to IEC 61000-4-2; High-energy conducted susceptibility: , 4, conforming to IEC 61000-4-5; Low-energy conducted susceptibility: , 4, conforming to IEC 61000-4-4; Radiated susceptibility: , 3, conforming to IE |
| Relative Humidity | 95 % at 55 °C |
| Pollution Degree | 3 conforming to IEC 60664-1 |
| Ambient Air Temperature For Operation | -25…55 °C |
| Ambient Air Temperature For Storage | -40…85 °C |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 9.500 cm |
| Package 1 Width | 8.500 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 324.200 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 24 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.181 kg |
Logistical informations1
| Country Of Origin | IT |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
