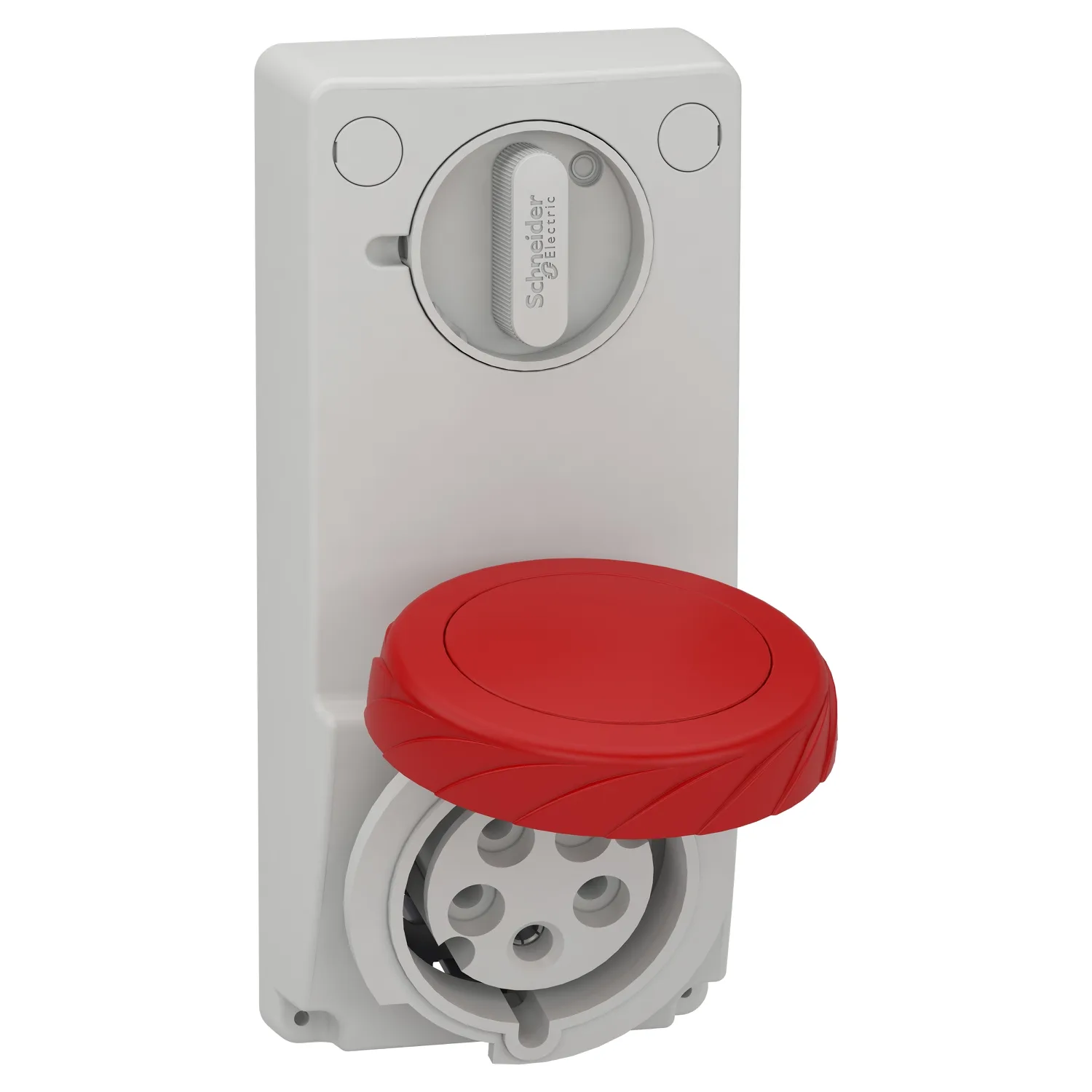

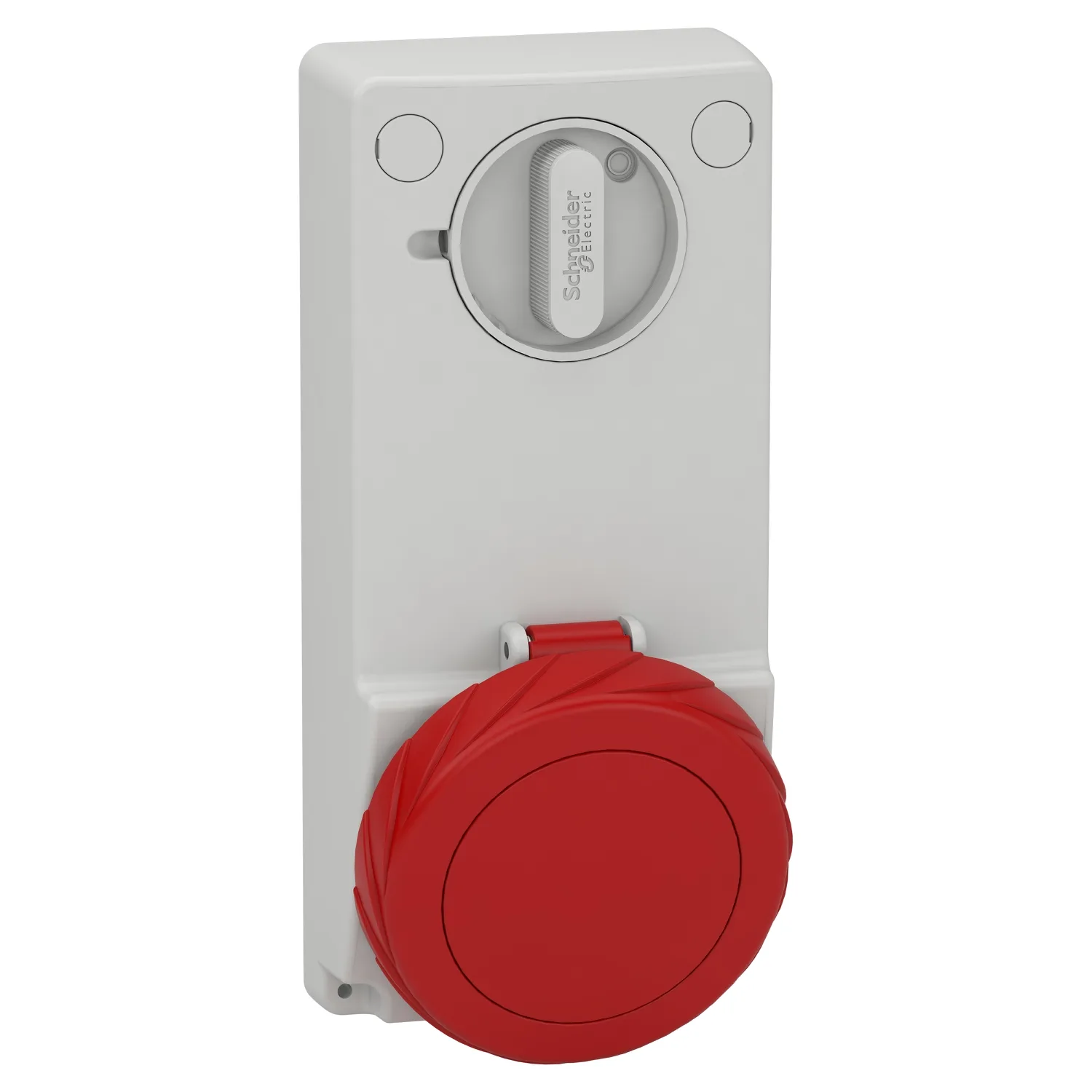

82097 - 5 x 32, three-phase, 3P+N+T IP65 Panel socket
Schneider 82097, 5 x 32, three-phase, 3P+N+T IP65 Panel socket. Category: Mureva PK. Request a quote for price and lead time.
- Reference:82097
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:202.00 EUR (Request a quote)
Key Specifications
- Range
- Mureva
- Product Or Component Type
- Interlocked socket
- Device Short Name
- Mureva socket
- Plug, Socket Category
- Low voltage
Product Description
This PratiKa industrial interlocked socket with captive screws connection is panel-mounted. It has 3P+N+E pole, rated current is 32A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 103mm x (H) 225mm. The degree of protection is IP65 and IK09. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 25mm for 10mm² cables. The color of the socket is grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Key Features
- Built for harsh outdoor conditions and containerized setups, ensuring durability in demanding environments
- Interlocked Design: Prevents accidental disconnection under load for enhanced safety
- Compatible with both flexible and rigid cables for versatile installation
- Designed with providing exceptional levels of protection and ergonomics in mind
Technical Specifications
Main7
| Range | Mureva |
|---|---|
| Product Or Component Type | Interlocked socket |
| Device Short Name | Mureva socket |
| Plug, Socket Category | Low voltage |
| Poles Description | 3P + N + E |
| Network Type | AC |
| Outlet Standard | Industrial |
Complementary20
| Mounting Mode | Panel-mounted |
|---|---|
| [In] Rated Current | 32 A |
| [Ue] Rated Operational Voltage | 380...415 V |
| Network Frequency | 50/60 Hz |
| Ground Lug Clockwise Position | 6 h |
| Protection Type | Without protection |
| Plug, Socket Material | Housing: self-extinguishing engineering polymer |
| Contacts Material | Sleeves: nickel plated brass |
| Connections - Terminals | Captive screws |
| Maximum Cable Cross Section | 10 mm² |
| Maximum Cable Outer Diameter | 25 mm |
| Cable Entry | Cable gland |
| Thread Type | Pg 21 |
| Net Weight | 0.796 kg |
| Base Dimension | 103 x 225 mm |
| Height | 225 mm |
| Width | 103 mm |
| Depth | 130 mm |
| Colour | Grey (RAL 7035) |
| Voltage Colour | Red |
Environment6
| Standards | IEC 60309-2; IEC 60309-1 |
|---|---|
| IP Degree Of Protection | IP65 conforming to IEC 60529 |
| IK Degree Of Protection | IK09 conforming to EN 62262 |
| Fire Resistance | 750 °C conforming to IEC 60695-2-11 |
| Relative Humidity | 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C |
| Ambient Air Temperature For Operation | 35 °C ( 86400 s ); -25…40 °C |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 11.500 cm |
| Package 1 Width | 10.800 cm |
| Package 1 Length | 23.800 cm |
| Package 1 Weight | 794.000 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 5 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.458 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
