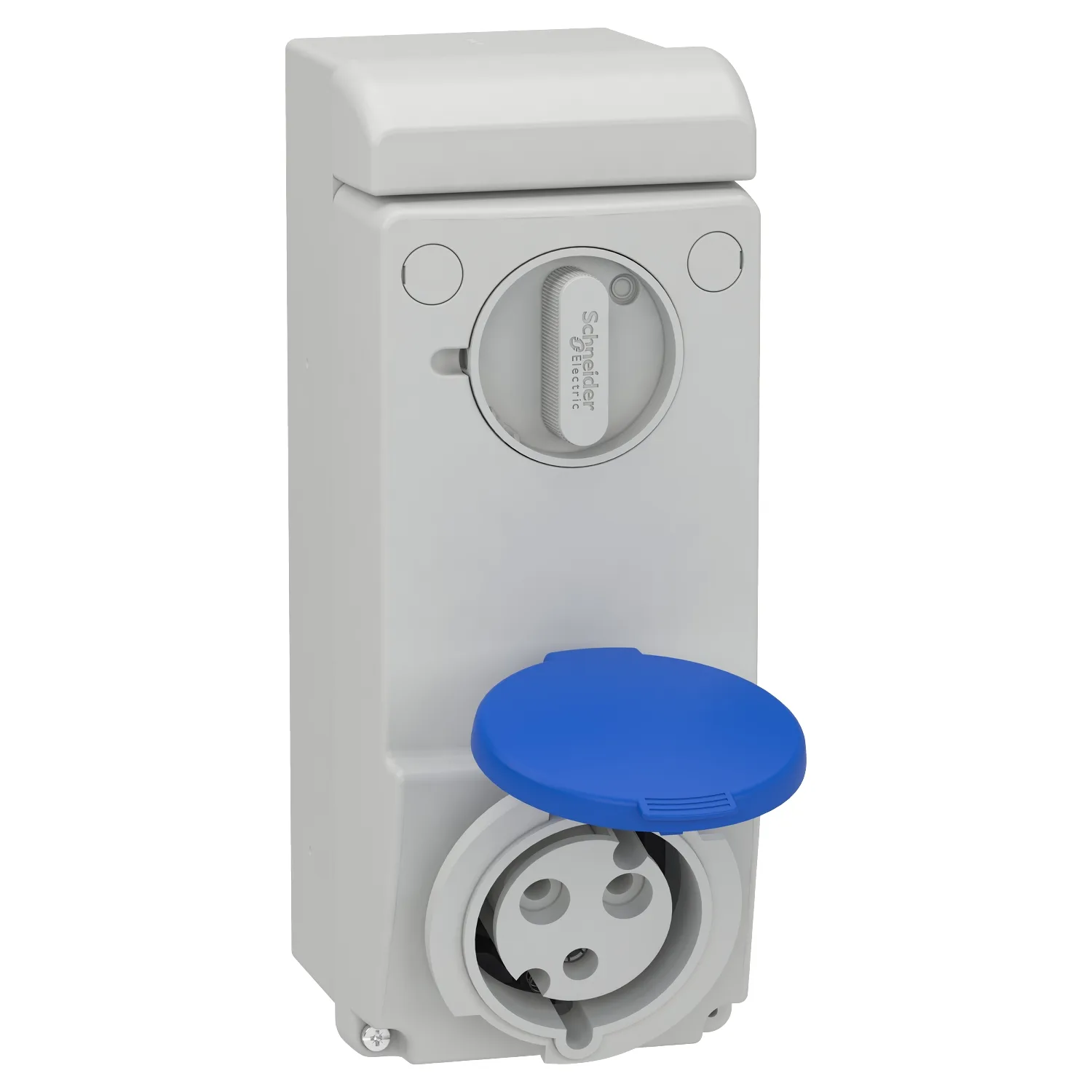

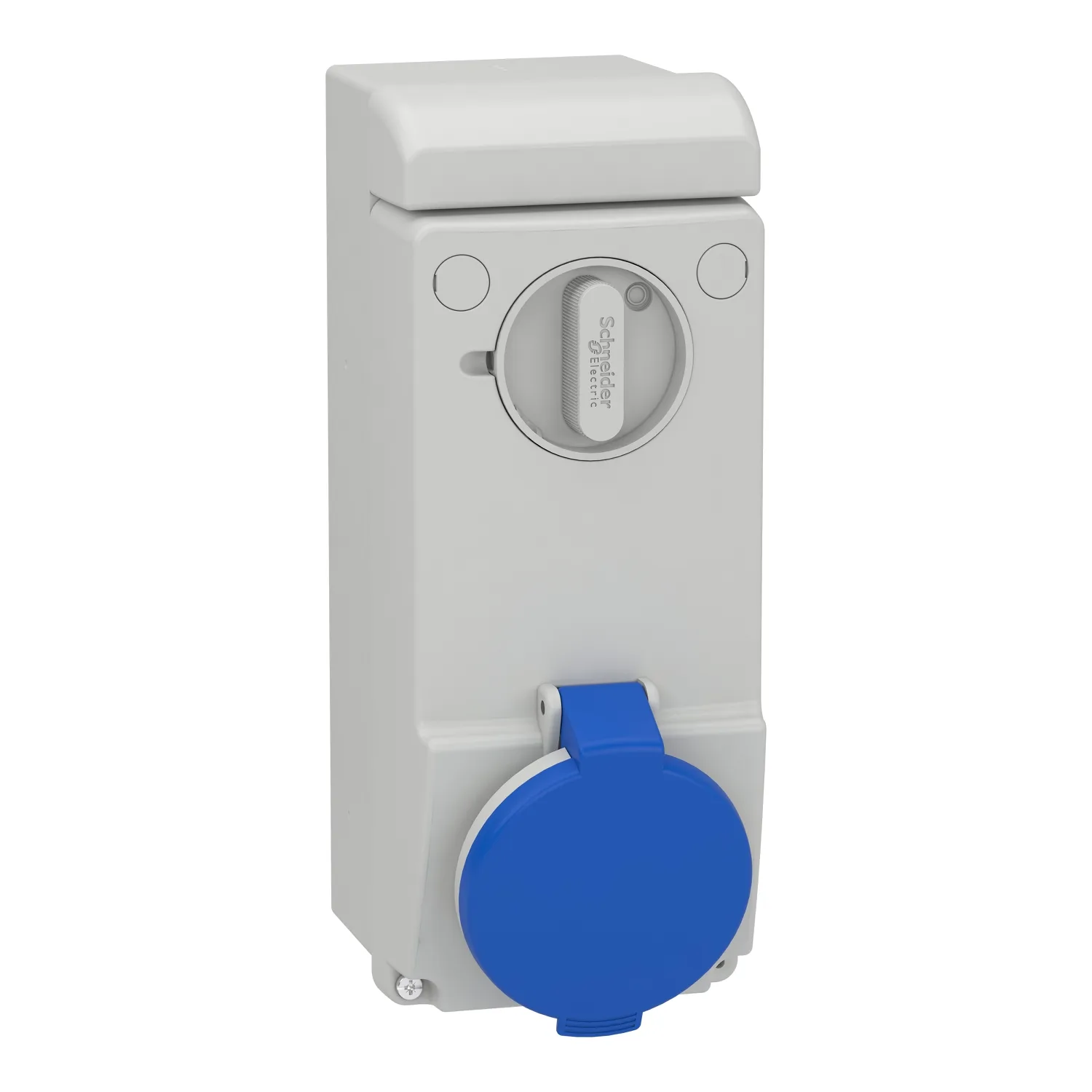

83042 - 3 x 32, single-phase, 2P+T IP44 Surface socket
Schneider 83042, 3 x 32, single-phase, 2P+T IP44 Surface socket. Category: Mureva PK. Request a quote for price and lead time.
- Reference:83042
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:149.10 EUR (Request a quote)
Key Specifications
- Range
- Mureva
- Product Or Component Type
- Interlocked socket
- Device Short Name
- Mureva socket
- Plug, Socket Category
- Low voltage
Product Description
Mureva PK interlocked socket designed for industrial environments, including outdoor-harsh conditions, making it suitable for containerized setups. The Interlocked design prevents accidental disconnection under load and has a 2P+E outlet pole configuration. The cable entries are suitable for both flexible and rigid cables. The size of the cable entry in 32A is 25mm for 10mm² cable cross-section. The clock position of contact is 6h. Its Ue rated operational voltage is 200-250VAC at 50/60Hz and its Ie rated operational current is 32A. This interlocked socket with captive screw connection is wall-mounted. The dimensions of the base plate are (W) 103mm x (H) 255mm. Operation temperature is from -25°C up to 40°C, and it reaches IP44 degree of protection. It is made up of self-extinguishing engineering polymer. The color of the product is grey (RAL 7035). Mureva PK industrial plugs and sockets expertly combine high performance with ease of installation and practicality. It is designed with providing exceptional levels of protection and ergonomics in mind.
Key Features
- Built for harsh outdoor conditions and containerized setups, ensuring durability in demanding environments
- Interlocked Design: Prevents accidental disconnection under load for enhanced safety
- Compatible with both flexible and rigid cables for versatile installation
- Designed with providing exceptional levels of protection and ergonomics in mind
Technical Specifications
Main7
| Range | Mureva |
|---|---|
| Product Or Component Type | Interlocked socket |
| Device Short Name | Mureva socket |
| Plug, Socket Category | Low voltage |
| Poles Description | 2P + E |
| Network Type | AC |
| Outlet Standard | Industrial |
Complementary20
| Mounting Mode | Wall-mounted |
|---|---|
| [In] Rated Current | 32 A |
| [Ue] Rated Operational Voltage | 200...250 V |
| Network Frequency | 50/60 Hz |
| Ground Lug Clockwise Position | 6 h |
| Protection Type | Without protection |
| Plug, Socket Material | Housing: self-extinguishing engineering polymer |
| Contacts Material | Sleeves: nickel plated brass |
| Connections - Terminals | Captive screws |
| Maximum Cable Cross Section | 10 mm² |
| Maximum Cable Outer Diameter | 25 mm |
| Cable Entry | Cable gland |
| Thread Type | Pg 21 |
| Net Weight | 1.003 kg |
| Base Dimension | 103 x 255 mm |
| Height | 255 mm |
| Width | 103 mm |
| Depth | 151 mm |
| Colour | Grey (RAL 7035) |
| Voltage Colour | Blue |
Environment6
| Standards | IEC 60309-2; IEC 60309-1 |
|---|---|
| IP Degree Of Protection | IP44 conforming to IEC 60529 |
| IK Degree Of Protection | IK09 conforming to EN 62262 |
| Fire Resistance | 750 °C conforming to IEC 60695-2-11 |
| Relative Humidity | 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C |
| Ambient Air Temperature For Operation | 35 °C ( 86400 s ); -25…40 °C |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 10.500 cm |
| Package 1 Width | 17.000 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 1.035 kg |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 5 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.914 kg |
| Unit Type Of Package 3 | P12 |
| Number Of Units In Package 3 | 40 |
| Package 3 Height | 50.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 59.320 kg |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
