Reflex iC60N 40 A 3P curve C integrated control MCB
Not for sale

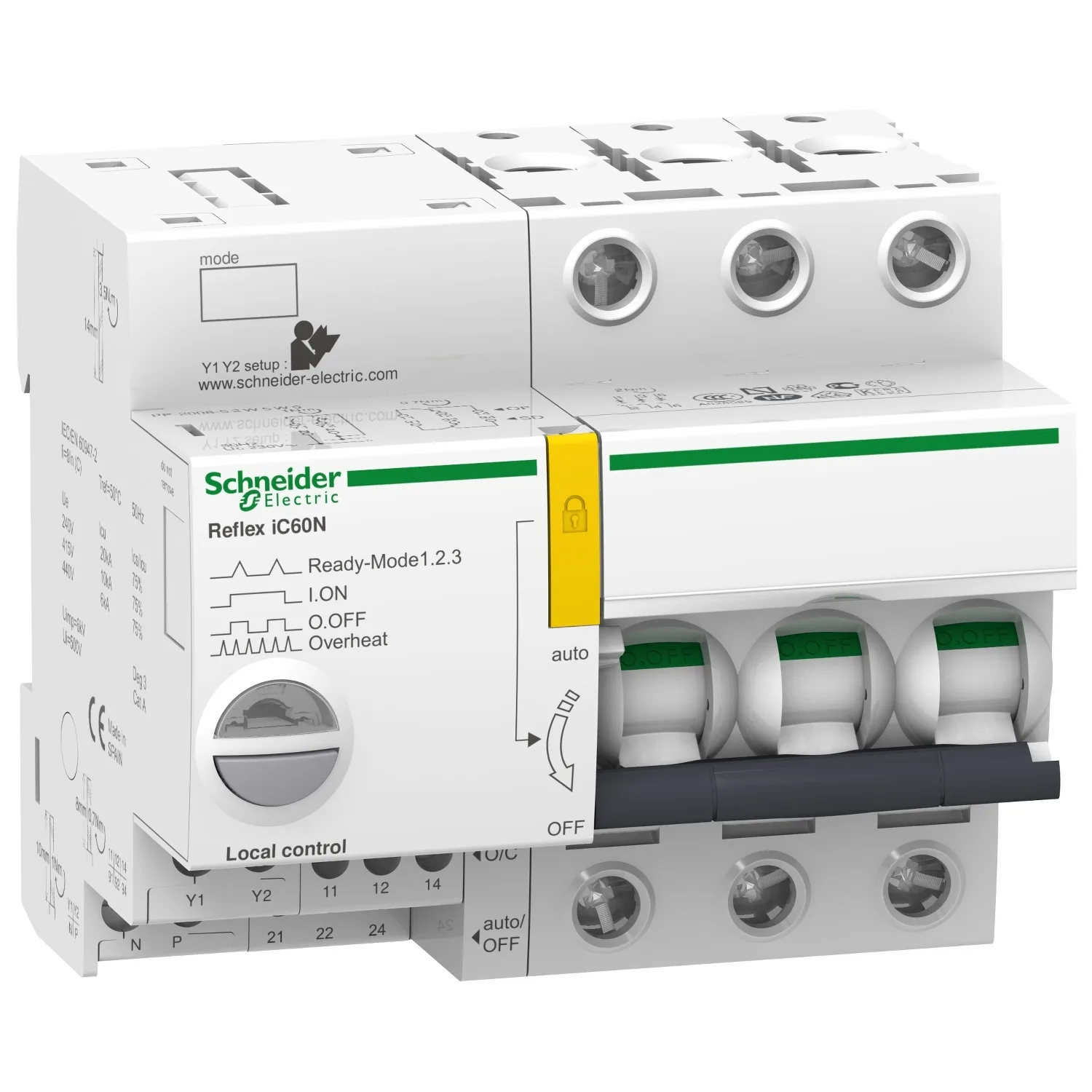

Schneider A9C52340, Reflex iC60N 40 A 3P curve C integrated control MCB. Category: Reflex iC60. Not for sale; no price or quote is offered for this product.
- Reference:A9C52340
- Manufacturer / Brand:Schneider
Key Specifications
- Device Application
- Control; Distribution
- Range
- Acti9
- Product Name
- Reflex iC60
- Device Short Name
- Reflex iC60N
Product Description
Reflex iC60N 40 A 3P Curve C Integrated Control MCB
Technical Specifications
Main10
| Device Application | Control; Distribution |
|---|---|
| Range | Acti9 |
| Product Name | Reflex iC60 |
| Device Short Name | Reflex iC60N |
| Product Or Component Type | Integrated control circuit breaker |
| Poles Description | 3P |
| Number Of Protected Poles | 3 |
| Network Type | AC |
| Trip Unit Technology | Thermal-magnetic |
| Curve Code | C |
Complementary24
| [In] Rated Current | 40 A |
|---|---|
| Network Frequency | 50/60 Hz |
| Breaking Capacity Code | N |
| Breaking Capacity | 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2; 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Ui] Rated Insulation Voltage | 500 V AC |
| Contact Position Indicator | Yes |
| Control Type | Remote control by continuous command; Toggle; ON/OFF button; Remote control by pulse |
| Control Signal Type | Maintained; Impulse |
| Local Signalling | Flashing LED: device tripped; Red LED: fault; Flashing LED: device overheat; Green LED: device ON; Flashing LED: device ready |
| [Uc] Control Circuit Voltage | 230 V AC 50/60 Hz; 24 V AC 50/60 Hz; 48 V AC 50/60 Hz; 24 V DC; 48 V DC |
| [Us] Rated Supply Voltage | 230 V AC at 50/60 Hz |
| Mounting Mode | Fixed |
| Mounting Support | 35 mm symmetrical DIN rail |
| 9 Mm Pitches | 11 |
| Height | 84 mm |
| Width | 99 mm |
| Depth | 77 mm |
| Colour | White |
| Mechanical Durability | 50000 cycles |
| Electrical Durability | AC-1: 50000 cycles AC 50 Hz |
| Provision For Padlocking | Padlockable |
| Locking Options Description | Padlock in OFF position |
| Earth-leakage Protection | Separate block |
| Product Compatibility | Without PLC |
Environment4
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
|---|---|
| Pollution Degree | 3 |
| Tropicalisation | 2 |
| Relative Humidity | 93 % at 40 °C |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 9.3 cm |
| Package 1 Width | 11.1 cm |
| Package 1 Length | 16.4 cm |
| Package 1 Weight | 714 g |
Logistical informations1
| Country Of Origin | ES |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
