Schneider

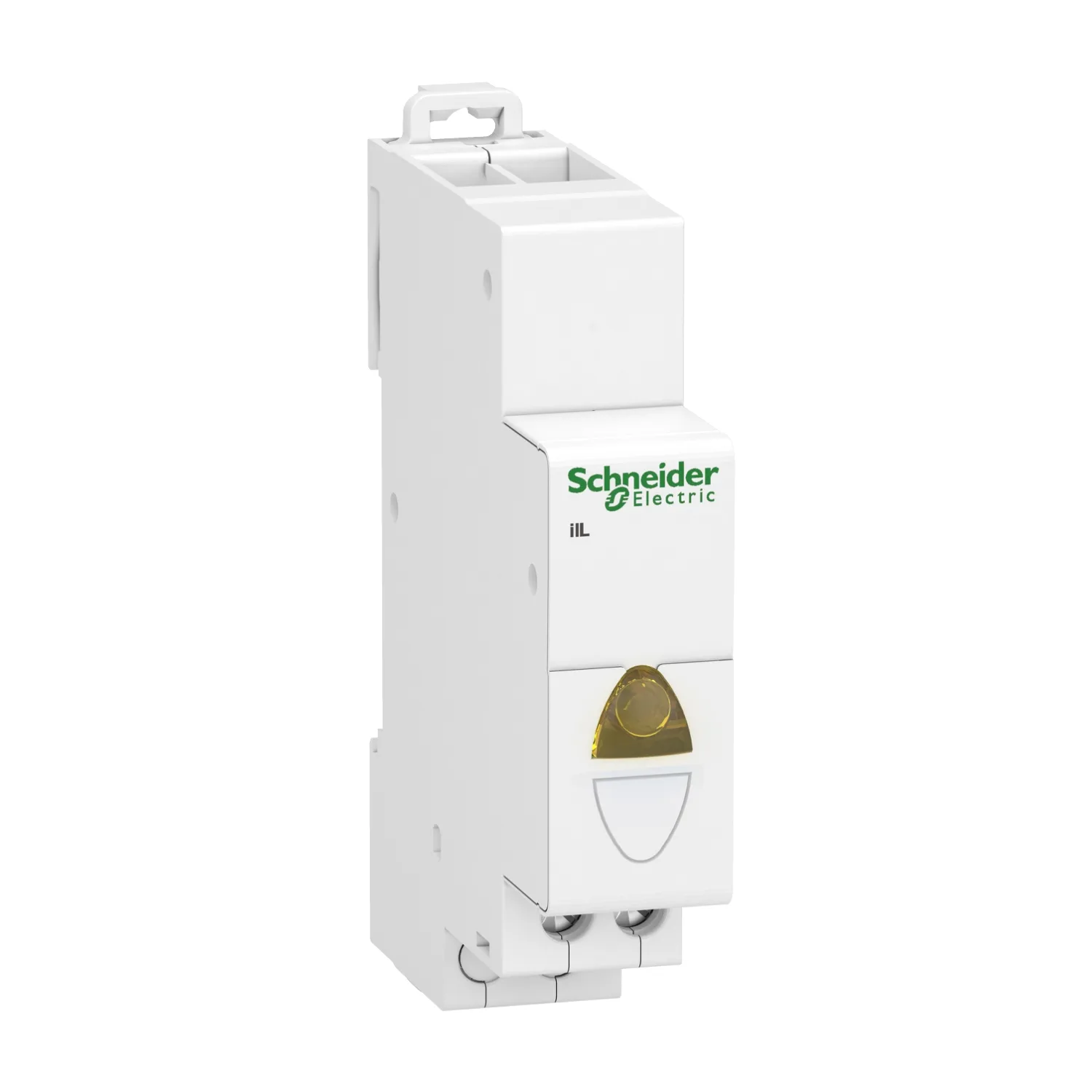

LED indicator; 110÷230VAC; for DIN rail mounting; Colour: yellow
Schneider A9E18324, LED indicator; 110÷230VAC; for DIN rail mounting; Colour: yellow. Category: iIL. Request a quote for price and lead time.
- Reference:A9E18324
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:14.30 EUR (Request a quote)
Key Specifications
- Range Of Product
- Acti9
- Product Name
- Acti9 iIL
- Product Or Component Type
- Modular pilot light
- Device Short Name
- iIL
Product Description
This Acti9 iIL accessory is a single modular pilot light fixed on DIN rail. It has at front face a yelllow LED of 0.3W with a service life of 100000 hours. The Us rated supply voltage is 100VAC to 230VAC at a 50/60Hz frequency, or is 110VDC to 130VDC.
Key Features
- Peace of mind that comes from using a fully modular system
- expansion and modification of an installation is not only possible but is both simple and rapid to perform
- Seamless integration with the complete range of Acti 9 products.
- Visual monitoring of electrical circuits in industrial and commercial buildings.
- Simple and rapid installation of modules in DIN rail systems
Technical Specifications
Main5
| Range Of Product | Acti9 |
|---|---|
| Product Name | Acti9 iIL |
| Product Or Component Type | Modular pilot light |
| Device Short Name | iIL |
| [Us] Rated Supply Voltage | 110...230 V AC at 50/60 Hz; 110...130 V DC |
Complementary12
| Indicator Light | 1 LED yellow, service life 100000 h of constant lighting efficiency (consumption 0.3 W) |
|---|---|
| Mounting Mode | Fixed |
| Mounting Support | Symmetrical DIN rail |
| Comb Busbar And Distribution Block Compatibility | Upside: ProDis |
| 9 Mm Pitches | 2 |
| Height | 82 mm |
| Width | 18 mm |
| Depth | 69.5 mm |
| Colour | White (RAL 9003) |
| Auxiliary Connection Terminal | Tunnel type terminal 1 cable(s) rigid 0.5 mm²; Tunnel type terminal 2 cable(s) rigid 2.5 mm²; Tunnel type terminal 1 cable(s) flexible 0.5 mm²; Tunnel type terminal 2 cable(s) flexible 2.5 mm²; Tunnel type terminal 2 cable(s) flexible with ferrule 2.5 mm² |
| Wire Stripping Length | 9 mm |
| Tightening Torque | 1 N.m |
Environment7
| Standards | IEC 60947-5-1 |
|---|---|
| IP Degree Of Protection | IP2; IPxx B |
| Pollution Degree | 3 |
| Tropicalisation | 2 |
| Relative Humidity | 95 % at 55 °C |
| Ambient Air Temperature For Operation | -35…70 °C |
| Ambient Air Temperature For Storage | -40…80 °C |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 6.600 cm |
| Package 1 Width | 1.800 cm |
| Package 1 Length | 8.200 cm |
| Package 1 Weight | 39.000 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 12 |
| Package 2 Height | 7.800 cm |
| Package 2 Width | 9.800 cm |
| Package 2 Length | 23.300 cm |
| Package 2 Weight | 523.000 g |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 108 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.159 kg |
Logistical informations1
| Country Of Origin | BE |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
