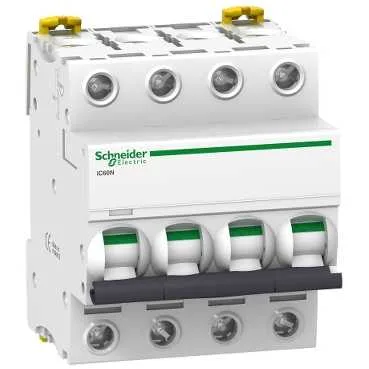

A9F73463 - Acti 9 iC60N Miniature Circuit Breaker 4P 63A B Curve
Schneider A9F73463, Acti 9 iC60N Miniature Circuit Breaker 4P 63A B Curve. Category: Low-voltage products. Request a quote for price and lead time.
- Reference:A9F73463
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:86.30 EUR (Request a quote)
Key Specifications
- Device Application
- Distribution
- Range
- Acti 9
- Product Or Component Type
- Miniature circuit breaker
- Product Name
- IC60
Product Description
The Schneider Acti 9 iC60N is a 4P miniature circuit breaker with a 63 A nominal current and B curve protection. Designed for distribution tasks in AC and DC systems, it is available through UC-EL Electric. The unit features a toggle control and is suitable for fixed mounting.
Technical Specifications
| Device Application | Distribution |
|---|---|
| Range | Acti 9 |
| Product Or Component Type | Miniature circuit breaker |
| Product Name | IC60 |
| Device Short Name | IC60N |
| Poles Description | 4P |
| Number Of Protected Poles | 4 |
| [In] Rated Current | 63 A |
| Network Type | AC, DC |
| Trip Unit Technology | Thermal-magnetic |
| Curve Code | B |
| Breaking Capacity | 6 kA Icucompliance standard IEC 60947-2 - 440 V AC 50/60 Hz, 6000 A Icncompliance standard EN 60898-1 - 400 V AC 50/60 Hz, 10 kA Icucompliance standard EN 60947-2 - 380...415 V AC 50/60 Hz, 10 kA Icucompliance standard IEC 60947-2 - 380...415 V AC 50/60 Hz, 20 kA Icucompliance standard EN 60947-2 - 220...240 V AC 50/60 Hz, 20 kA Icucompliance standard IEC 60947-2 - 220...240 V AC 50/60 Hz, 6 kA Ic |
| Utilization Category | Category A EN 60947-2 EN 60947-2 EN 60947-2 EN 60947-2 EN 60947-2 EN 60947-2 EN 60947-2 EN 60947-2 EN 60947-2 EN 60947-2 EN 60947-2 EN 60947-2 EN 60947-2 EN 60947-2, Category Acompliance standard IEC 60947-2 |
| Suitability For Isolation | Yescompliance standard EN 60947-2, Yescompliance standard IEC 60947-2, Yescompliance standard EN 60898-1, Yescompliance standard IEC 60898-1 |
| Standards | EN 60898-1, EN 60947-2, IEC 60898-1, IEC 60947-2 |
| Network Frequency | 50/60 Hz |
| Magnetic Tripping Limit | 4 x In +/- 20 % |
| [Ics] Rated Service Breaking Capacity | 6000 A 100 % x Icu compliance standard EN 60898-1 - 400 V AC 50/60 Hz, 4,5 kA 75 % x Icu compliance standard IEC 60947-2 - 440 V AC 50/60 Hz, 15 kA 75 % x Icu compliance standard EN 60947-2 - 220...240 V AC 50/60 Hz, 7,5 kA 75 % x Icu compliance standard EN 60947-2 - 380...415 V AC 50/60 Hz, 4,5 kA 75 % x Icu compliance standard EN 60947-2 - 440 V AC 50/60 Hz, 15 kA 75 % x Icu compliance standard |
| [Ui] Rated Insulation Voltage | 500 V AC 50/60 Hzcompliance standard IEC 60947-2, 500 V AC 50/60 Hzcompliance standard EN 60947-2 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kVcompliance standard EN 60947-2, 6 kVcompliance standard IEC 60947-2 |
| Contact Position Indicator | Yes |
| Control Type | Toggle |
| Local Signalling | Trip indicator |
| Mounting Mode | Fixed |
| Mounting Support | DIN rail |
| Comb Busbar Distribution Block Compatibility | YES top or bottom |
| 9 Mm Pitches | 8 |
| Height | 85 mm |
| Width | 72 mm |
| Depth | 78.5 mm |
| Product Weight | 0.5 kg |
| Colour | White |
| Mechanical Durability | 20000 cycles |
| Electrical Durability | 10000 cycles |
| Connections - Terminals | Single terminal, top or bottom rigid cable(s) 1...35 mm² max, Single terminal, top or bottom flexible cable(s) 1...25 mm² max |
| Wire Stripping Length | 14 mm top or bottom |
| Tightening Torque | 3.5 N.m top or bottom |
| Earth-leakage Protection | Separate block |
| IP Degree Of Protection | IP20compliance standard EN 60529, IP20compliance standard IEC 60529 |
| Pollution Degree | 3compliance standard EN 60947-2, 3compliance standard IEC 60947-2 |
| Overvoltage Category | IV |
| Tropicalisation | 2compliance standard IEC 60068-1 |
| Relative Humidity | 95 % ( 55 °C ) |
| Operating Altitude | 0...2000 m |
| Ambient Air Temperature For Operation | -35...70 °C |
| Ambient Air Temperature For Storage | -40...85 °C |
| Sustainable Offer Status | Green Premium product |
| ROHS | Compliant - since 1001 - Schneider Electric compliance declaration |
| REACH | Reference does not contain SVHC above the threshold |
| Product Environmental Profile | Available |
| End Of Life Instructions | No special recycling operations required |
