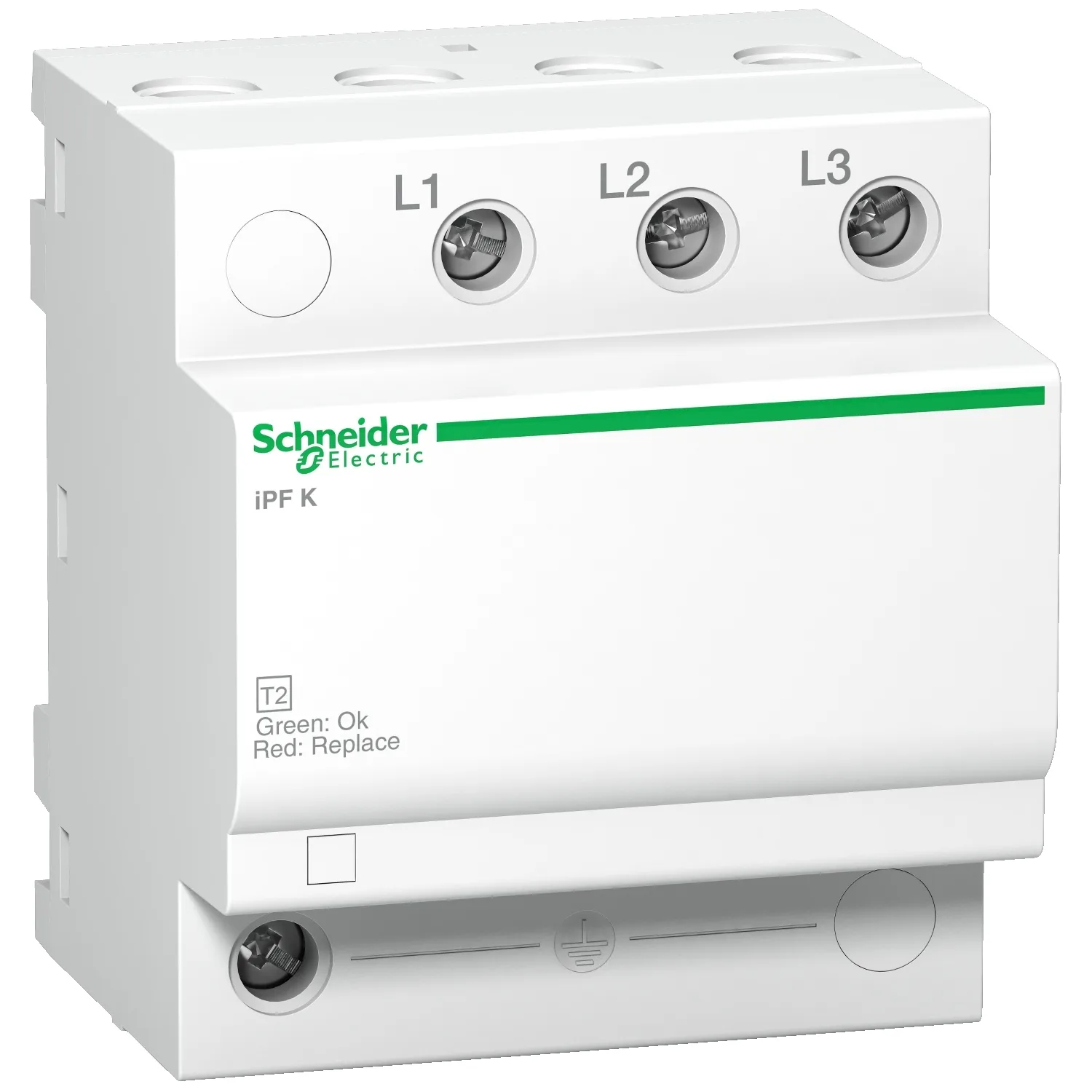

A9L15582 - IPF 40 40 KA 340V 3P Surge Arrester
Schneider A9L15582, IPF 40 40 KA 340V 3P Surge Arrester. Category: Acti 9 iPF K. Request a quote for price and lead time.
- Reference:A9L15582
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:123.70 EUR (Request a quote)
Key Specifications
- Range Of Product
- IPF K
- Range Of Product
- Acti9
- Product Name
- Acti9 iPF K
- Product Or Component Type
- Surge arrester
Product Description
This Acti9 iPF K 40 product is a modular surge arrester. It protects 3P installations. The Imax maximum discharge current is 40kA .The In nominal discharge current is 15kA. The multi-pole single-piece surge arrester range is adapted for TT earthing systems. This type 2 incoming protection surge arrester is recommended for a high risk level. The Uc maximum continuous operating voltage in common mode (between neutral and earth) is 340VAC. The Up Voltage protection level in common mode (between phase and earth) is 1.5kV. The Ue rated operational voltage is 230VAC or 400VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 72mm x (H) 81mm x (D) 69mm. The weight is 335g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with IEC 61643-11 and EN 61643-11 standards.
Key Features
- Ensures secondary protection of loads to be protected by placing in cascade with the incoming surge arrester
- Suitable for TN-C and IT 230 networks with high prospective short-circuit fault currents
- Can be used when the loads to be protected are at a distance of more than 10m from the incoming surge arrester
Technical Specifications
Main12
| Range Of Product | IPF K |
|---|---|
| Range Of Product | Acti9 |
| Product Name | Acti9 iPF K |
| Product Or Component Type | Surge arrester |
| Device Short Name | iPF K |
| Device Application | Distribution |
| Standards | IEC 61643-11:2011 |
| Product Certifications | EAC; CE |
| Poles Description | 3P |
| Remote Signalling | Without |
| Surge Arrester Type | Electrical distribution network |
| Earthing System | TN-C; IT 230 |
Complementary23
| Surge Arrester Class Type | Type 2 |
|---|---|
| Surge Arrester Technology | MOV |
| [Ue] Rated Operational Voltage | 400 V AC (+/- 10 %) at 50/60 Hz |
| Nominal Discharge Current | Common mode: 15 kA (L/PE); Common mode: 15 kA (N/PE) |
| Maximum Discharge Current | Common mode: 40 kA L/PE |
| [Uc] Maximum Continuous Operating Voltage | Common mode: 340 V L/PE |
| Maximum [Up] Voltage Protection Level | Common mode 1.5 kV type 2 L/PE |
| [Ut] Temporary Overvoltage | 337 V L/N 5 s withstand; 442 V L/PE 5 s withstand; 1200 V N/PE 200 ms withstand; 1453 V L/PE 200 ms withstand |
| Disconnector Device Type | Associated circuit breaker iK60N 40 A curve C - Icu 6 kA; Associated fuse gG 63 A - Icu 25 kA |
| Signalling Circuit Voltage | 0.25 A/250 V AC 50/60 Hz |
| Mounting Mode | Clip-on (DIN rail) |
| 9 Mm Pitches | 8 |
| Height | 81 mm |
| Width | 72 mm |
| Depth | 69 mm |
| Net Weight | 335 g |
| Colour | White (RAL 9003) |
| [Ipe] Ground Residual Current | 25 mA |
| Connections - Terminals | Tunnel type terminal (top or bottom) 25 mm² rigid; Tunnel type terminal (top or bottom) 16 mm² flexible; Tunnel type terminal (top or bottom) 16 mm² flexible with ferrule |
| Wire Stripping Length | 11 mm |
| Tightening Torque | 3.5 N.m |
| Compatibility Code | IPF K 40 |
| Market Segment | Small commercial |
Environment5
| IK Degree Of Protection | IK03 conforming to IEC 62262 |
|---|---|
| Relative Humidity | 5…95 % |
| Operating Altitude | 2000 m |
| Ambient Air Temperature For Operation | -25…60 °C |
| Ambient Air Temperature For Storage | -40…85 °C |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 7.200 cm |
| Package 1 Length | 8.100 cm |
| Package 1 Weight | 327.000 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 3 |
| Package 2 Height | 8.000 cm |
| Package 2 Width | 9.500 cm |
| Package 2 Length | 27.500 cm |
| Package 2 Weight | 1.041 kg |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 36 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 13.060 kg |
Logistical informations1
| Country Of Origin | CN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
