Cartridge for surge arrestor; Type 2; socket; -25÷60°C; IP20
Schneider A9L16310, Cartridge for surge arrestor; Type 2; socket; -25÷60°C; IP20. Category: iQuick PF & iQuick PRD. Request a quote for price and lead time.
- Reference:A9L16310
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:73.90 EUR (Request a quote)
Key Specifications
- Range Of Product
- Acti9
- Product Or Component Type
- Cartridge
- Device Short Name
- C40-350
- Range Compatibility
- Acti9 iQuick PRD40r
Product Description

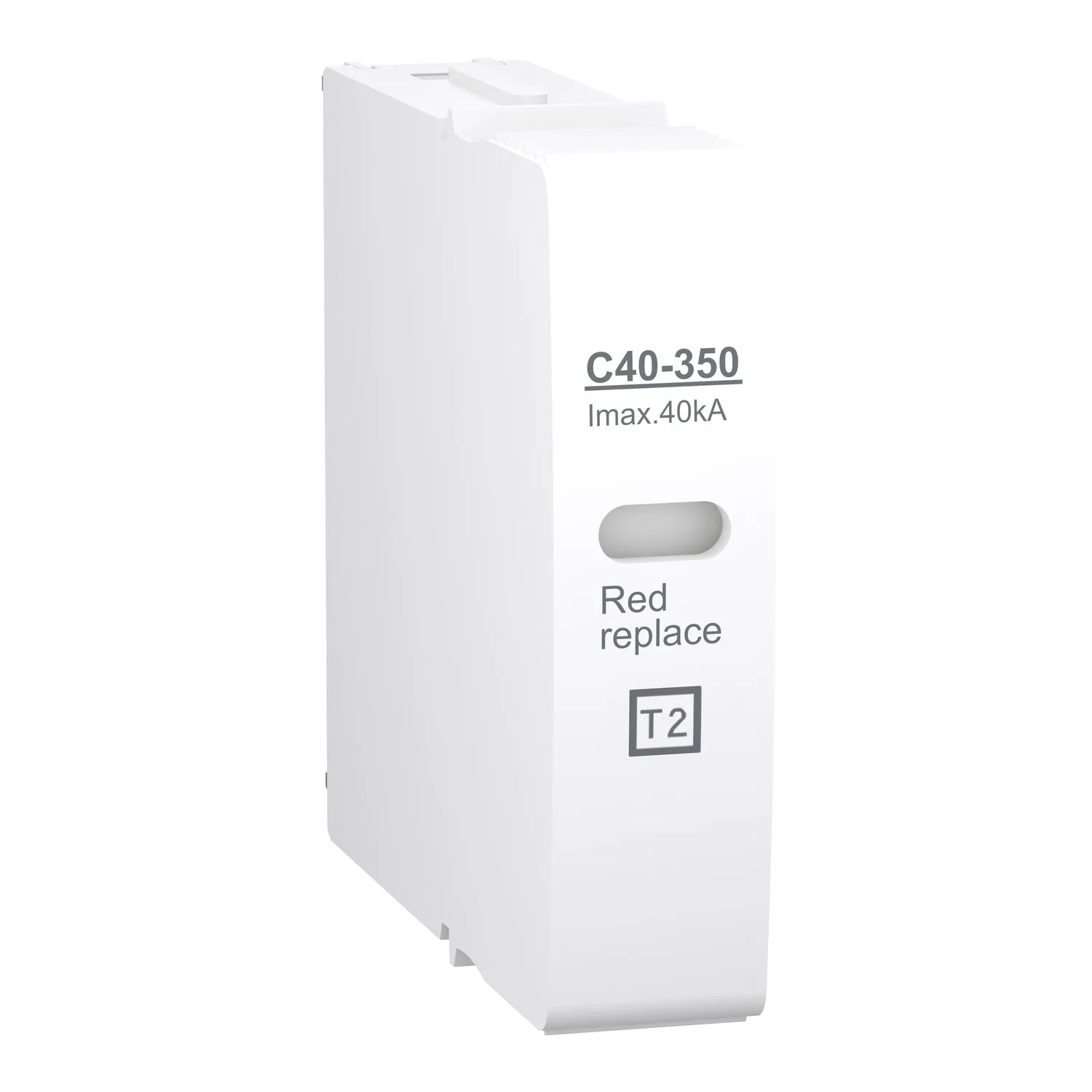

This Acti9 product is a cartridge C40-350 for surge arrester iQuick PRD. The Imax maximum discharge current is 40kA. The In nominal discharge current is 20kA. This product is compatible with TT and TN earthing system. This Type 2 device autoprotected by integrated circuit-breaker is recommended for moderate risk level in incoming panel board. The Uc maximum continuous operating voltage is 350VAC. The Up Voltage protection level is 1.4kV. It can be plugged into a surge protecting device module. Its width is pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 12mm x (H) 50mm x (D) 57mm. According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 70°C. It is compliant with IEC 61643-1 and EN 61643-11 standards.
Key Features
- Plug-in secured with an anti-vibration locking clip
- Local signalling for replacement indicated by a white/red flag
- Compatible with Acti9 iQuick PRD C40-350 devices
Technical Specifications
Main7
| Range Of Product | Acti9 |
|---|---|
| Product Or Component Type | Cartridge |
| Device Short Name | C40-350 |
| Range Compatibility | Acti9 iQuick PRD40r |
| Surge Arrester Type | Electrical distribution network |
| Standards | IEC 61643-1; EN 61643-11 |
| Product Certifications | KEMA-KEUR; NF |
Complementary19
| Surge Arrester Class Type | Type 2 |
|---|---|
| Surge Arrester Technology | MOV |
| Product Destination | Surge protection device iQuick PRD40r 1P + N; Surge protection device iQuick PRD40r 3P; Surge protection device iQuick PRD40r 3P + N |
| Earthing System | TN; TT |
| [Ue] Rated Operational Voltage | 230 V AC 50 Hz |
| Nominal Discharge Current | 20 kA |
| Maximum Discharge Current | 40 kA |
| [Uc] Maximum Continuous Operating Voltage | 350 V |
| Maximum [Up] Voltage Protection Level | 1.5 kV type 2 |
| Local Signalling | Flag (white/red) |
| Mounting Mode | Plug-in |
| Mounting Support | Into SPD module |
| 9 Mm Pitches | 1.3 |
| Height | 50 mm |
| Width | 12 mm |
| Depth | 57 mm |
| Colour | White (RAL 9003) |
| Material | PBT (polybutylene terephthalate) |
| Response Time | < 25 ns |
Environment5
| IP Degree Of Protection | IP20 front face: |
|---|---|
| Relative Humidity | 5…95 % |
| Operating Altitude | 0...2000 m |
| Ambient Air Temperature For Operation | -25…60 °C |
| Ambient Air Temperature For Storage | -40…70 °C |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 2.100 cm |
| Package 1 Width | 6.800 cm |
| Package 1 Length | 9.600 cm |
| Package 1 Weight | 62.000 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 12 |
| Package 2 Height | 8.300 cm |
| Package 2 Width | 11.000 cm |
| Package 2 Length | 26.500 cm |
| Package 2 Weight | 804.000 g |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 108 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 10.152 kg |
Logistical informations1
| Country Of Origin | HU |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
