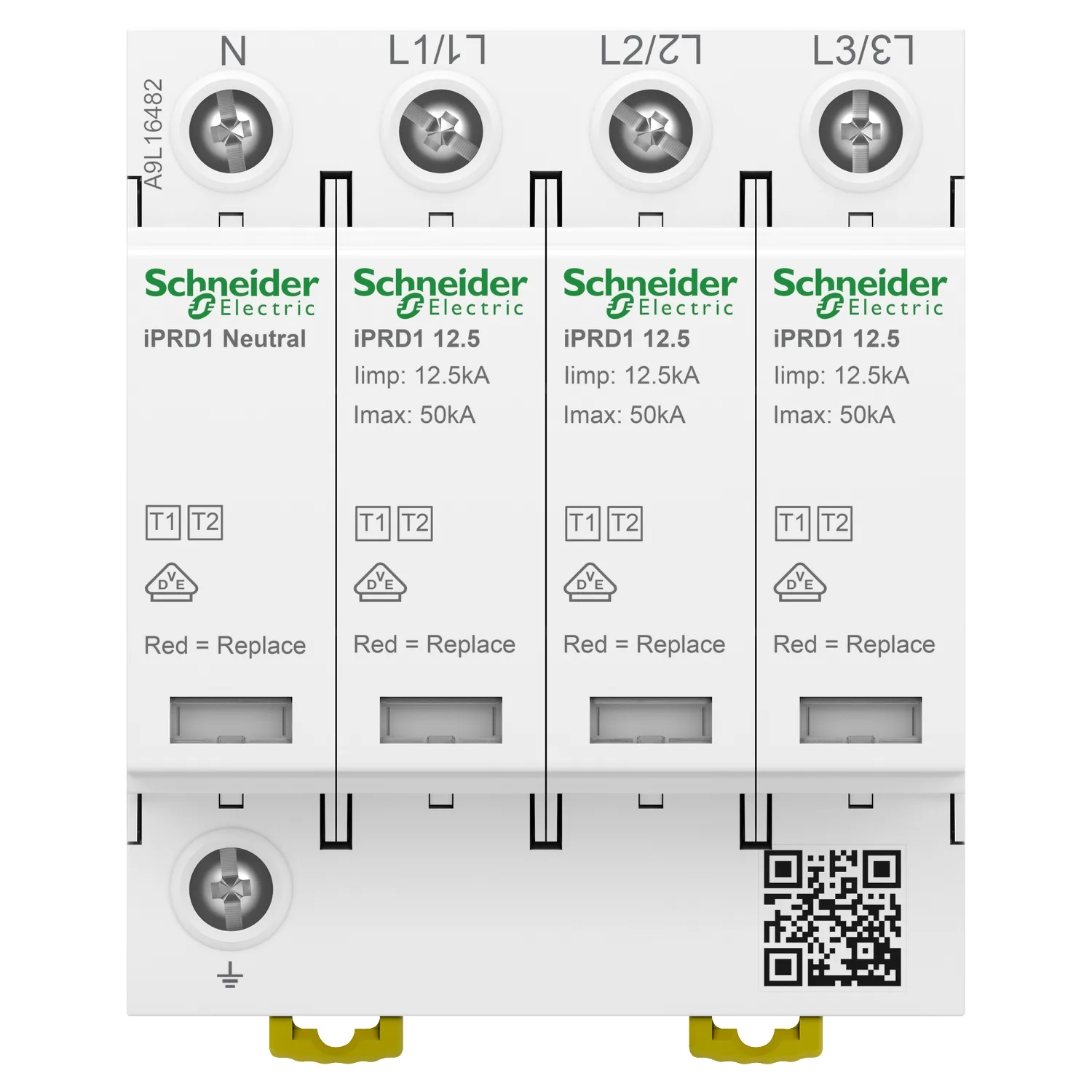

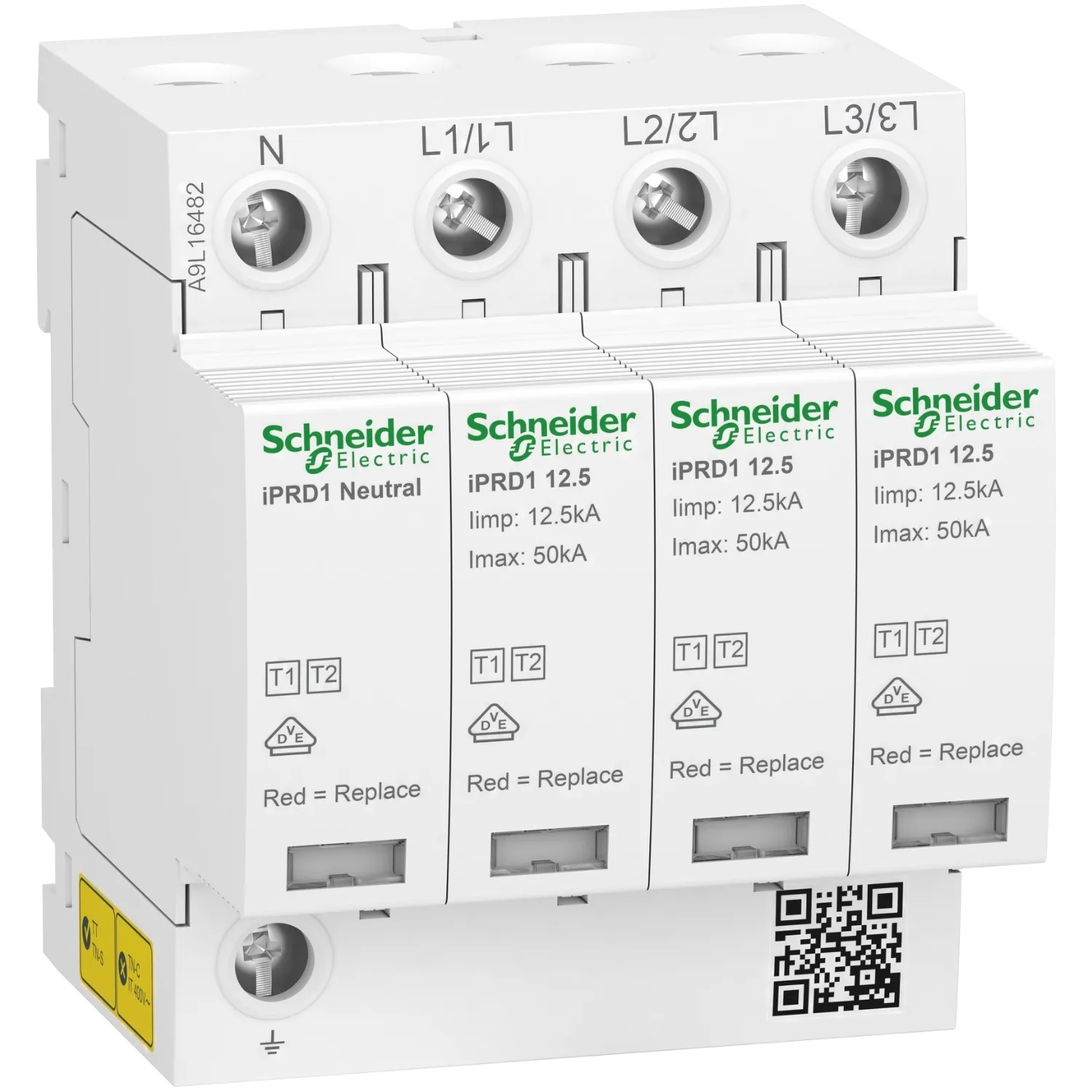

A9L16482 - iPRF1 12,5r 3P+N
Schneider A9L16482, iPRF1 12,5r 3P+N. Category: Modular Surge Arrester: iPRF1 12,5r & PRD1. Request a quote for price and lead time.
- Reference:A9L16482
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:591.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- IPRD1
- Range Of Product
- Acti9
- Product Name
- Acti9 iPRD1
- Product Or Component Type
- Surge arrester with pluggable cartridge
Product Description
This Acti9 iPRD1 12.5r surge arrester protects 3P+N residential and small commercial buildings installations against direct and indirect transient overvoltages. This type 1+2 device autoprotected by an integrated circuit-breaker is recommanded for high risk level in incoming panel board. It offers remote reporting of the "cartridge must be changed" message. This prewired surge arrester allows quick replacement of withdrawable cartridges when they are damaged. It incorporates its end of life safety disconnector. This Acti9 iPRD1 12.5r is compatible with TT and TN-S earthing systems. Associated with Compact NSXm H TM80D the breaking capacity is 70kA. The Imax maximum discharge current is 50kA. The In nominal discharge current is 20kA. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Uc maximum continuous operating voltage in common mode is 255VAC between neutral and earth. The Up Voltage protection level is 1.5kV type 1+2. The Ue rated operational voltage is 230VAC or 400 VAC. The operating frequency is 50Hz. The dimensions are (W) 72mm x (H) 89mm x (D) 69mm. The width in 9mm pitches is 8. The weight is 619g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +80°C. This product is complies with EN 61643-11 2012 and IEC 61643-11 2011 standards.
Key Features
- Protection of electrical installations against direct lightning strikes
- Combined surge arrester type 1+2 12.5kA according to IEC 61643-11:2011 and EN 61643-11:2012 standards
- Suitable for TT and TN-S networks with high prospective short-circuit fault currents
- Can be installed with any upstream disconnection devices, such as a fuse or circuit breaker
- Fitted with a remote transfer contact to send end-of-life indication information
Technical Specifications
Main13
| Range Of Product | IPRD1 |
|---|---|
| Range Of Product | Acti9 |
| Product Name | Acti9 iPRD1 |
| Product Or Component Type | Surge arrester with pluggable cartridge |
| Device Short Name | iPRD1 12.5 |
| Device Application | Distribution |
| Standards | EN 61643-11:2012; IEC 61643-11:2011 |
| Quality Labels | CE; EAC; VDE |
| Poles Description | 3P + N |
| Remote Signalling | With |
| Signal Contacts Composition | 1 SD (1 C/O) |
| Surge Arrester Type | Electrical distribution network |
| Earthing System | TT; TN-S |
Complementary26
| Surge Arrester Class Type | Type 1 + 2 |
|---|---|
| Surge Arrester Technology | MOV + GDT |
| [Ue] Rated Operational Voltage | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| Nominal Discharge Current | 20 kA |
| Maximum Discharge Current | 50 kA |
| [Iimp] Impulse Current | Common mode: 50 kA N/PE; Differential mode: 12.5 kA L/N |
| [Uc] Maximum Continuous Operating Voltage | Differential mode: 350 V L/N; Common mode: 255 V N/PE |
| Maximum [Up] Voltage Protection Level | 1.5 kV type 1 + 2 |
| Residual Current | 0.003 mA N/PE |
| [Ut] Temporary Overvoltage | 337 V L/N 5 s withstand; 1200 V N/PE 200 ms safe failure mode |
| Disconnector Device Type | Associated fuse gG 160 A 120 kA standard; Associated circuit breaker Compact NSX160E 80 A 25 kA standard |
| Local Signalling | Operating: mechanical indicator (white); End of life: mechanical indicator (red) |
| Mounting Mode | Clip-on (DIN rail) |
| 9 Mm Pitches | 8 |
| Height | 89 mm |
| Width | 72 mm |
| Depth | 69 mm |
| Net Weight | 619 g |
| Colour | White (RAL 9003) |
| Material | PA6 |
| Connections - Terminals | Tunnel type terminal (phase) 10…25 mm² flexible; Tunnel type terminal (phase) 10…35 mm² rigid; Tunnel type terminal (earth) 16…25 mm² flexible; Tunnel type terminal (earth) 16…35 mm² rigid |
| Wire Stripping Length | 14 mm |
| Tightening Torque | 3.5 N.m |
| Impulse Current | 12.5 kA |
| Compatibility Code | IPRD1 |
| Market Segment | Small commercial; Residential |
Environment6
| IK Degree Of Protection | IK05 conforming to IEC 62262 |
|---|---|
| Pollution Degree | 3 |
| Relative Humidity | 5…95 % |
| Operating Altitude | 2000 m |
| Ambient Air Temperature For Operation | -25…60 °C |
| Ambient Air Temperature For Storage | -40…80 °C |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 8.000 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 9.300 cm |
| Package 1 Weight | 650.000 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 3 |
| Package 2 Height | 8.300 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 27.700 cm |
| Package 2 Weight | 2.017 kg |
| Unit Type Of Package 3 | S02 |
| Number Of Units In Package 3 | 9 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 6.446 kg |
Logistical informations1
| Country Of Origin | CN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
