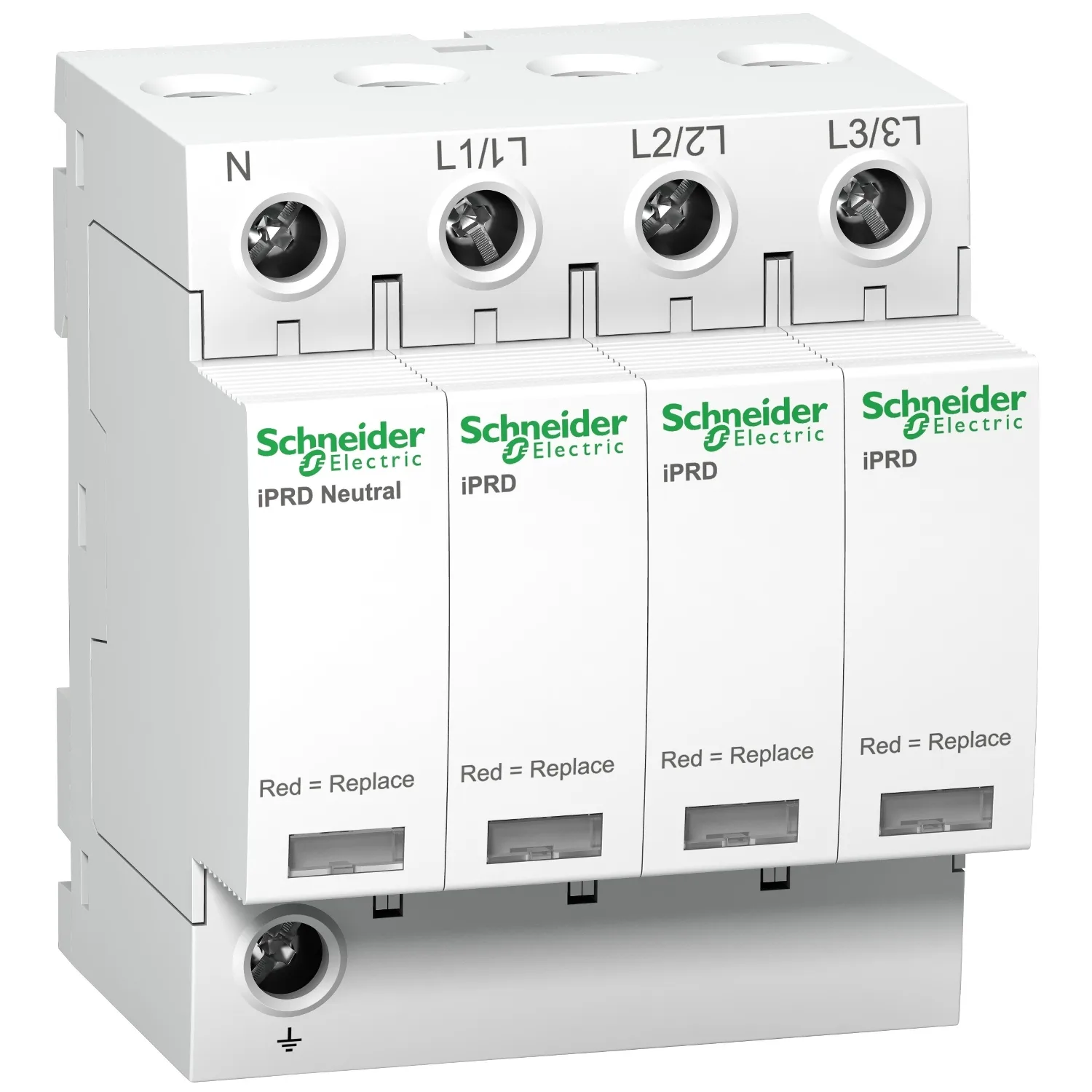

A9L65601 - iPRD65r 3P+N
Schneider A9L65601, iPRD65r 3P+N. Category: iPF & iPRD. Request a quote for price and lead time.
- Reference:A9L65601
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:255.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- IPRD
- Range Of Product
- Acti9
- Product Name
- Acti9 iPRD
- Product Or Component Type
- Surge arrester with pluggable cartridge
Product Description
This Acti9 iPRD65r surge arrester protects 3P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for very high risk level and incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Imax rated discharge current is 65kA. The In nominal discharge current is 20kA. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Up Voltage protection level is 1.5kV in common mode (N/PE) and in differential mode (L/N). The Un rated service voltage is 230VAC or 400VAC. The operating frequency is 50Hz or 60Hz. The dimensions are (W) 72mm x (H) 85mm x (D) 69mm. The width in 9mm pitches is 8. The weight is 450g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with IEC 61643-11:2011 and EN61643-11:2012 standards.
Key Features
- Recommended for a very high risk level (strongly exposed site) in incoming panel board
- Type 2 65kA surge arrester according to IEC 61643-11:2011 and EN 61643-11:2012 standards
- Suitable for TT and TN-S networks with high prospective short-circuit fault currents
- Fitted with a remote transfer contact to send cartridge must be replaced indication information
- Easy to replace withdrawable cartridges, and pluggable with anti-vibration lock
Technical Specifications
Main14
| Range Of Product | IPRD |
|---|---|
| Range Of Product | Acti9 |
| Product Name | Acti9 iPRD |
| Product Or Component Type | Surge arrester with pluggable cartridge |
| Device Short Name | iPRD65r |
| Device Application | Distribution |
| Standards | EN 61643-11:2012; IEC 61643-11:2011 |
| Product Certifications | CE |
| Quality Labels | NF; KEMA-KEUR |
| Poles Description | 3P + N |
| Remote Signalling | With |
| Signal Contacts Composition | 1 SD (1 C/O) |
| Surge Arrester Type | Electrical distribution network |
| Earthing System | TN-S; TT |
Complementary21
| Surge Arrester Class Type | Type 2 |
|---|---|
| Surge Arrester Technology | MOV + GDT |
| [Ue] Rated Operational Voltage | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| Nominal Discharge Current | Common mode: 20 kA (L/PE); Common mode: 20 kA (N/PE); Differential mode: 20 kA (L/N) |
| Maximum Discharge Current | Common mode: 65 kA L/PE; Common mode: 65 kA N/PE; Differential mode: 65 kA L/N |
| [Uc] Maximum Continuous Operating Voltage | Common mode: 260 V N/PE; Common mode: 350 V L/PE; Differential mode: 350 V L/N |
| Maximum [Up] Voltage Protection Level | Common mode 1.5 kV type 2 N/PE; Differential mode 1.5 kV type 2 L/N |
| [Ut] Temporary Overvoltage | 337 V L/N 5 s withstand; 1200 V N/PE 200 ms safe failure mode; 442 V L/PE 5 s withstand; 1453 V L/PE 200 ms safe failure mode |
| Disconnector Device Type | Associated circuit breaker IC60N 50 A curve C - Icu 10 kA; Associated circuit breaker iC60H 50 A curve C - Icu 15 kA; Associated circuit breaker NG125N 50 A curve C - Icu 25 kA; Associated circuit breaker NG125H 50 A curve C - Icu 36 kA; Associated circuit breaker NG125L 50 A curve C - Icu 50 kA; Associated fuse gG 80 A - Icu 50 kA |
| Signalling Circuit Voltage | 0.25 A/250 V AC 50/60 Hz |
| Mounting Mode | Clip-on (DIN rail) |
| 9 Mm Pitches | 8 |
| Height | 85 mm |
| Width | 72 mm |
| Depth | 69 mm |
| Net Weight | 0.492 kg |
| Colour | White (RAL 9003) |
| [Ipe] Ground Residual Current | 0.003 mA; 0.6 mA |
| Connections - Terminals | Tunnel type terminal (downside) 2.5…35 mm²; Tunnel type terminal (upside) 2.5…35 mm² |
| Tightening Torque | 2.5 N.m |
| Compatibility Code | IPRD65r |
Environment5
| IK Degree Of Protection | IK03 conforming to IEC 62262 |
|---|---|
| Relative Humidity | 5…95 % |
| Operating Altitude | 2000 m |
| Ambient Air Temperature For Operation | -25…60 °C |
| Ambient Air Temperature For Storage | -40…85 °C |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 8 cm |
| Package 1 Width | 8 cm |
| Package 1 Length | 9 cm |
| Package 1 Weight | 519 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 3 |
| Package 2 Height | 9 cm |
| Package 2 Width | 10 cm |
| Package 2 Length | 27 cm |
| Package 2 Weight | 1.623 kg |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 27 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 15.123 kg |
Logistical informations1
| Country Of Origin | CN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
