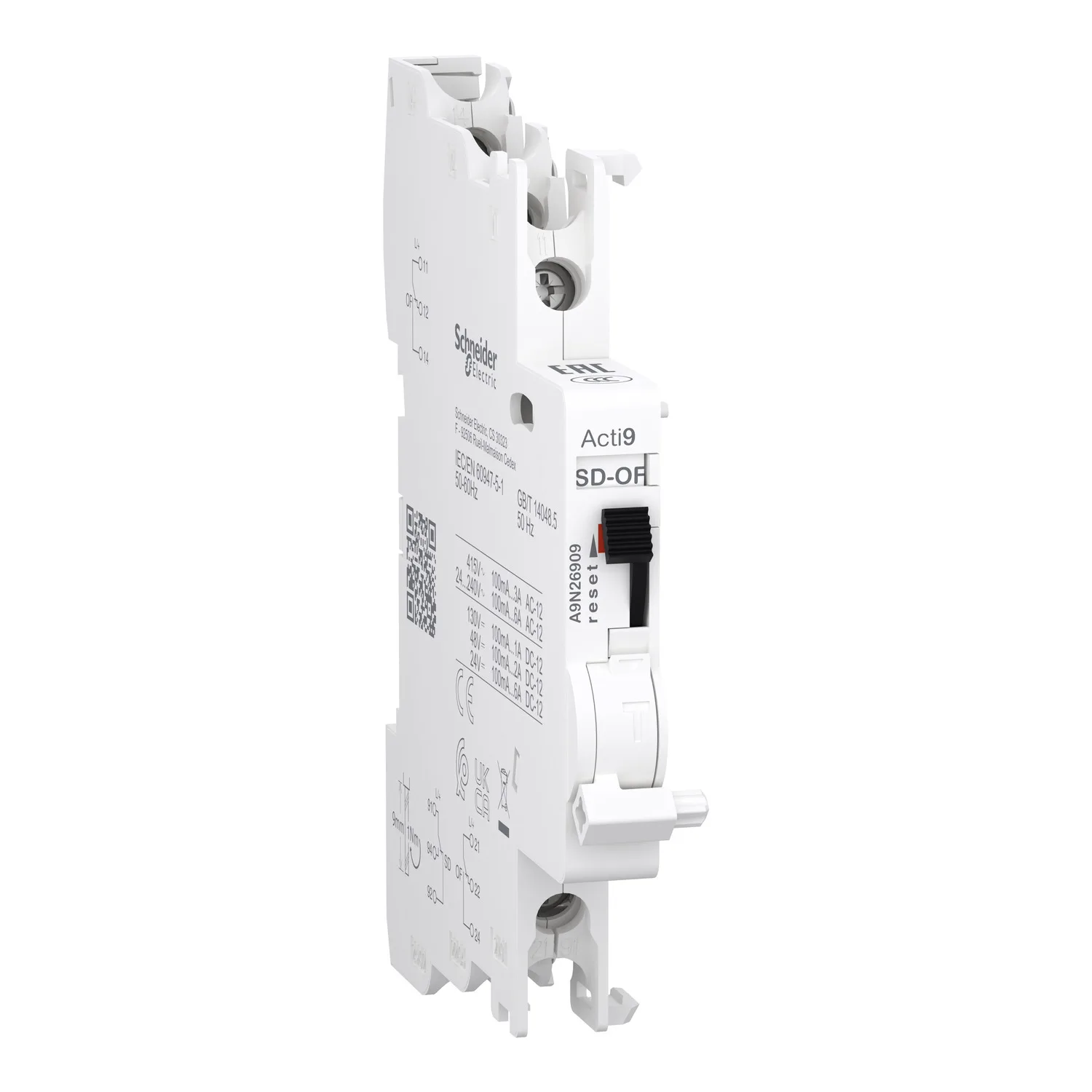

A9N26909 - Acti9 Auxiliary Accessory OF/SD+OF

• "This Acti9 electrical auxiliary is a modular double OC or fault contact. The 2 contacts (2 NO/NC) can report the signalling information of the associated device."
• "In AC network, the In rated current is 6A at 24VAC to 240VAC and 3A at 415VAC with operating frequency of 50Hz to 60Hz."
• "In DC network, the In rated current is 6A at 24VDC, 2A at 48VDC, 1.5A at 60VDC and 1A at 130VDC."
• "It is intended for new or renovated installation in small commercial and buildings."
• "This OC contact is compatible with Acti9 ranges such as C120, C60H-DC, SW60-DC, C60PV-DC, and xC60."
• "The OF and OF or OF and SD is either used for device short name or compatibility code. The mechanical indicator is provided within the product for local signalling."
• "It has a screw clamp terminal connection at top and bottom. The connection allows rigid copper cable with a cable cross section of 0.5mm² to 2.5mm²."
• "It has a screw clamp terminal connection at top and bottom. The connection allows flexible copper cables (2 cables) with a cable cross section of 1.5mm²."
• "It has a screw clamp terminal connection at top and bottom. The connection allows flexible with ferrule copper cables (2 cables) with a cable cross section of 1.5mm²."
• "The Ui rated insulation voltage is up to 500V. It has a Uimp rated impulse withstand voltage of 4kV."
• "It can be mounted on DIN rail for modular installation. The width in 9mm pitches is 1."
• "The dimensions are (W) 9mm x (H) 90mm x (D) 68mm. The product colour is white. The product weight is 38g."
• "The pollution degree is 3. The level of tropicalisation is treatment 2."
• "The wire stripping length is 9mm. The tightening torque of connection is 1N.m (top and bottom) for PZ1 screwdriver type."
• "The IP degree of protection is IP20."
• "The operating temperature is from -25°C to +50°C. The storage temperature is from -40°C to +85°C."
• "This product complies with EN/IEC 60947-5-1 and GB/T 14048.5 standards."
• "It has EAC and CCC quality labels and certified with CE and UKCA certifications."

Key Features

• "Can report the signaling to an Open/Closed or an Opening for Default Devices status"
• "Compatible with standard applications with current from 100mA up to 6A"
• "Compatible with Acti9 C120/C60H-DC"
• "To be fixed with clips directly on the left of the MCB"
