Switch-disconnector; Poles: 1; for DIN rail mounting; 32A; 250VAC

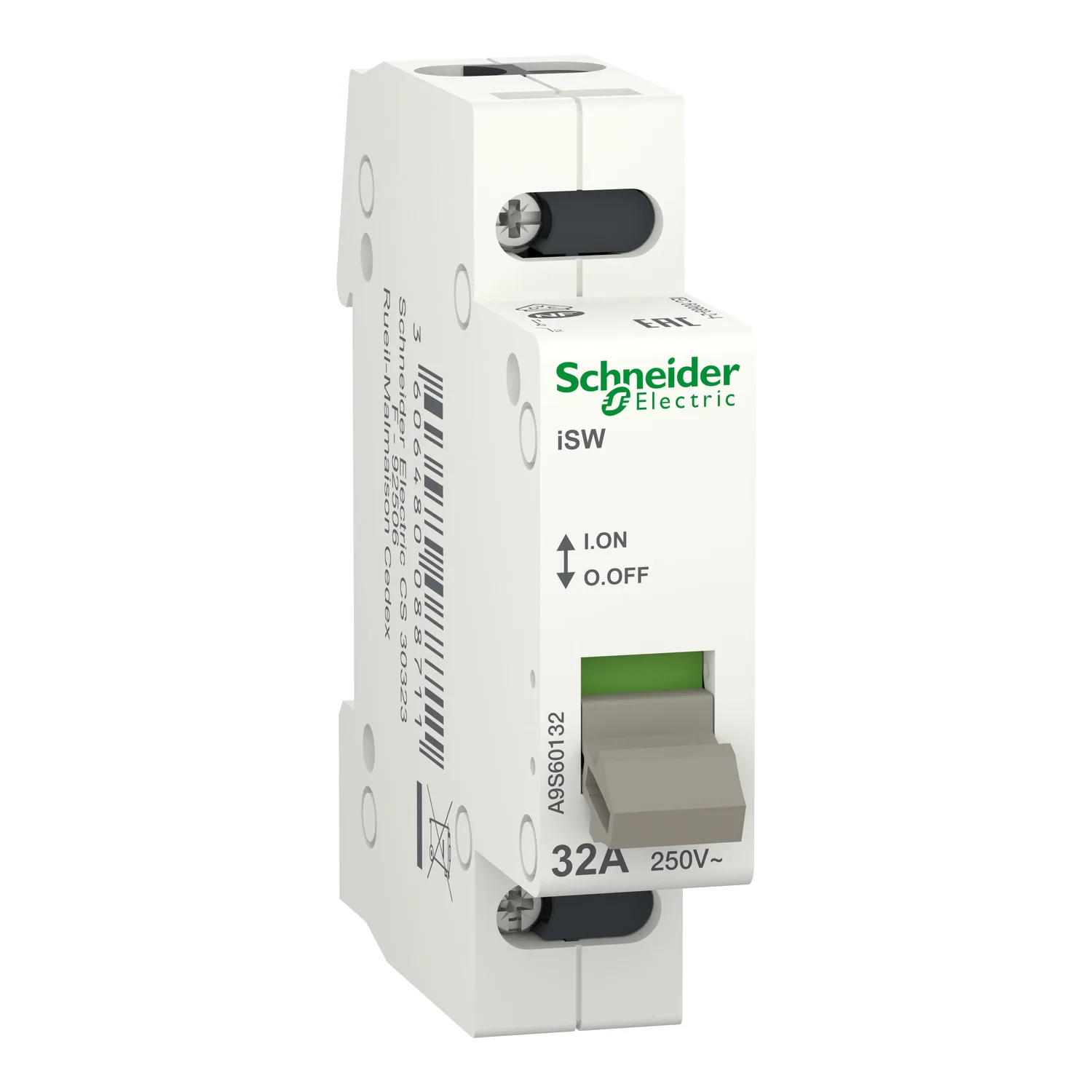

Schneider A9S60132, Switch-disconnector; Poles: 1; for DIN rail mounting; 32A; 250VAC. Category: iSW & SW. Not for sale; no price or quote is offered for this product.
- Reference:A9S60132
- Manufacturer / Brand:Schneider
Key Specifications
- Range
- Acti9
- Product Name
- Acti9 iSW
- Product Or Component Type
- Switch disconnector
- Device Short Name
- iSW
Product Description
This Acti 9 iSW is a modular and reliable switch disconnector. it is a 1P, rated current is 32A, and operating voltage is 250VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 77mm x (D) 70mm. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-2-4. • Suitable for industrial isolation according to IEC/EN 60947-3 standard
Key Features
- Green strip grants physical opening of contacts and operations on the downstream circuit in complete safety
- Can be accessorized with a OF auxiliary contact
Technical Specifications
Main8
| Range | Acti9 |
|---|---|
| Product Name | Acti9 iSW |
| Product Or Component Type | Switch disconnector |
| Device Short Name | iSW |
| Device Application | Control |
| Poles Description | 1P |
| Utilisation Category | AC-22A |
| Suitability For Isolation | Yes |
Complementary19
| [Ie] Rated Operational Current | 32 A at 250 V AC 50/60 Hz |
|---|---|
| [Ue] Rated Operational Voltage | 250 V AC 50/60 Hz |
| [Ui] Rated Insulation Voltage | 250 V AC 50/60 Hz conforming to EN/IEC 60669-2-4 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| Control Type | Toggle |
| Local Signalling | ON/OFF indication |
| Contact Position Indicator | Yes |
| Mounting Mode | Fixed |
| Mounting Support | DIN rail |
| 9 Mm Pitches | 2 |
| Height | 77 mm |
| Width | 18 mm |
| Depth | 70 mm |
| Colour | Grey |
| Mechanical Durability | 300000 cycles |
| Electrical Durability | 30000 cycles |
| Connections - Terminals | Tunnel type terminals - 10 mm² - rigid; Tunnel type terminals - 10 mm² - flexible; Tunnel type terminals - 10 mm² - flexible with ferrule |
| Wire Stripping Length | 9 mm |
| Tightening Torque | 1.2 N.m |
Environment7
| Standards | EN/IEC 60669-2-4 |
|---|---|
| IP Degree Of Protection | IP4 |
| Pollution Degree | 2 |
| Tropicalisation | 2 |
| Relative Humidity | 95 % at 55 °C |
| Ambient Air Temperature For Operation | -20…50 °C |
| Ambient Air Temperature For Storage | -40…70 °C |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 1.800 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 52.000 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 12 |
| Package 2 Height | 8.500 cm |
| Package 2 Width | 9.500 cm |
| Package 2 Length | 22.200 cm |
| Package 2 Weight | 676.000 g |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 144 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 8.631 kg |
Logistical informations1
| Country Of Origin | BE |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
