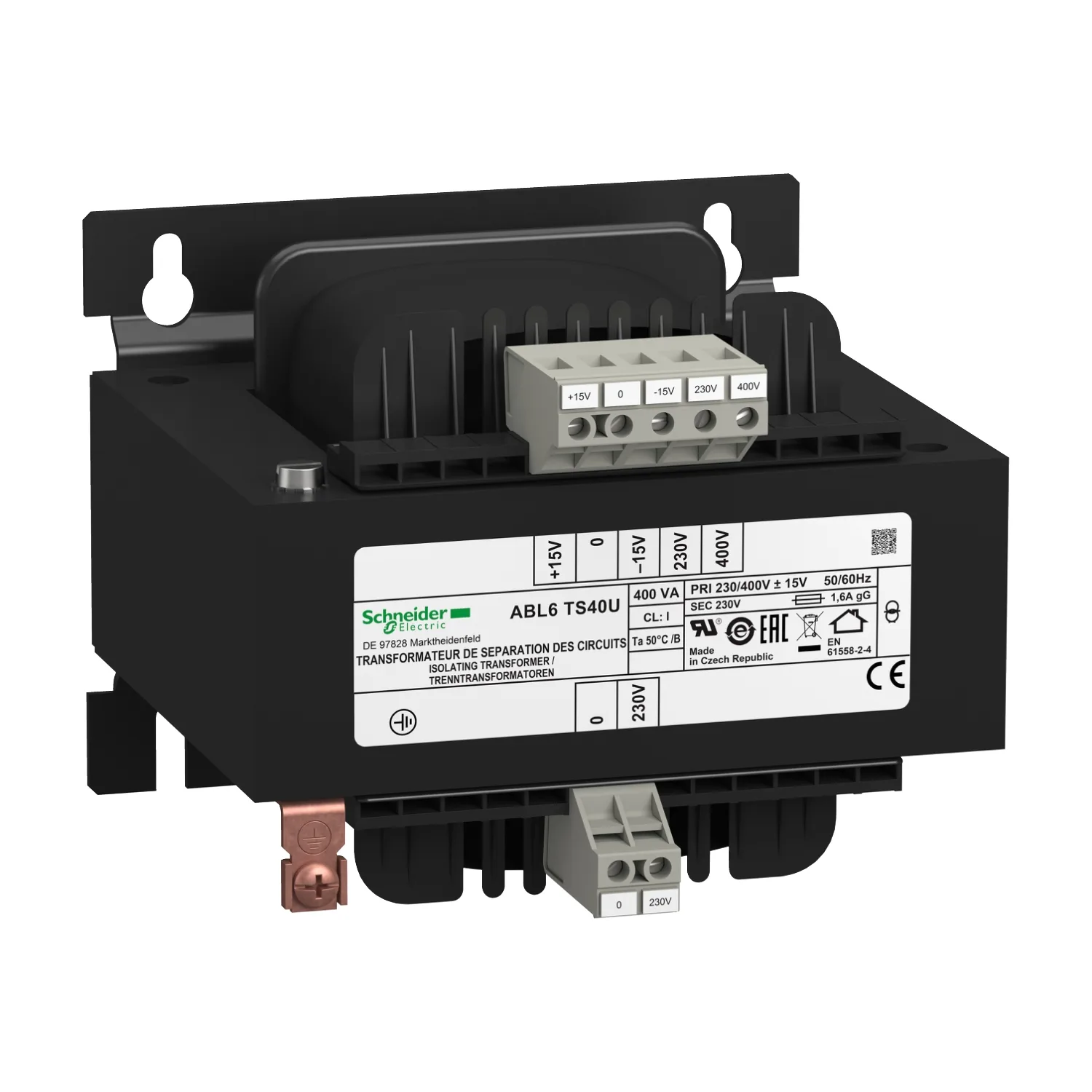

Transformer: mains; 400VA; 230VAC,400VAC; 230V; screw type; IP00
Schneider ABL6TS40U, Transformer: mains; 400VA; 230VAC,400VAC; 230V; screw type; IP00. Category: Modicon ABT7, ABL6. Not for sale; no price or quote is offered for this product.
- Reference:ABL6TS40U
- Manufacturer / Brand:Schneider
Key Specifications
- Range Of Product
- Modicon Transformer Optimized
- Rated Power In VA
- 400 VA
- Product Or Component Type
- Safety and isolation transformer
- Output Voltage
- 230 V AC
Product Description
This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 230V AC and a rated power of 400VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors. • Economical power supplies for systems requiring a large number of independent units, like motor control centres
Key Features
- Ideal for systems accepting low voltage AC power, such as motor protection relays, contactors
- High peak output current capability allowing simultaneous of multiple control circuits with large contactors
Technical Specifications
Main8
| Range Of Product | Modicon Transformer Optimized |
|---|---|
| Rated Power In VA | 400 VA |
| Product Or Component Type | Safety and isolation transformer |
| Input Voltage | 230 V AC single phase, terminal(s): N-L1; 400 V AC phase to phase, terminal(s): L1-L2 |
| Output Voltage | 230 V AC |
| Secondary Winding | Single |
| Protective Cover | Without |
| Ambient Air Temperature For Operation | -20…50 °C |
Complementary19
| Input Voltage Limits | 360...440 V; 207...253 V |
|---|---|
| Network Frequency Limits | 47…63 Hz |
| Input Voltage Tolerance | +/- 15 V |
| Efficiency | 92 % |
| Power Dissipation In W | 34.8 W |
| Output Sustained Overvoltage | 4 % (no load, hot state) |
| Maximum Voltage Drop At Rated Load | 0.7 % |
| NO Load Losses | 12.4 W |
| Short-circuit Voltage | 0,0477 |
| Output Protection Type | Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection; Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection; Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Connections - Terminals | For input connection: screw type terminals, connection capacity: 5 x 4 mm² 11 AWG; For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² 11 AWG; For output connection: screw type terminals, connection capacity: 2 x 4 mm² 11 AWG |
| Marking | CE |
| Fixing Mode | By 4 screws diameter: 5.8 mm on vertical panel, operating position: horizontal; By 4 screws diameter: 5.8 mm on vertical panel, operating position: vertical; By 4 screws diameter: 5.8 mm on horizontal panel with derating to 90 % |
| Operating Altitude | 3000 m |
| Electrical Insulation Class | Class B |
| Width | 135.0 mm |
| Height | 108.0 mm |
| Depth | 134.0 mm |
| Net Weight | 6.43 kg |
Environment8
| Product Certifications | EAC; UR; DNV-GL |
|---|---|
| Standards | UL 506 |
| IP Degree Of Protection | IP20 |
| Environmental Characteristic | EMC conforming to IEC 62041; Safety conforming to EN 61558-1; Safety conforming to EN 61558-2-4 |
| Protective Treatment | TC |
| Ambient Air Temperature For Storage | -40…80 °C |
| Overvoltage Category | Class I conforming to VDE 0106-1 |
| Dielectric Strength | 2000 V between winding and ground; 4000 V between primary and secondary |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 28.000 cm |
| Package 1 Width | 20.000 cm |
| Package 1 Length | 25.000 cm |
| Package 1 Weight | 7.101 kg |
| Unit Type Of Package 2 | S06 |
| Number Of Units In Package 2 | 15 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 117.910 kg |
Logistical informations1
| Country Of Origin | CZ |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
