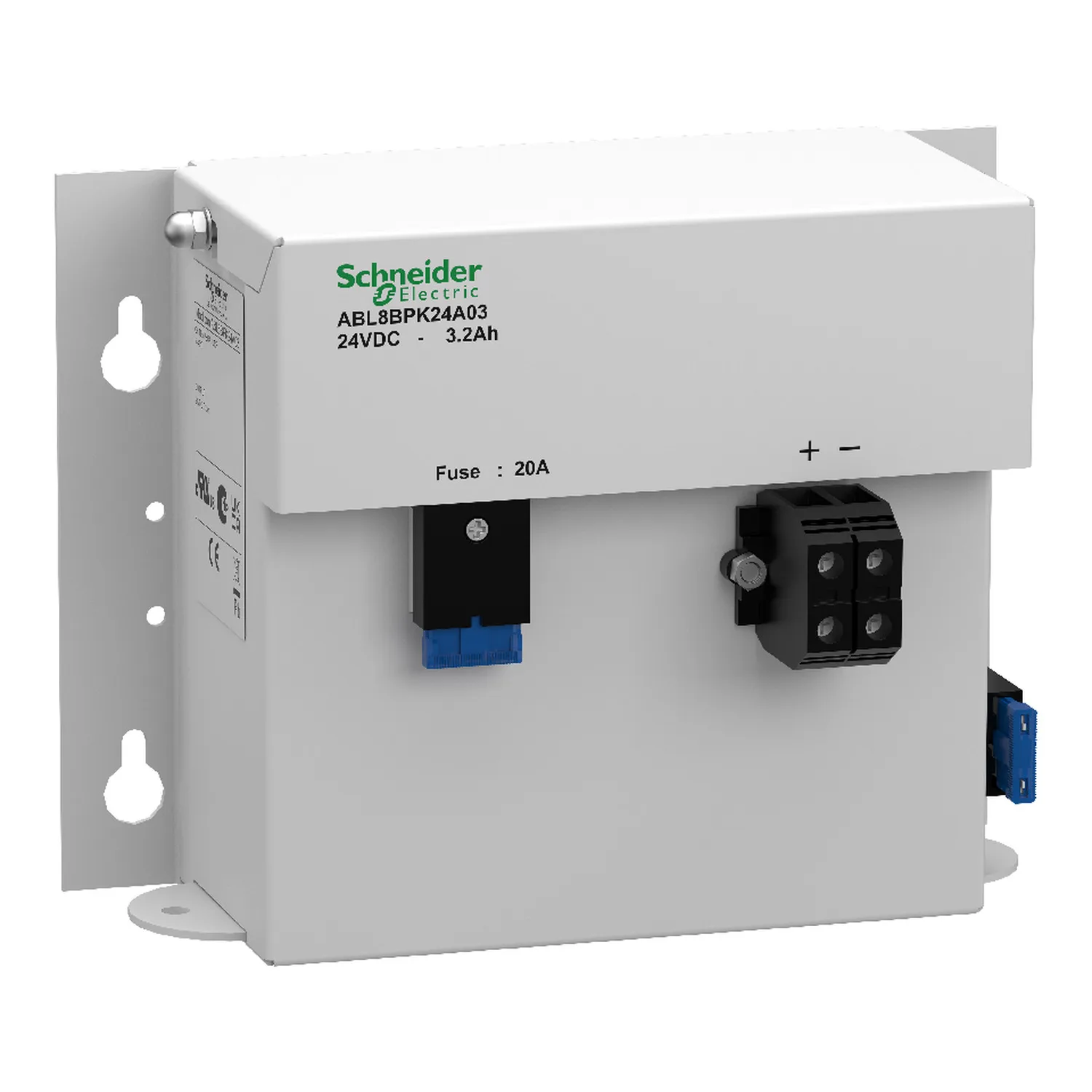

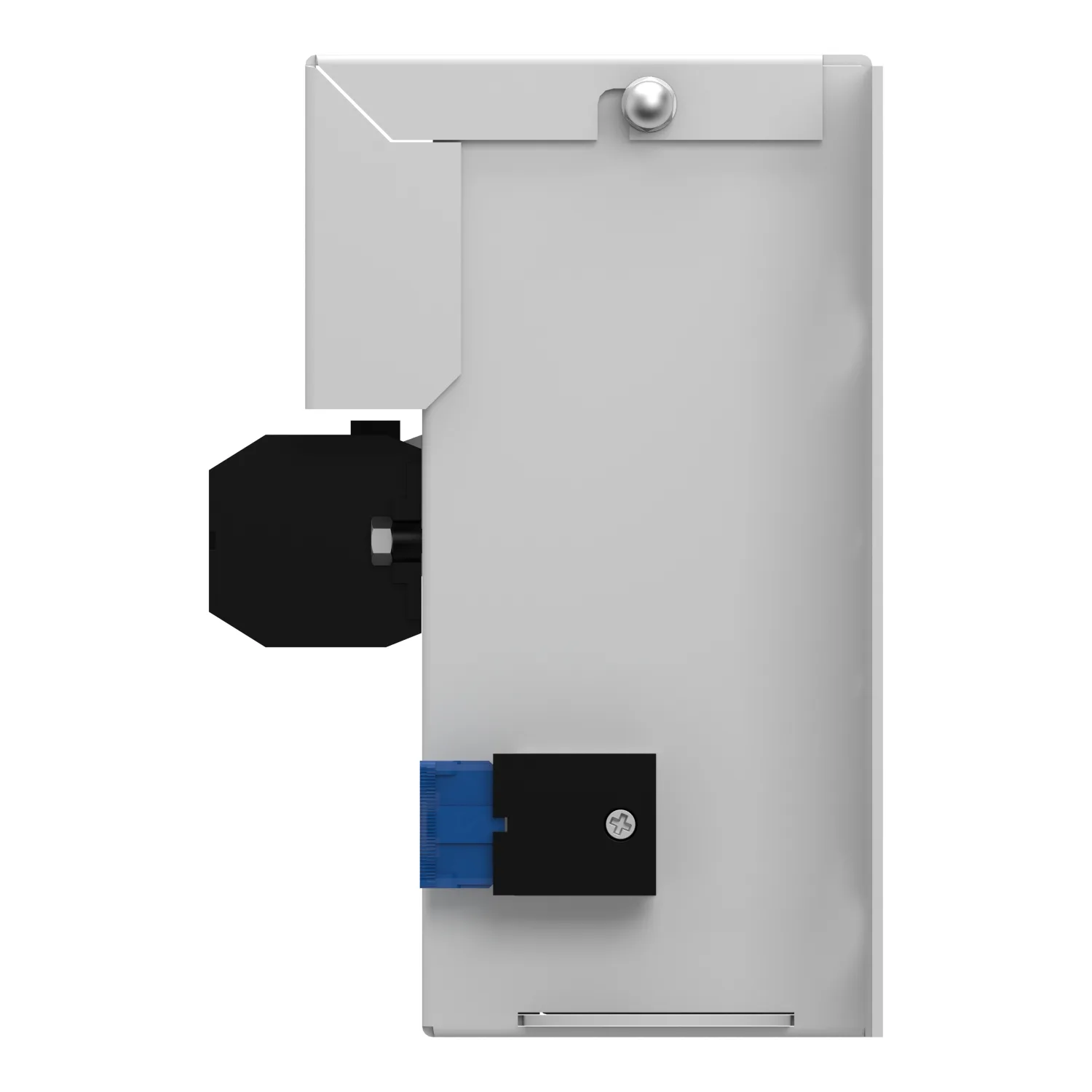

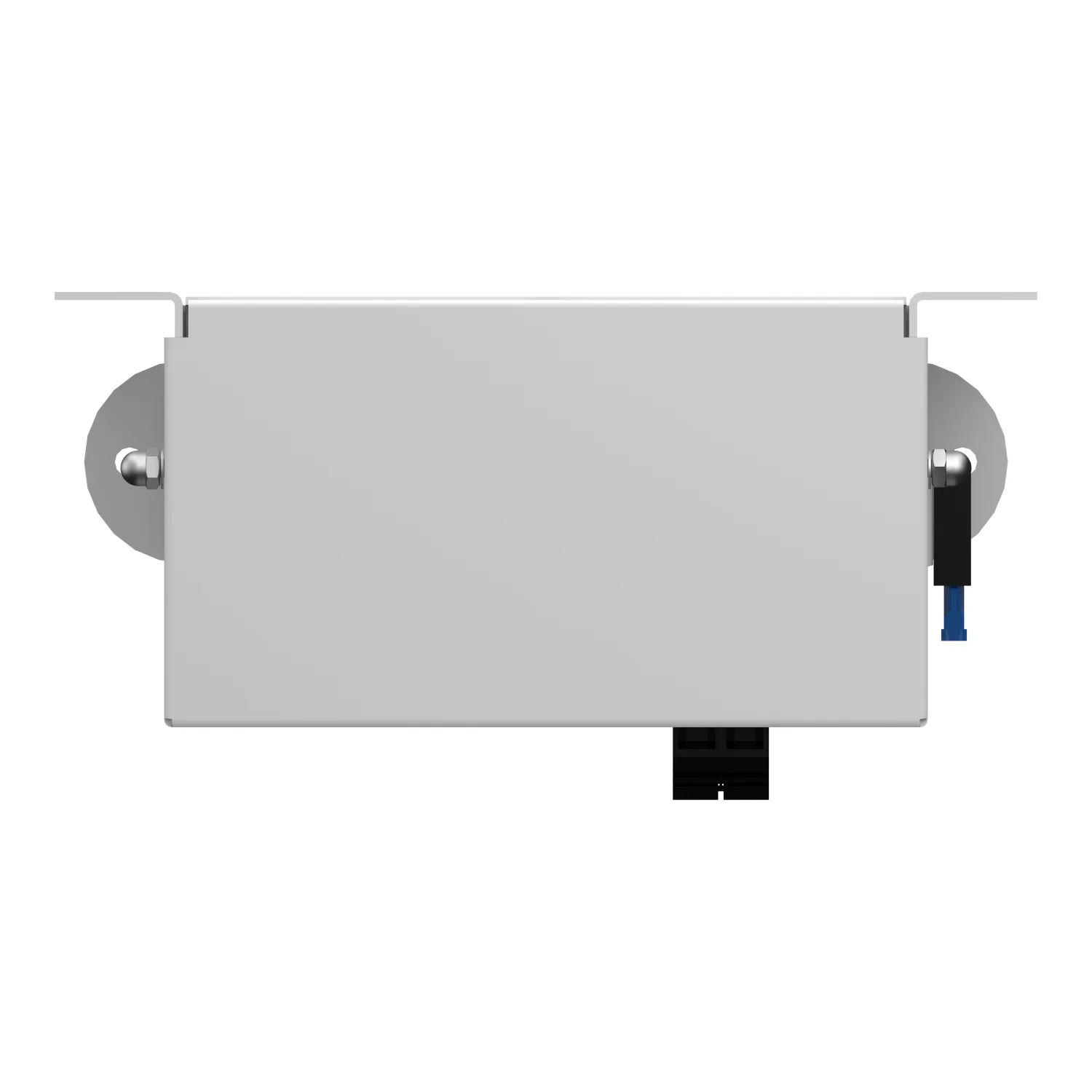

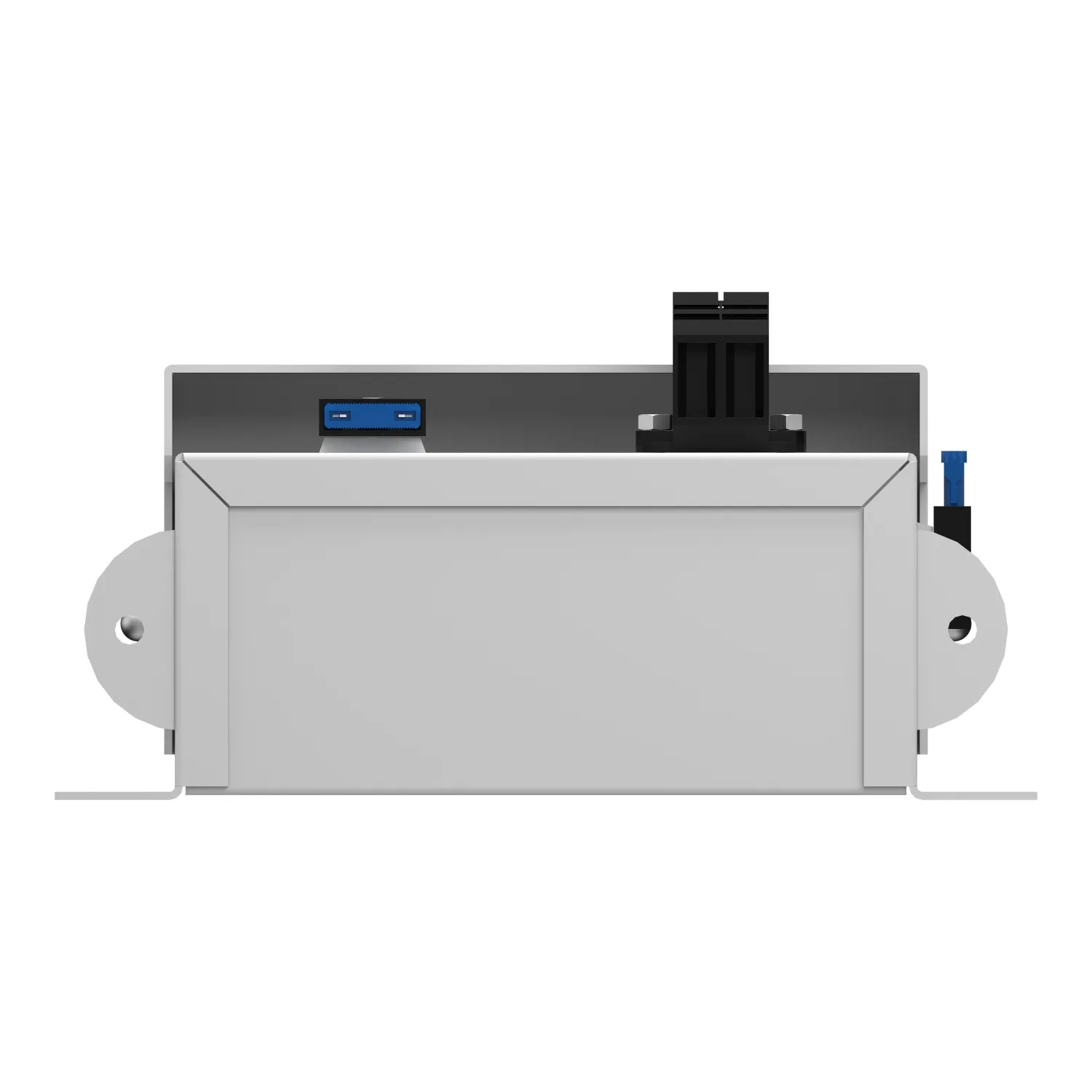

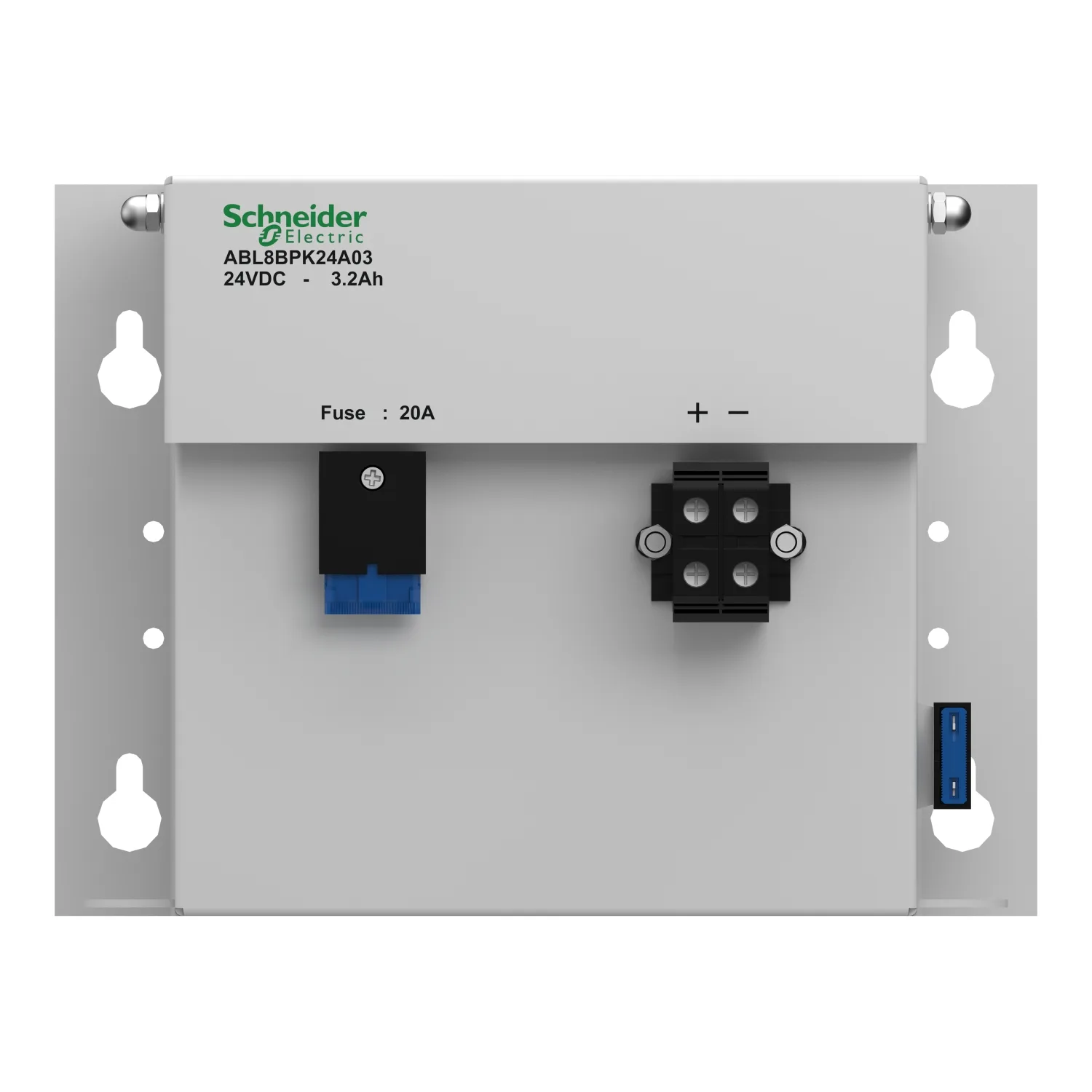

battery- 24 V DC - 32 A - 3.2 AH - for battery control module
Schneider ABL8BPK24A03, battery- 24 V DC - 32 A - 3.2 AH - for battery control module. Category: Phaseo ABL4. Not for sale; no price or quote is offered for this product.
- Reference:ABL8BPK24A03
- Manufacturer / Brand:Schneider
Key Specifications
- Range Of Product
- Phaseo
- Product Or Component Type
- Battery module
- Input Voltage
- 24 V DC
- Output Voltage
- 24 V DC
Product Description
This ABL8 backup battery (storage capacity 3.2 ampere hour) supplies direct current voltage. It has a rated output current of 32A at 24V DC. This backup battery (storage capacity 3.2Ah) is designed to provide continuous auxiliary power during significant and long network power shortages. It provides long term backup power for power blackouts lasting more than a few seconds. It weighs 3,500kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by GOST, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness. • "Provide long term backup power for power blackouts lasting more than a few seconds"
Key Features
- "Control backup battery charging and backup supply to ensure the longest battery life-time"
- "Ensure back-up power in case of power outage in critical facilities"
- "No maintenance required"
Technical Specifications
Main7
| Range Of Product | Phaseo |
|---|---|
| Product Or Component Type | Battery module |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Maximum Output Current | 32 A |
| Battery Capacity | 3.2 Ah |
| Holding Time | < 20 h at 0.16 A, 20 °C; > 5 min at 8.4 A, 20 °C |
Complementary12

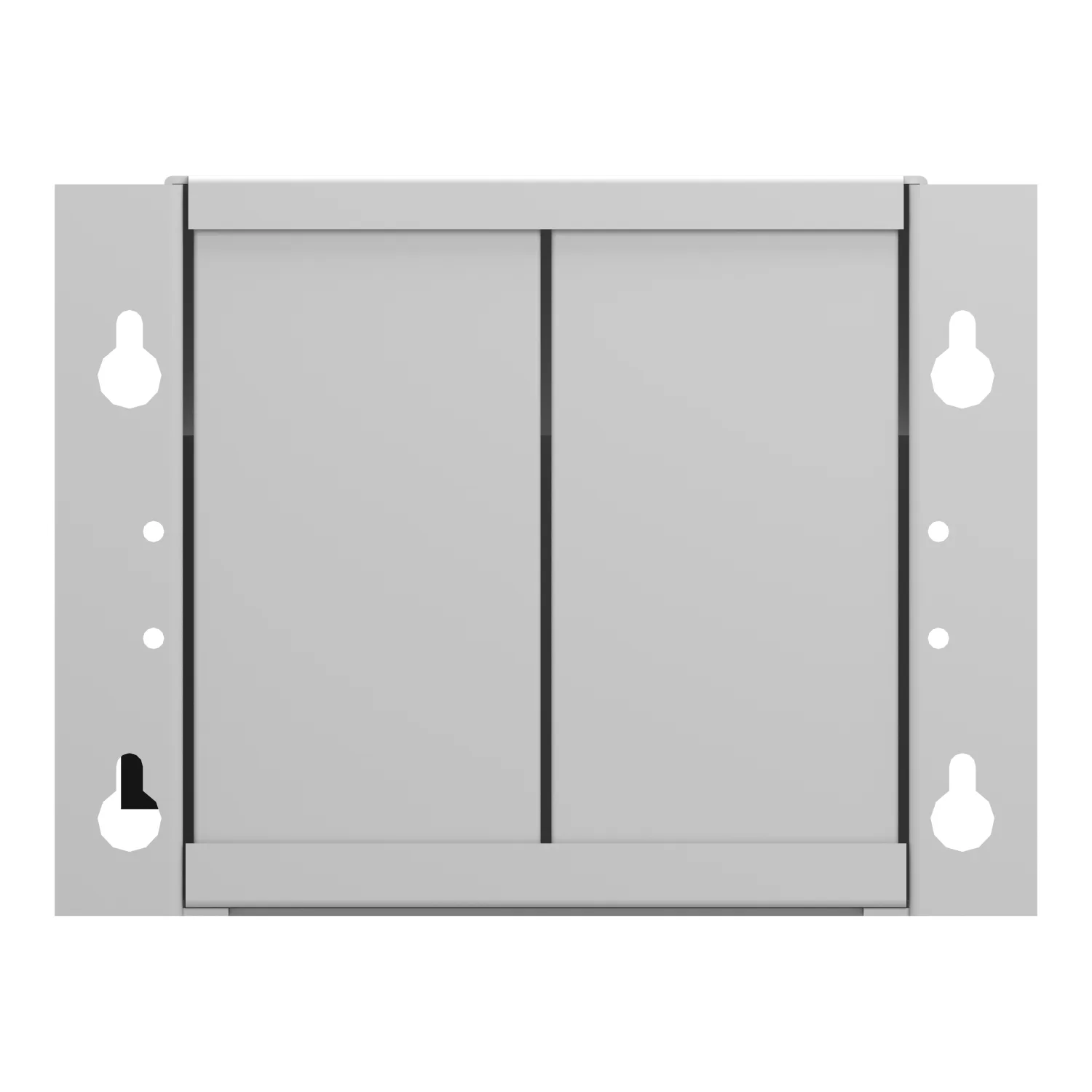

| Input Voltage Limits | 21...29 V |
|---|---|
| Charging Time | 72 h |
| Load Current | 0.3 A |
| Output Protection Type | Against overload and short-circuits, protection technology: 1 x 20 A automotive type fuse |
| Connections - Terminals | For input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² 20 AWG...8 AWG; For output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² 20 AWG...8 AWG |
| Self-discharge Rate | 9 %, 3 months; 3 %, 1 month; 15 %, 6 months |
| Fixing Mode | By 2 screws diameter: 5 mm on horizontal panel, operating position: horizontal; By 4 screws diameter: 5 mm on vertical panel, operating position: vertical; By clips (with mounting kit) on 35 mm symmetrical DIN rail, operating position: horizontal; By clips (with mounting kit) on 35 mm symmetrical DIN rail, operating position: vertical |
| Output Coupling | Parallel |
| Operating Altitude | 2000 m |
| Service Life In Hours | 11000 h at 40 °C; 15000 h at 35 °C; 22000 h at 30 °C; 31000 h at 25 °C; 44000 h at 20 °C; 5000 h at 50 °C; 7300 h at 45 °C |
| Marking | CE |
| Net Weight | 3.5 kg |
Environment6
| Product Certifications | CTP; UL |
|---|---|
| Ambient Air Temperature For Operation | 0…40 °C |
| Ambient Air Temperature For Storage | -20…50 °C |
| IP Degree Of Protection | IP10 conforming to IEC 60529 |
| Overvoltage Category | Class 3 conforming to VDE 0106-1 |
| Vibration Resistance | 2 gn (f= 11.9…150 Hz) conforming to IEC 61131-2; 3.5 mm (f= 3…11.9 Hz) conforming to IEC 61131-2 |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 17.000 cm |
| Package 1 Width | 16.600 cm |
| Package 1 Length | 26.500 cm |
| Package 1 Weight | 3.658 kg |
| Unit Type Of Package 2 | S06 |
| Number Of Units In Package 2 | 24 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 111.308 kg |
Logistical informations1
| Country Of Origin | PH |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
