rectified and filtered power supply - 3-phase - 400 V AC - 24 V - 10 A

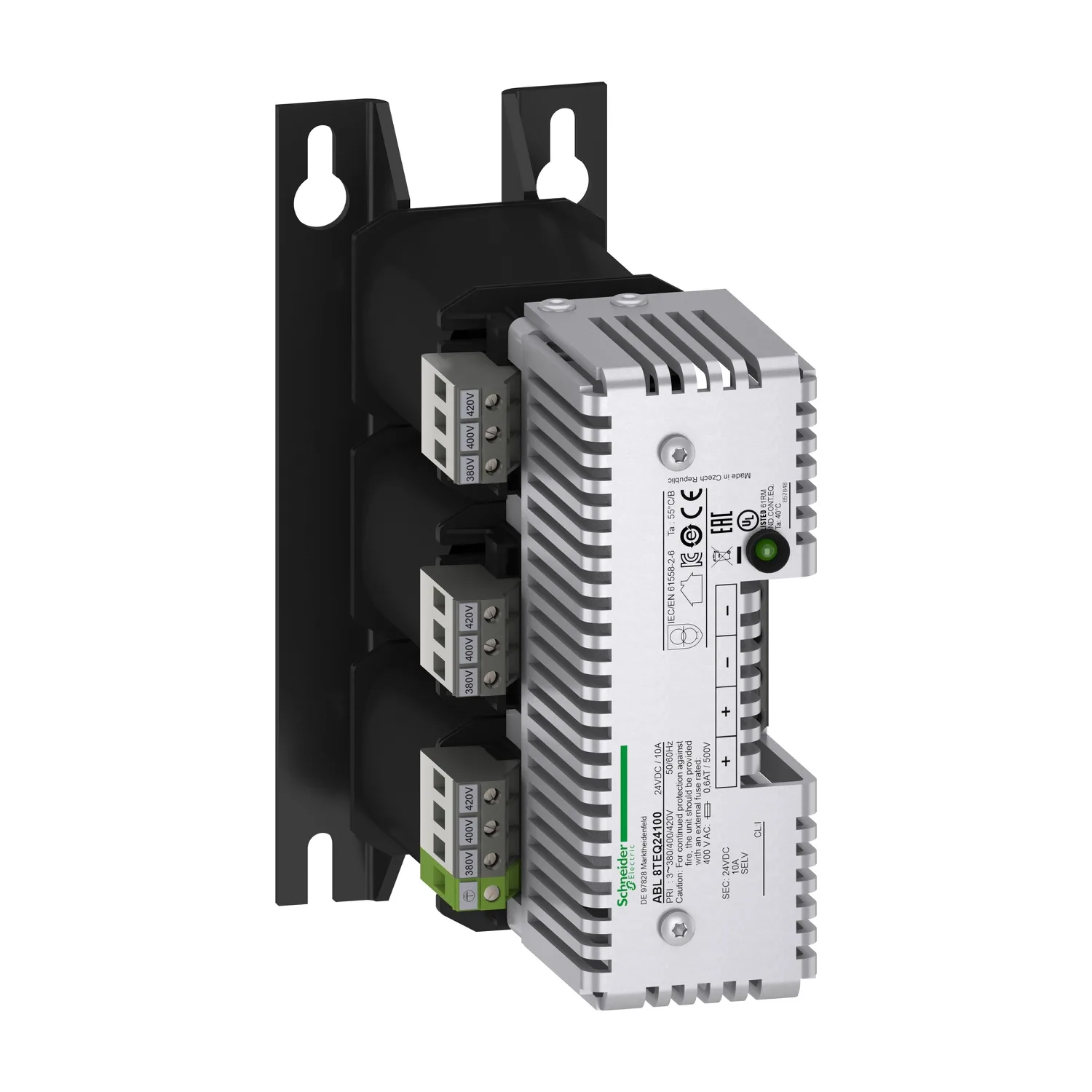

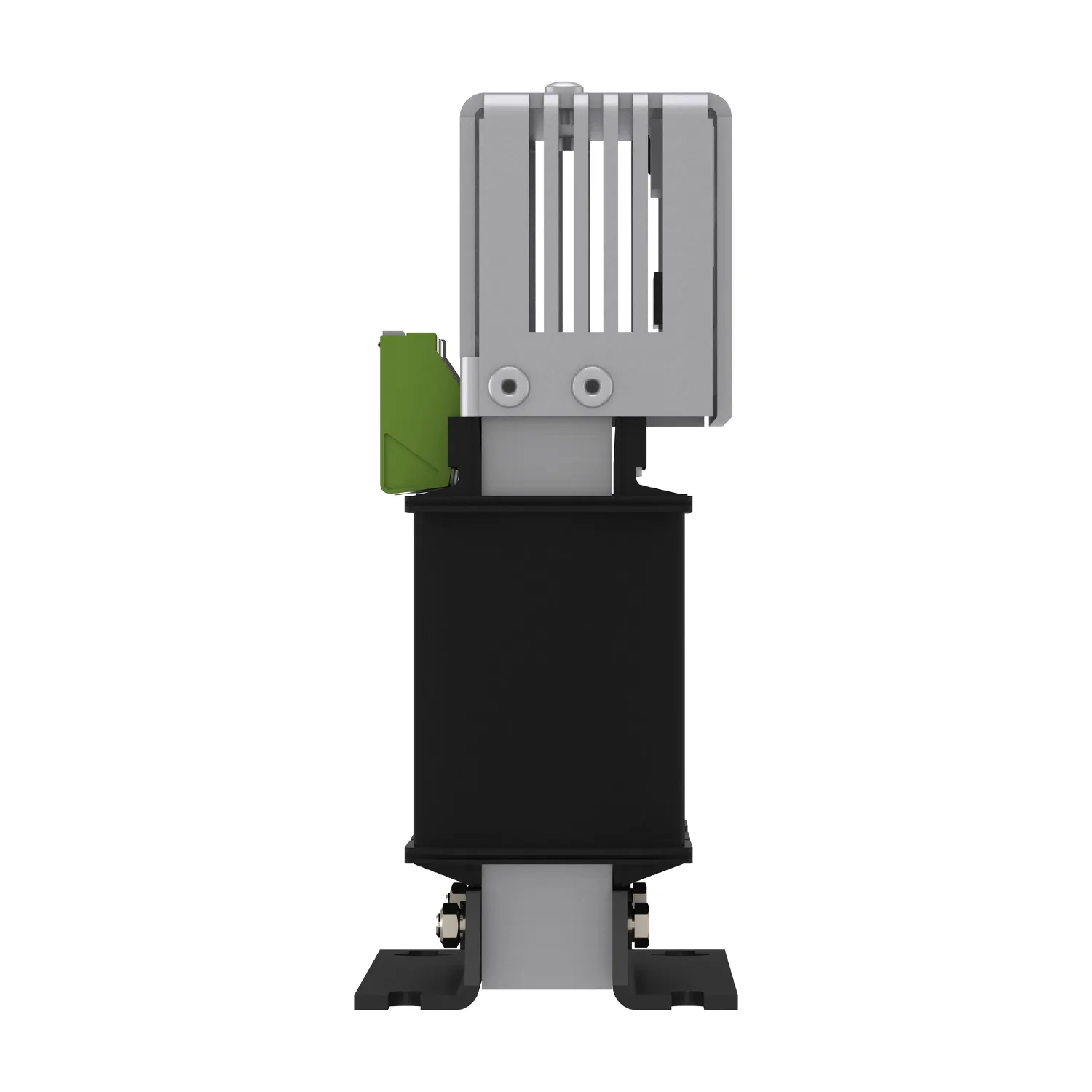

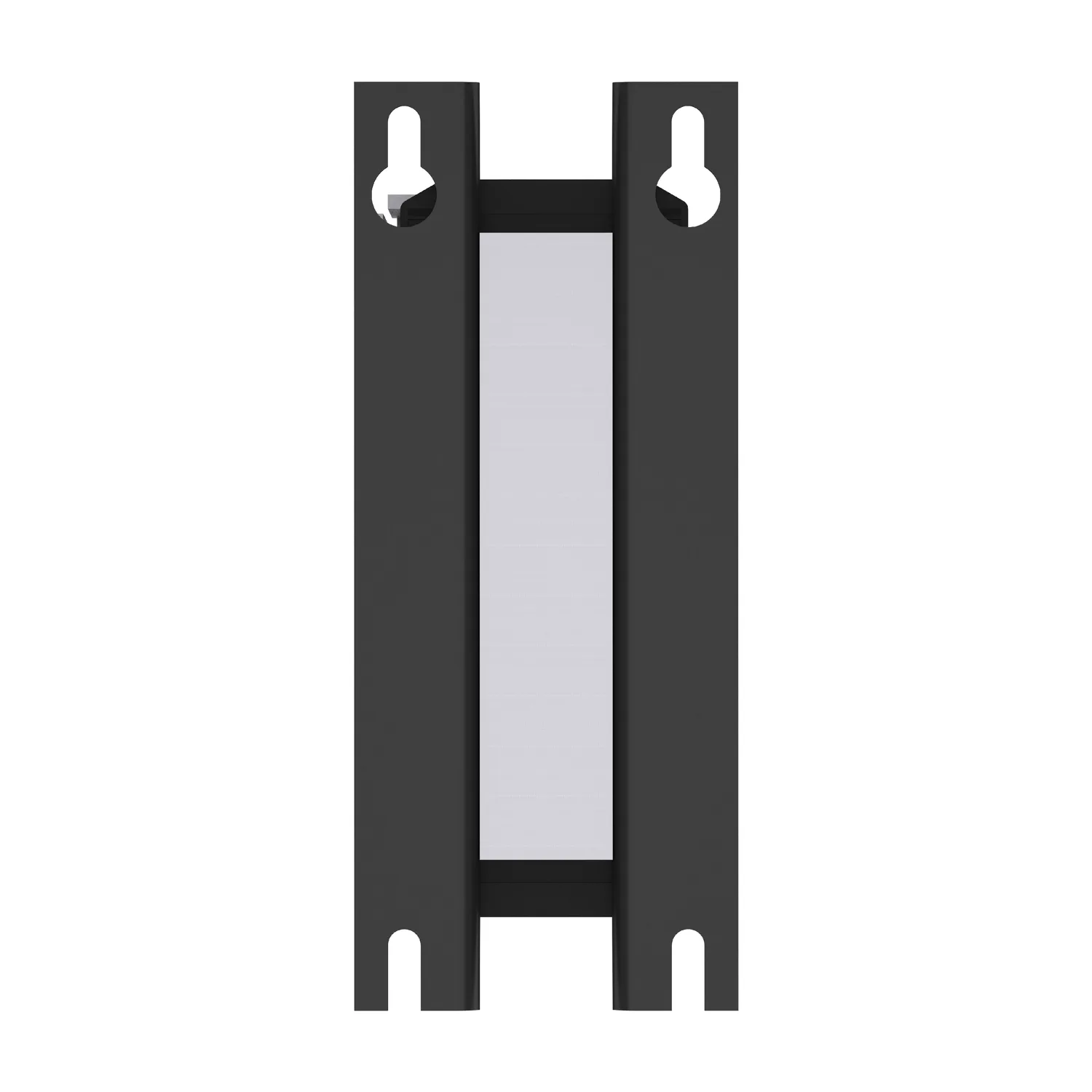

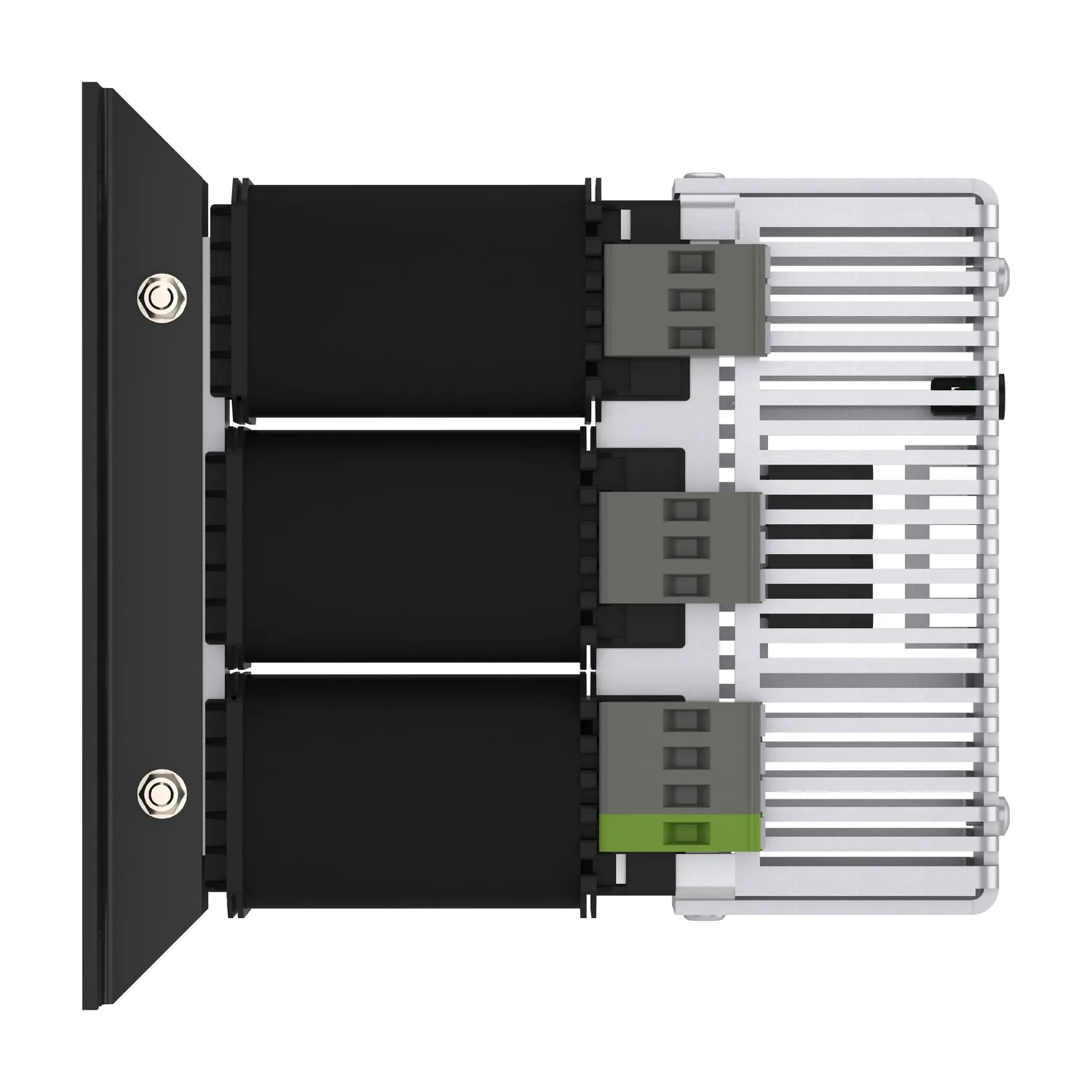

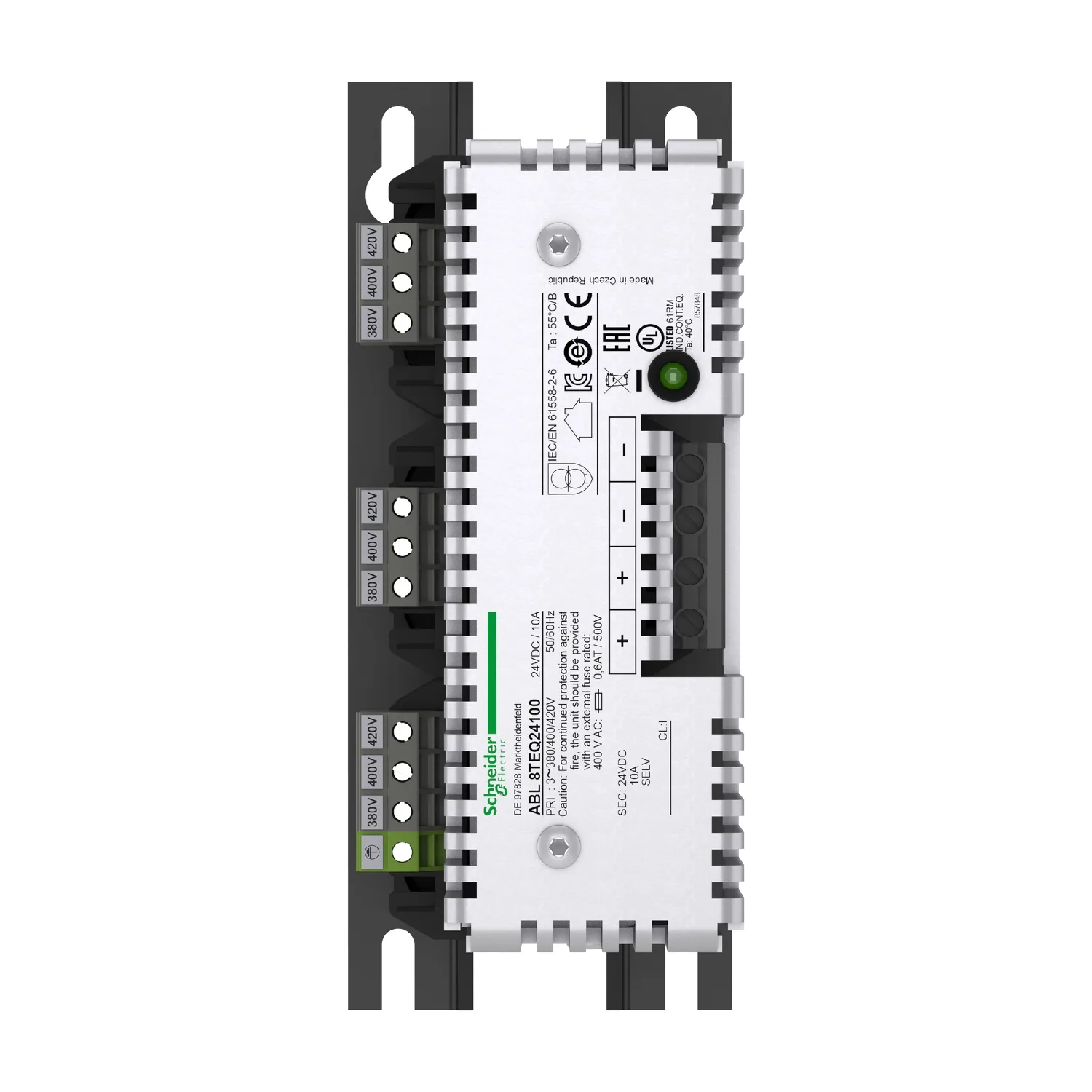

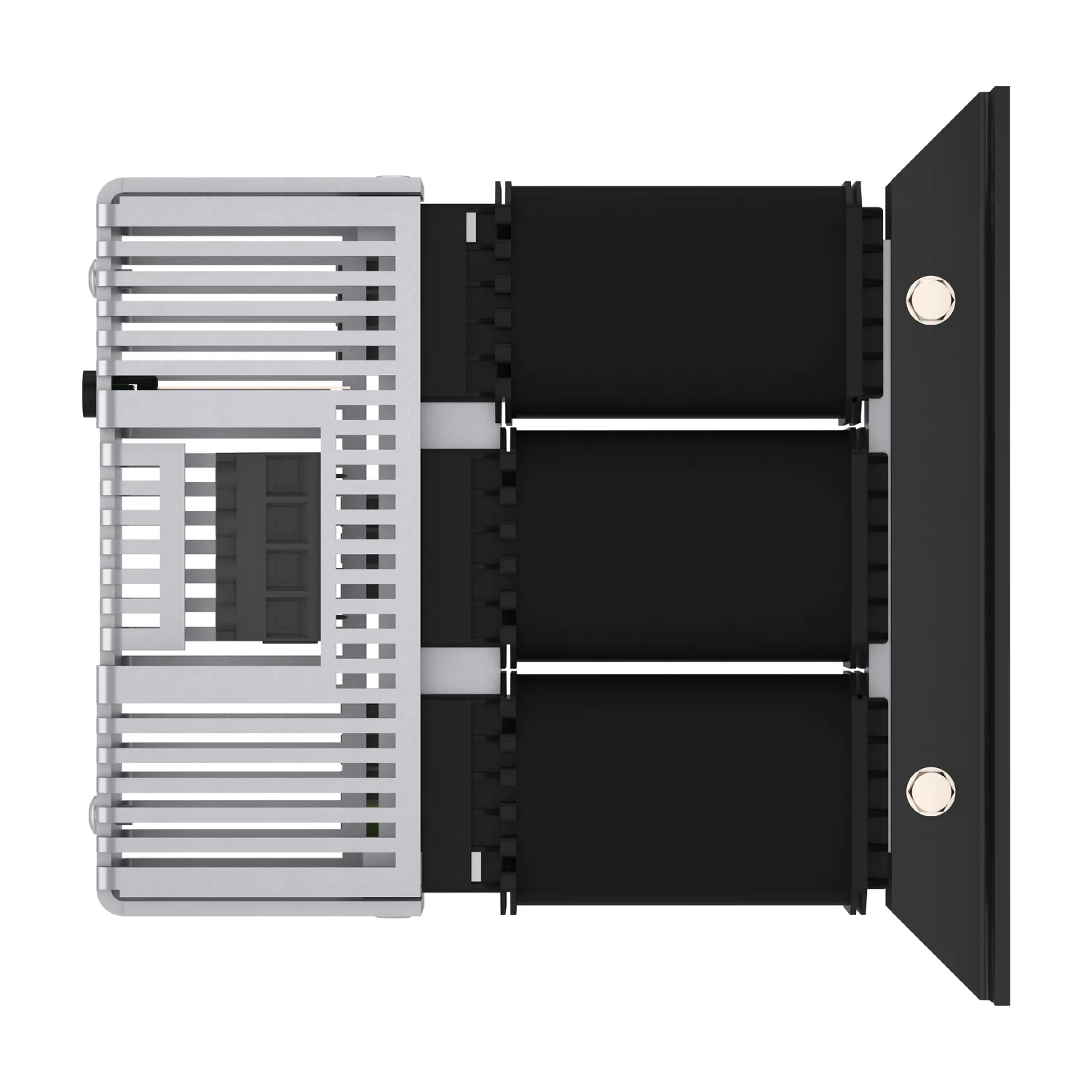

Schneider ABL8TEQ24100, rectified and filtered power supply - 3-phase - 400 V AC - 24 V - 10 A. Category: Phaseo ABL8. Not for sale; no price or quote is offered for this product.
- Reference:ABL8TEQ24100
- Manufacturer / Brand:Schneider
Key Specifications
- Range Of Product
- Modicon Rectified
- Product Or Component Type
- Power supply
- Power Supply Type
- Rectified and filtered
- Rated Power In W
- 240 W
Product Description
This ABL8 3-phase filtered rectified power supply (PSU) supplies direct current voltage. It has a rated input of 400V AC, a rated output current of 10A at 24V DC and a rated power of 240W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail and is 185mm-wide. It weighs 4,720kg. It is a power supply for industrial use, rail mounting. It is certified with UL 508, CULus, KC and EAC. The GV2RT04 thermal magnetic circuit breaker is recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Technical Specifications
Main9
| Range Of Product | Modicon Rectified |
|---|---|
| Product Or Component Type | Power supply |
| Power Supply Type | Rectified and filtered |
| Rated Power In W | 240 W |
| Nominal Input Voltage | 400 V AC three phase, terminal(s): L1, L2, L3 |
| Output Voltage | 24 V DC |
| Power Supply Output Current | 10 A |
| Anti-harmonic Filter | Low frequency harmonic currents |
| Product Certifications | EAC; UL 508; KC; cULus |
Complementary15
| Network Frequency Limits | 47…63 Hz |
|---|---|
| Input Voltage Limits | 360...440 V |
| Power Factor | 0.872 at 400 V |
| Efficiency | 73 % |
| Power Dissipation In W | 64 W |
| Output Coupling | Parallel; Series |
| Output Protection Type | Against overvoltage, protection technology: 2 J peak limiter; Against overload and short-circuits, protection technology: external fuse, 12 A |
| Hold-up Time | 4 ms |
| Status LED | 1 LED (green) output voltage |
| Connections - Terminals | For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² 14 AWG...11 AWG; For output connection: screw type terminals, connection capacity: 4 x 4 mm² 11 AWG; For input connection: screw type terminals, connection capacity: 9 x 2.5...9 x 4 mm² 14 AWG...11 AWG |
| Depth | 187.0 mm |
| Height | 77.0 mm |
| Width | 185 mm |
| Net Weight | 4.65 kg |
| Compatibility Code | ABL8T |
Environment8
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
|---|---|
| Ambient Air Temperature For Operation | -20…55 °C |
| Ambient Air Temperature For Storage | -40…80 °C |
| Relative Humidity | 0…95 % without condensation or dripping water |
| Operating Altitude | 3000 m |
| Safety Class | Class I conforming to VDE 0106-1 |
| Dielectric Strength | 2000 V between input and ground; 4600 V between input and output; 500 V between output and ground |
| Other Environmental Characteristic | EMC conforming to IEC 62041; Safety conforming to EN/IEC 61558-2-6; Safety conforming to UL 508; Safety conforming to UL 60950-1; EMC conforming to IEC 61000-3-2 |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 37.000 cm |
| Package 1 Width | 32.500 cm |
| Package 1 Length | 17.000 cm |
| Package 1 Weight | 6.054 kg |
| Unit Type Of Package 2 | P06 |
| Number Of Units In Package 2 | 12 |
| Package 2 Height | 105.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 81.148 kg |
Logistical informations1
| Country Of Origin | CZ |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
