Schneider
ATS130N2D80LT - Altivar Soft Starter ATS130 80A 200 to 480V
Schneider ATS130N2D80LT, Altivar Soft Starter ATS130 80A 200 to 480V. Category: Altivar Soft Starter ATS130. Request a quote for price and lead time.
- Reference:ATS130N2D80LT
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:1,392.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Altivar Soft Starter ATS130
- Product Or Component Type
- Soft starter
- Product Destination
- Asynchronous motors
- Product Specific Application
- Simple machine
Product Description
- "This soft starter belongs to the Altivar Soft Starter ATS130 range that is intended to start and stop asynchronous motors supplied from 200 to 480V."
- With an operational rated current of 80A in normal duty, it supplies motor from 22 to 45kW according to mains voltage.

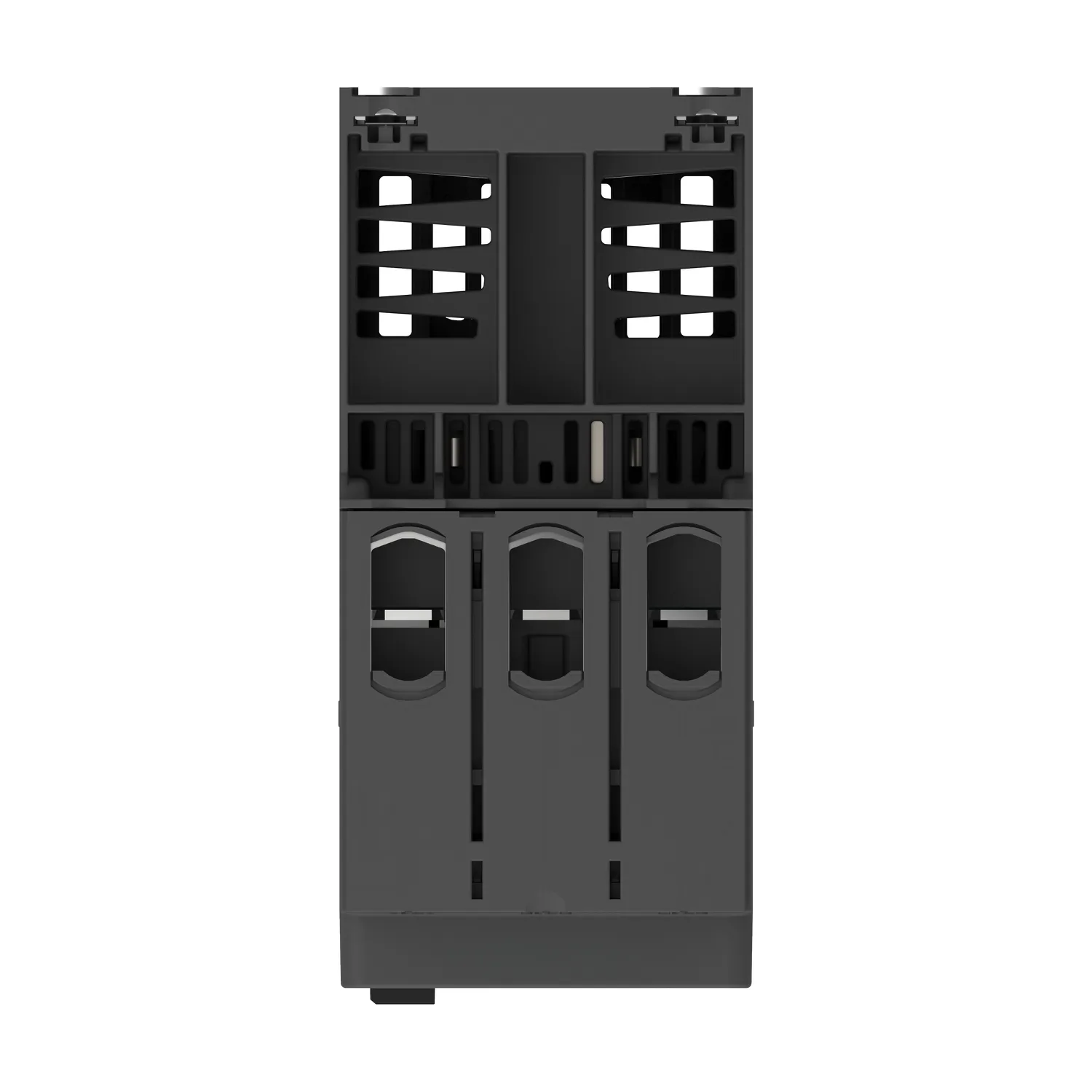

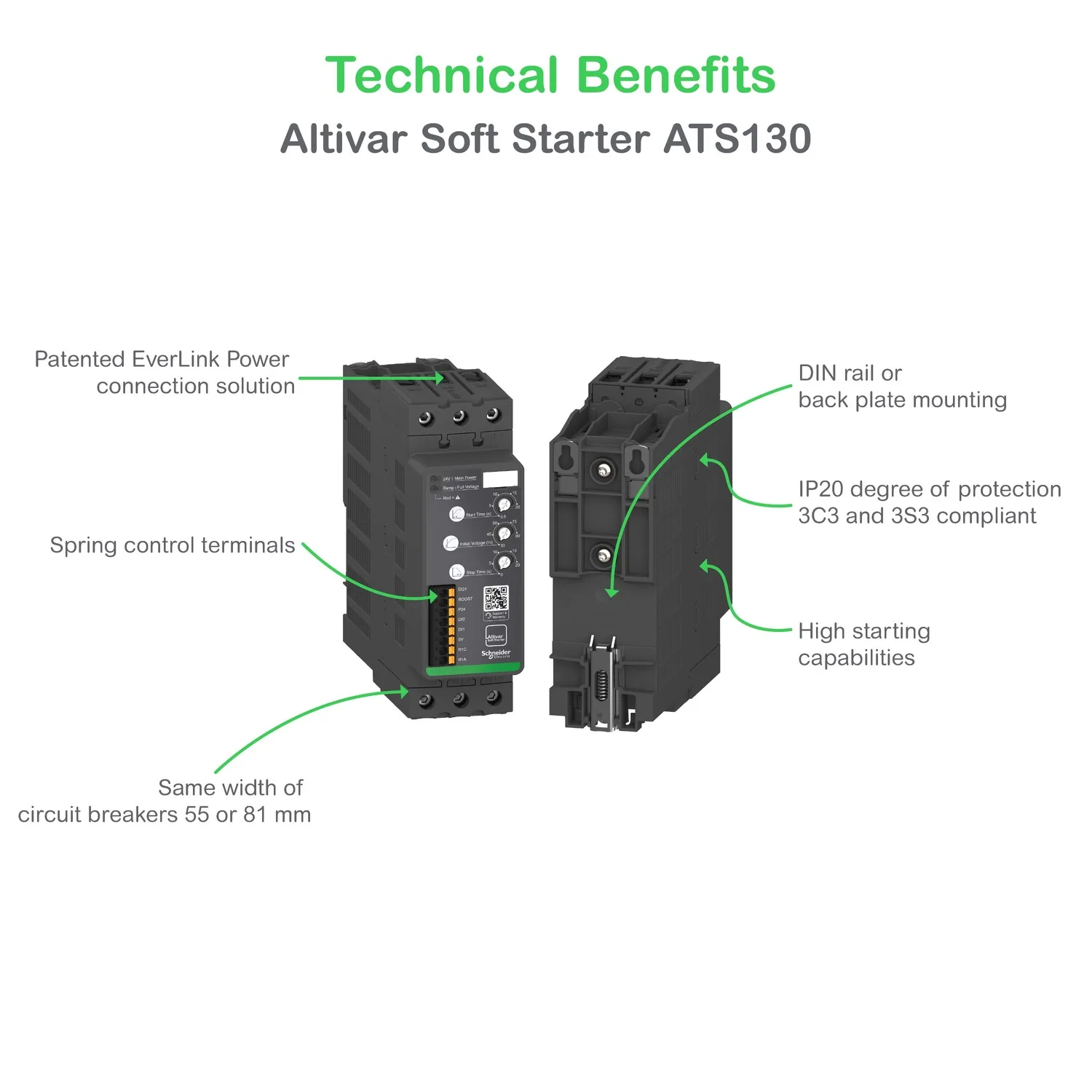

- "Compact, it provides mechanical and electrical flexibility in control panel design."
- ATS130 is preventive maintenance free and allows optimized motor management especially in combination with TeSys Deca motor circuit breaker.
- It is designed with Everlink power terminals and spring control terminals that avoid annual wire retightening.
- This soft starter has the same width (80mm) as the TeSys Deca frame 4 motor circuit breaker; it allows the building of the ATS130 Soft Motor Starter.
- Its dimensions are 80mm (width) x 180mm (depth) x 222 mm (height), and it weighs 2.06kg.
- Altivar Soft Starter ATS130 is designed to address pumps, fans, compressors, conveyors, and other simple machines.
- It conforms to the IEC/EN60947-4-1 standard and has received the CE, EAC, UKCA, CCC, and RCM certifications.
- It is possible to add a fixing kit to mount the TeSys Deca frame 4 motor circuit breaker on top of ATS130 or a cooling fan to extend the number of starts per hour.
- The ATS130 soft starters can be mounted on a backplate or on a DIN rail, side by side, and they are compatible with a 200mm depth cabinet.
- "The Altivar Soft Starter ATS130 range is preventive maintenance-free and increases operational efficiency during design, manufacturing, and commissioning."
- product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.

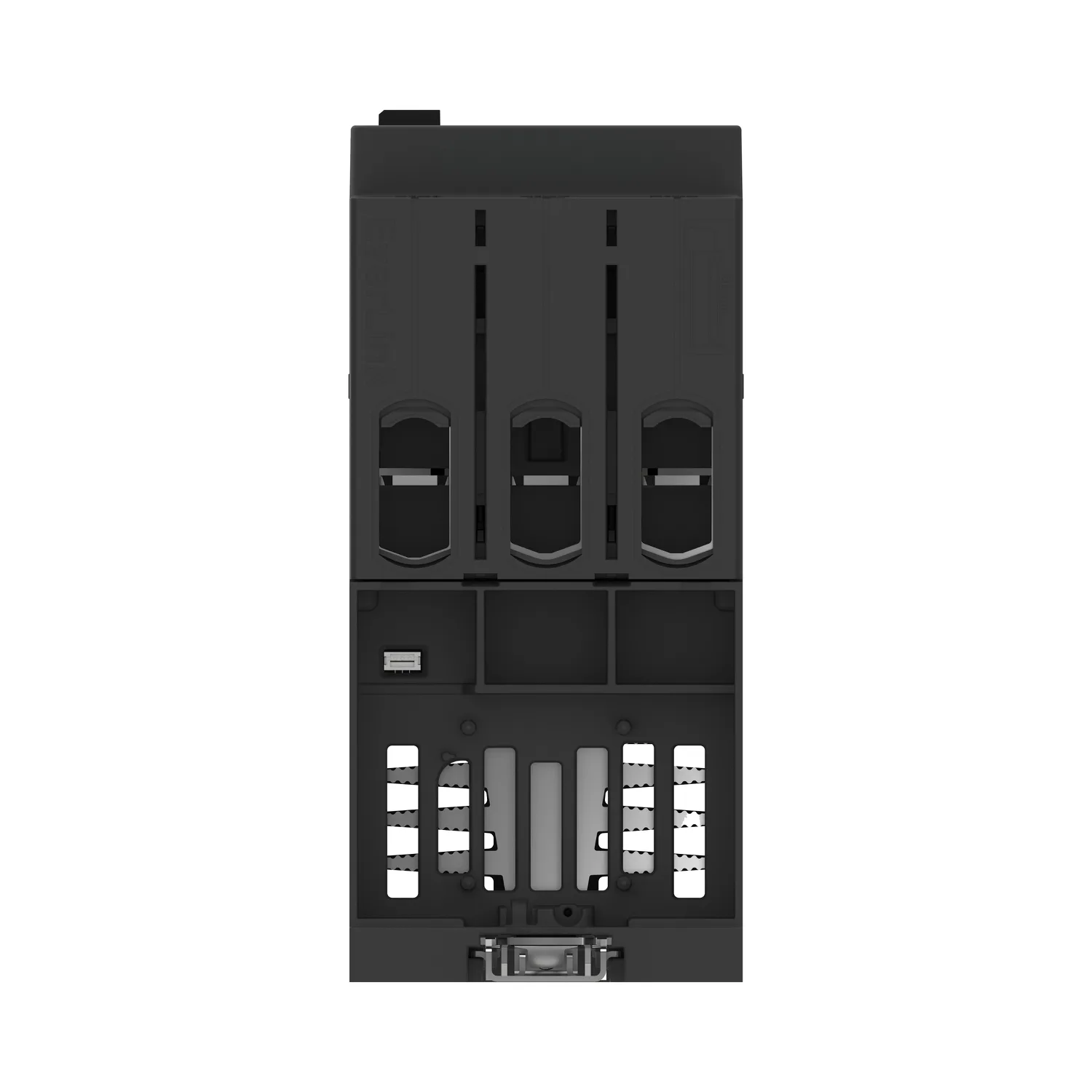

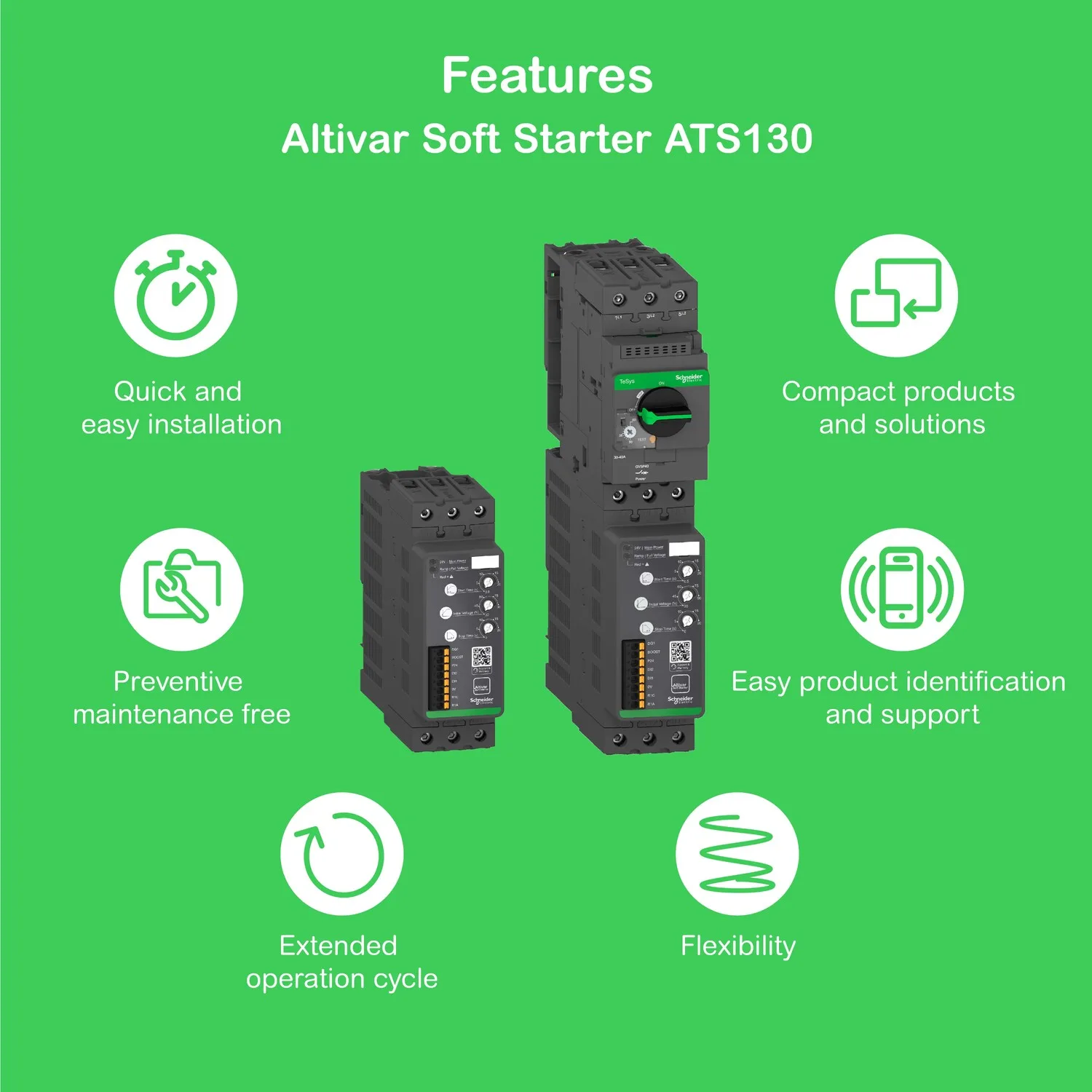

Key Features
- "Allows design optimization and time savings"
- "Optimized motor management (with TeSys Deca motor circuit breaker)"
- "Preventive maintenance free"
- "Increase operational efficiency during mounting and wiring"
- "High starting capability as standard that could be extended"
Technical Specifications
Main15
| Range Of Product | Altivar Soft Starter ATS130 |
|---|---|
| Product Or Component Type | Soft starter |
| Product Destination | Asynchronous motors |
| Product Specific Application | Simple machine |
| Device Short Name | ATS130 |
| Network Number Of Phases | 3 phases |
| Utilisation Category | AC-53A |
| Ue Power Supply Voltage | 200...480 V - 15...10 % |
| Power Supply Frequency | 50...60 Hz +/- 5 Hz |
| [Ie] Rated Operational Current | 80 A in line (at <40 °C) |
| Service Factor At Ie | 100 |
| Torque Control | False |
| IP Degree Of Protection | IP20 |
| Motor Power KW | 22 kW at 230 V normal duty; 45 kW at 400 V normal duty; 45 kW at 440 V normal duty |
| Motor Power Hp | 25 hp at 200 V normal duty; 25 hp at 208 V normal duty; 30 hp at 230 V normal duty; 60 hp at 460 V normal duty; 60 hp at 480 V normal duty |
Complementary38
| Overload Current Profile | 300 % Ie for 5 s |
|---|---|
| On-load Factor | 70 % |
| Operating Cycles/hour | 25 cyc/h |
| Minimum Motor Current | 20 % Ie |
| Device Connection | In line |
| [Us] Control Circuit Voltage | 24 V DC +/- 10 % |
| Control Power | 21.6 W starting and stopping; 3 W steady state |
| Integrated Motor Overload Protection | False |
| Protection Type | Phase failure: mains; Thermal protection: starter; Bypass error: starter; Control voltage Us: starter |
| Rated Current Pwr Loss Specification | 80 A |
| Power Loss Static Current Independent | 3 W |
| Power Loss Per Device Current Dependent | 16 W |
| Power Loss During Starting | 512 W 300 % Ie |
| Standards | EN/IEC 60947-4-2; UL 60947-4-2; IEC 60664-1 |
| Product Certifications | CE; UKCA; CCC; RCM; EAC; UL |
| Marking | CE; CCC; UKCA; RCM; EAC |
| [Uc] Control Circuit Voltage | 24 V DC |

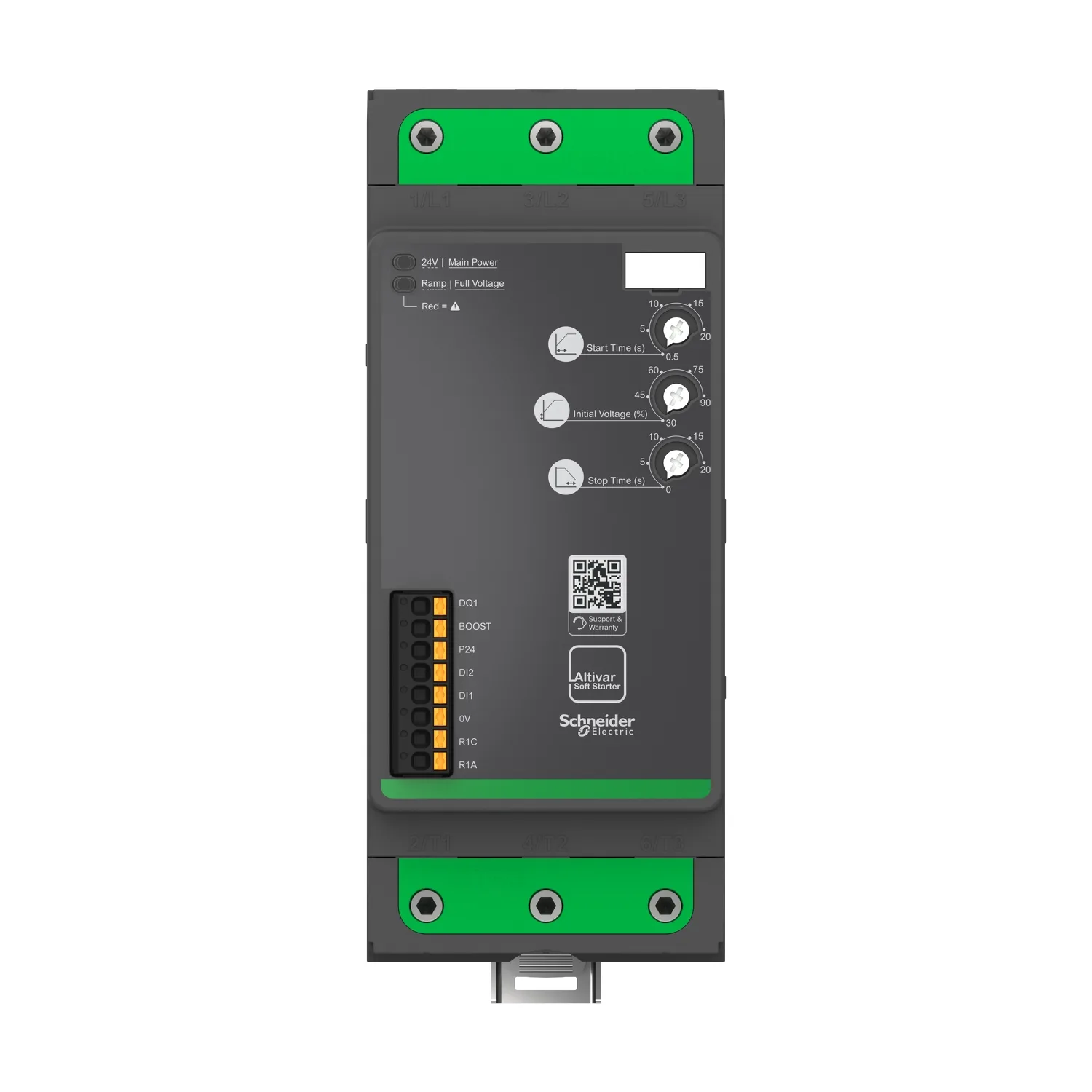

| Discrete Input Number | 3 |
| Discrete Input Type | (DI) digital input, 10 kOhm; (DI2) digital input, 10 kOhm; (BOOST) digital input, 10 kOhm |
| Input Compatibility | Discrete input level 1 PLC conforming to EN/IEC 61131-2 |
| Discrete Input Logic | Digital input at State 0: 0... 13 V, >= 0.5 mA |
| Relay Output Number | 1 |
| Relay Output Type | Relay outputs R1A, R1C NO |
| Minimum Switching Current | 2.5 mA at 24 V DC for relay outputs |
| Maximum Switching Current | On resistive load for relay outputs : 1 A 250 V AC 400000 cycles; On resistive load for relay outputs : 1 A 30 V DC 400000 cycles; On inductive load for relay outputs : 1 A 250 V AC cos phi = 0.4 100000 cycles; On inductive load for relay outputs : 1 A 30 V DC cos phi = 0.4 100000 cycles |
| Discrete Output Number | 1 |
| Discrete Output Type | Non programmable digital output DQ1 <= 30 V 200 mA |
| Display Type | 1 LED (green) for control power energized; 1 LED (yellow and red) for motor operation phases, errors |
| Display Screen Available | False |
| Operating Position | Vertical +/- 30 degree |
| Height | 197 mm |
| Width | 81 mm |
| Depth | 180 mm |
| Net Weight | 2.3 kg |
| Suitable For Mounting Onto Standard Rails | True |
| Function Available | Deceleration voltage ramp; Boost |
| Internal Bypass | True |
| Material Declaration | True |
Environment19
| Pollution Degree | Level 2 |
|---|---|
| Environmental Class (during Operation) | Without salt mist: 3C3 conforming to IEC 60721-3-3; 3S3 conforming to IEC 60721-3-3 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| [Ui] Rated Insulation Voltage | 480 V |
| Electromagnetic Compatibility | Conducted and radiated emissions level B conforming to IEC 60947-4-2; Short voltage interruptions level 3 conforming to IEC 61000-4-11; Electrostatic discharge level 2 conforming to IEC 61000-4-2; Radiated radio-frequency electromagnetic field immunity test level 1 conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test level 2 conforming to IEC 61000-4-4; Oscillatory waves immu |
| Ambient Air Temperature For Operation | -10…40 °C (without derating); 40…60 °C (with current derating of 2 % per °C) |
| Ambient Air Temperature For Storage | -25…70 °C |
| Ambient Air Transport Temperature | -40…70 °C |
| Operating Altitude | 0...1000 m without derating; 1000...4000 m 1 % per 100 m |
| Relative Humidity | 5…95 % non condensing without dripping water conforming to IEC 60068-2-3 |
| Maximum Acceleration Under Vibrational Stress (during Operation) | 10 m/s² at 9...200 Hz |
| Maximum Acceleration Under Vibratory Load (during Storage) | 10 m/s² at 9...200 Hz |
| Maximum Acceleration Under Vibratory Load (during Transport) | 10 m/s² at 9...200 Hz |
| Maximum Deflection Under Vibratory Load (during Operation) | 3 mm at 2-9 Hz |
| Maximum Deflection Under Vibratory Load (during Storage) | 3 mm at 2-9 Hz |
| Maximum Deflection Under Vibratory Load (during Transport) | 3 mm at 2-9 Hz |
| Maximum Acceleration Under Shock Impact (during Operation) | 100 m/s² at 11 ms |
| Maximum Acceleration Under Shock Load (during Storage) | 100 m/s² at 11 ms |
| Maximum Acceleration Under Shock Load (during Transport) | 100 m/s² at 11 ms |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 8.500 cm |
| Package 1 Width | 27.000 cm |
| Package 1 Length | 28.000 cm |
| Package 1 Weight | 2.560 kg |
| Unit Type Of Package 2 | S06 |
| Number Of Units In Package 2 | 28 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 81.000 kg |
Logistical informations1
| Country Of Origin | DE |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
