Automation module: softstart; for DIN rail mounting; 160kW; 320A

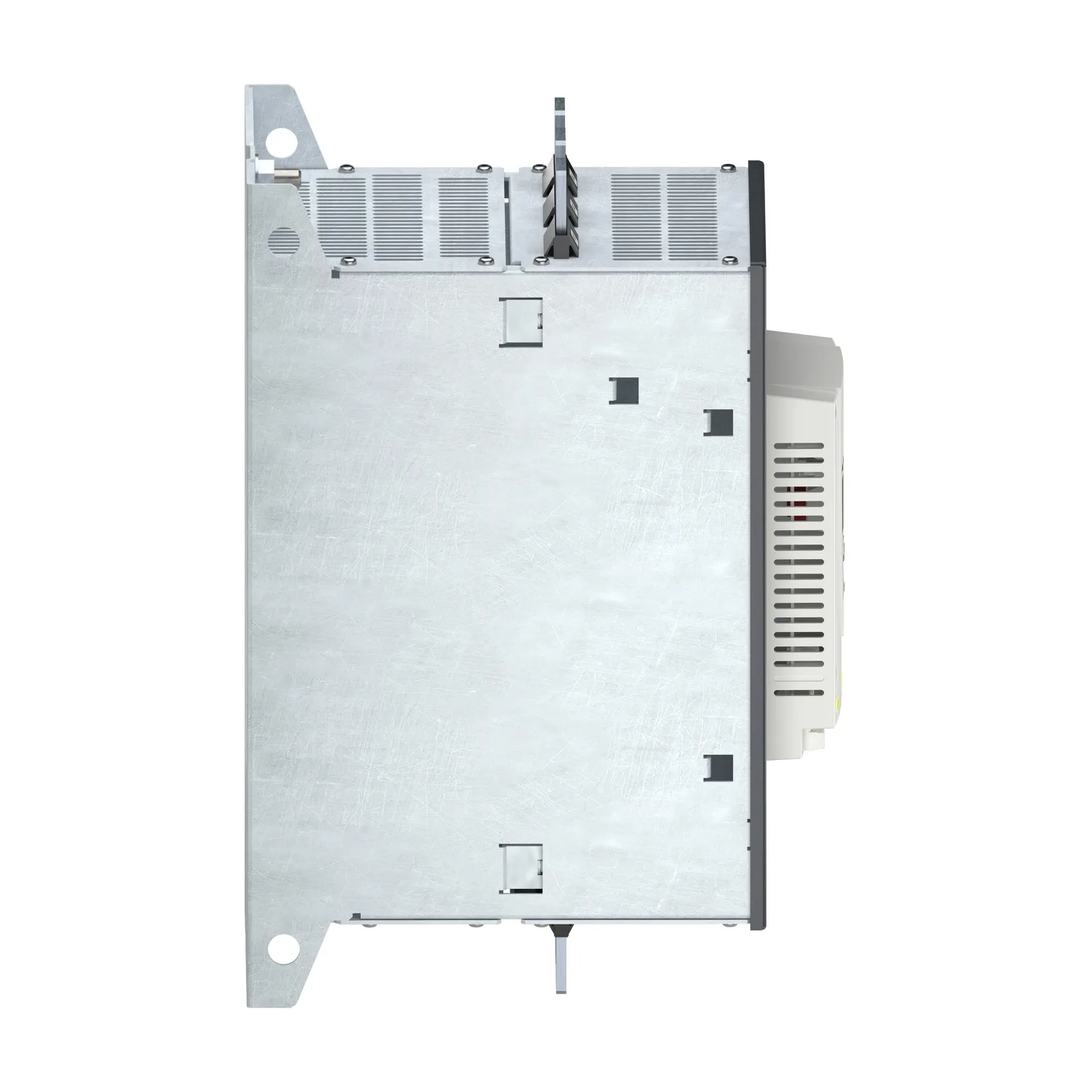

Schneider ATS22C32Q, Automation module: softstart; for DIN rail mounting; 160kW; 320A. Category: Altistart 22. Request a quote for price and lead time.
- Reference:ATS22C32Q
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:5,848.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Altistart 22
- Product Or Component Type
- Soft starter
- Product Destination
- Asynchronous motors
- Product Specific Application
- Pumps and fans
Product Description

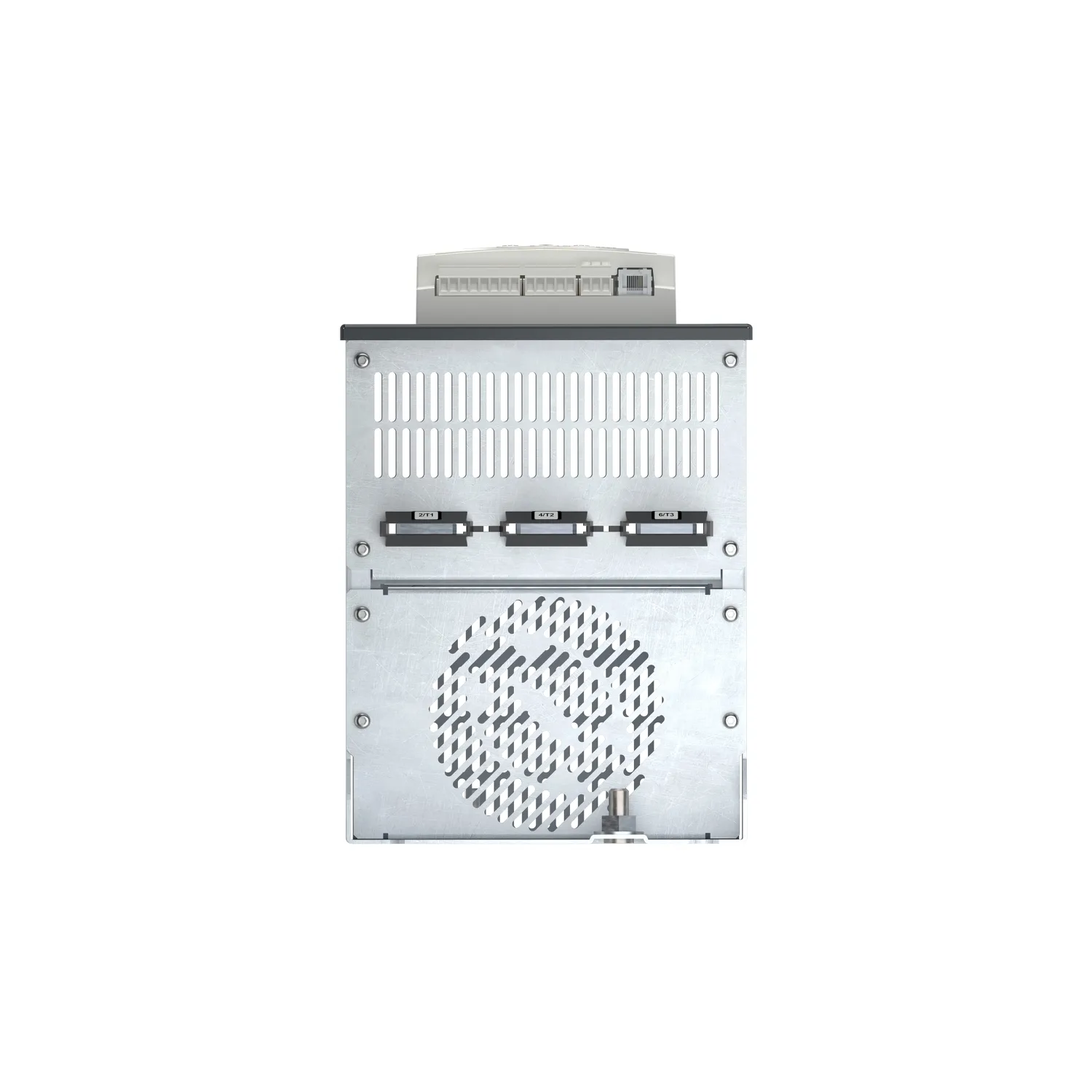

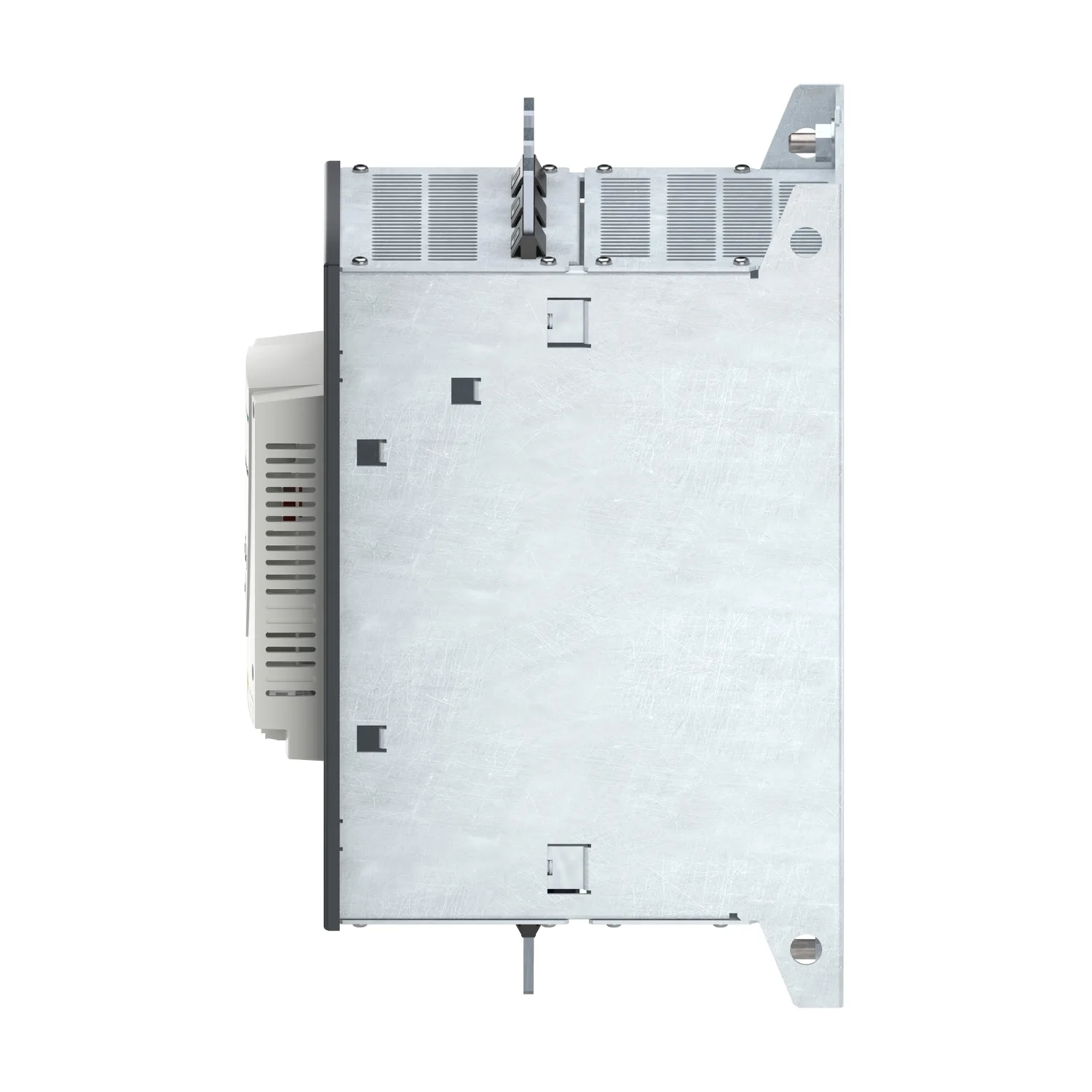

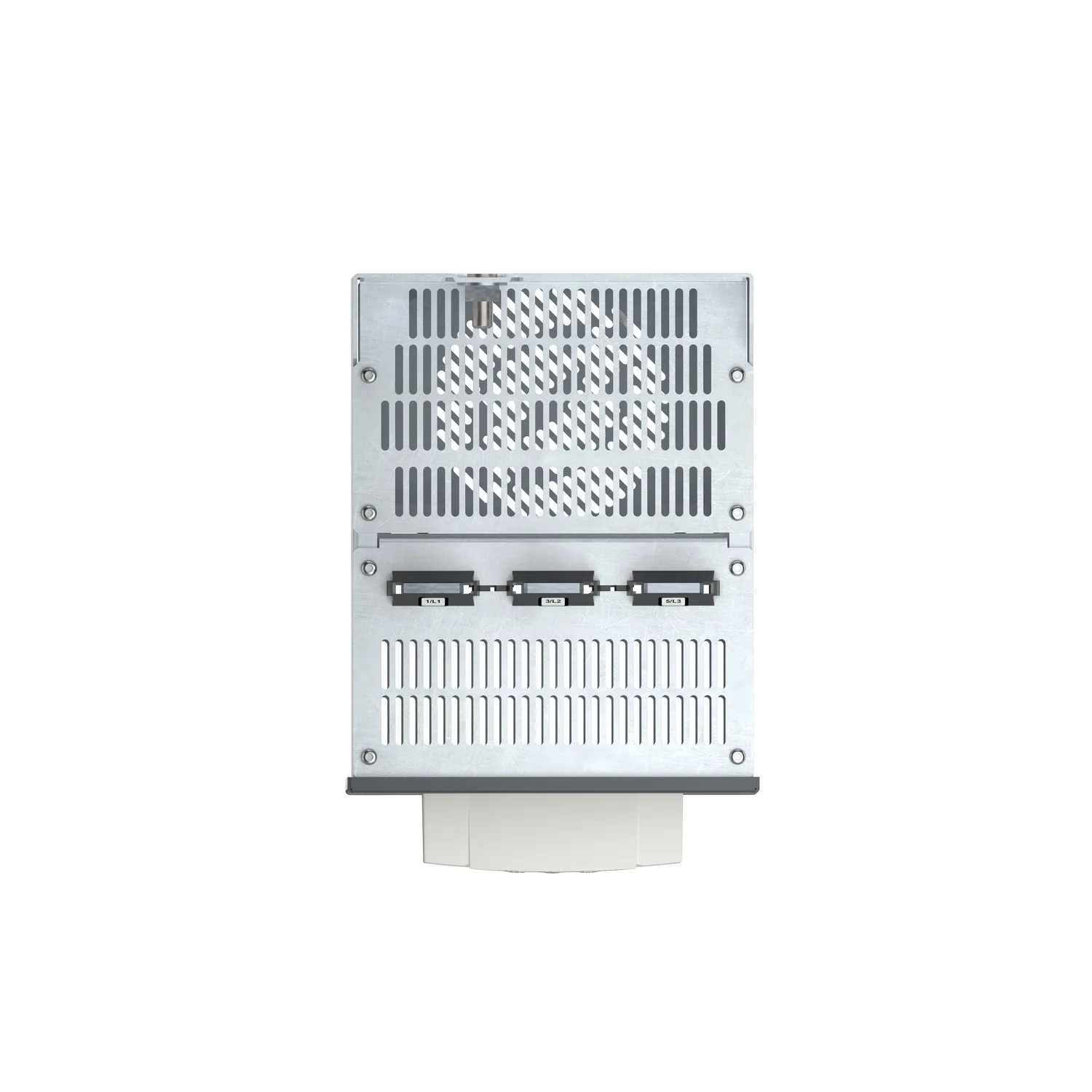

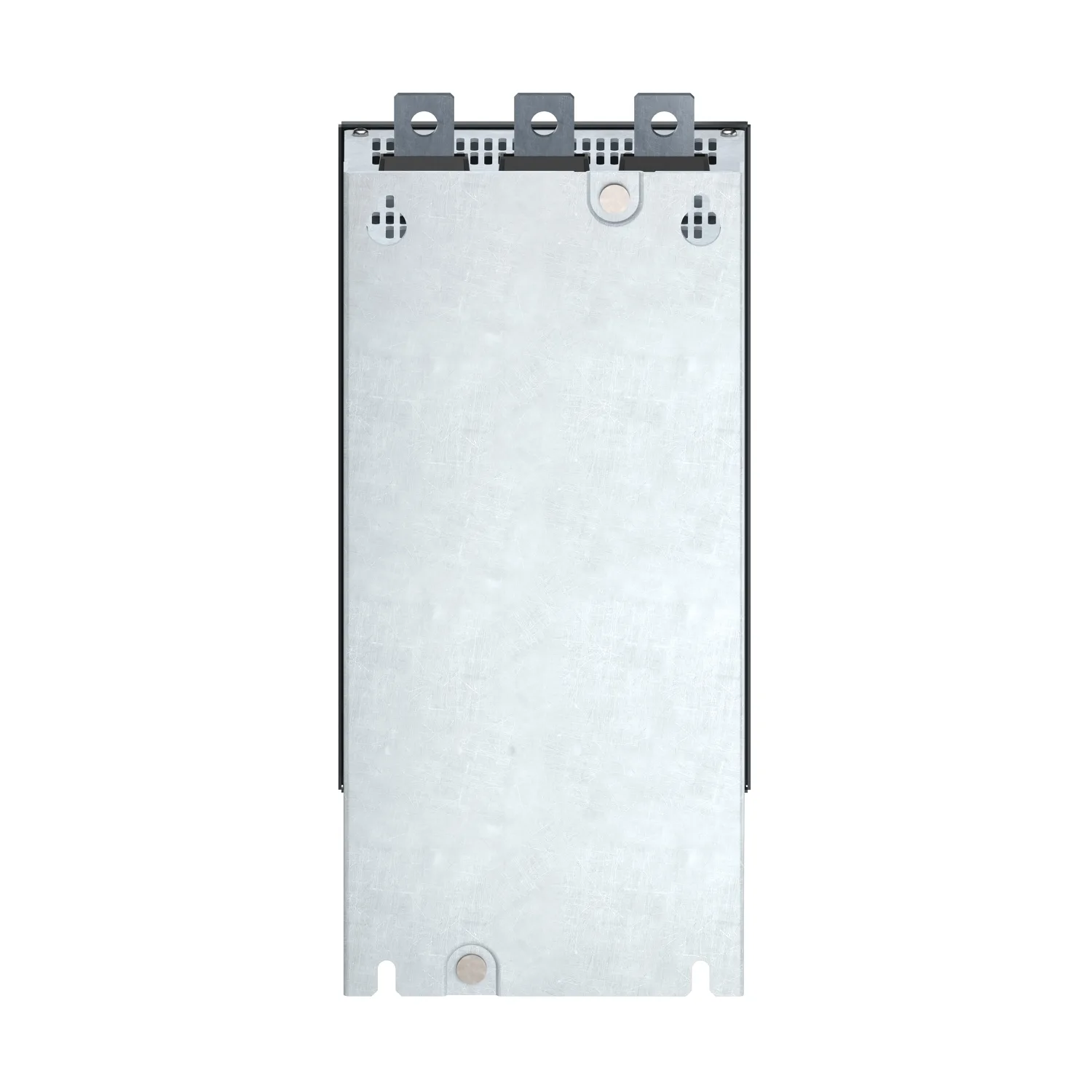

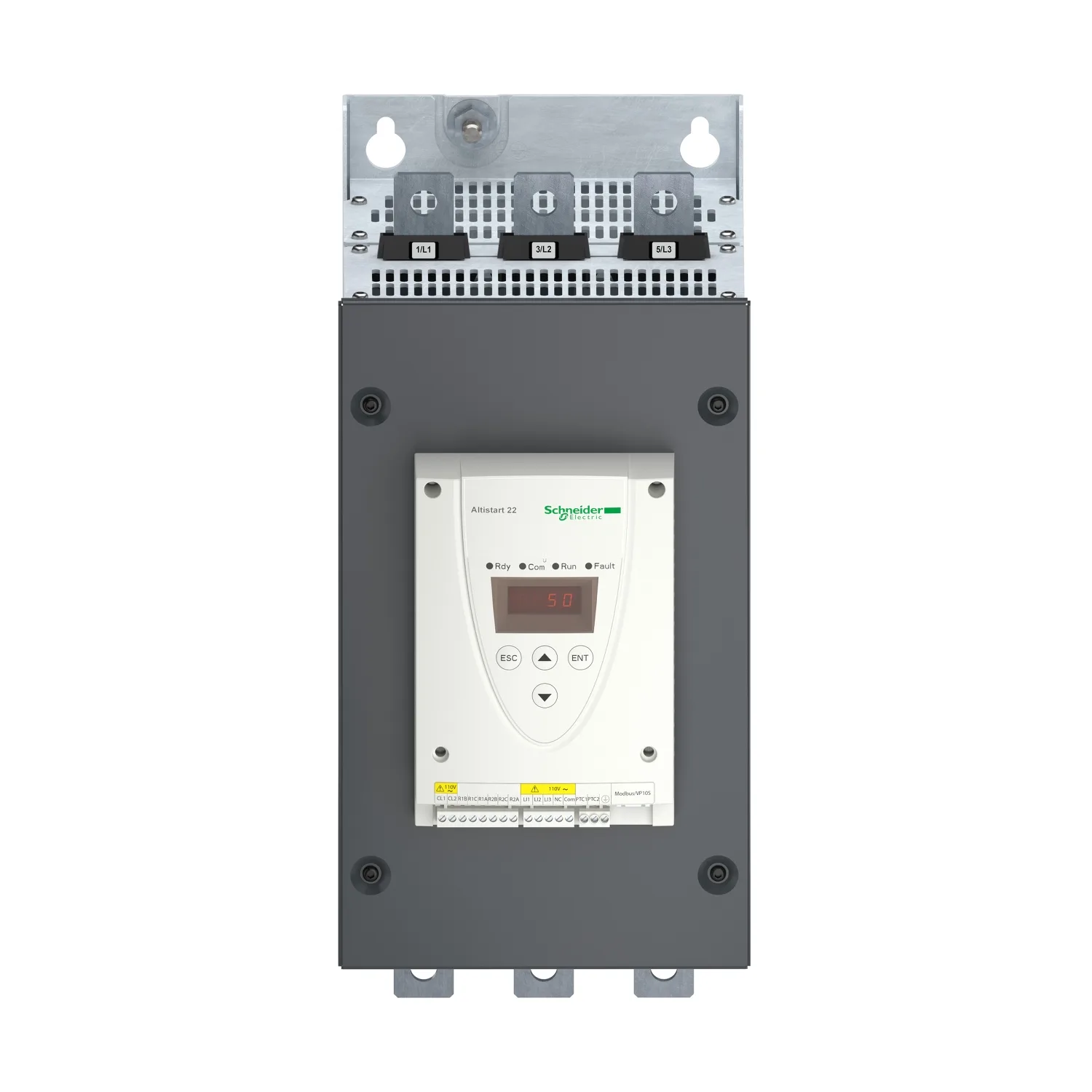

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 320A and 230V to 440V, a rated power up to 160kW (400V to 440V in supply line) and up to 250kW (400V to 440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Key Features
- "Provide smooth starting, avoiding mechanical stresses and extending their service life"
- "Reduce hearing discomfort for operators on the workfloor"
- "Slim form factor improves versatility"
- "Less cost to stock spares"
- "Overcome difficult or high-torque starts"
Technical Specifications
Main14
| Range Of Product | Altistart 22 |
|---|---|
| Product Or Component Type | Soft starter |
| Product Destination | Asynchronous motors |
| Product Specific Application | Pumps and fans |
| Component Name | ATS22 |
| Network Number Of Phases | 3 phases |
| [Us] Rated Supply Voltage | 230...440 V - 15...10 % |
| Motor Power KW | 160 kW 400 V; 160 kW 440 V; 90 kW 230 V |
| Factory Setting Current | 285 A |
| Power Dissipation In W | 150 W for standard applications |
| Utilisation Category | AC-53A |
| Type Of Start | Start with torque control (current limited to 3.5 In) |
| IcL Starter Rating | 320 A for connection in the motor supply line for standard applications |
| IP Degree Of Protection | IP00 |
Complementary34
| Assembly Style | With heat sink |
|---|---|
| Function Available | Internal bypass |
| Supply Voltage Limits | 195…484 V |
| Supply Frequency | 50...60 Hz - 10...10 % |
| Network Frequency | 45...66 Hz |
| Device Connection | To the motor delta terminals; In the motor supply line |
| [Uc] Control Circuit Voltage | 230 V - 15...10 % 50/60 Hz |
| Control Circuit Consumption | 20 W |
| Discrete Output Number | 2 |
| Discrete Output Type | Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O; Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O |
| Minimum Switching Current | 100 mA at 12 V DC (relay outputs) |
| Maximum Switching Current | 5 A 250 V AC resistive 1 relay outputs; 5 A 30 V DC resistive 1 relay outputs; 2 A 250 V AC inductive 0.4 20 ms relay outputs; 2 A 30 V DC inductive 7 ms relay outputs |
| Discrete Input Number | 3 |
| Discrete Input Type | (LI1, LI2, LI3) logic, 5 mA 4.3 kOhm |
| Discrete Input Voltage | 24 V <= 30 V |
| Discrete Input Logic | Positive logic LI1, LI2, LI3 at State 0: 11 V, >= 5 mA |
| Output Current | 0.4...1 Icl adjustable |
| PTC Probe Input | 750 Ohm |
| Communication Port Protocol | Modbus |
| Connector Type | 1 RJ45 |
| Communication Data Link | Serial |
| Physical Interface | RS485 multidrop |
| Transmission Rate | 4800, 9600 or 19200 bps |
| Installed Device | 31 |
| Protection Type | Phase failure: line; Thermal protection: motor; Thermal protection: starter |
| Marking | CE |
| Type Of Cooling | Forced convection |
| Operating Position | Vertical +/- 10 degree |
| Height | 425 mm |
| Width | 206 mm |
| Depth | 299 mm |
| Net Weight | 33 kg |
| Motor Power Range AC-3 | 55…100 kW at 200…240 V 3 phases; 110…220 kW at 380…440 V 3 phases |
| Motor Starter Type | Soft starter |
Environment11
| Electromagnetic Compatibility | Conducted and radiated emissions level A conforming to IEC 60947-4-2; Damped oscillating waves level 3 conforming to IEC 61000-4-12; Electrostatic discharge level 3 conforming to IEC 61000-4-2; Immunity to electrical transients level 4 conforming to IEC 61000-4-4; Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3; Voltage/current impulse level 3 conforming to I |
|---|---|
| Standards | IEC 60947-4-2 |
| Product Certifications | UL; CCC; C-Tick; CSA; GOST |
| Vibration Resistance | 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6; 1.5 mm (f= 2…13 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Noise Level | 56 dB |
| Pollution Degree | Level 2 conforming to IEC 60664-1 |
| Relative Humidity | 0…95 % without condensation or dripping water conforming to IEC 60068-2-3 |
| Ambient Air Temperature For Operation | -10…40 °C (without derating); 40…60 °C (with current derating 2.2 % per °C) |
| Ambient Air Temperature For Storage | -25…70 °C |
| Operating Altitude | <= 1000 m without derating; > 1000...< 2000 m with current derating of 2.2 % per additional 100 m |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 49.0 cm |
| Package 1 Width | 36.5 cm |
| Package 1 Length | 54.5 cm |
| Package 1 Weight | 24.5 kg |
Logistical informations1
| Country Of Origin | CN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
