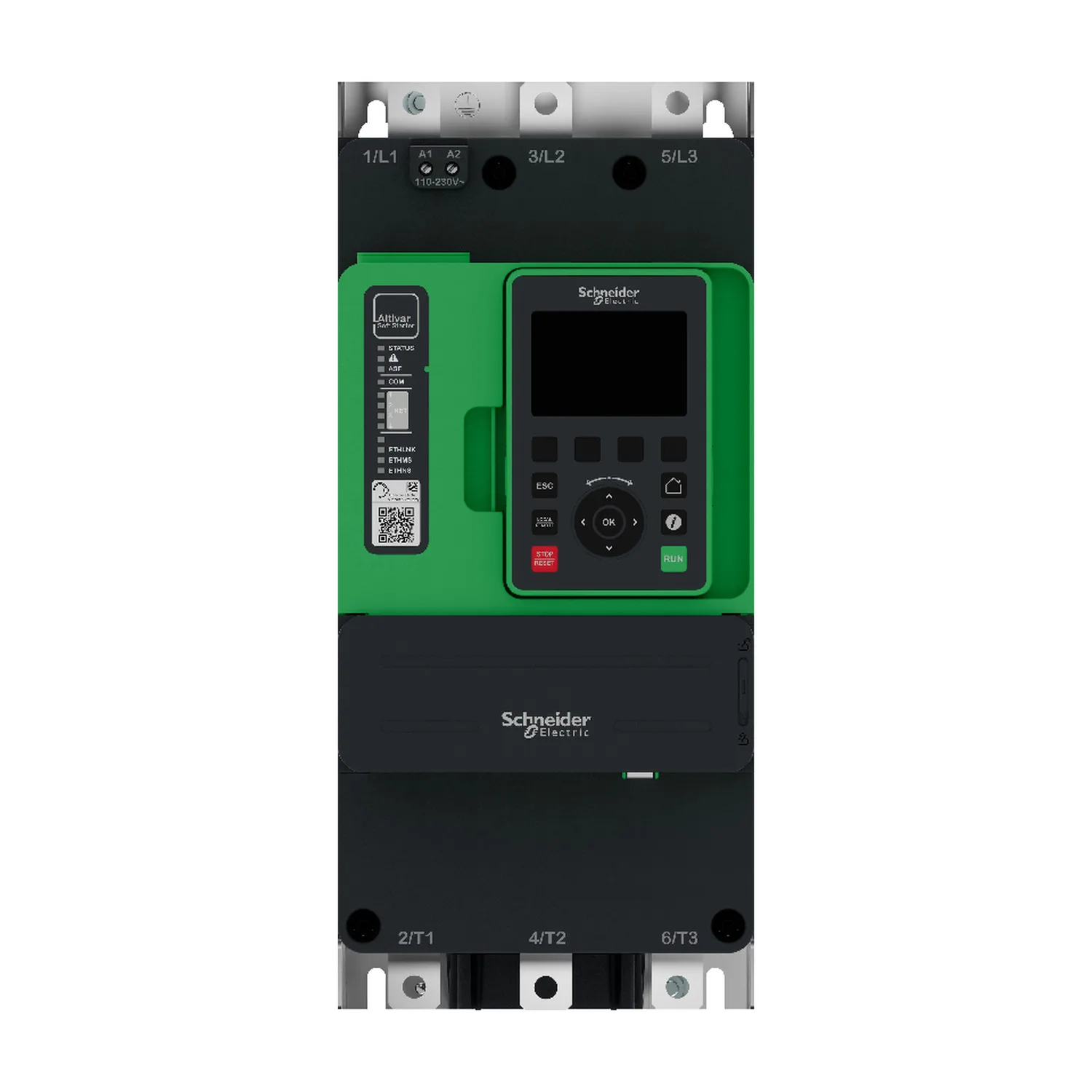

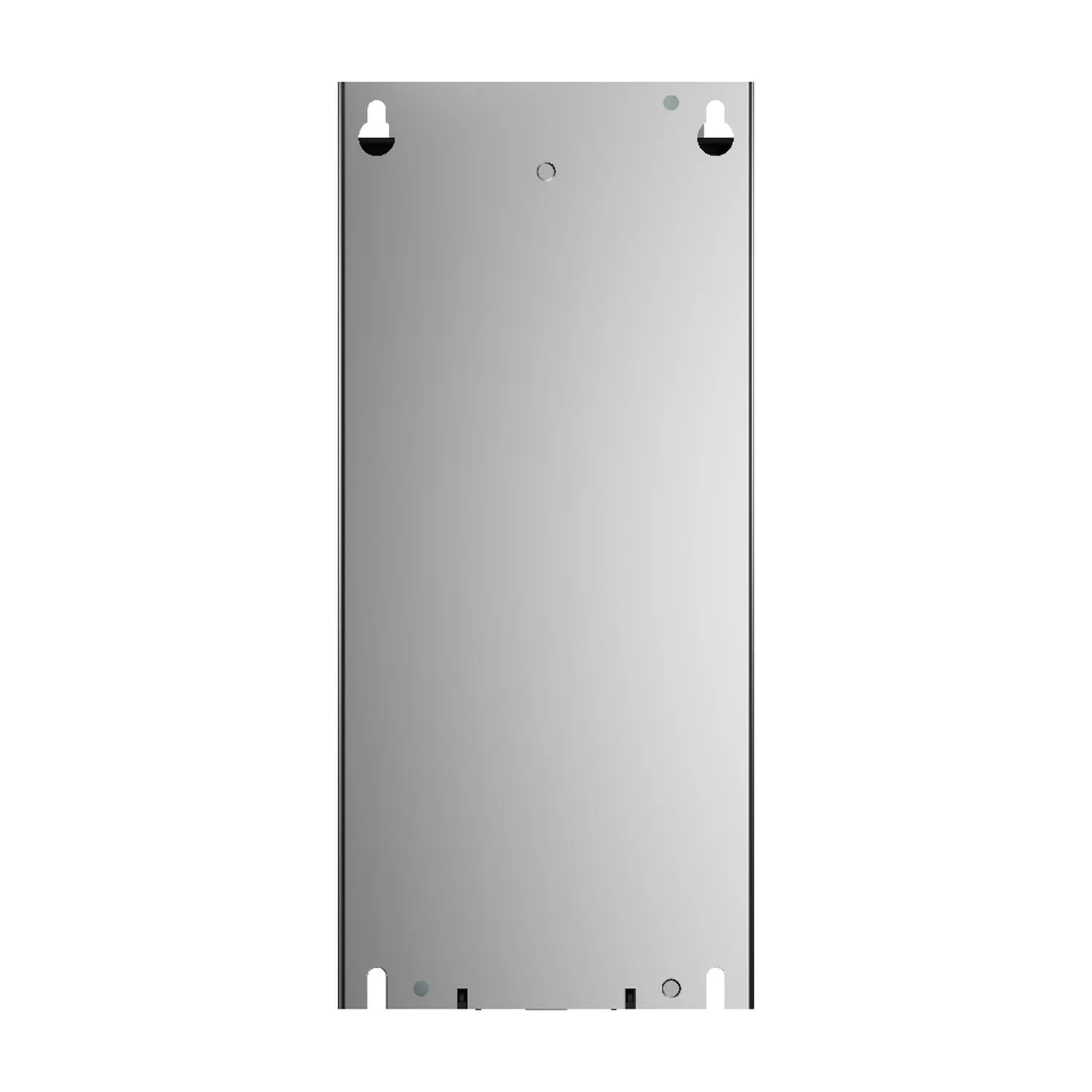

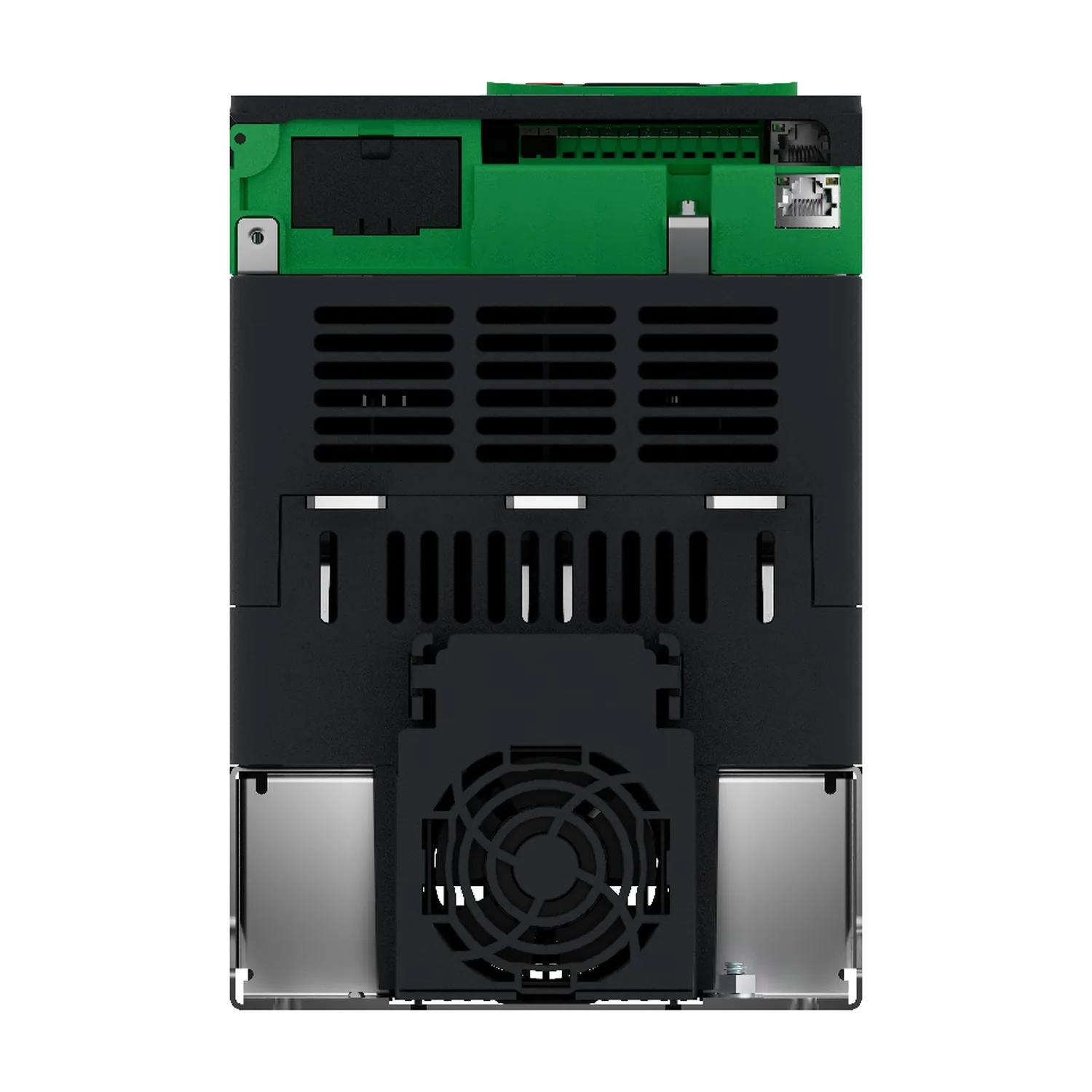

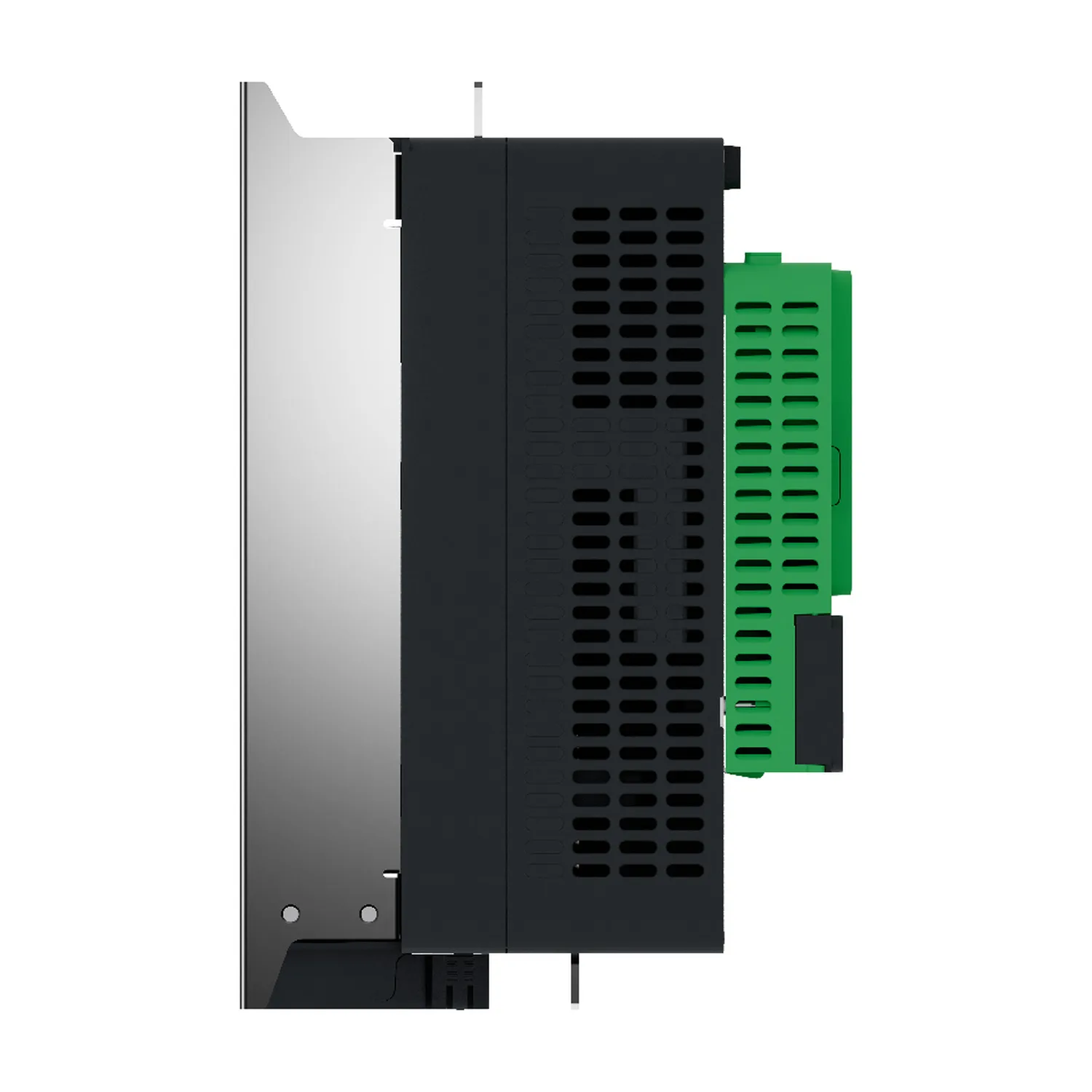

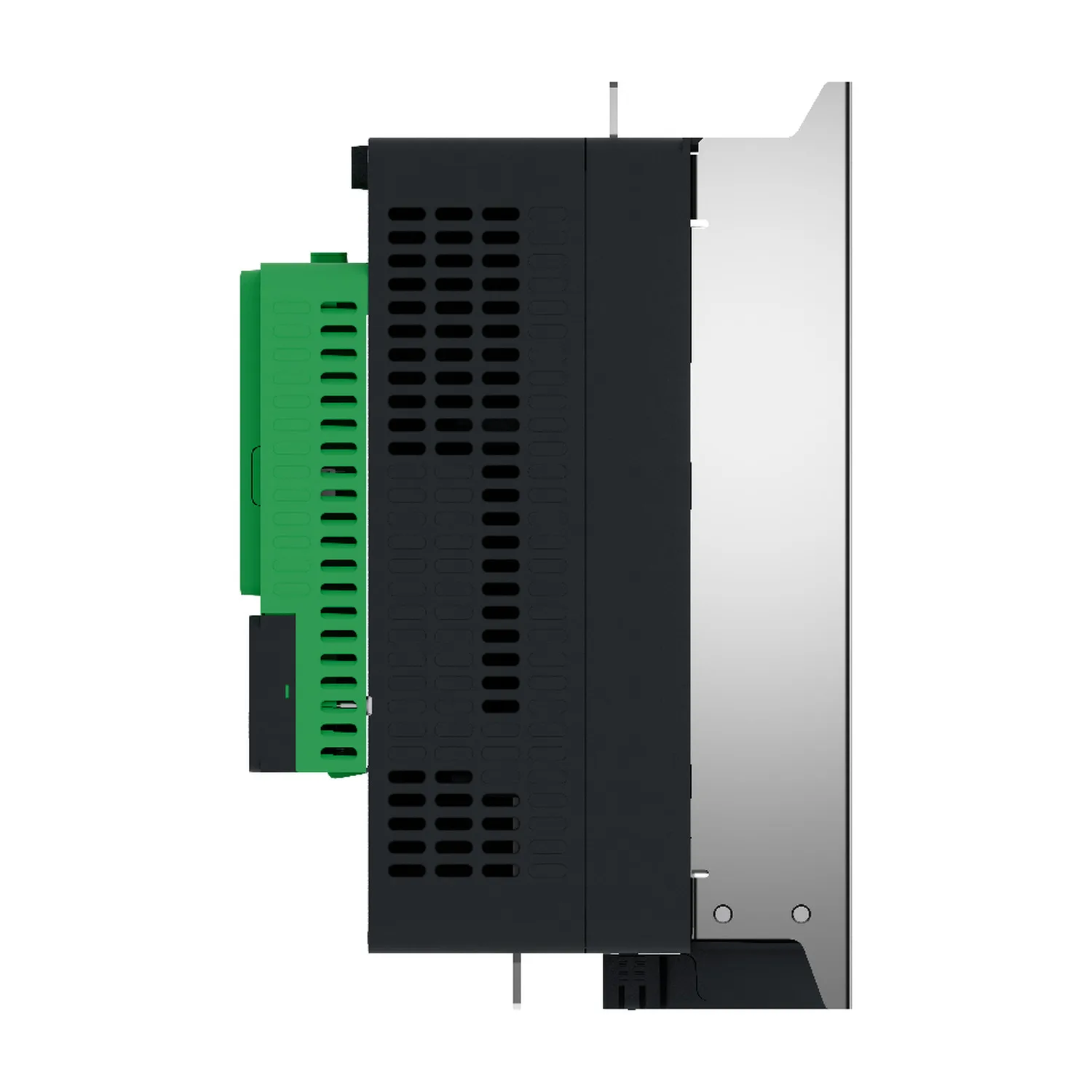

ATS490C14Y - ALTIVAR Soft Starter - ATS490 - 140A/208-690V
Schneider ATS490C14Y, ALTIVAR Soft Starter - ATS490 - 140A/208-690V. Category: Altivar Soft Starter ATS490. Request a quote for price and lead time.
- Reference:ATS490C14Y
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:3,355.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Altivar Soft Starter ATS490
- Product Or Component Type
- Soft starter
- Product Destination
- Asynchronous motors
- Product Specific Application
- Process and infrastructures
Product Description
- This soft starter belongs to the Altivar Soft Starter ATS490 range, which is intended to smoothly start and stop asynchronous motors supplied from 208 to 690V.
- With an operational rated current of 140A in normal duty, it supplies motor from 30 to 110 kW according to mains voltage.
- With an efficiency of 99.5%, dedicated application functions, and complete monitoring with data reporting, ATS490 enables advanced motor management.
- Certified cybersecurity, safe Torque Off, and condition monitoring features increase uptime, reduce operational expenditures, and simplify project design.
- ATS490 provides comprehensive system monitoring, including the motor, application, power and energy with an accuracy greater than 95%.
- ATS490 has a native Ethernet port for Modbus TCP or EtherNet/IP and a Modbus serial link.
- Dimensions are 160mm (width), 235mm (depth), 356mm (height) and it weighs 9.5kg. ATS490 uses plastic with more than 20% bio-based content, and aluminum is ASI-certified.
- Altivar Soft Starter ATS490 meets the requirements of applications such as pumps, fans, compressors, conveyors, mixers, cutters, grinders, crushers…
- It conforms to IEC/EN 60947-4-2 and has received CE, cULus, UKCA, RCM, CCC, KC, EAC and DNV certifications.
- Some accessories are available, like an IP65 remote mounting kit to mount the graphic display terminal on the enclosure door and communication modules to extend the connectivity to other protocols.
- The packaging uses recycled cardboard and lower single-use plastic.
- The ATS490 soft starters shall be mounted vertically inside an enclosure.
- The built-in and innovative features of ATS490 improve competitiveness, operational resilience, and equipment sustainability.
- ATS490 delivers excellence in mastering applications and costs, even for the most demanding requirements.
Key Features
- Reduced overall cost of solutions (native and innovative functions)
- Reduced execution time (EcoStruxure solutions)
- Reduced operational expenditure (high durability)
- Withstand high stress and avoid limiting event (Increased reliability by design)
- Simplify project design (certified cybersecurity and safe torque off functions)
Technical Specifications
Main22
| Range Of Product | Altivar Soft Starter ATS490 |
|---|---|
| Product Or Component Type | Soft starter |
| Product Destination | Asynchronous motors |
| Product Specific Application | Process and infrastructures |
| Device Short Name | ATS490 |
| Network Number Of Phases | 3 phases |
| Utilisation Category | AC-3A; AC-53A |
| Ue Power Supply Voltage | 208...690 V AC (- 15...10 %) |
| Power Supply Frequency | 50...60 Hz - 20...20 % |
| [Ie] Rated Operational Current | Normal duty: 140 A in line (at <40 °C) |
| Service Factor At Ie | 100 |
| Rated Current In Heavy Duty | 110 A at 40 °C for heavy duty |
| Torque Control | True |
| IP Degree Of Protection | IP00 |
| Motor Power KW | 37 kW at 230 V in the motor supply line normal duty; 75 kW at 400 V in the motor supply line normal duty; 75 kW at 440 V in the motor supply line normal duty; 90 kW at 500 V in the motor supply line normal duty; 90 kW at 525 V in the motor supply line normal duty; 110 kW at 660 V in the motor supply line normal duty; 110 kW at 690 V in the motor supply line normal duty; 30 kW at 230 V in the motor |
| Motor Power Hp | 40 hp at 208 V normal duty; 50 hp at 230 V normal duty; 100 hp at 460 V normal duty; 125 hp at 575 V normal duty; 30 hp at 208 V heavy duty; 40 hp at 230 V heavy duty; 75 hp at 460 V heavy duty; 100 hp at 575 V heavy duty |
| With Safety Function Safe Torque Off (STO) | True |
| Safe Torque Off (STO) | STO (safe torque off): SIL 1 conforming to IEC 61508; STO (safe torque off): PL c/category 2 conforming to ISO 13849 |
| Cybersecurity Functions | True |
| Cybersecurity Level And Standard | Security level (SL) 1 conforming to IEC 62443-4-2 |
| Communication Port Protocol | Modbus serial; Modbus TCP/EtherNet/IP |
| Option Card | Communication module for CANopen daisy chain; Communication module for CANopen Sub-D; Communication module for CANopen open style; Communication module for Profibus DP V1; Communication module for PROFINET |
Complementary51
| Device Connection | In the motor supply line; Inside delta |
|---|---|
| Overload Current Profile | 400 % Ie for 13 s |
| On-load Factor | 50 % |
| Operating Cycles/hour | 10 cyc/h |
| [Us] Control Circuit Voltage | 110...230 V AC 50...60 Hz - 15...10 % |
| Apparent Power | 80 VA |
| Integrated Motor Overload Protection | True |
| Motor Thermal Protection Class | Class 10E |
| Protection Type | Phase failure: mains; Thermal protection: starter; Thermal protection: motor; Current overload: motor; Motor underload: motor; Excessive acceleration time: motor; Motor phase loss detection: motor; Protection against line phase inversion: mains; External thermal protection: motor; Protection delta inside wiring: starter; Short-circuit between motor phase and earth: motor |
| Current Limiting %In (5 X Ie Maximum) | 150…700 % |
| Rated Current Pwr Loss Specification | 140 A |
| Power Loss Static Current Independent | 19 W |
| Power Loss Per Device Current Dependent | 26 W |
| Power Loss During Starting | 1651 W during starting at 40 °C at 400% Ie |
| Standards | EN/IEC 60947-4-2; UL 60947-4-2; IEC 60664-1 |
| Product Certifications | CE; cULus; UKCA; RCM; CCC; DNV; ATEX; EAC; KC |
| Marking | CE; CULus; UKCA; RCM; CCC; ATEX; EAC; KC |
| [Uc] Control Circuit Voltage | 24 V DC |
| Discrete Input Number | 5 |
| Discrete Input Type | (DI1) digital input, 4.4 kOhm; (DI2) digital input, 4.4 kOhm; (DI3) digital input, 4.4 kOhm; (DI4) digital input, 4.4 kOhm; (STO) digital input, > 1 kOhm |
| Input Compatibility | DI1: discrete input level 1 PLC conforming to EN/IEC 61131-2; DI2: discrete input level 1 PLC conforming to EN/IEC 61131-2; DI3: discrete input level 1 PLC conforming to EN/IEC 61131-2; DI4: discrete input level 1 PLC conforming to EN/IEC 61131-2; STO: discrete input level 1 PLC conforming to EN/IEC 61131-2 |
| Discrete Input Logic | Digital input DI1 at State 0: 0... 11 V, >= 5 mA; Digital input DI2 at State 0: 0... 11 V, >= 5 mA; Digital input DI3 at State 0: 0... 11 V, >= 5 mA; Digital input DI4 at State 0: 0... 11 V, >= 5 mA; Digital input STO at State 0: 0... 11 V, >= 5 mA |
| Relay Output Number | 3 |
| Relay Output Type | Relay outputs R1A, R1C NO; Relay outputs R2A, R2C NO; Relay outputs R3A, R3C NO |
| Minimum Switching Current | 100 mA at 12 V DC for relay outputs |
| Maximum Switching Current | Relay outputs 2 A / 250 V AC for AC-15 100000 cycles following IEC 60947-5-1; Relay outputs 2 A / 30 V DC for DC-13 150000 cycles following IEC 60947-5-1 |
| Discrete Output Number | 2 |
| Discrete Output Type | Programmable digital output DQ1 <= 30 V 100 mA; Programmable digital output DQ2 <= 30 V 100 mA |
| Output Compatibility | Open collector level 1 PLC conforming to IEC 65A-68 |
| Analogue Input Number | 1 |
| Analogue Input Type | AI1/PTC1 : PTC/PT 100/PT 1000/KTY84 temperature probe; PTC2 : PTC/PT 100/PT 1000/KTY84 temperature probe; PTC3 : PTC/PT 100/PT 1000/KTY84 temperature probe |
| Analogue Output Number | 1 |
| Analogue Output Type | Current output AQ1 : 0...20 mA/4...20 mA , impedance< 500 Ohm; Voltage output AQ1 : 0...10 V , impedance> 470 Ohm |
| Communication Port Protocol | Modbus serial; Modbus TCP/EtherNet/IP |
| Connector Type | 1 RJ45 for connecting Modbus serial; 1 RJ45 for connecting Modbus TCP/EtherNet/IP |
| Physical Interface | 2-wire RS 485; 100-BASE-TX category 5 or industrial Ethernet |
| Transmission Frame | RTU; TCP/UDP |
| Transmission Rate | 4.8…38.4 kbps; 100 BASE TX |
| Data Format | 8 bits, configurable odd, even or no parity 1or 2 stop |
| Number Of Addresses | 0…247 for Modbus serial |
| Method Of Access | Slave Modbus serial |
| Type Of Polarization | No impedance for Modbus serial |
| Display Screen Available | True |
| Operating Position | Vertical +/- 10 degree |
| Height | 356 mm |
| Width | 160 mm |
| Depth | 235 mm |
| Net Weight | 10 kg |
| Internal Bypass | True |
| Function Available | Pre-heating; Smoke extraction; Second motor set; Deceleration with torque control; Braking; Boost; Line contactor control; Reverse contactor control; Anti-jam; Jog; Borehole pump starting; Condition monitoring; Power monitoring; Cybersecure firmware update |
| Material Declaration | True |
Environment19
| Electromagnetic Compatibility | Conducted and radiated emissions level A conforming to IEC 60947-4-2; Damped oscillating waves level 3 conforming to IEC 61000-4-18; Electrostatic discharge level 3 conforming to IEC 61000-4-2; Immunity to electrical transients level 4 conforming to IEC 61000-4-4; Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3; Voltage/current impulse level 3 conforming to I |
|---|---|
| Pollution Degree | Level 3 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| [Ui] Rated Insulation Voltage | 690 V |
| Environmental Class (during Operation) | Class 3C3 according to IEC 60721-3-3; Class 3S3 according to IEC 60721-3-3 |
| Ambient Air Temperature For Operation | -25…40 °C (without derating); 40…60 °C (with current derating of 1 % per °C above 40 °C) |
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Transport Temperature | -40…70 °C |
| Operating Altitude | <= 2000 m without derating; > 2000...4800 m with current derating 1 % per 100 m above 2000 m |
| Relative Humidity | 5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Maximum Deflection Under Vibratory Load (during Operation) | 1.5 mm at 2...13 Hz |
| Maximum Deflection Under Vibratory Load (during Storage) | 1.75 mm at 2...9 Hz |
| Maximum Deflection Under Vibratory Load (during Transport) | 1.75 mm at 2...9 Hz |
| Maximum Acceleration Under Vibrational Stress (during Operation) | 1 gn at 13…200 Hz |
| Maximum Acceleration Under Vibratory Load (during Storage) | 1 gn at 9…200 Hz; 1.5 gn at 200…500 Hz |
| Maximum Acceleration Under Vibratory Load (during Transport) | 1 gn at 9…200 Hz; 1.5 gn at 200…500 Hz |
| Maximum Acceleration Under Shock Impact (during Operation) | 15 gn at 11 ms |
| Maximum Acceleration Under Shock Load (during Storage) | 10 gn at 11 ms |
| Maximum Acceleration Under Shock Load (during Transport) | 10 gn at 11 ms |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 23.500 cm |
| Package 1 Width | 27.500 cm |
| Package 1 Length | 45.000 cm |
| Package 1 Weight | 11.770 kg |
| Unit Type Of Package 2 | S06 |
| Number Of Units In Package 2 | 6 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 79.600 kg |
Logistical informations1
| Country Of Origin | ID |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
