BMXAMI0800 - 8 Inputs
Schneider BMXAMI0800, 8 Inputs. Category: Modicon X80 I/Os. Request a quote for price and lead time.
- Reference:BMXAMI0800
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:1,017.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Modicon X80
- Product Or Component Type
- Analog input module
- Electrical Connection
- 28 ways 1 connector
- Isolation Between Channels
- Non isolated
Product Description

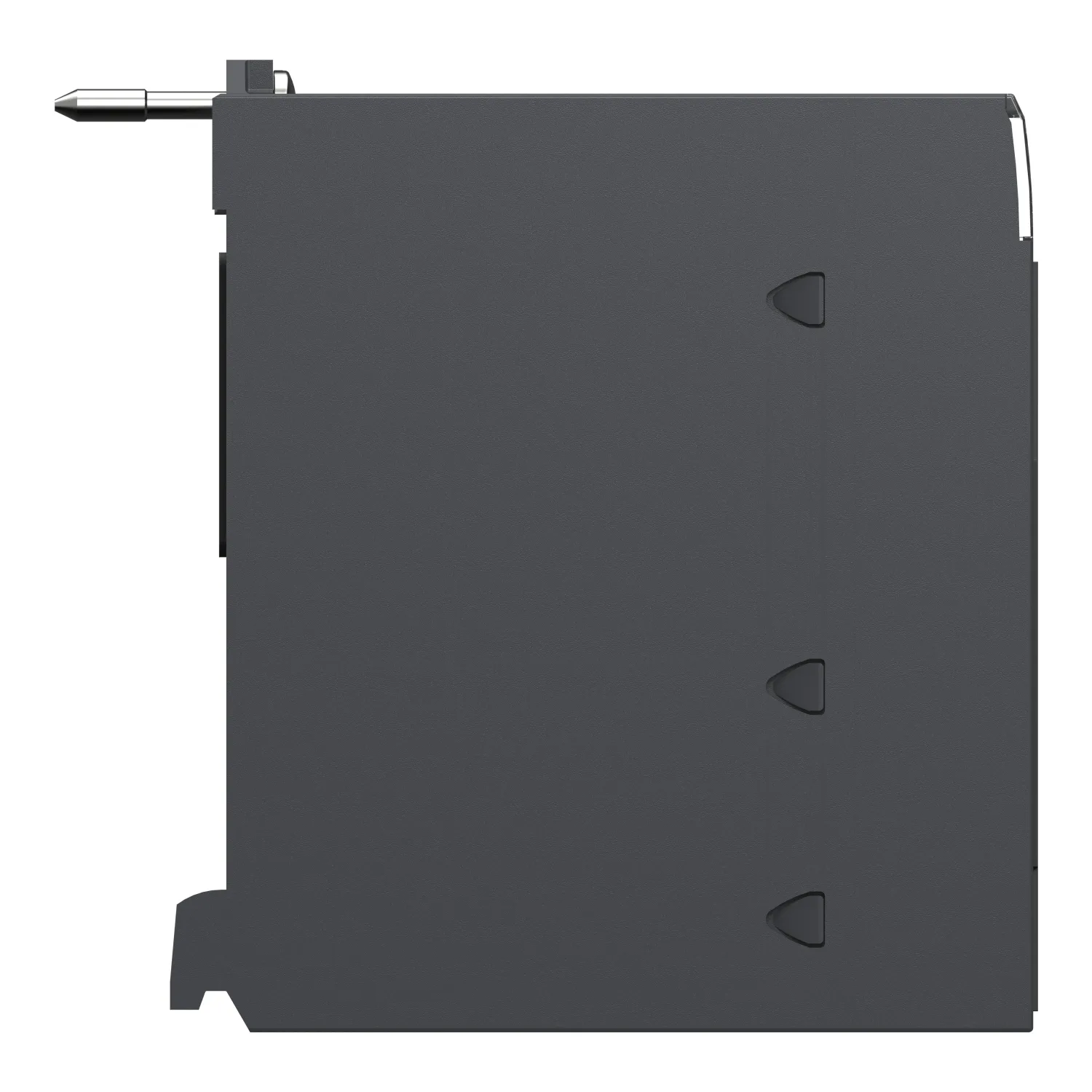

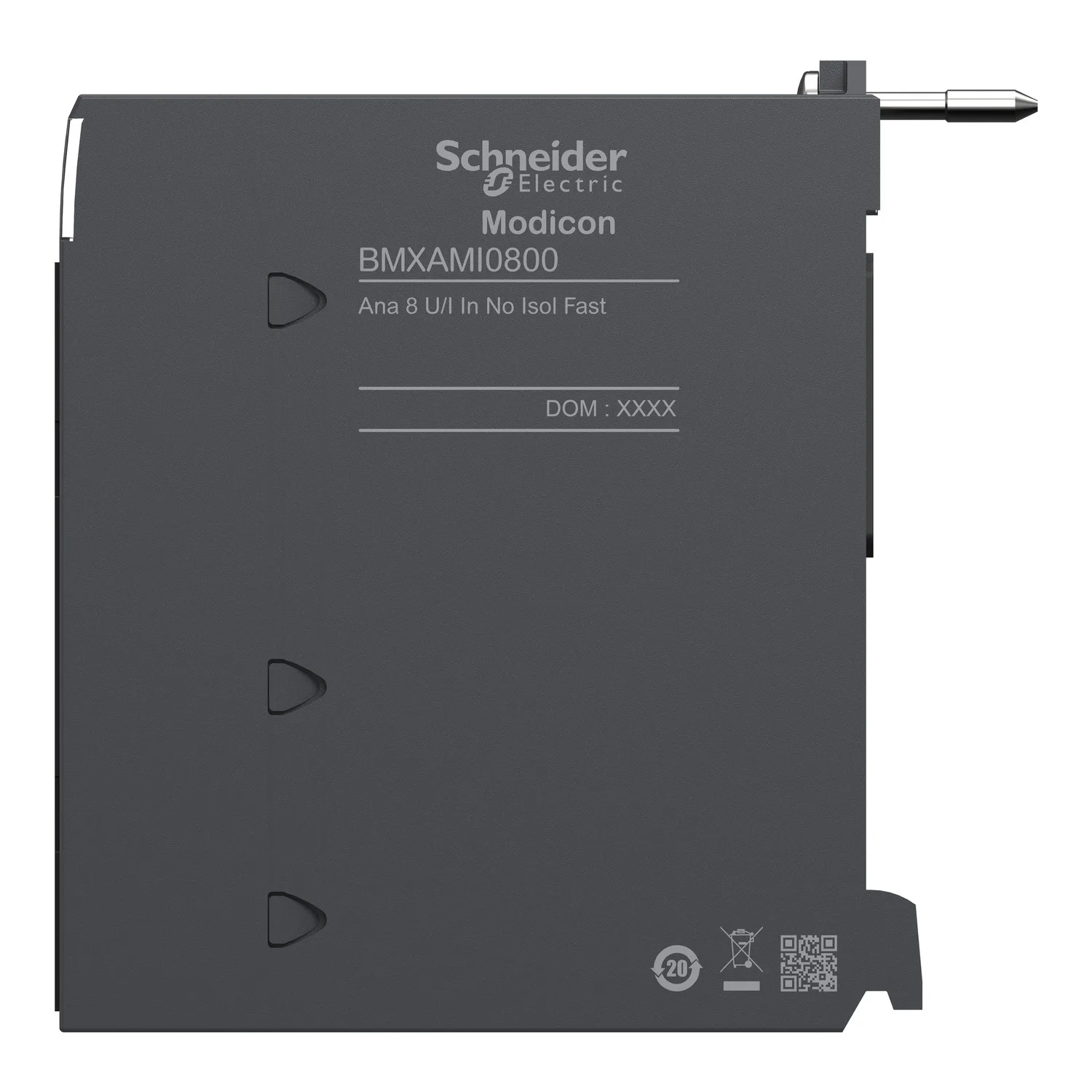

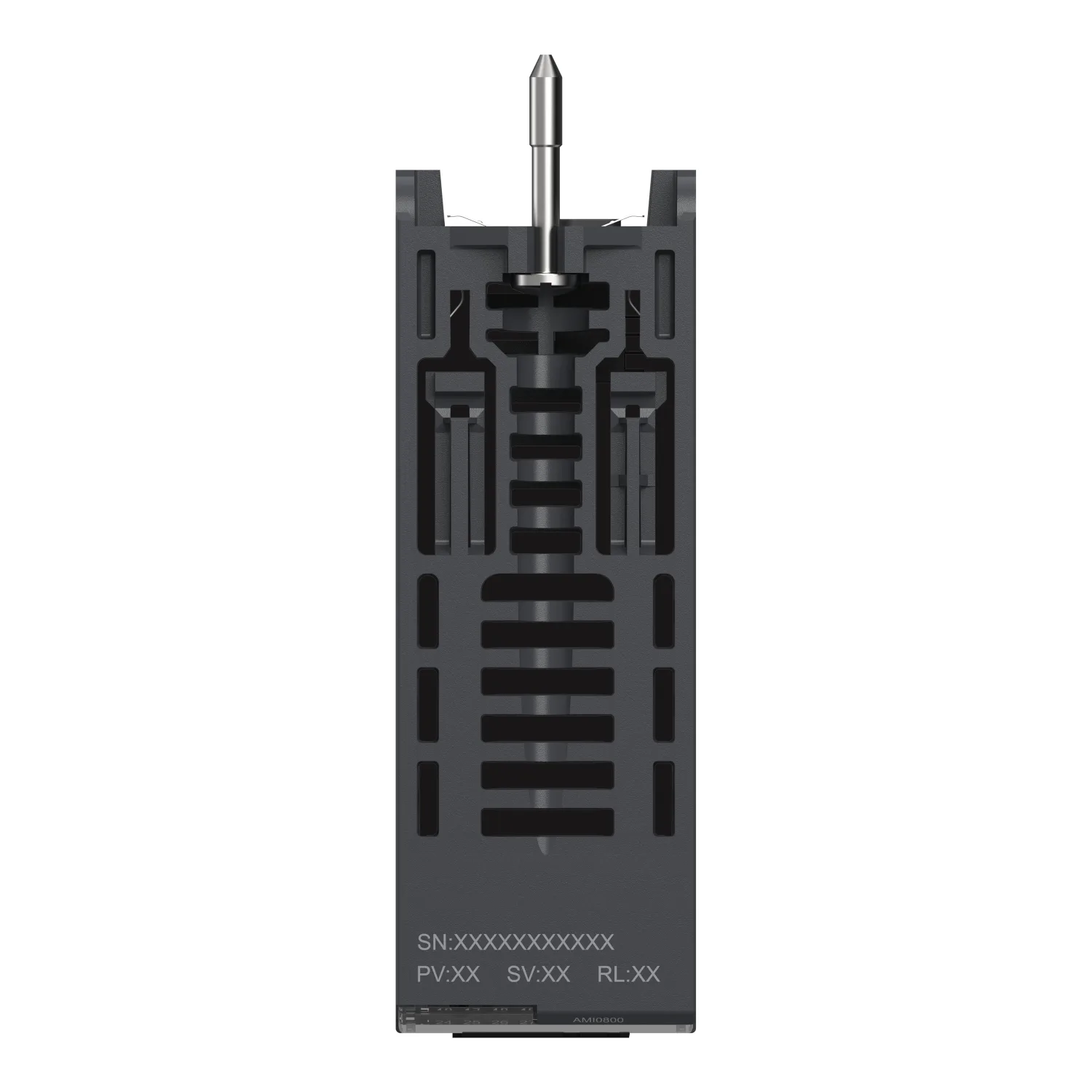

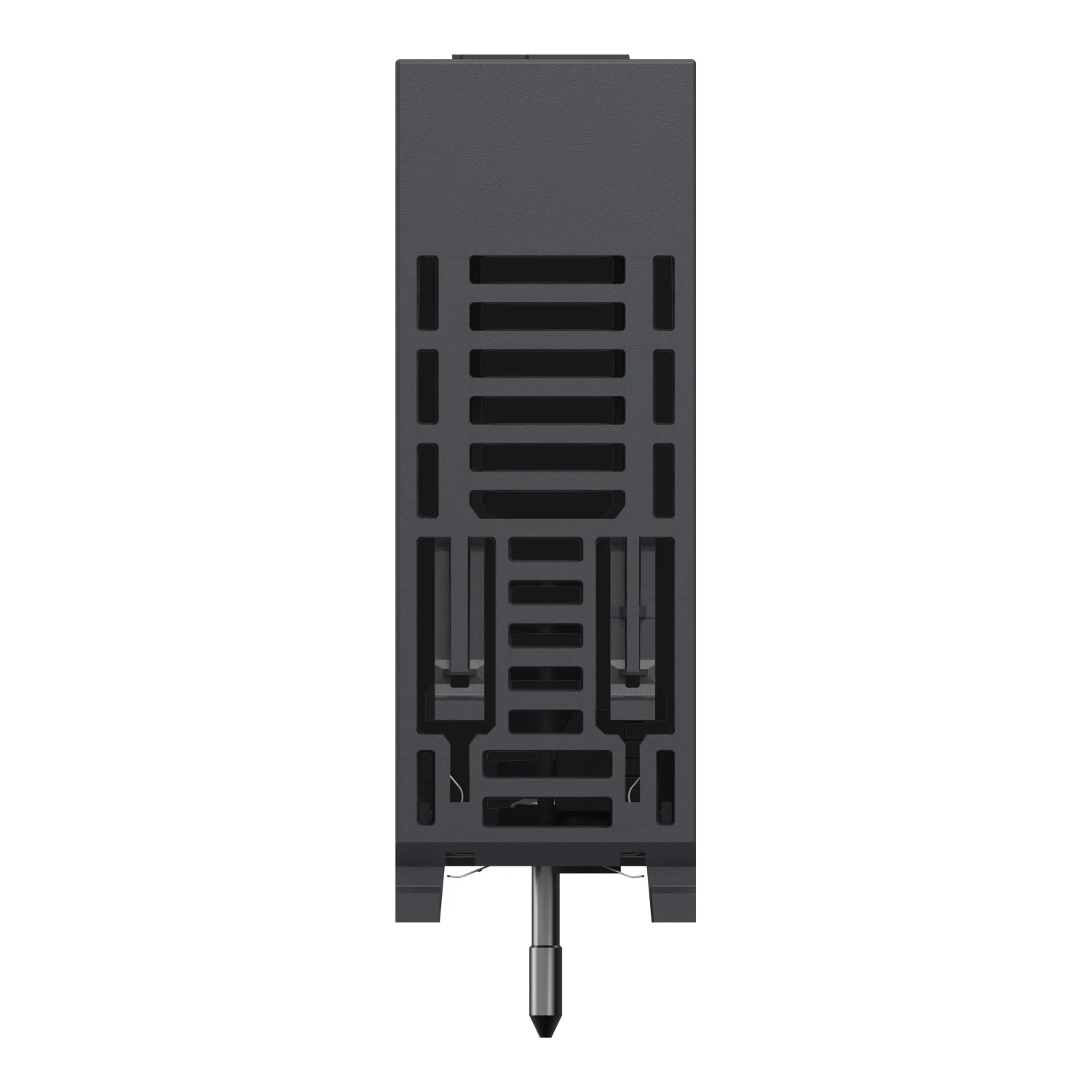

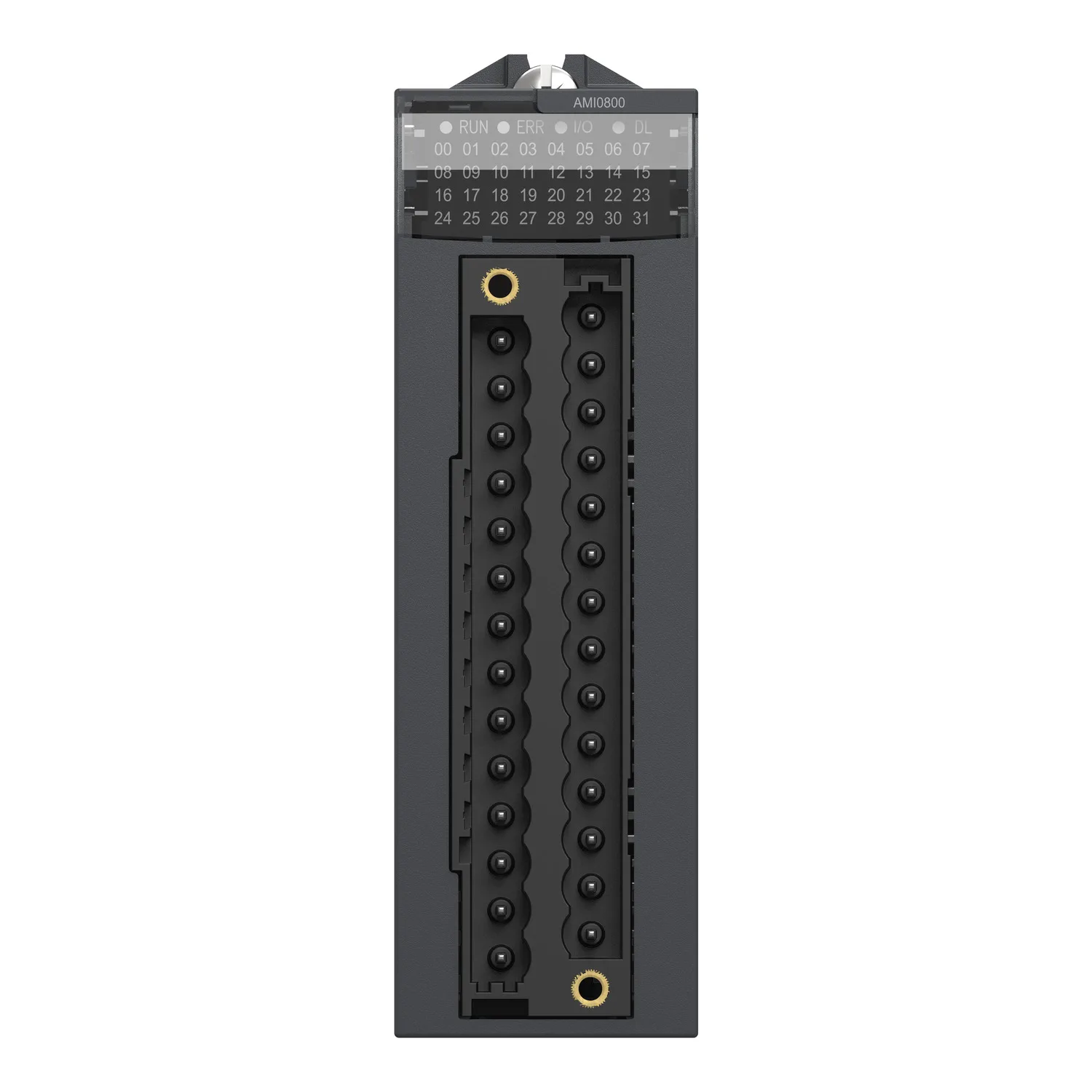

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an analogue input module with a power consumption of 1.04W at 24V DC. This product is robust, high quality and based on the latest innovative technology. There is no isolation between channels. It is furnished with 28-way connector for electrical connection. It is an IP20 rated product. It weighs 0.165kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Key Features
- "Modularity and scalability"
- "Robustness and reliability"
- "Common safety"
- "IP20 protection for harshest environments"
- "Wide range of operating temperature from 0°C to 60°C"
Technical Specifications
Main7
| Range Of Product | Modicon X80 |
|---|---|
| Product Or Component Type | Analog input module |
| Electrical Connection | 28 ways 1 connector |
| Isolation Between Channels | Non isolated |
| Input Level | High level |
| Analogue Input Number | 8 |
| Analogue Input Type | Current +/- 20 mA; Current 0...20 mA; Current 4...20 mA; Voltage +/- 10 V; Voltage +/- 5 V; Voltage 0...10 V; Voltage 0...5 V; Voltage 1...5 V |
Complementary23
| Analog/digital Conversion | 16 bits |
|---|---|
| Analogue Input Resolution | 15 bits + sign |
| Permitted Overload On Inputs | +/- 30 mA 0...20 mA; +/- 30 mA 4...20 mA; +/- 30 V +/- 10 V; +/- 30 V +/- 5 V; +/- 30 V 0...10 V; +/- 30 V 0...5 V; +/- 30 V 1...5 V; +/- 30 mA +/- 20 mA |
| Input Impedance | 10 MOhm in voltage mode; 250 Ohm in current mode |
| Precision Of Internal Conversion Resistor | 0.1 % - 15 ppm/°C |
| Type Of Filter | First order digital filtering |
| Fast Read Cycle Time | 1 ms + 1 ms x number of channels used |
| Nominal Read Cycle Time | 9 ms for 8 channels |
| Measurement Error | <= 0.1 % of full scale +/- 10 V 0...60 °C; <= 0.1 % of full scale +/- 5 V 0...60 °C; <= 0.1 % of full scale 0...10 V 0...60 °C; <= 0.1 % of full scale 0...5 V 0...60 °C; <= 0.1 % of full scale 1...5 V 0...60 °C; <= 0.3 % of full scale +/- 20 mA 0...60 °C; <= 0.3 % of full scale 0...20 mA 0...60 °C; <= 0.3 % of full scale 4...20 mA 0...60 °C; 0.15 % of full scale +/- 20 mA 25 °C; 0.15 % of full sca |
| Temperature Drift | 30 ppm/°C +/- 10 V; 30 ppm/°C +/- 5 V; 30 ppm/°C 0...10 V; 30 ppm/°C 0...5 V; 30 ppm/°C 1...5 V; 50 ppm/°C +/- 20 mA; 50 ppm/°C 0...20 mA; 50 ppm/°C 4...20 mA |
| Recalibration | Factory calibrated |
| Minimum Crosstalk Attenuation | 80 dB |
| Common Mode Rejection | 100 dB |
| Digital Value Format | - 32768 to + 32767 in maximum user scale; +/- 10000 by default |
| Isolation Voltage | 1400 V DC between channels and ground; 1400 V DC between channels and bus |
| Measurement Resolution | 0.36 mV +/- 10 V; 0.36 mV 0...10 V; 0.36 mV 0...5 V; 0.36 mV 1...5 V; 0.36 mV +/- 5 V; 1.4 µA +/- 20 mA; 1.4 µA 0...20 mA; 1.4 µA 4...20 mA |
| Maximum Conversion Value | +/- 11.4 V +/- 10 V; +/- 11.4 V 0...10 V; +/- 11.4 V 0...5 V; +/- 11.4 V 1...5 V; 0...30 mA +/- 20 mA; 0...30 mA 0...20 mA; 0...30 mA 4...20 mA; 0...30 mA +/- 5 V |
| MTBF Reliability | 1700000 H |
| Operating Altitude | 0...2000 m; 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN; 1 LED per channel (green) channel diagnostic; 1 LED (red) ERR; 1 LED (red) I/O |
| Net Weight | 0.165 kg |
| Power Consumption In W | 0.90 W 24 V DC typical; 1.10 W 24 V DC maximum; 0.32 W 3.3 V DC typical; 0.48 W 3.3 V DC maximum |
| Current Consumption | 150 mA at 3.3 V DC; 41 mA at 24 V DC |
Environment10
| Vibration Resistance | 3 gn |
|---|---|
| Shock Resistance | 30 gn |
| Ambient Air Temperature For Storage | -40…85 °C |
| Ambient Air Temperature For Operation | 0…60 °C |
| Relative Humidity | 5…95 % at 55 °C without condensation |
| IP Degree Of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility |
| Product Certifications | CE; RCM; CSA; EAC; Merchant Navy; UL |
| Standards | IEC 61010-2-201; IEC 61131-2; UL 61010-2-201; CSA C22.2 No 61010-2-201 |
| Protective Treatment | Standard version |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.200 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 154.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.672 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 240 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 54.000 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
