Schneider

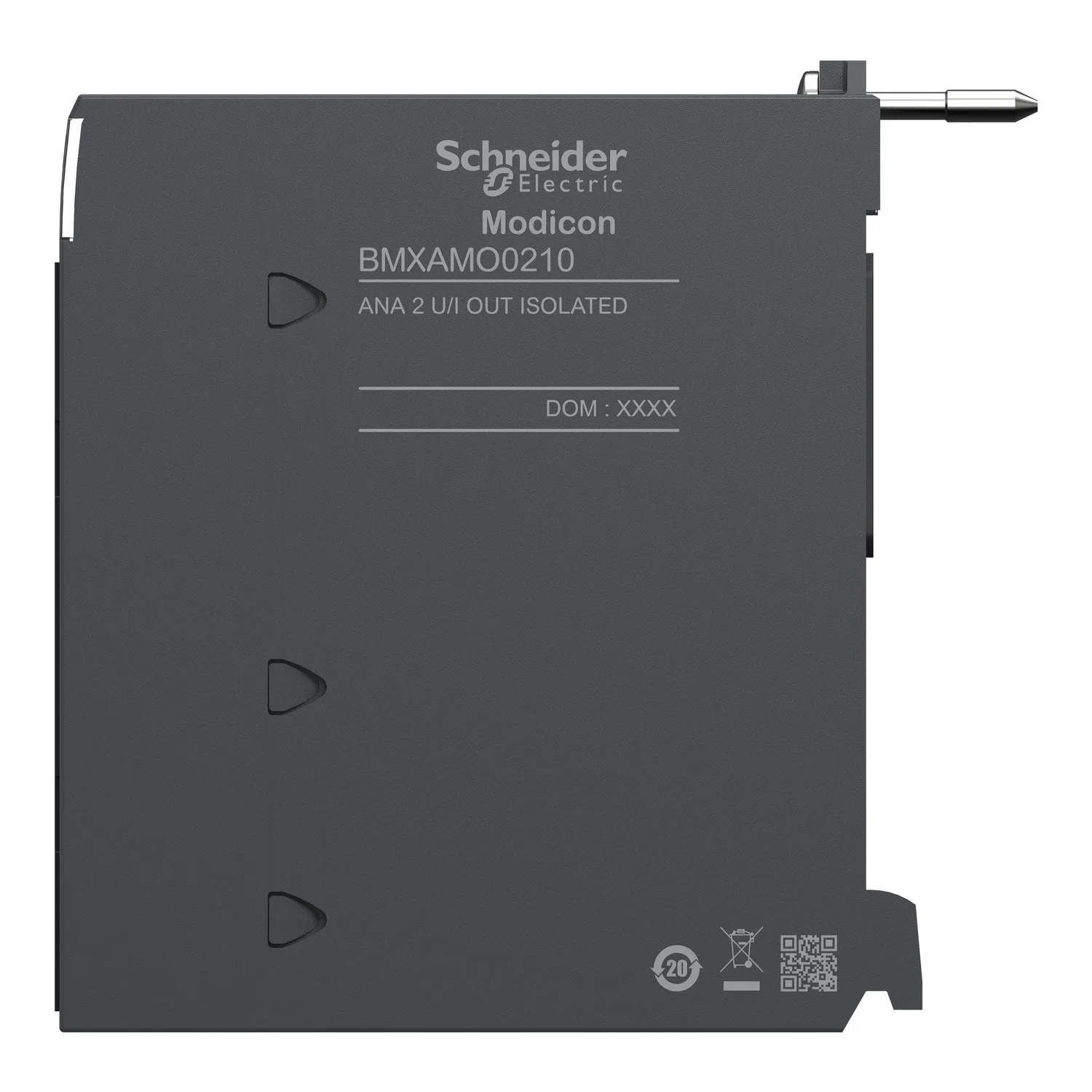

BMXAMO0210 - 2 Outputs isolated 16-bit
Schneider BMXAMO0210, 2 Outputs isolated 16-bit. Category: Modicon X80 I/Os. Request a quote for price and lead time.
- Reference:BMXAMO0210
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:683.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Modicon X80
- Product Or Component Type
- Analog output module

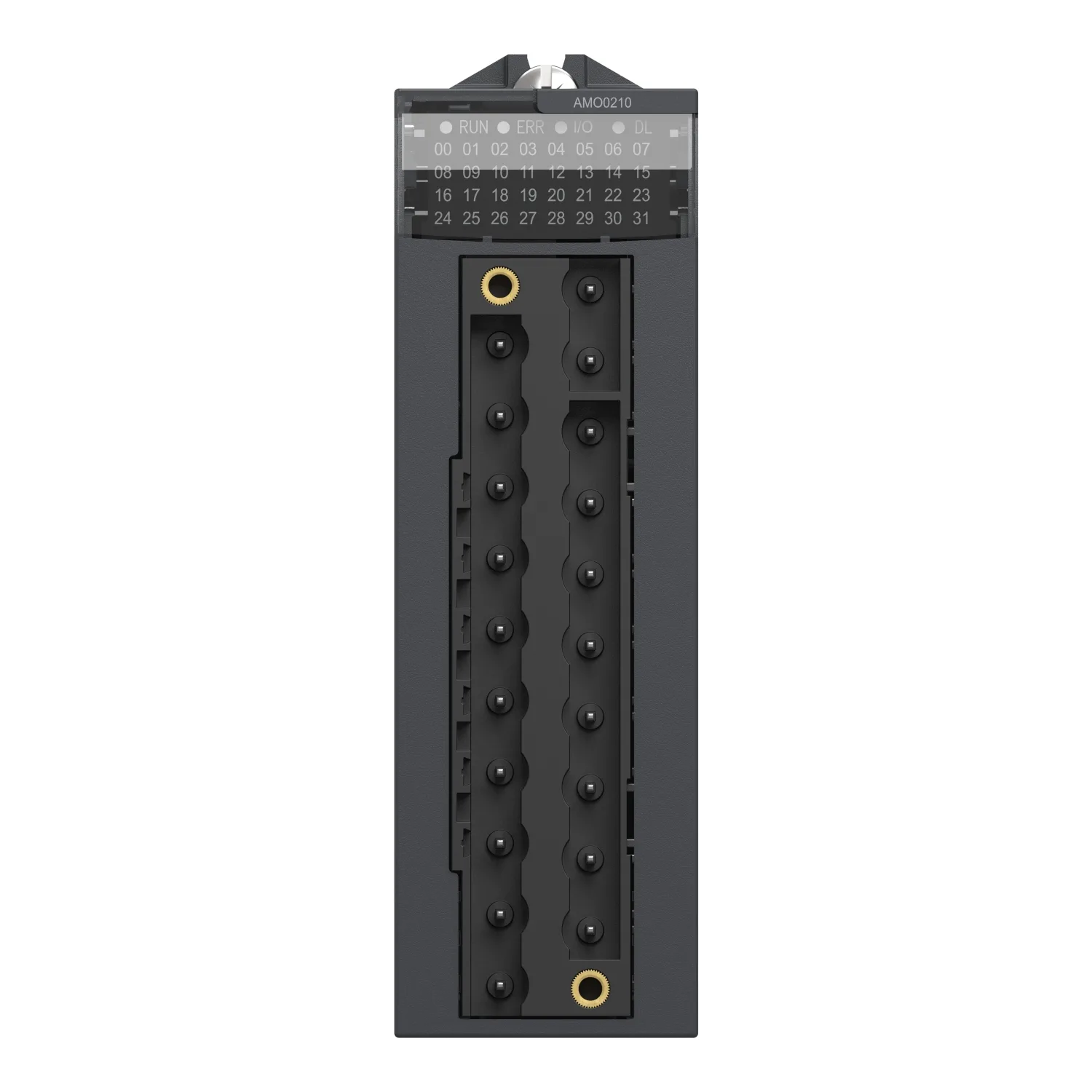

- Electrical Connection
- 20 ways 1 connector
- Isolation Between Channels
- Isolated
Product Description
This analog output module is part of the Modicon X80 modules. It has 2 isolated high level outputs (15 bits + sign). It offers different ranges of voltage or current for each of the outputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Key Features
- "Modularity and scalability"
- "Robustness and reliability"
- "Common safety"
- "IP20 protection for harshest environments"
- "Wide range of operating temperature from 0°C to 60°C"
Technical Specifications
Main4
| Range Of Product | Modicon X80 |
|---|---|
| Product Or Component Type | Analog output module |
| Electrical Connection | 20 ways 1 connector |
| Isolation Between Channels | Isolated |
Complementary22

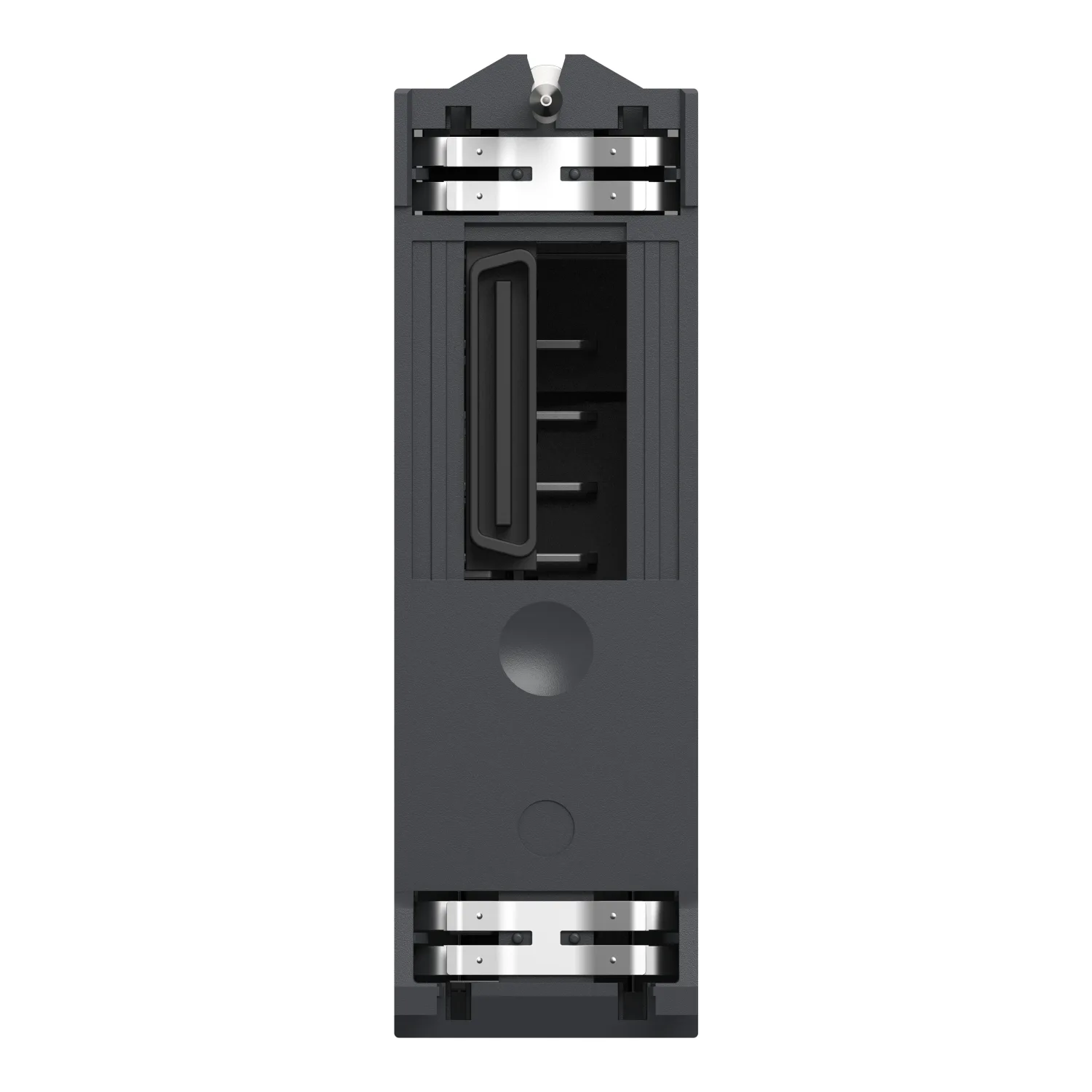

| Measurement Error | <= 0.2 % of full scale 0...60 °C; 0.1 % of full scale 25 °C |
|---|---|
| Temperature Drift | 30 ppm/°C |
| Recalibration | Factory calibrated |
| Minimum Crosstalk Attenuation | 90 dB |
| Common Mode Rejection | 100 dB |
| Isolation Voltage | 1400 V DC between channels and ground; 1400 V DC between channels and bus; 750 V DC between channels |
| Detection Type | Open circuit 0...20 mA; Open circuit 4...20 mA; Short circuit +/- 10 V |
| Load Impedance Ohmic | <= 600 Ohm 0...20 mA; <= 600 Ohm 4...20 mA; >= 1000 Ohm +/- 10 V |
| Output Level | High level |
| Analogue Output Number | 2 |
| Analogue Output Type | Current: 0...20 mA; Current: 4...20 mA; Voltage: +/- 10 V |
| Analogue Output Resolution | 15 bits + sign |
| Supply | Internal power supply via rack |
| Conversion Time | <= 1 ms |
| Maximum Conversion Value | +/- 11.25 V +/- 10 V; 0...24 mA 0...20 mA; 0...24 mA 4...20 mA |
| Fallback Mode | Predefined; Configurable |
| MTBF Reliability | 1300000 H |
| Operating Altitude | 0...2000 m; 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN; 1 LED per channel (green) channel diagnostic; 1 LED (red) ERR; 1 LED (red) I/O |
| Net Weight | 0.144 kg |
| Power Consumption In W | 2.1 W 24 V DC typical; 2.8 W 24 V DC maximum; 0.35 W 3.3 V DC typical; 0.48 W 3.3 V DC maximum |
| Current Consumption | 150 mA at 3.3 V DC; 110 mA at 24 V DC |
Environment10
| Vibration Resistance | 3 gn |
|---|---|
| Shock Resistance | 30 gn |
| Ambient Air Temperature For Storage | -40…85 °C |
| Ambient Air Temperature For Operation | 0…60 °C |
| Relative Humidity | 5…95 % at 55 °C without condensation |
| IP Degree Of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility |
| Product Certifications | CE; RCM; CSA; EAC; Merchant Navy; UL |
| Standards | IEC 61010-2-201; IEC 61131-2; UL 61010-2-201; CSA C22.2 No 61010-2-201 |
| Protective Treatment | Standard version |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 11.500 cm |
| Package 1 Weight | 173.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.901 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
