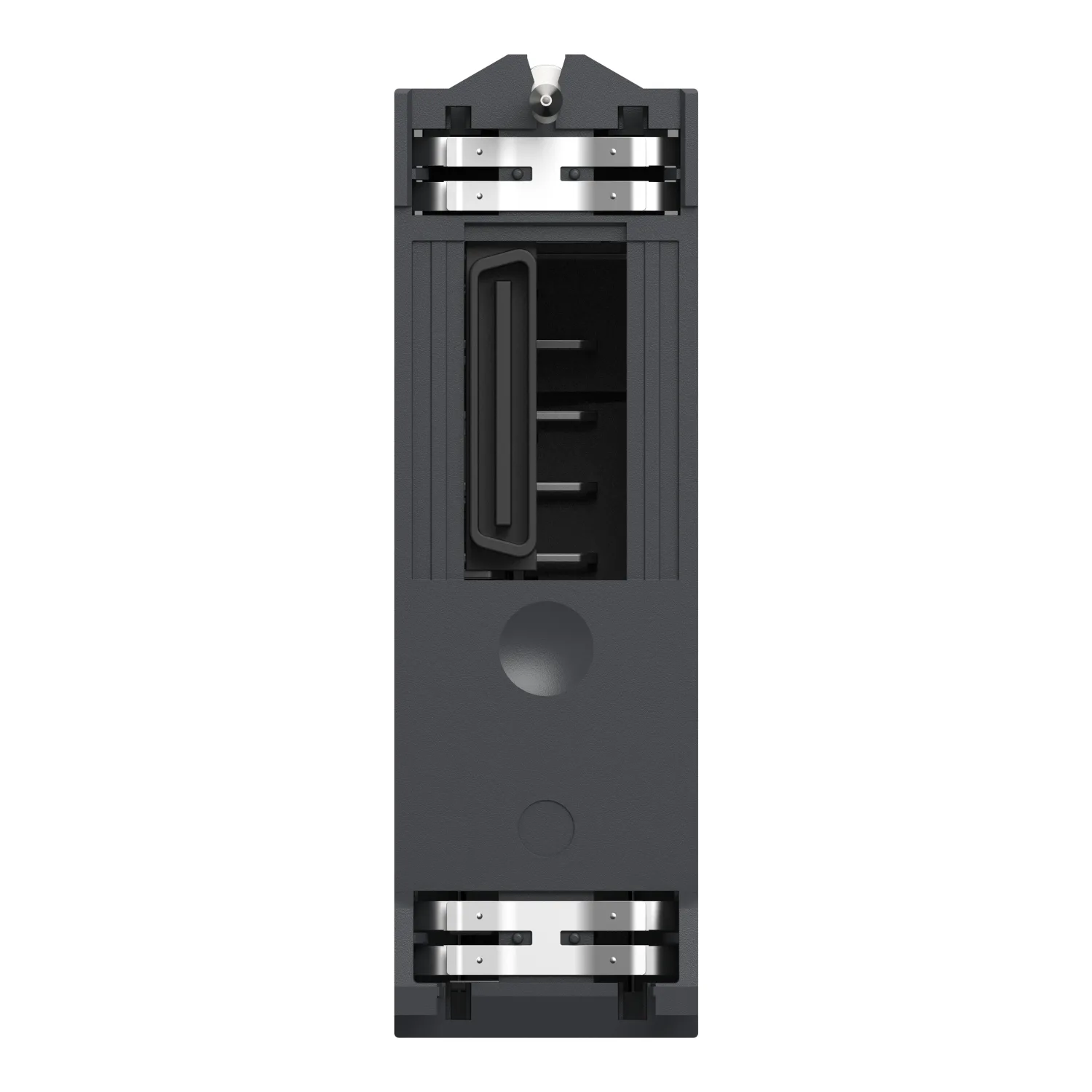

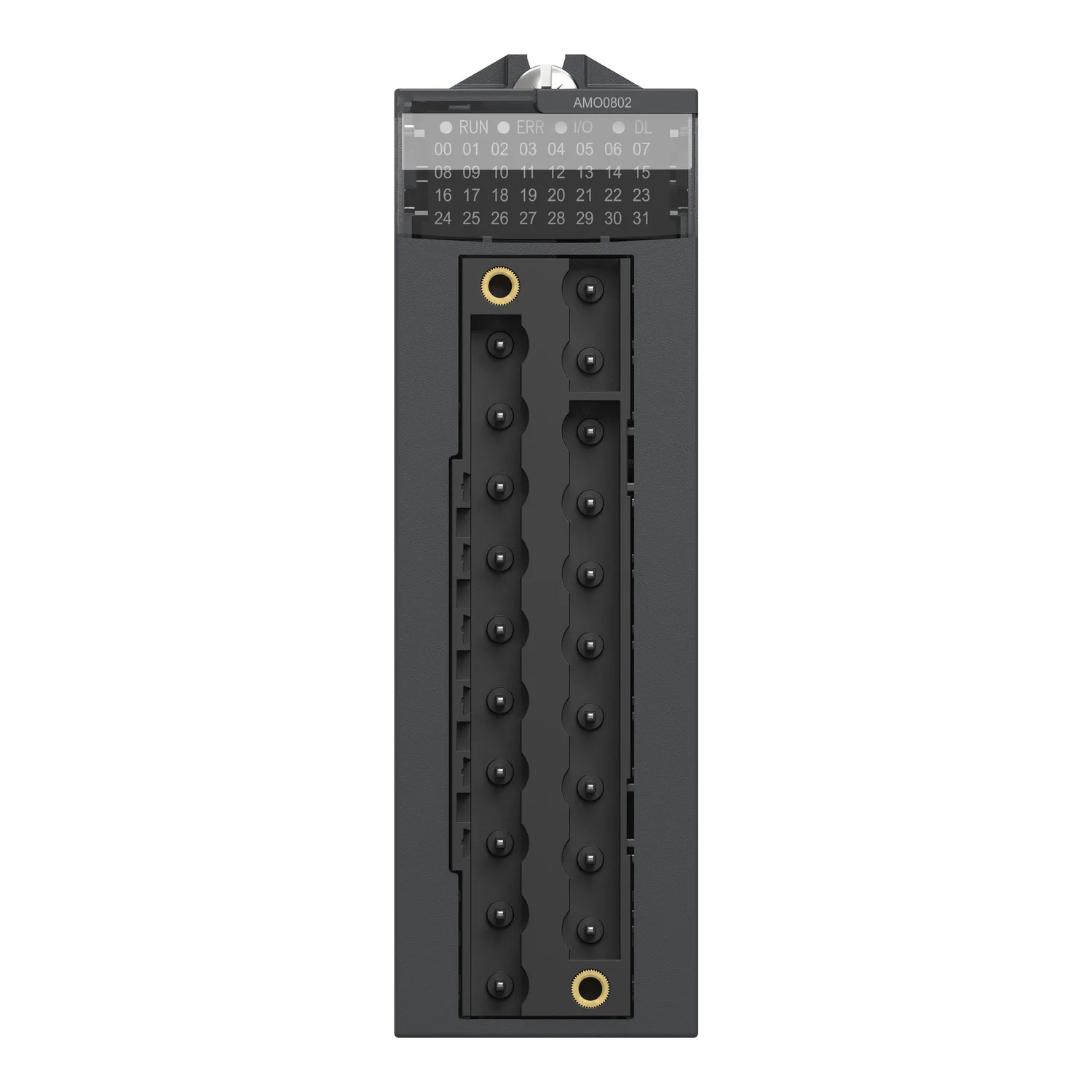

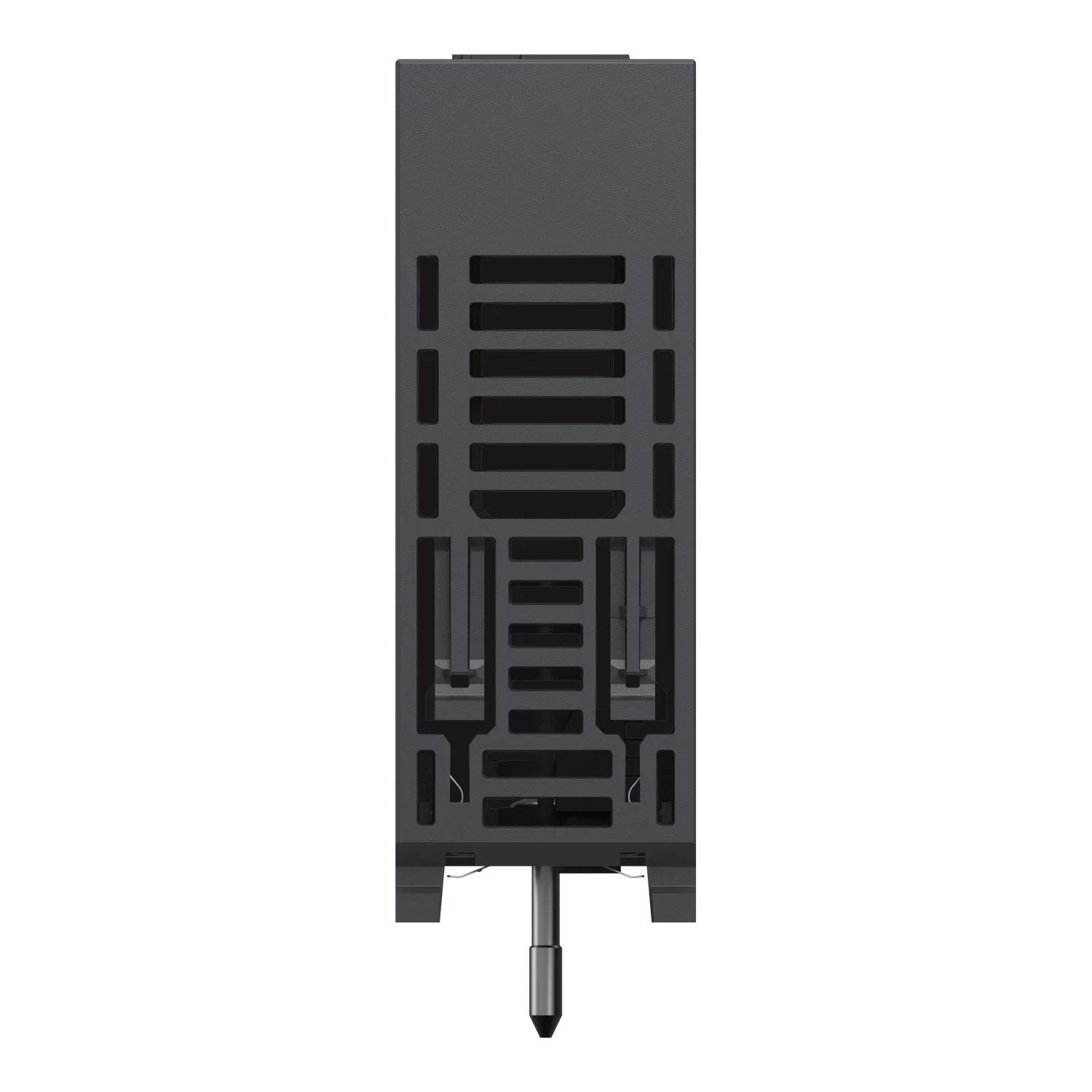

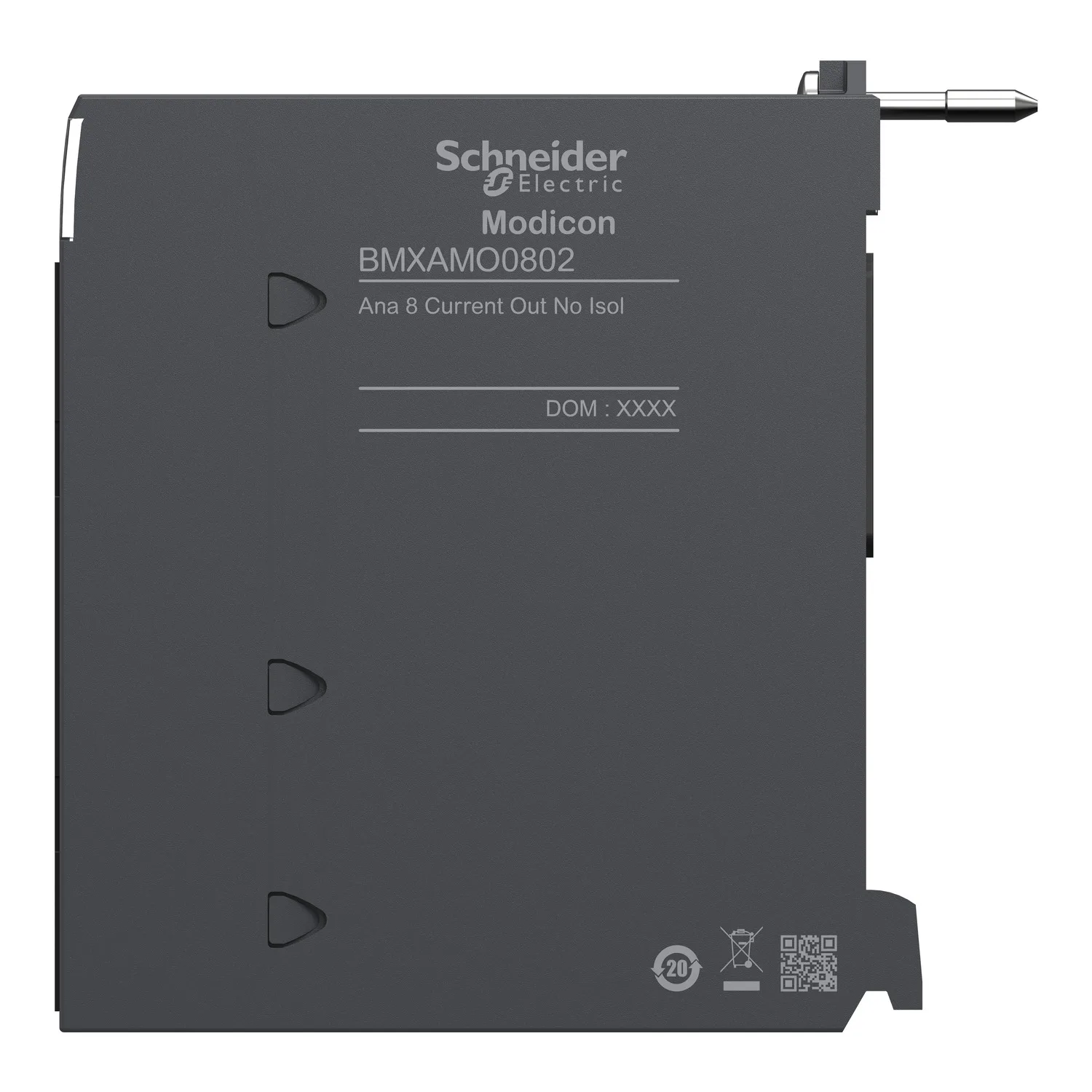

BMXAMO0802 - 8 outputs
Schneider BMXAMO0802, 8 outputs. Category: Modicon X80 I/Os. Request a quote for price and lead time.
- Reference:BMXAMO0802
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:1,176.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Modicon X80
- Product Or Component Type
- Analog output module
- Electrical Connection
- 20 ways 1 connector
- Isolation Between Channels
- Non isolated
Product Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue output module has 8 outputs with 16bit resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Key Features
- "Modularity and scalability"
- "Robustness and reliability"
- "Common safety"
- "IP20 protection for harshest environments"
- "Wide range of operating temperature from 0°C to 60°C"
Technical Specifications
Main4
| Range Of Product | Modicon X80 |
|---|---|
| Product Or Component Type | Analog output module |
| Electrical Connection | 20 ways 1 connector |
| Isolation Between Channels | Non isolated |
Complementary22
| Analogue Input Resolution | 16 bits |
|---|---|
| Measurement Error | <= 0.25 % of full scale 0...60 °C; 0.1 % of full scale 25 °C |
| Temperature Drift | 45 ppm/°C 0...20 mA; 45 ppm/°C 4...20 mA |
| Minimum Crosstalk Attenuation | 80 dB |
| Common Mode Rejection | 80 dB |
| Isolation Voltage | 1400 V DC between channels and ground; 1400 V DC between channels and bus |
| Detection Type | Open circuit 4...20 mA; Short circuit 0...20 mA |
| Load Impedance Ohmic | <= 350 Ohm 0...20 mA; <= 350 Ohm 4...20 mA |
| Output Level | High level |
| Analogue Output Number | 8 |
| Analogue Output Type | Current: 0...20 mA; Current: 4...20 mA |
| Analogue Output Resolution | 16 bits |
| Supply | Internal power supply via rack |
| Conversion Time | <= 4 ms |
| Maximum Conversion Value | 0...21 mA 0...20 mA; 0...21 mA 4...20 mA |
| Fallback Mode | Configurable; Predefined |
| MTBF Reliability | 1500000 H |
| Operating Altitude | 0...2000 m; 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN; 1 LED per channel (green) channel diagnostic; 1 LED (red) ERR; 1 LED (red) I/O |
| Net Weight | 0.15 kg |
| Power Consumption In W | 3.6 W 24 V DC typical; 3.9 W 24 V DC maximum; 0.35 W 3.3 V DC typical; 0.48 W 3.3 V DC maximum |
| Current Consumption | 150 mA at 3.3 V DC; 135 mA at 24 V DC |
Environment10
| Vibration Resistance | 3 gn |
|---|---|
| Shock Resistance | 30 gn |
| Ambient Air Temperature For Storage | -40…85 °C |
| Ambient Air Temperature For Operation | 0…60 °C |
| Relative Humidity | 5…95 % at 55 °C without condensation |
| IP Degree Of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility |
| Product Certifications | CE; RCM; CSA; EAC; Merchant Navy; UL |
| Standards | IEC 61010-2-201; IEC 61131-2; UL 61010-2-201; CSA C22.2 No 61010-2-201 |
| Protective Treatment | Standard version |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.300 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 11.600 cm |
| Package 1 Weight | 169.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 15 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.880 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
