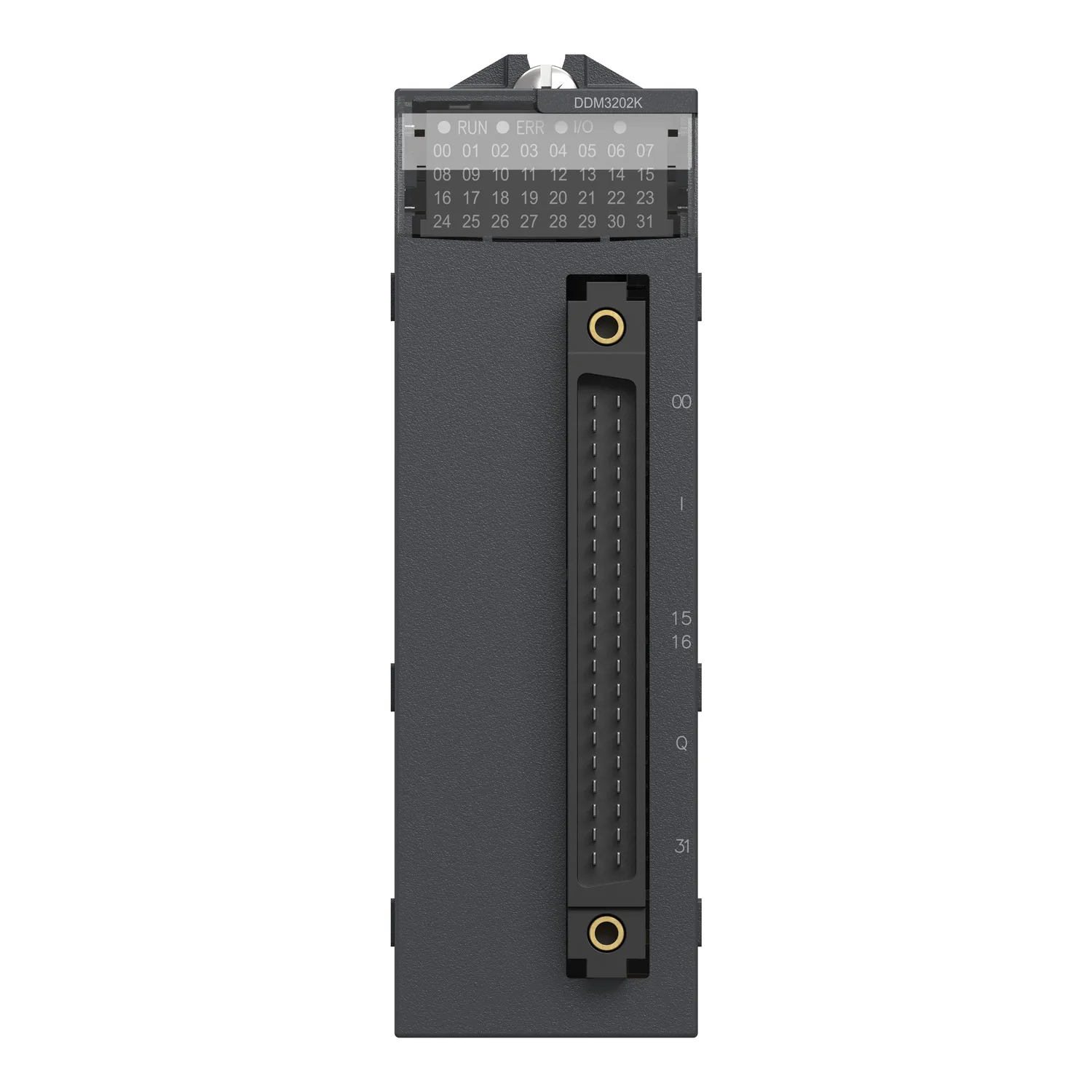

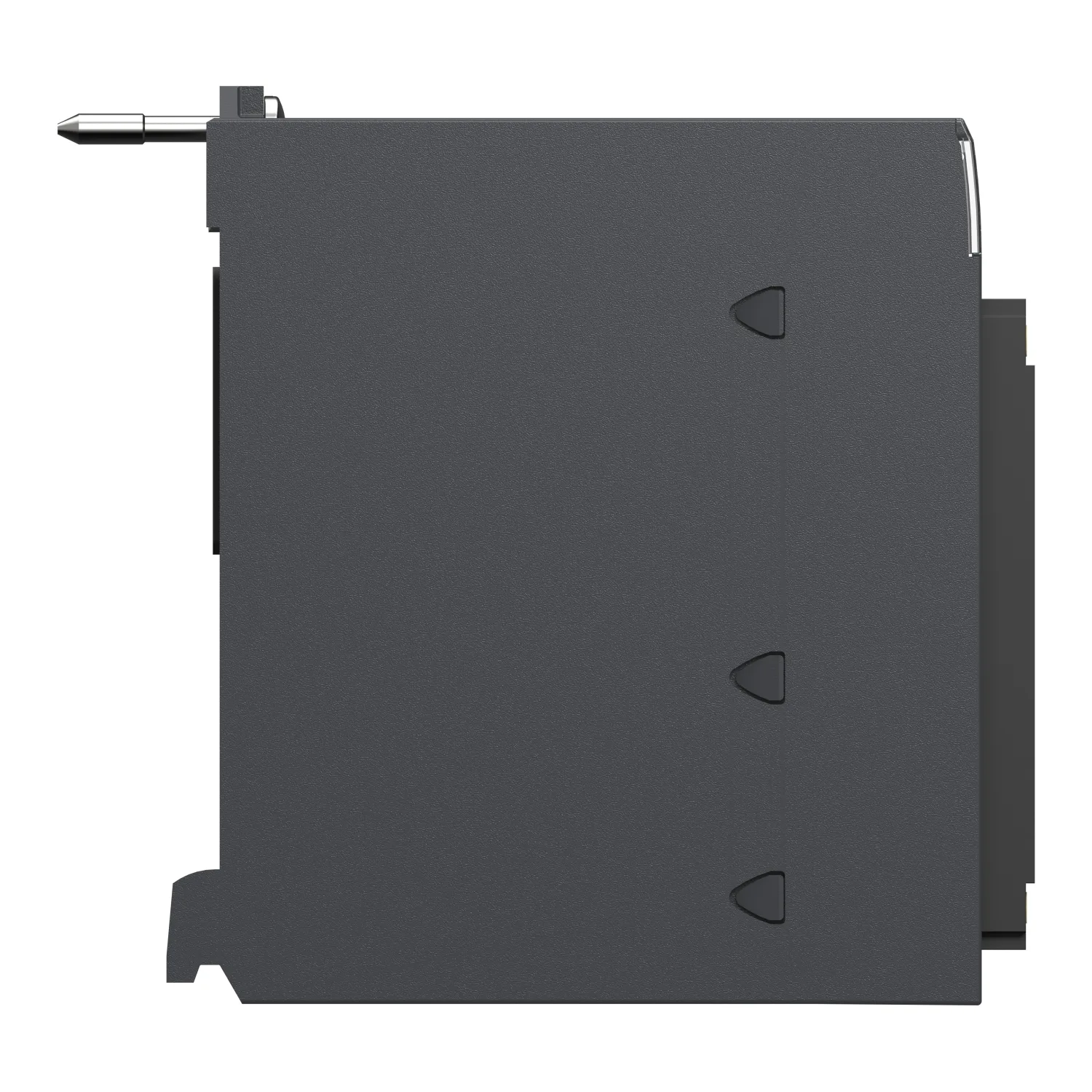

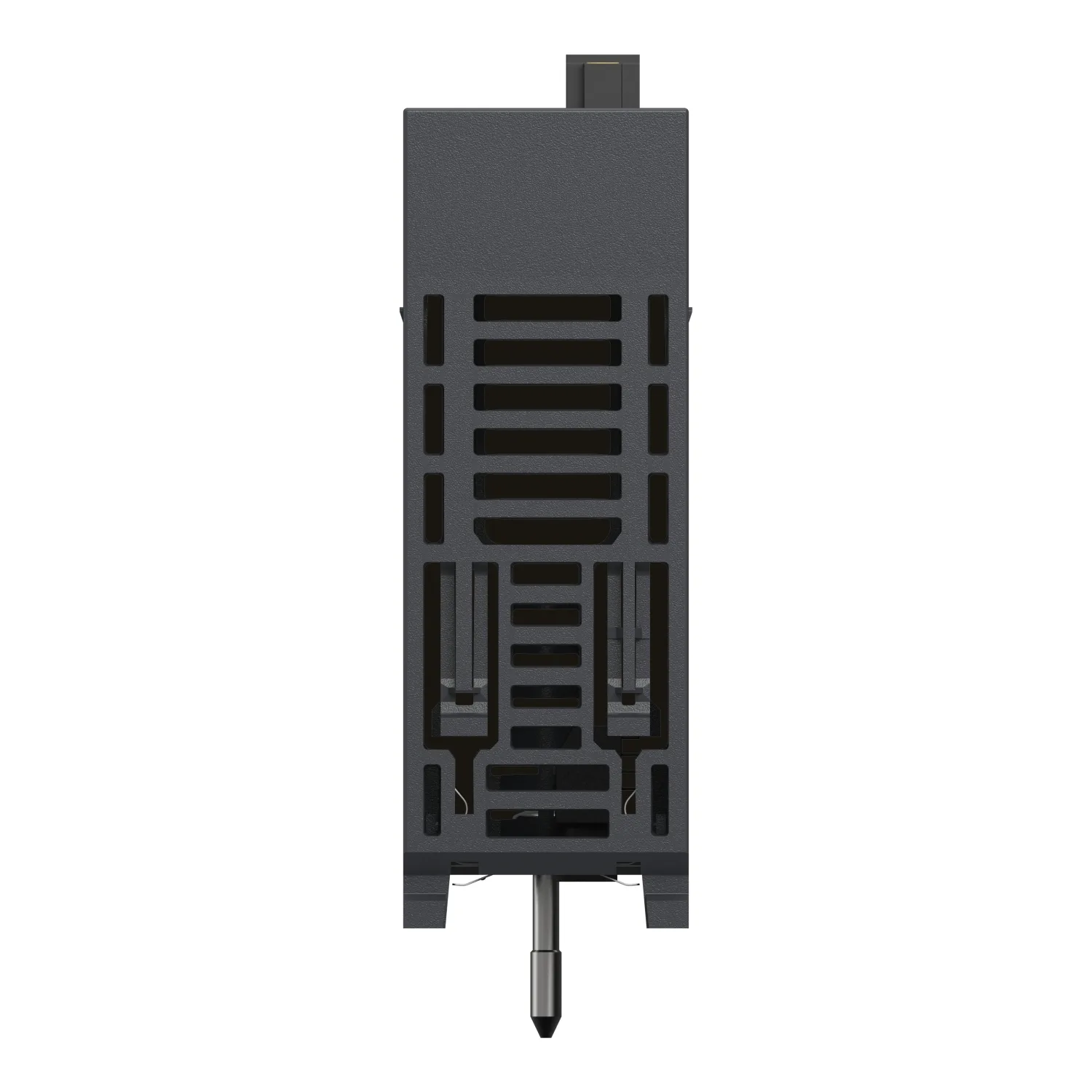

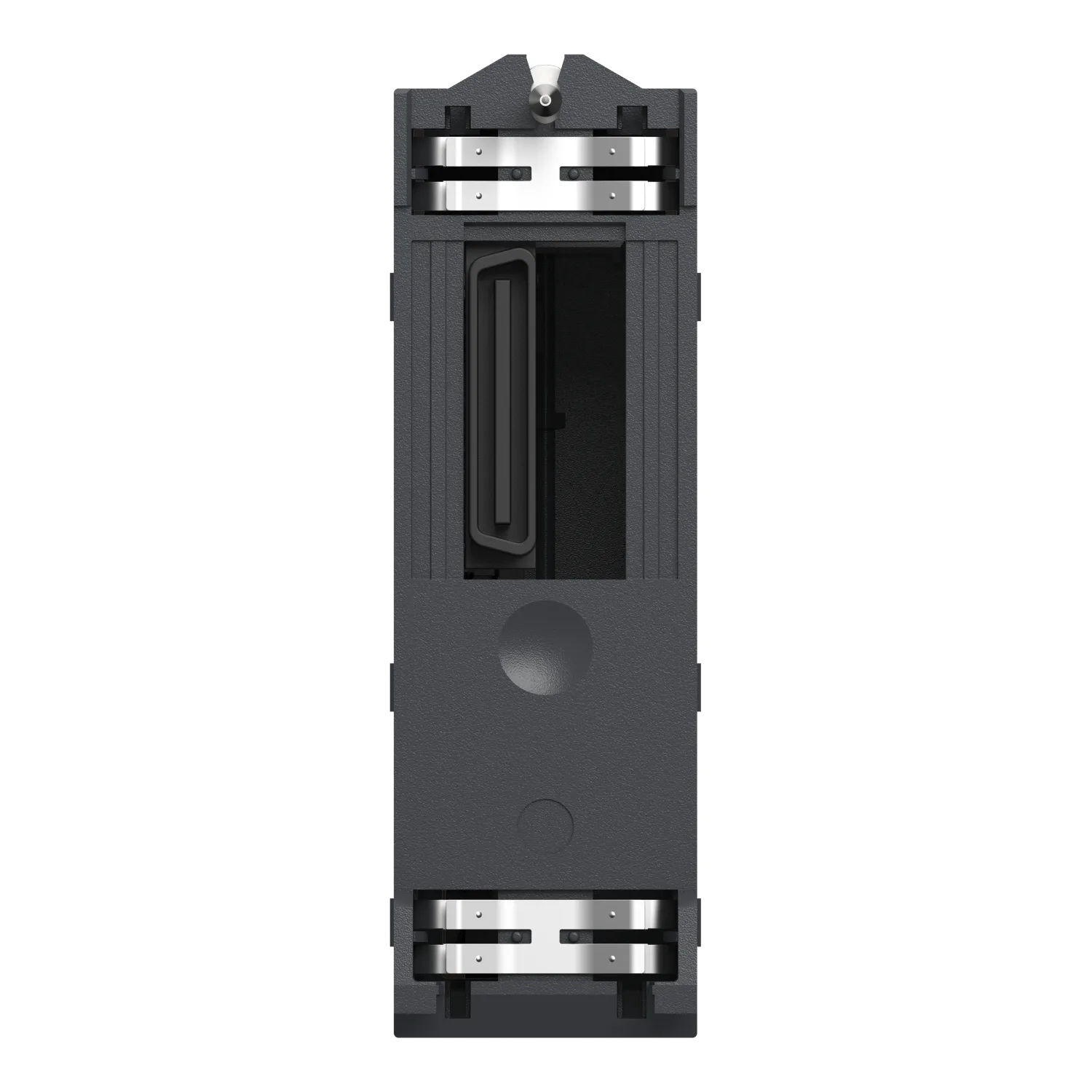

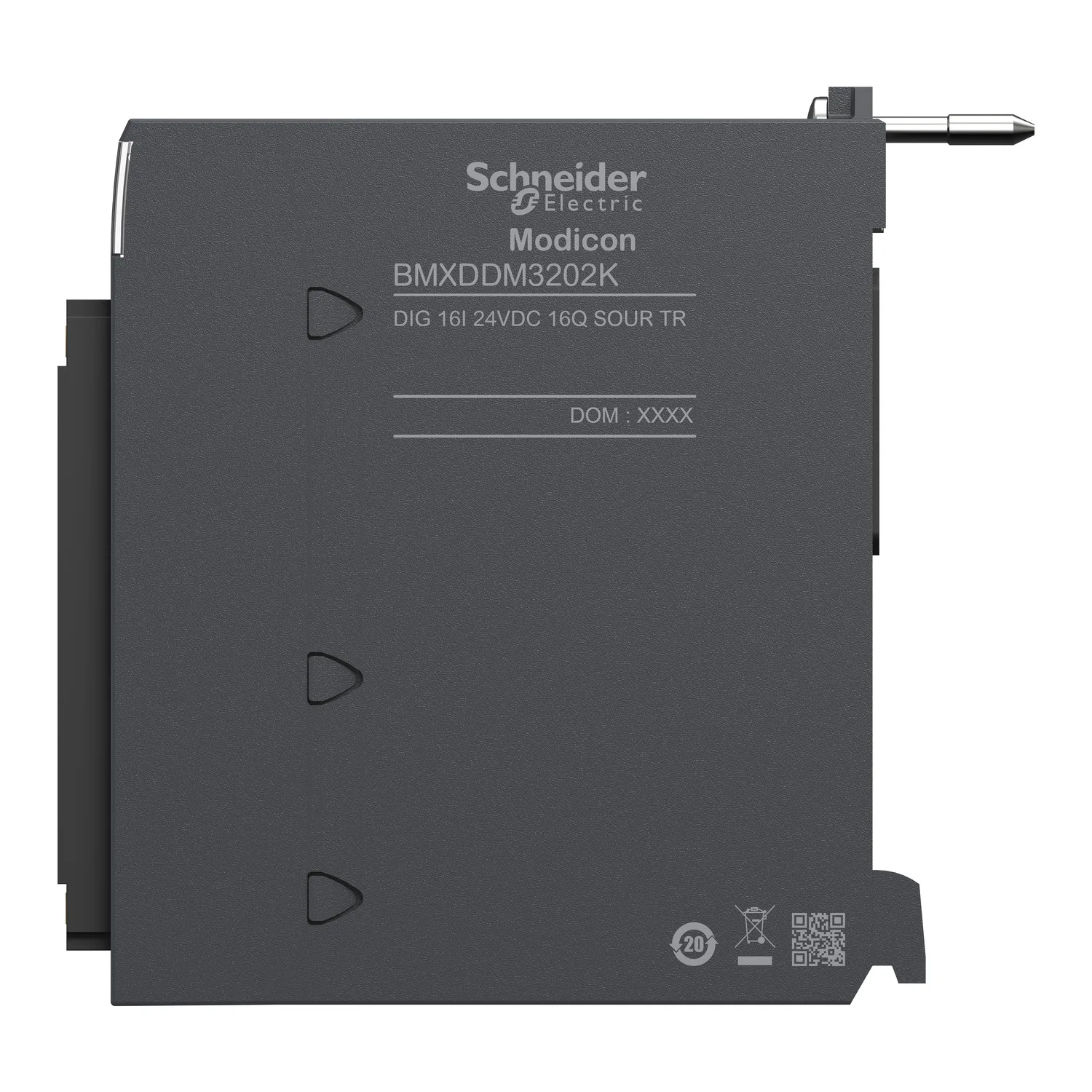

BMXDDM3202K - 16 Inputs / 16 Outputs (Transistor)
Schneider BMXDDM3202K, 16 Inputs / 16 Outputs (Transistor). Category: Modicon X80 I/Os. Request a quote for price and lead time.
- Reference:BMXDDM3202K
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:608.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Modicon X80
- Product Or Component Type
- Discrete I/O module
- Discrete Input Number
- 16
Product Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 16 input channels, 16 solid state output channels. It is a discrete I/O module with a discrete input/output voltage of 24V DC, an output current of 0.1A, a maximum power dissipation of 4W and current consumption of 104mA at 24V DC, 166mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers 432904 hours of MTBF. It is an IP20 rated product. It weighs 0.11kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Key Features
- "Modularity and scalability"
- "Robustness and reliability"
- "Common safety"
- "IP20 protection for harshest environments"
- "Wide range of operating temperature from 0°C to 60°C"
Technical Specifications
Main3
| Range Of Product | Modicon X80 |
|---|---|
| Product Or Component Type | Discrete I/O module |
| Discrete Input Number | 16 |
Complementary18
| Input Impedance | 9600 Ohm |
|---|---|
| Response Time On Output | 1.2 ms |
| Maximum Voltage Drop | <1.5 V at state 1 |
| Insulation Resistance | > 10 MOhm 500 V DC |
| DC Typical Response Time | 4 ms |
| DC Maximum Response Time | 7 ms |
| Current Per Channel | 0.125 A |
| Maximum Current Per Module | 3.2 A |
| Paralleling Of Outputs | Yes : 3 maximum |
| Switching Frequency | 0.5/LI² Hz |
| Maximum Overload Time | 15 ms |
| Load Impedance Ohmic | <= 220 Ohm |
| Reverse Polarity Protection | Reverse mounted diode |
| Current Consumption | <= 104 mA at 24 V DC; <= 166 mA at 3.3 V DC |
| MTBF Reliability | 430000 H |
| Protection Type | 1 external fuse per group of input channel0.5 A fast blow; overvoltage protection on output; reverse polarity protection on input; reverse polarity protection on output |
| Voltage Detection Threshold | < 14 V DC preactuator fault; < 14 V DC sensor fault; > 18 V DC preactuator OK; > 18 V DC sensor OK |
| Net Weight | 0.11 kg |
Environment5
| IP Degree Of Protection | IP20 |
|---|---|
| Protective Treatment | Standard version |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility |
| Dielectric Strength | 1500 V AC at 50/60 Hz 1 minute, output/ground; 1500 V AC at 50/60 Hz 1 minute, output/internal logic; 1500 V AC at 50/60 Hz 1 minute, primary/secondary; 500 V DC 1 minute, between group of inputs and outputs |
| Relative Humidity | 5…95 % at 55 °C without condensation |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.500 cm |
| Package 1 Length | 11.700 cm |
| Package 1 Weight | 136.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.355 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
