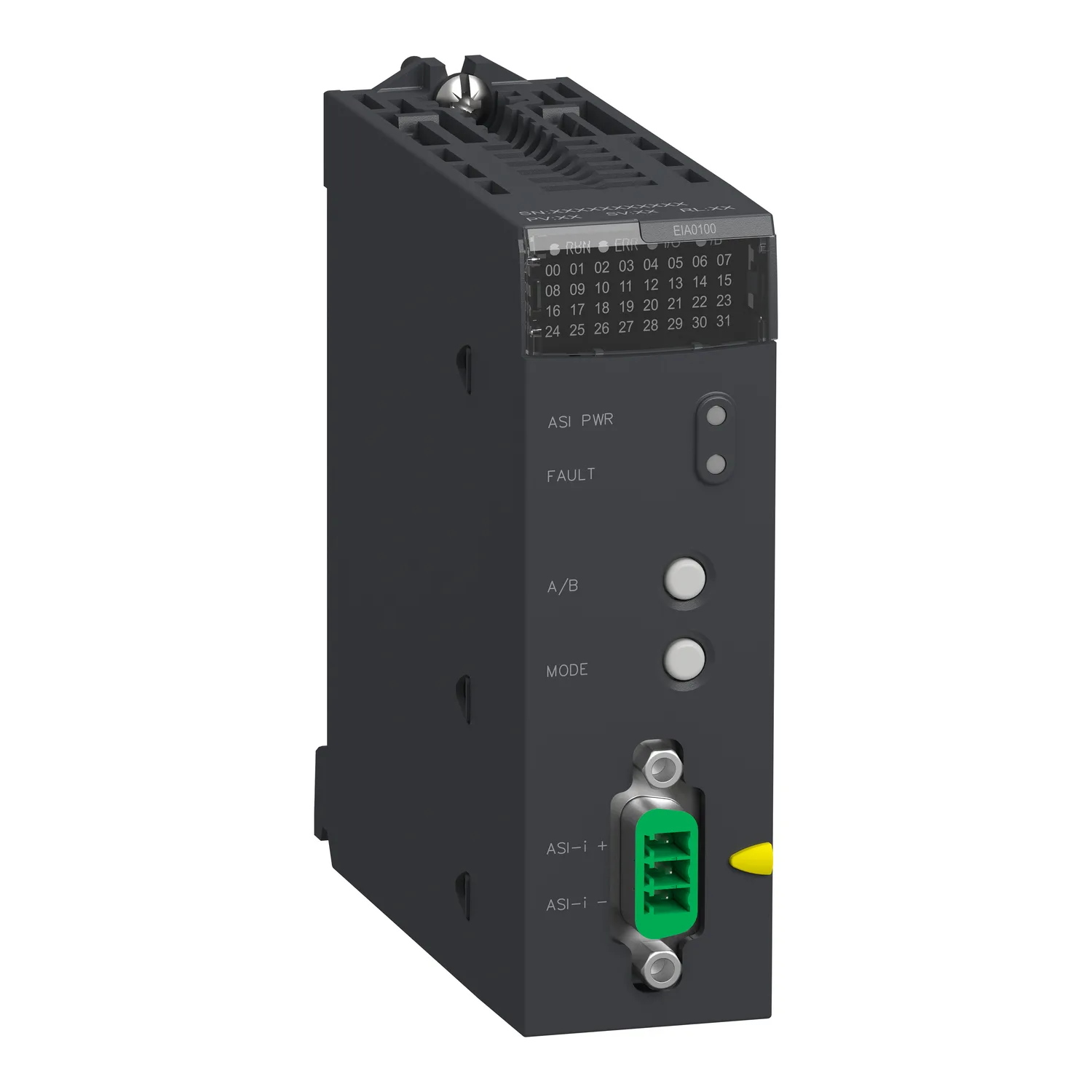

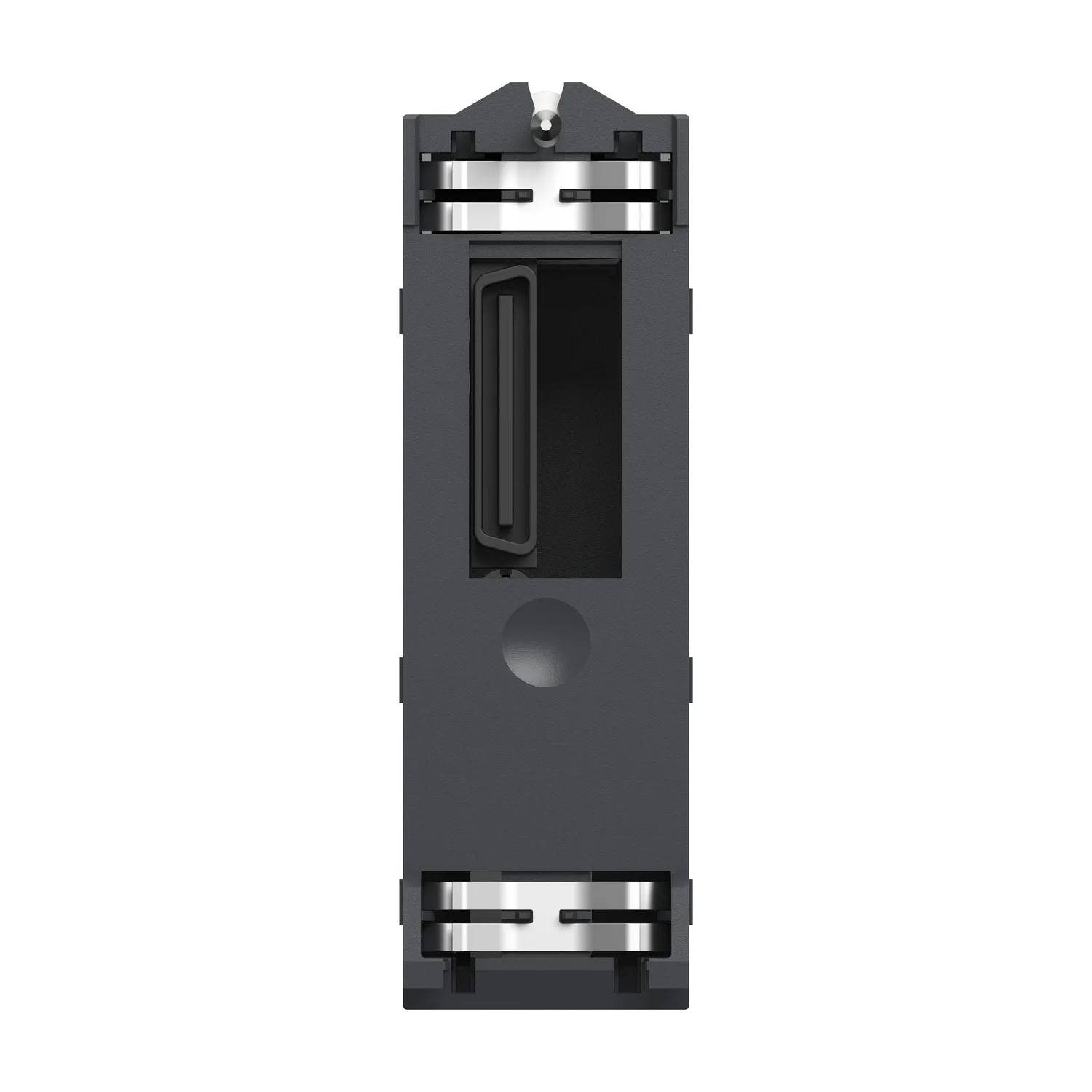

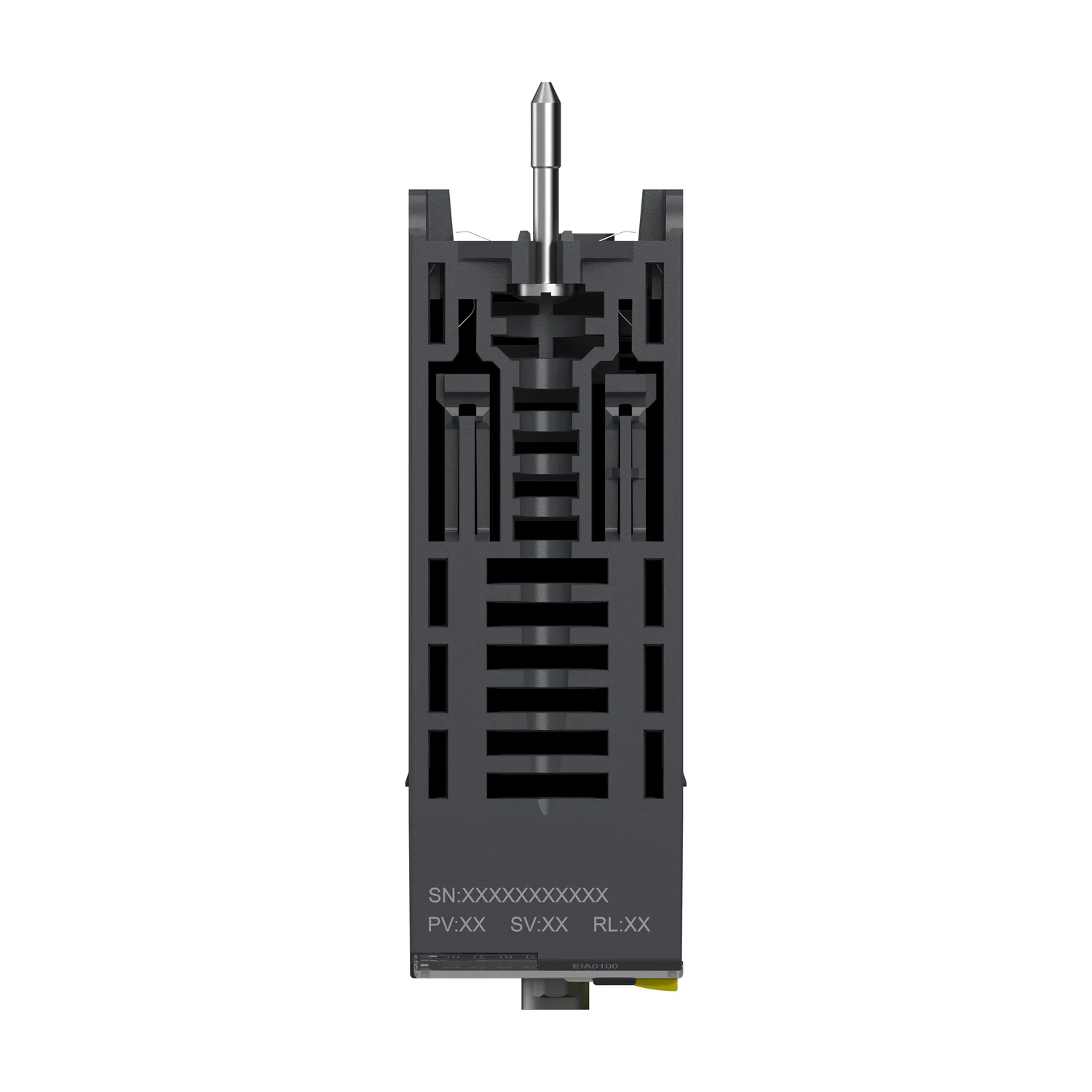

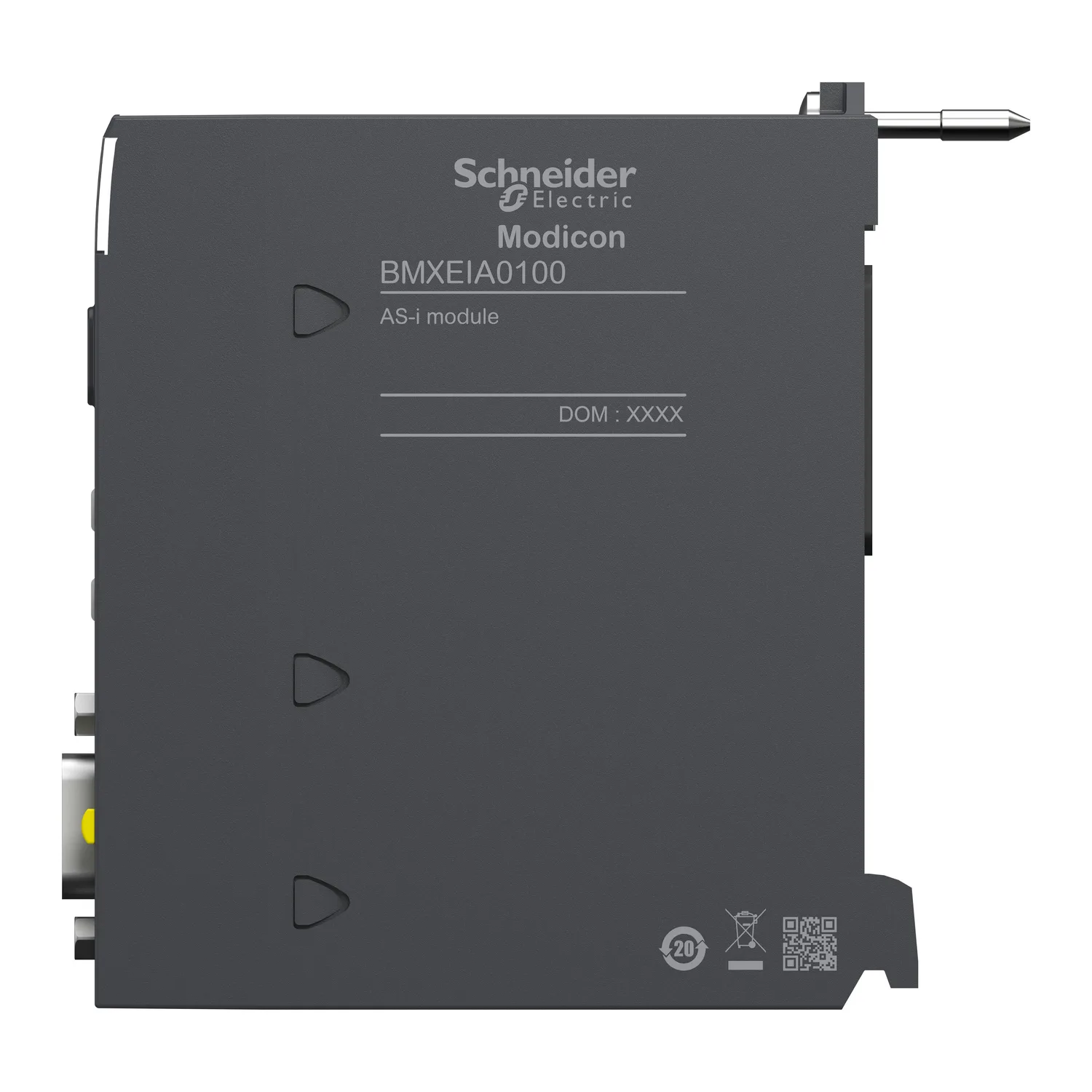

BMXEIA0100 - AS-i V3 Communication Module
Schneider BMXEIA0100, AS-i V3 Communication Module. Category: Modicon X80 I/Os. Request a quote for price and lead time.
- Reference:BMXEIA0100
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:743.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Modicon X80
- Product Or Component Type
- Master module
- Addressing
- Standard and extended
Product Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This master module supports up to 62 I/O discrete devices and up to 31 I/O analogue devices. It is a master module with a current consumption of 160mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 3-way SUB-D male connector for electrical connection. It is an IP20 rated product. Maximum cable distance between devices is 100m, 200m line extension, 300m 2 repeaters, 500m 2 repeaters and the master at the middle. It weighs 0.34kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Key Features
- "Cost-effective modernization and migration"
- "Reduce time to market"
- "Process efficiency"
- "Easy Maintenance"
Technical Specifications
Main4
| Range Of Product | Modicon X80 |
|---|---|
| Product Or Component Type | Master module |
| Actuator Sensor Interface Profile [AS-i] | M4 master profile; S7.3 slave profile; S7.A.7 slave profile; S7.A.A slave profile; S7.A.8 slave profile; S7.A.9 slave profile; S6.0.X slave profile |
| Addressing | Standard and extended |
Complementary8
| Cycle Time | 5 ms for 31; 10 ms for 62 |
|---|---|
| Electrical Connection | 1 male connector SUB-D, 3 pins |
| Number Of Server Device(s) | 124 server device(s) for discrete inputs and outputs - standard; 124 server device(s) for analog inputs and outputs - standard; 496 server device(s) for discrete inputs and outputs - extended; 124 server device(s) for analog inputs and outputs - extended |
| Maximum Cable Distance Between Devices | 100 m; 200 m line extension; 300 m 2 repeaters; 500 m 2 repeaters and the master at the middle |

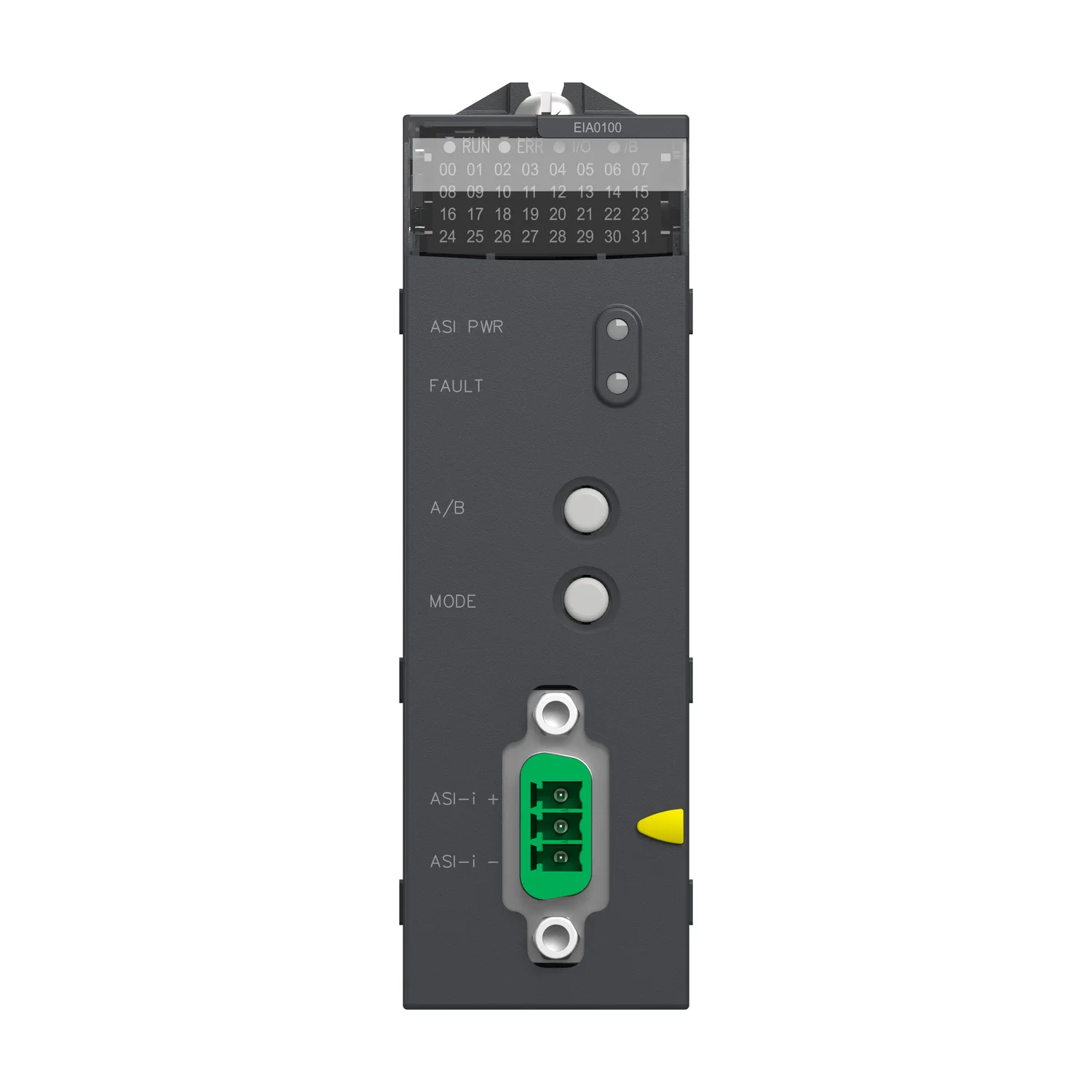

| Local Signalling | 1 LED (green) for module active (RUN); 1 LED (red) for module error (ERR); 1 LED (green) for displays the group of 31 slaves (A/B); 1 LED (red) for I/O module fault (I/O); 32 LEDs for diagnostics of the AS-Interface and each slave; 1 LED (green) for ASI power; 1 LED (red) for fault |
| Current Consumption | 160 mA at 3.3 V DC |
| Module Format | Standard |
| Net Weight | 0.34 kg |
Environment7
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2014/34/EU - ATEX directive |
|---|---|
| Product Certifications | CE; UL; CSA; RCM; EAC; Merchant Navy; ATEX zone 2/22; IECEx zone 2/22 |
| Standards | IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; IEC 61000-6-5, interface type 1 and type 2; IEC 61850-3, location G; IEC 60079-0 |
| Environmental Characteristic | Hazardous location |
| Ambient Air Temperature For Operation | 0…60 °C |
| Ambient Air Temperature For Storage | -40…70 °C |
| IP Degree Of Protection | IP20 |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 7.4 cm |
| Package 1 Width | 11.0 cm |
| Package 1 Length | 12.7 cm |
| Package 1 Weight | 210.0 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.2 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
