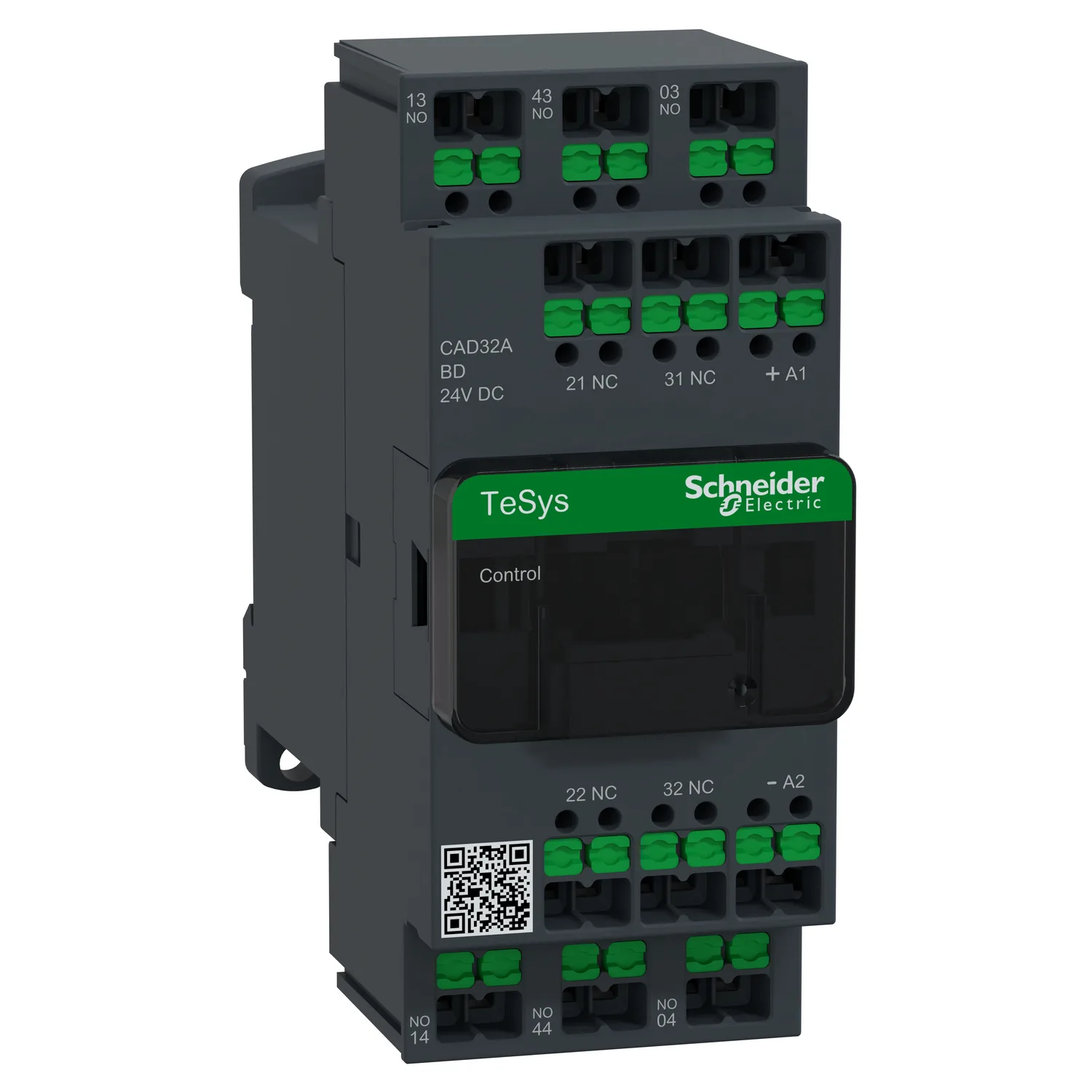

CAD32ABD - TeSys Deca Auxiliary Contactor 24VDC 3NA2NK Snap-in
Schneider CAD32ABD, TeSys Deca Auxiliary Contactor 24VDC 3NA2NK Snap-in. Category: TeSys K, D, SK Control Relays. Request a quote for price and lead time.
- Reference:CAD32ABD
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:68.30 EUR (Request a quote)
Key Specifications
- Range
- TeSys
- Product Name
- TeSys CAD
- Product Or Component Type
- Control relay
- Device Short Name
- CAD
Product Description
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It is equipped with snap-in terminals for tool-free flexible cable wiring and lifelong robust connection. It provides a 24V DC control circuit. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified, environmental compliant( RoHS/REACh).
Key Features
- TeSys Control Relays provide an effective solution to a simple application
- Snap-in terminals for tool-free flexible cable wiring and lifelong robust connection
- Compatible for all the voltages on the market
- Multiple international certifications
- Easy to use interface for electronic devices (example: PLCs)
Technical Specifications
Main5
| Range | TeSys |
|---|---|
| Product Name | TeSys CAD |
| Product Or Component Type | Control relay |
| Device Short Name | CAD |
| Contactor Application | Control circuit |
Complementary29
| Utilisation Category | AC-15; AC-14; DC-13 |
|---|---|
| Pole Contact Composition | 3 NO + 2 NC |
| [Ue] Rated Operational Voltage | <= 690 V AC 25...400 Hz |
| Control Circuit Type | DC standard |
| [Uc] Control Circuit Voltage | 24 V DC |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947 |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Irms Rated Making Capacity | 140 A AC; 250 A DC |
| [Icw] Rated Short-time Withstand Current | 100 A - 1 s; 120 A - 500 ms; 140 A - 100 ms |
| Associated Fuse Rating | 10 A gG conforming to IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 690 V conforming to IEC 60947-5-1 |
| Mounting Support | Rail; Plate |
| Connections - Terminals | Snap-in terminal 1 cable(s) 0.5…4 mm²flexible without cable end; Snap-in terminal 2 cable(s) 0.5…4 mm²flexible without cable end; Snap-in terminal 1 cable(s) 0.5…2.5 mm²flexible with cable end; Snap-in terminal 2 cable(s) 0.5…2.5 mm²flexible with cable end |
| Control Circuit Voltage Limits | 0.1...0.25 Uc (-40…70 °C):drop-out DC; 0.7...1.25 Uc (-40…60 °C):operational DC; 1...1.25 Uc (60…70 °C):operational DC |
| Operating Time | 53...72 ms coil energisation and NO closing; 16...24 ms coil de-energisation and NO opening; 47...63 ms coil energisation and NC opening; 15...25 ms coil de-energisation and NC closing |
| Mechanical Durability | 30 Mcycles |
| Maximum Operating Rate | 180 cyc/mn |
| Time Constant | 28 ms |
| Inrush Power In W | 5.4 W (at 20 °C) |
| Hold-in Power Consumption In W | 5.4 W at 20 °C |
| Minimum Switching Voltage | 17 V |
| Minimum Switching Current | 5 mA |
| Non-overlap Time | 1.5 ms on energisation between NC and NO contact; 1.5 ms on de-energisation between NC and NO contact |
| Insulation Resistance | > 10 MOhm |
| Mechanical Robustness | Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27; Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27; Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6; Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Height | 107 mm |
| Width | 45 mm |
| Depth | 93 mm |
| Net Weight | 562 g |
Environment7
| Standards | EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; GB/T 14048.5; JIS C8201-5-1 |
|---|---|
| Product Certifications | CB Scheme; CCC; cULus; CE; UKCA; EU-RO-MR by DNV |
| IP Degree Of Protection | IP2X front face conforming to VDE 0106 |
| Protective Treatment | TH conforming to IEC 60068 |
| Ambient Air Temperature For Operation | -40…60 °C; 60…70 °C with derating |
| Ambient Air Temperature For Storage | -60…80 °C |
| Operating Altitude | 0...3000 m |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.600 cm |
| Package 1 Width | 10.100 cm |
| Package 1 Length | 11.500 cm |
| Package 1 Weight | 508.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.045 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 240 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 153.220 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
