Schneider

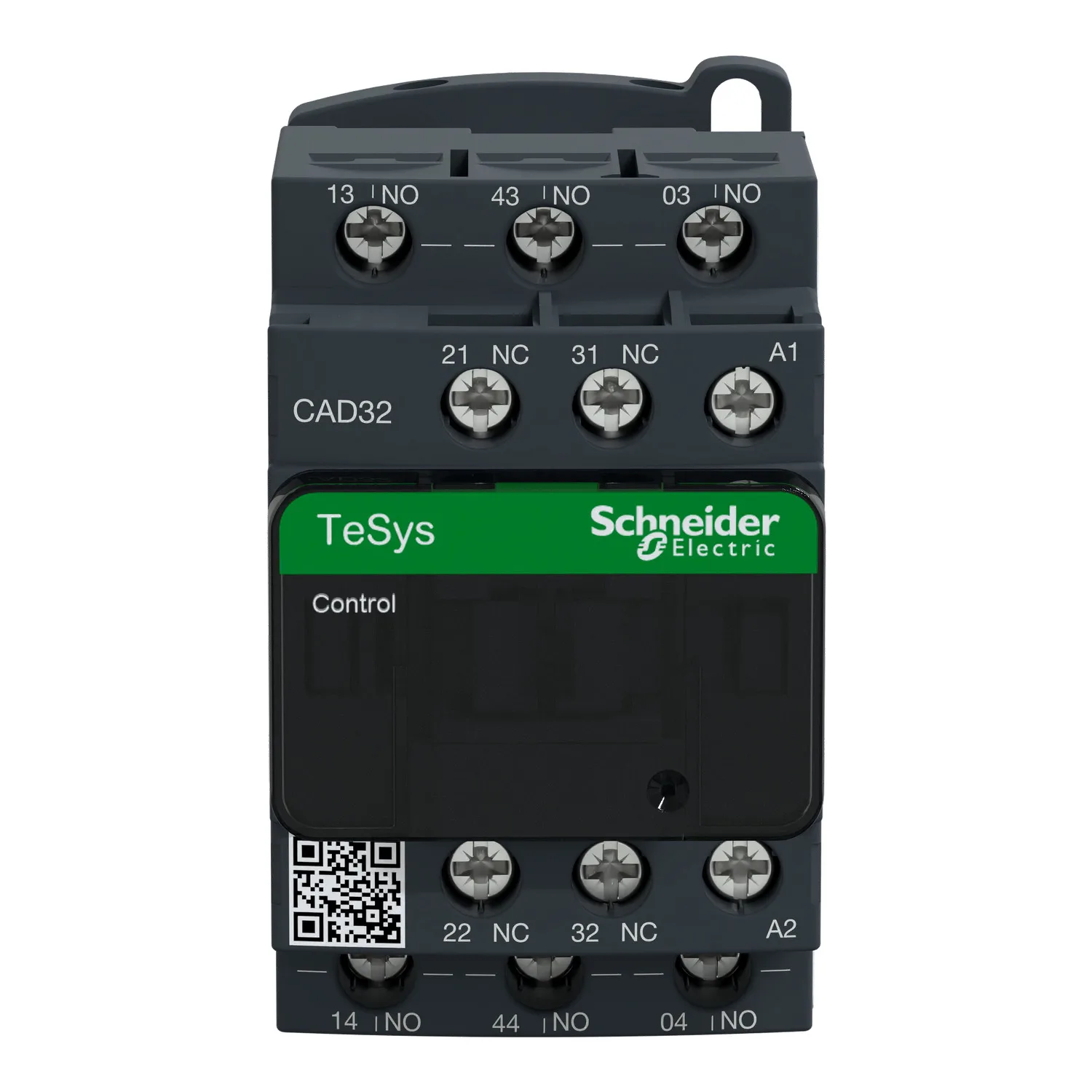

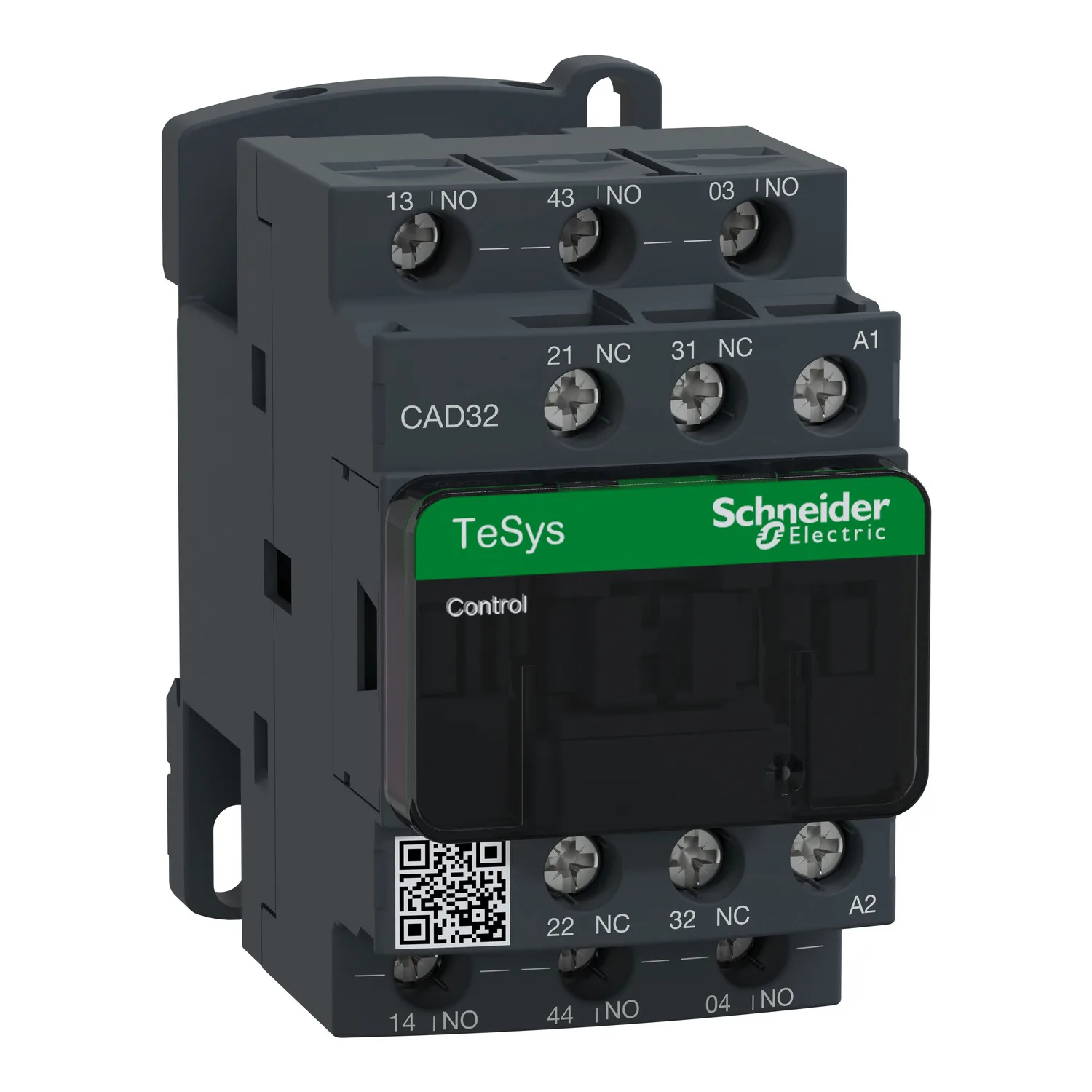

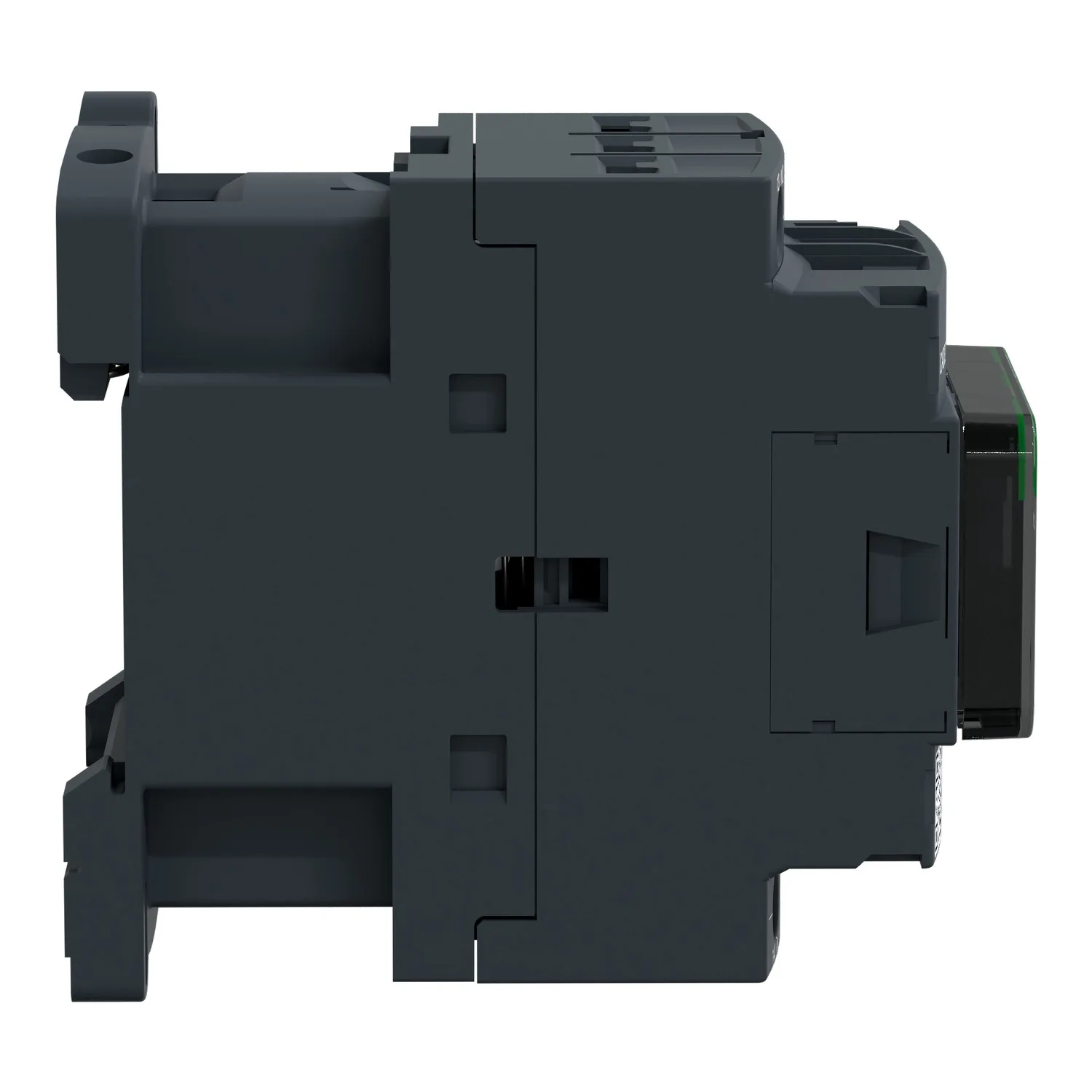

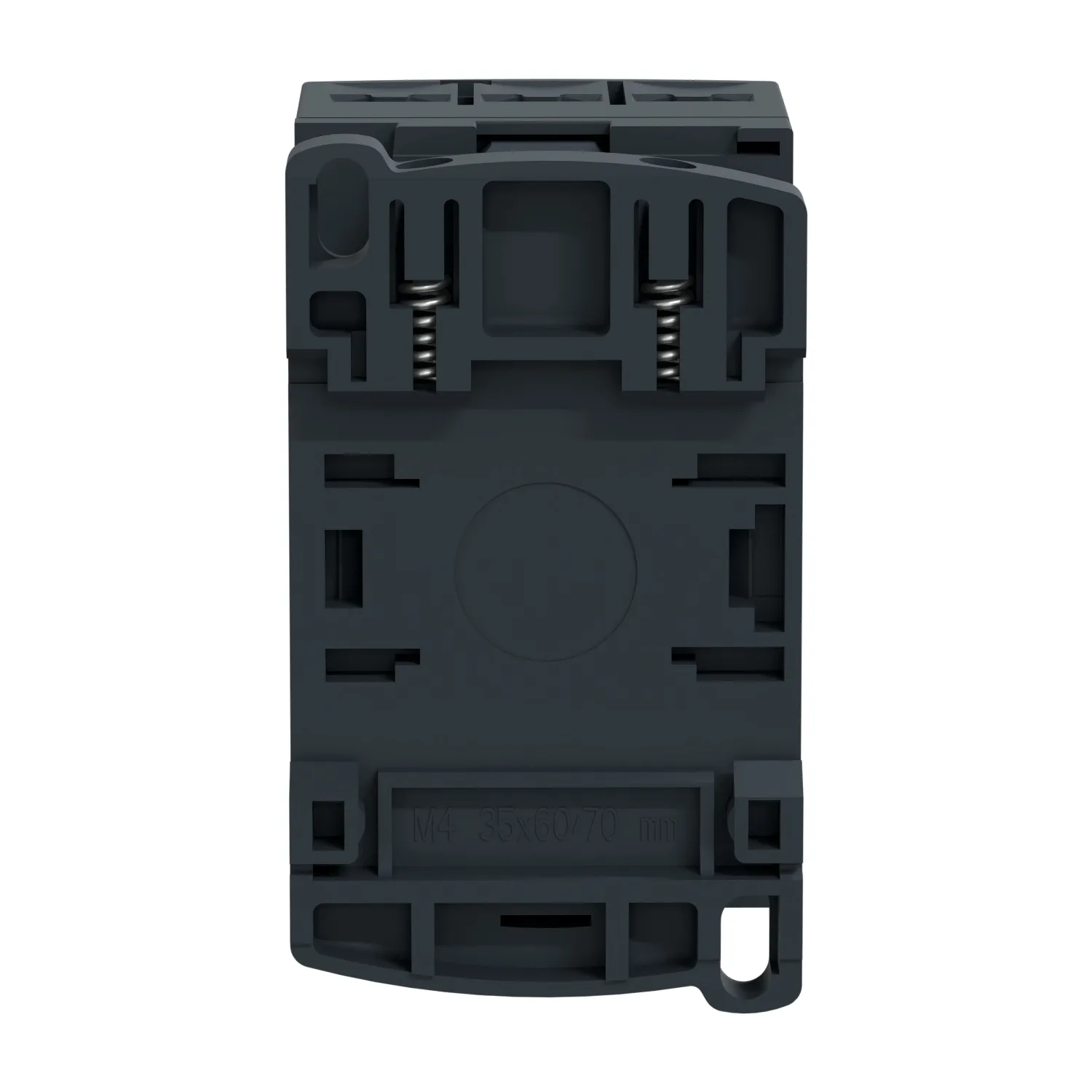

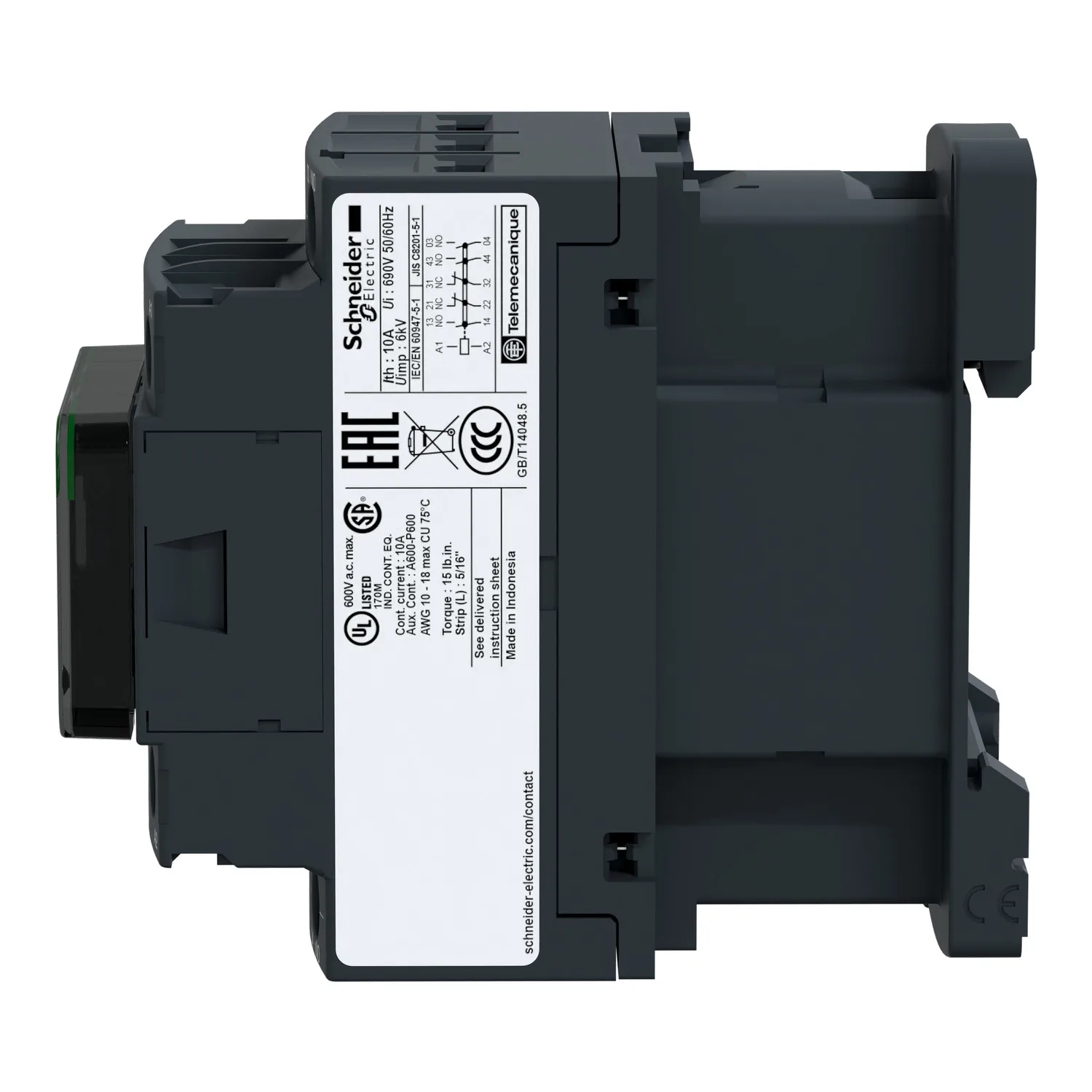

Contactor: 5-pole; NC x2 + NO x3; 48VAC; 10A; TeSys D; W: 45mm; 690V
Schneider CAD32E7, Contactor: 5-pole; NC x2 + NO x3; 48VAC; 10A; TeSys D; W: 45mm; 690V. Category: TeSys K, D, SK Control Relays. In stock.
- Reference:CAD32E7
- Manufacturer / Brand:Schneider
- Availability:In stock (35 pcs) ✅
- Price:39.70 EUR (Request a quote)
Key Specifications
- Range
- TeSys; TeSys Deca
- Product Name
- TeSys CAD
- Product Or Component Type
- Control relay
- Device Short Name
- CAD
Product Description
TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 48V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), (RoHS/REACh).
Key Features
- "TeSys Control Relays provide a cost-effective solution to a simple application"
- "Same design as TeSys D, K and SK contactors"
- "Different ways for connection. (such as screw clamp terminal, spring terminal, welded on PCB)"
- "Compatible for all the voltages on the market"
- "Multiple international certifications"
Technical Specifications
Main5
| Range | TeSys; TeSys Deca |
|---|---|
| Product Name | TeSys CAD |
| Product Or Component Type | Control relay |
| Device Short Name | CAD |
| Contactor Application | Control circuit |
Complementary29
| Utilisation Category | DC-13; AC-15; AC-14 |
|---|---|
| Pole Contact Composition | 3 NO + 2 NC |
| [Ue] Rated Operational Voltage | <= 690 V AC 25...400 Hz |
| Control Circuit Type | AC at 50/60 Hz |
| [Uc] Control Circuit Voltage | 48 V AC 50/60 Hz |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947 |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Irms Rated Making Capacity | 140 A AC conforming to IEC 60947-5-1; 250 A DC conforming to IEC 60947-5-1 |
| [Icw] Rated Short-time Withstand Current | 100 A - 1 s; 120 A - 500 ms; 140 A - 100 ms |
| Associated Fuse Rating | 10 A gG conforming to IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 600 V UL certified; 600 V CSA certified; 690 V conforming to IEC 60947-5-1 |
| Mounting Support | Rail; Plate |
| Connections - Terminals | Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end; Screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end; Screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end |
| Tightening Torque | 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2; 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Control Circuit Voltage Limits | 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz; 0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz; 0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz; 1...1.1 Uc (60…70 °C):operational AC 50/60 Hz |
| Operating Time | 12...22 ms coil energisation and NO closing; 4...12 ms coil de-energisation and NO opening; 4...19 ms coil energisation and NC opening; 6...17 ms coil de-energisation and NC closing |
| Mechanical Durability | 30 Mcycles |
| Maximum Operating Rate | 180 cyc/mn |
| Inrush Power In VA | 70 VA 50 Hz (at 20 °C) |
| Hold-in Power Consumption In VA | 8 VA 50 Hz (at 20 °C) |
| Minimum Switching Voltage | 17 V |
| Minimum Switching Current | 5 mA |
| Non-overlap Time | 1.5 ms on energisation between NC and NO contact; 1.5 ms on de-energisation between NC and NO contact |
| Insulation Resistance | > 10 MOhm |
| Mechanical Robustness | Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27; Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27; Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6; Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Height | 77 mm |
| Width | 45 mm |
| Depth | 84 mm |
| Net Weight | 0.58 kg |
Environment7
| Standards | EN/IEC 60947-5-1; GB/T 14048.5; UL 60947-5-1; CSA C22.2 No 60947-5-1; JIS C8201-5-1 |
|---|---|
| Product Certifications | CB; CCC; UL; CSA; EAC; CE; UKCA |
| IP Degree Of Protection | IP2X front face conforming to VDE 0106 |
| Protective Treatment | TH conforming to IEC 60068 |
| Ambient Air Temperature For Operation | -40…60 °C; 60…70 °C with derating |
| Ambient Air Temperature For Storage | -60…80 °C |
| Operating Altitude | 0...3000 m |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.200 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 11.400 cm |
| Package 1 Weight | 346.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 20 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.202 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 320 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 126.800 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
