TeSys D control relay - 5 NO - <= 690 V - 42 V AC standard coil

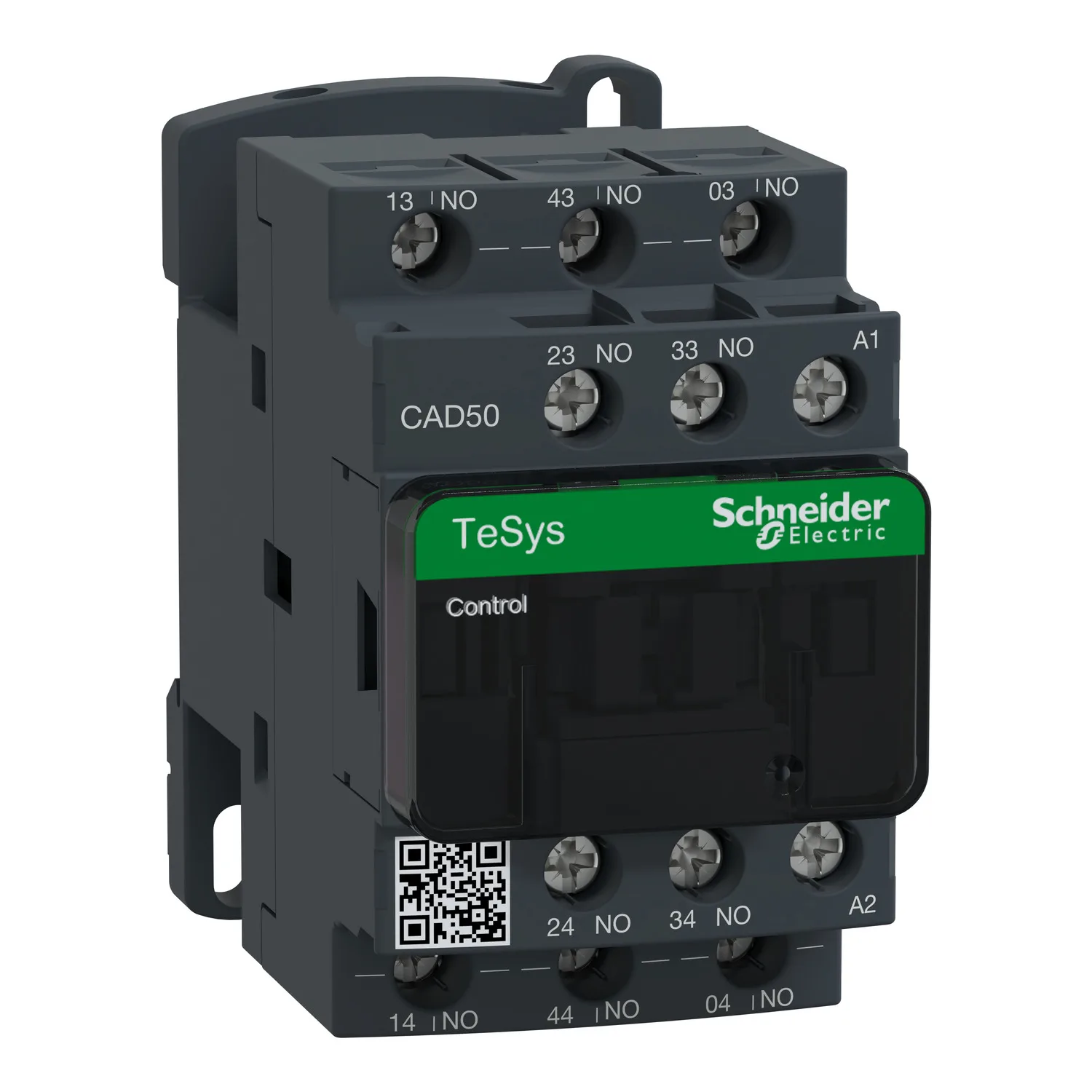

Schneider CAD50D7, TeSys D control relay - 5 NO - <= 690 V - 42 V AC standard coil. Category: TeSys K, D, SK Control Relays. In stock.
- Reference:CAD50D7
- Manufacturer / Brand:Schneider
- Availability:In stock (1 pcs) ✅
- Price:39.70 EUR (Request a quote)
Key Specifications
- Range
- TeSys; TeSys Deca
- Product Name
- TeSys CAD
- Product Or Component Type
- Control relay
- Device Short Name
- CAD
Product Description
TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 42V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Key Features
- TeSys Control Relays provide a cost-effective solution to a simple application
- Same design as TeSys D, K and SK contactors
- Different ways for connection. (such as screw clamp terminal, spring terminal, welded on PCB)
- Compatible for all the voltages on the market
- Multiple international certifications
Technical Specifications
Main5
| Range | TeSys; TeSys Deca |
|---|---|
| Product Name | TeSys CAD |
| Product Or Component Type | Control relay |
| Device Short Name | CAD |
| Contactor Application | Control circuit |
Complementary29
| Utilisation Category | DC-13; AC-14; AC-15 |
|---|---|
| Pole Contact Composition | 5 NO |
| [Ue] Rated Operational Voltage | <= 690 V AC 25...400 Hz |
| Control Circuit Type | AC at 50/60 Hz |
| [Uc] Control Circuit Voltage | 42 V AC 50/60 Hz |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947 |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Irms Rated Making Capacity | 140 A AC conforming to IEC 60947-5-1; 250 A DC conforming to IEC 60947-5-1 |
| [Icw] Rated Short-time Withstand Current | 100 A - 1 s; 120 A - 500 ms; 140 A - 100 ms |
| Associated Fuse Rating | 10 A gG conforming to IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 600 V UL certified; 600 V CSA certified; 690 V conforming to IEC 60947-5-1 |
| Mounting Support | Rail; Plate |
| Connections - Terminals | Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end; Screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end; Screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end |
| Tightening Torque | 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2; 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Control Circuit Voltage Limits | 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz; 0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz; 0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz; 1...1.1 Uc (60…70 °C):operational AC 50/60 Hz |
| Operating Time | 12...22 ms coil energisation and NO closing; 4...12 ms coil de-energisation and NO opening |
| Mechanical Durability | 30 Mcycles |
| Maximum Operating Rate | 180 cyc/mn |
| Inrush Power In VA | 70 VA 50 Hz (at 20 °C) |
| Hold-in Power Consumption In VA | 8 VA 50 Hz (at 20 °C) |
| Minimum Switching Voltage | 17 V |
| Minimum Switching Current | 5 mA |
| Non-overlap Time | 1.5 ms on energisation between NC and NO contact; 1.5 ms on de-energisation between NC and NO contact |
| Insulation Resistance | > 10 MOhm |
| Mechanical Robustness | Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27; Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27; Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6; Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Height | 77 mm |
| Width | 45 mm |
| Depth | 84 mm |
| Net Weight | 0.58 kg |
Environment7
| Standards | EN/IEC 60947-5-1; GB/T 14048.5; UL 60947-5-1; CSA C22.2 No 60947-5-1; JIS C8201-5-1 |
|---|---|
| Product Certifications | CB; CCC; UL; CSA; EAC; CE; UKCA |
| IP Degree Of Protection | IP2X front face conforming to VDE 0106 |
| Protective Treatment | TH conforming to IEC 60068 |
| Ambient Air Temperature For Operation | -40…60 °C; 60…70 °C with derating |
| Ambient Air Temperature For Storage | -60…80 °C |
| Operating Altitude | 0...3000 m |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.800 cm |
| Package 1 Width | 9.600 cm |
| Package 1 Length | 11.900 cm |
| Package 1 Weight | 352.000 g |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
