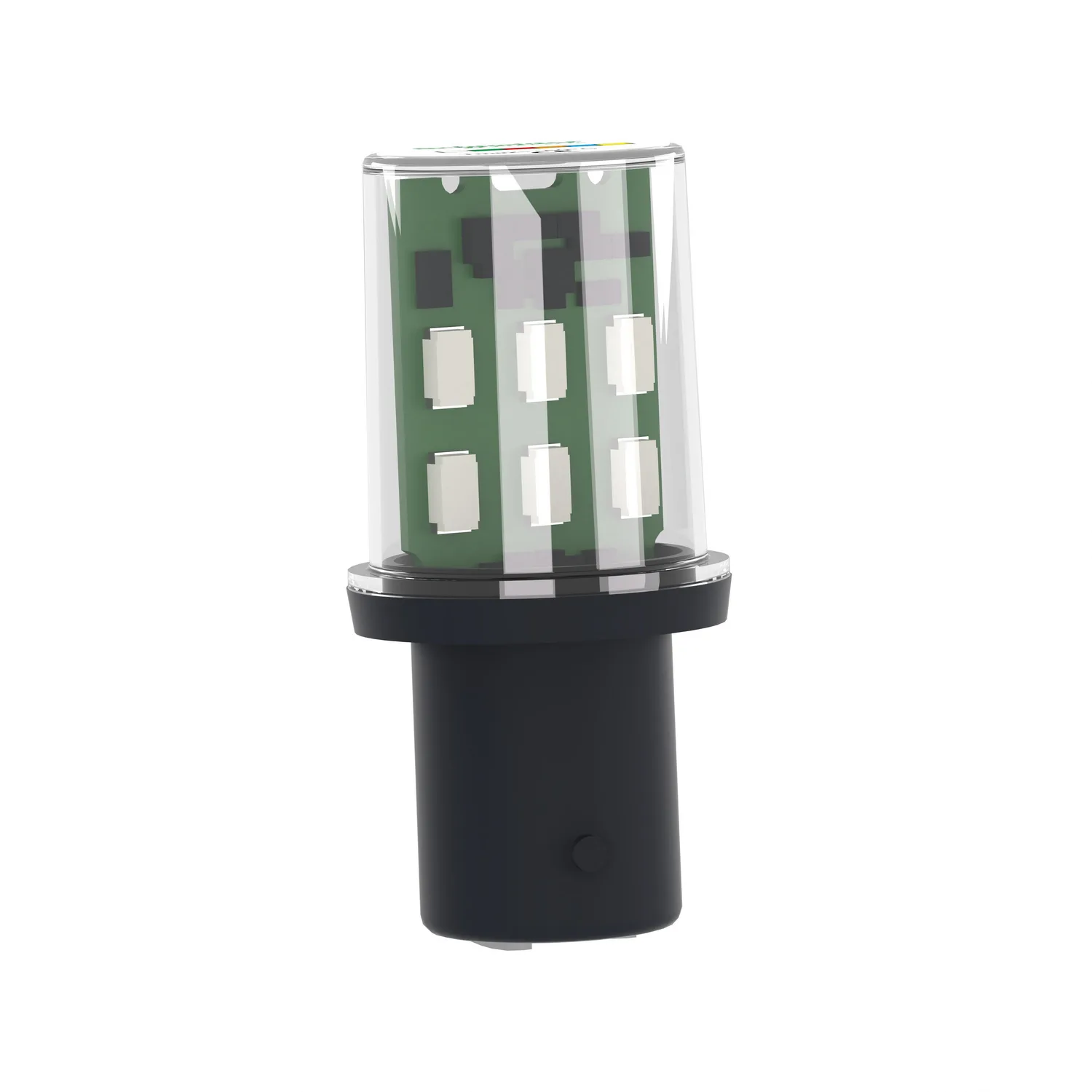

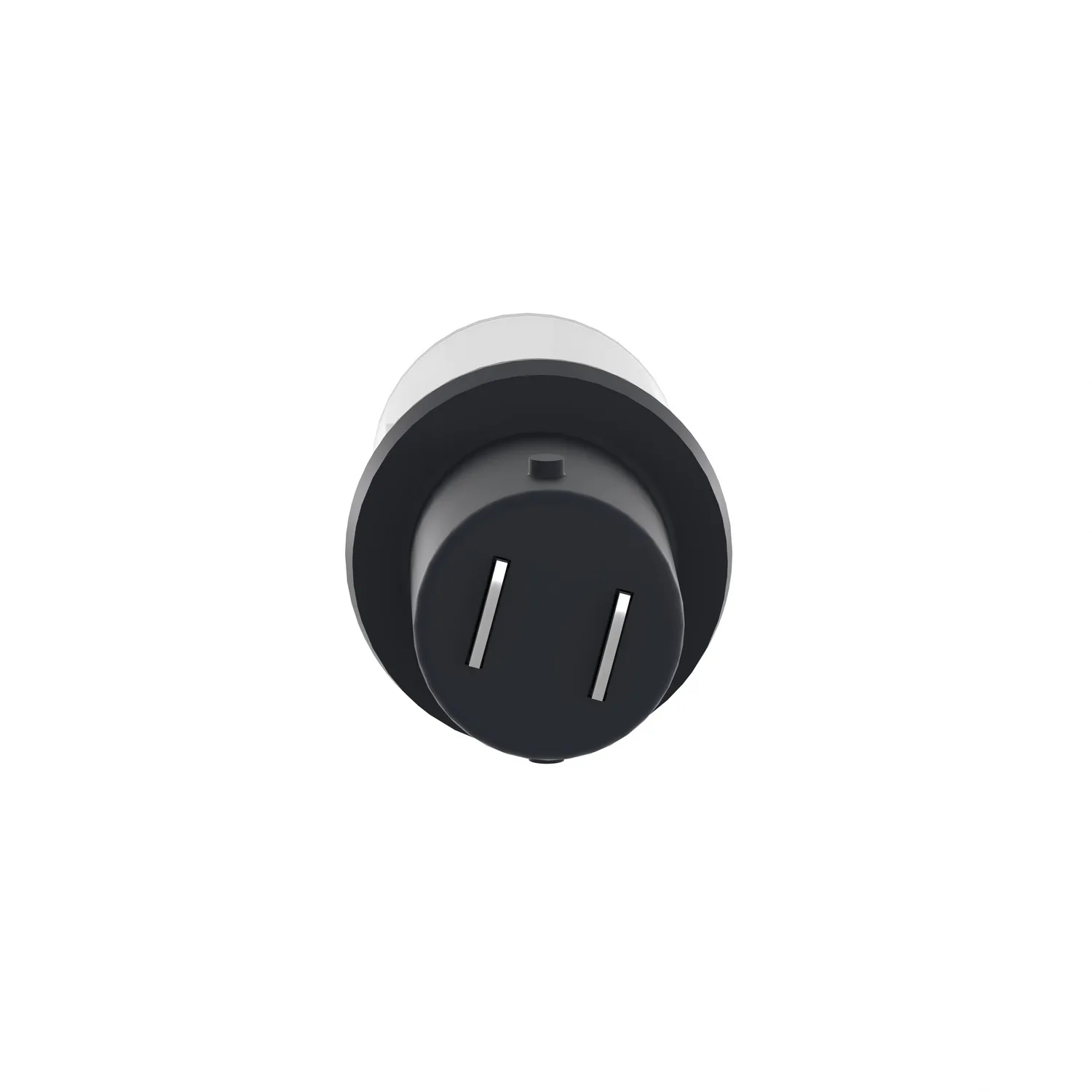

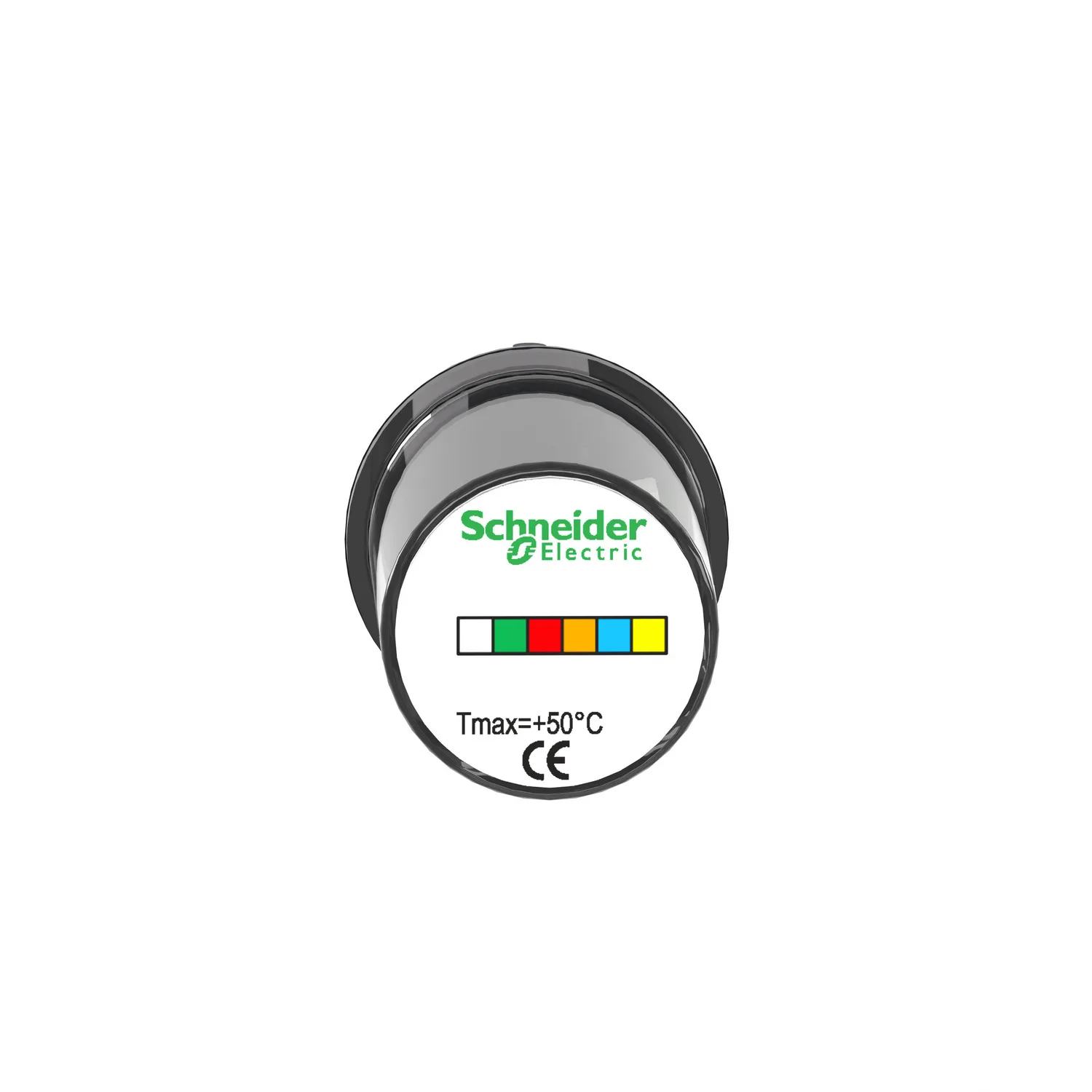

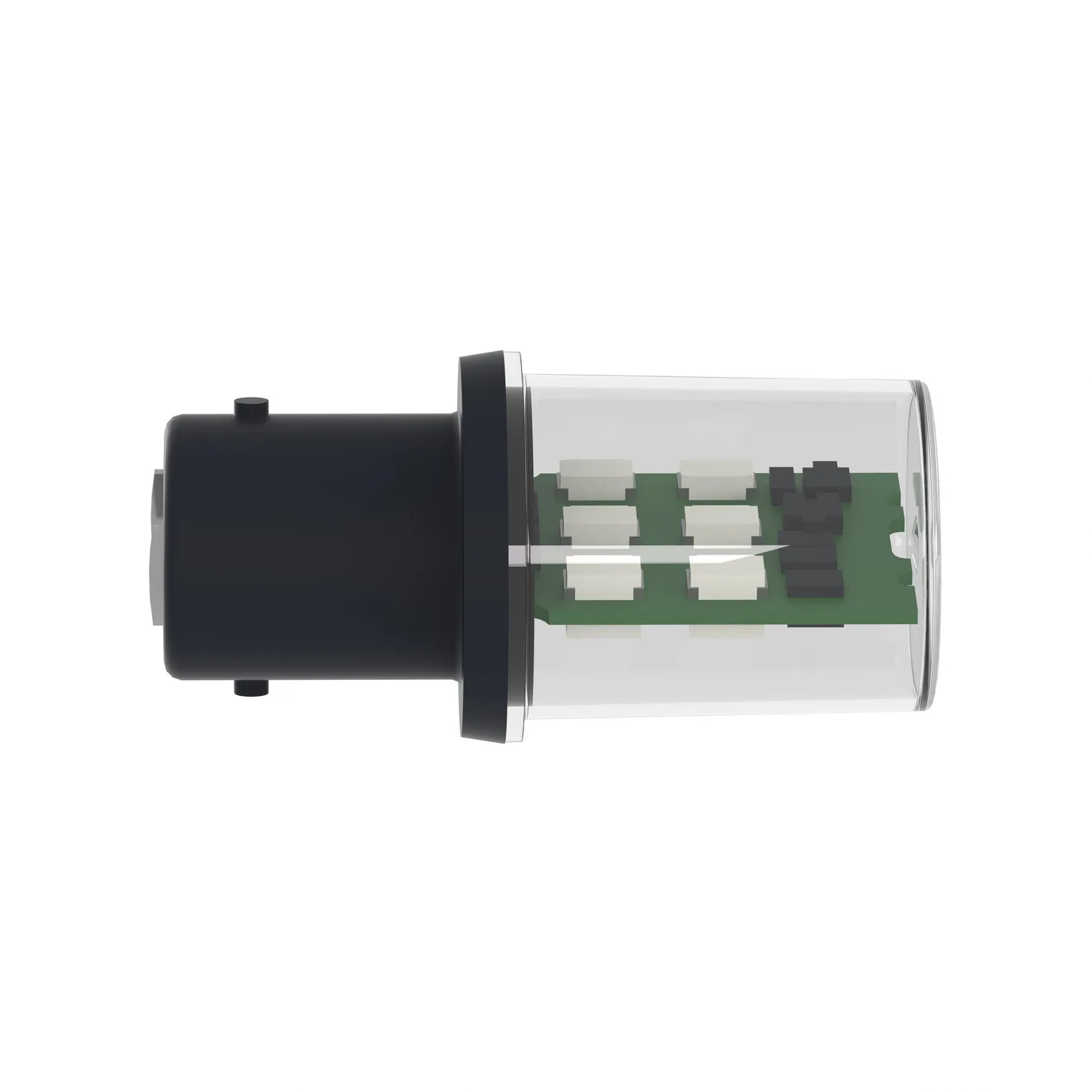

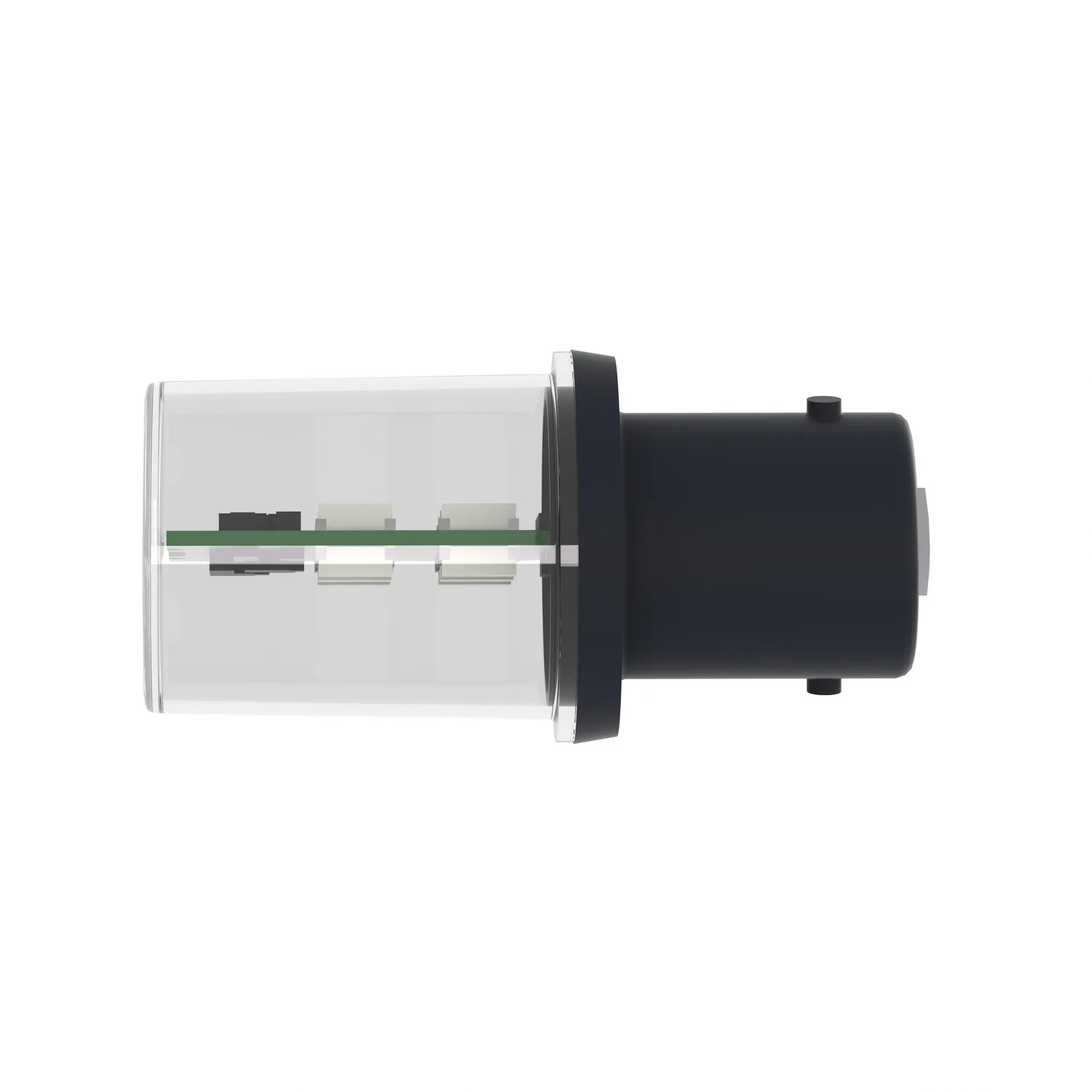

LED CLUSTER 230V (RED)
Schneider DL1BDM4, LED CLUSTER 230V (RED). Category: Harmony XVB. Not for sale; no price or quote is offered for this product.
- Reference:DL1BDM4
- Manufacturer / Brand:Schneider
Key Specifications
- Range Compatibility
- Harmony XVB; Harmony XVD; Harmony XVP
- Accessory / Separate Part Designation
- Protected LED bulb
- Accessory / Separate Part Type
- LED bulb
- Accessory / Separate Part Category
- Lighting accessories
Product Description
This Harmony XVB spare protected LED bulb is supplied with230V AC and provides a steady red light. This spare integral LED bulb is a lighting accessory for beacon and indicator bank. It provides a steady red light thanks to its high endurance LED. It is compatible with Harmony XVD, Harmony XVP, and Harmony XVB. Its simple and modular design allows easy installation. It features high brightness for easy identification of function and operation mode, even in brightly lit environments. It also features high endurance LED lighting for less replacement and process downtimes. • Steady light schemes to allow for consistent alert of machine status to workfloor staff around the machine
Key Features
- High brightness for easy identification of function and operation mode, even in brightly lit environments
- High endurance LED lighting for less replacement and process downtimes
Technical Specifications
Main9
| Range Compatibility | Harmony XVB; Harmony XVD; Harmony XVP |
|---|---|
| Accessory / Separate Part Designation | Protected LED bulb |
| Accessory / Separate Part Type | LED bulb |
| Accessory / Separate Part Category | Lighting accessories |
| Accessory / Separate Part Destination | Beacon and indicator bank |
| [Us] Rated Supply Voltage | 230 V AC |
| Signalling Type | Steady |
| Signalling Colour | Red |
| Sale Per Indivisible Quantity | 1 |
Complementary3
| Current Consumption | 17 mA |
|---|---|
| Bulb Base | BA 15d |
| Net Weight | 0.015 kg |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.8 cm |
| Package 1 Width | 4.5 cm |
| Package 1 Length | 3.5 cm |
| Package 1 Weight | 12.0 g |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 60 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 1.032 kg |
Logistical informations1
| Country Of Origin | ID |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
