Telemecanique Sensors

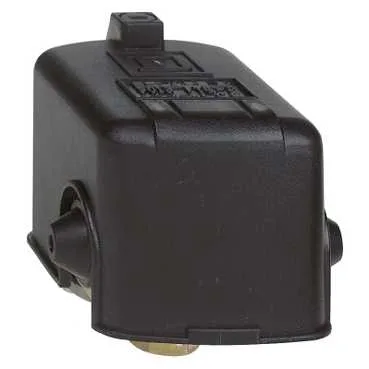

Pressure switch, FYG, pressure range 10.5 bar, adjustable scale, 2NC, 2 thresholds
Telemecanique Sensors FYG32, Pressure switch, FYG, pressure range 10.5 bar, adjustable scale, 2NC, 2 thresholds. Category: FSG, FYG for water up to 10 bar adjustable differential. Request a quote for price and lead time.
- Reference:FYG32
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:49.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Pressure sensors XM
- Pressure Sensor Type
- Electromechanical pressure sensor
- Pressure Sensor Name
- FYG
- Fluid Connection Type
- G 1/4 (female) conforming to ISO 228
Product Description
The Telemecanique Sensors FYG32 is a pressure switch with a 10.5 bar pressure range, adjustable scale, and 2NC contact configuration. As an OsiSense XM series product, this switch provides reliable pressure control in water systems. Contact UC-EL Electric for a quote.
Technical Specifications
Main14
| Range Of Product | Telemecanique Pressure sensors XM |
|---|---|
| Pressure Sensor Type | Electromechanical pressure sensor |
| Pressure Sensor Name | FYG |
| Fluid Connection Type | G 1/4 (female) conforming to ISO 228 |
| Controlled Fluid | Fresh water (0-70 °C), sea water (0-70 °C) |
| Cable Entry | 2 cable entries with grommet |
| Contacts Type And Composition | 2 NC snap action |
| Product Specific Application | Not applicable |
| Pressure Switch Type Of Operation | Regulation between 2 thresholds |
| Electrical Connection | Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2 mm² |
| Scale Type | Adjustable differential |
| Setting | Internal |
| Local Display | Without |
| Electrical Circuit Type | Power circuit |
Complementary7
| Materials In Contact With Fluid | Nitrile, nylon 6/6, zinc plated steel |
|---|---|
| Enclosure Material | PS |
| Operating Position | Any position |
| Pressure Actuator | Diaphragm |
| Terminal Block Type | 4 terminals |
| Operating Rate | 10 cycles/min |
| Terminals Description ISO N°1 | (1-2)NC, (3-4)NC |
Environment4
| Standards | CE, IEC 60730 |
|---|---|
| Protective Treatment | TC |
| Electrical Shock Protection Class | Class I conforming to IEC 536 |
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 10.5 cm |
| Package 1 Length | 11 cm |
| Package 1 Weight | 0.377 kg |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 25 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 10.007 kg |
| Unit Type Of Package 3 | carton |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 10.5 cm |
| Package 3 Width | 7.5 cm |
| Package 3 Length | 10.3 cm |
| Package 3 Weight | 0.36 kg |
| Indivisible Sale Quantity | 1 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
